Taramps TS 1200X4

The Taramps TS 1200X4 is a powerful and compact 4-channel amplifier designed for high-end car audio systems. With a total of 1,200 watts RMS at 2 ohms, this power amplifier delivers ample power for powerful front and rear systems, midrange speakers, woofers, drivers, or tweeters. Thanks to its full-range design, the amplifier is exceptionally versatile.

Each of the four channels delivers up to 300 watts RMS into 2 ohms. For applications requiring higher power, two channels can be bridged together. This provides up to 2 x 600 watts RMS into 4 ohms—for example, to power high-power speakers or subwoofers.

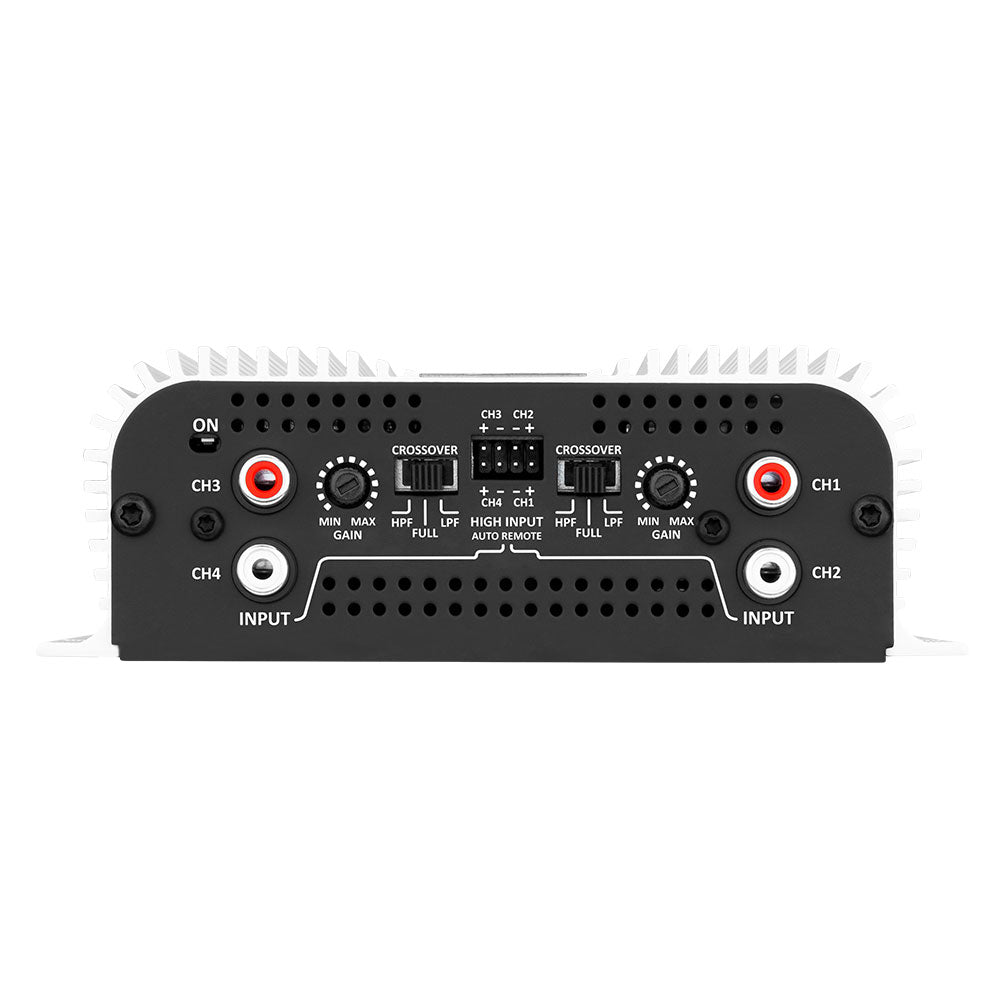

In addition to standard RCA inputs, the TS 1200X4 features high-level inputs with an automatic power-on function. This makes the power amplifier ideal for integration into vehicles with factory-installed radios that do not have standard RCA outputs. Level adjustment can be performed on a per-channel basis.

For frequency division, fixed HPF and LPF filters at 90 Hz as well as a full-range mode are available. Despite its high output power, the TS 1200X4 remains extremely compact at just 250 mm in length, making it easy to install even in tight spaces.

Technical Specifications

• Amplifier Type: 4-channel Class D amplifier
• Specifications: 2 ohms
• Number of channels: 4
• Total power: 1,200 watts RMS
• Output power at 14.4 V:
  • 4 x 300 watts RMS at 2 ohms
  • 4 x 185 watts RMS at 4 ohms
• Bridged output power:
  • 2 x 600 watts RMS at 4 ohms
• Minimum output impedance: 2 ohms per channel
• Bridge Mode: 4 ohms
• Full-range frequency response: 8 Hz – 25 kHz (-3 dB)
• High-pass filter (HPF): 90 Hz, fixed, -12 dB/oct.
• Low-pass filter (LPF): 90 Hz, fixed, -12 dB/oct.
• Crossover Modes: HPF / FULL / LPF
• Cinch/RCA input sensitivity: 250 mV – 4 V
• High-level input sensitivity: 3 V to >10 V
• RCA input impedance: 10 kOhm
• Signal-to-noise ratio: >90 dB
• Inputs: RCA and high-level
• High-Level-Eingang: 4-kanalig
• Auto Turn-On via High-Level: Yes
• Gain control: per channel
• Schutzschaltung: Ausgangs-Kurzschlussschutz
• Supply voltage: 9–16 V DC
• Quiescent current consumption: 0.9 A
• Maximum current draw during music playback: 55 A
• Current consumption at rated power: 110 A
• Dimensions (W x H x D): 138 x 48 x 250 mm
• Weight: 1.24 kg



Special Features

• High total power output of 1,200 watts RMS in a compact design
• Four high-power channels, each delivering 300 watts RMS into 2 ohms
• Two channel pairs, bridgeable for up to 2 x 600 watts RMS
• Full-range design for various speaker configurations
• High-level inputs for easy integration with factory-installed radios
• Automatic Power-On When Using the High-Level Input
• Separate gain control for each channel
• Integrated Fixed High-Pass and Low-Pass Filters
• Class D technology for high power output in a compact design
• Suitable for front systems, rear systems, midrange speakers, woofers, drivers, tweeters, and other car audio applications
