Taramps | Barcode: 7908706601312

Taramps THE BIG BOSS 5 BASS

999,00€

Tax included Shipping calculated at checkout.

Amplifier

Packaging unit

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

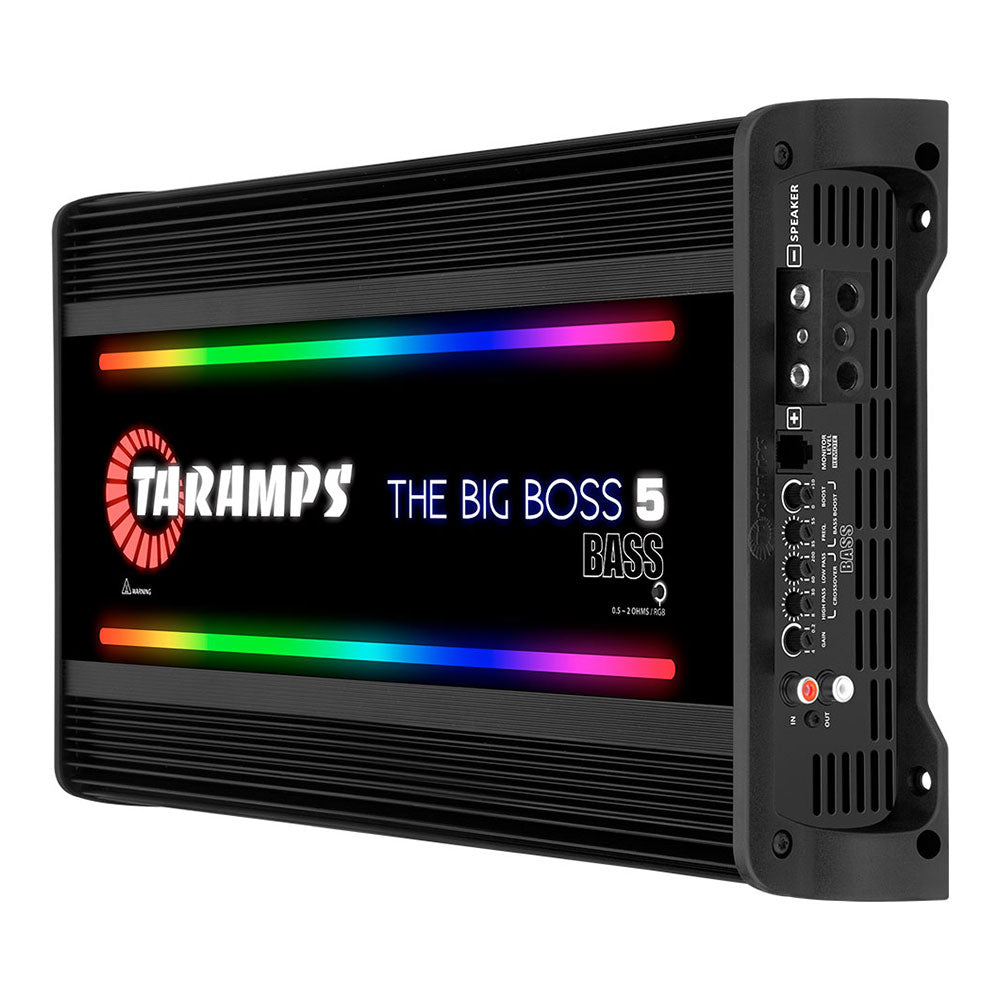

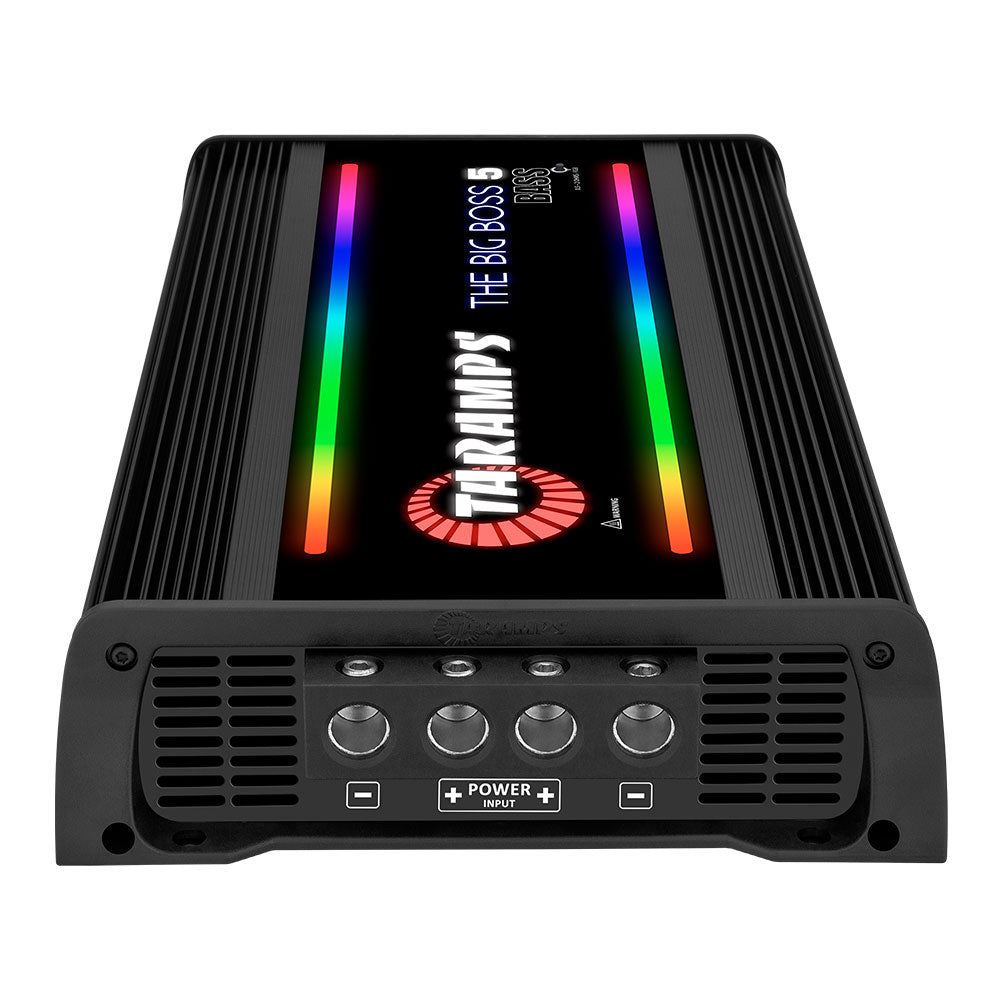

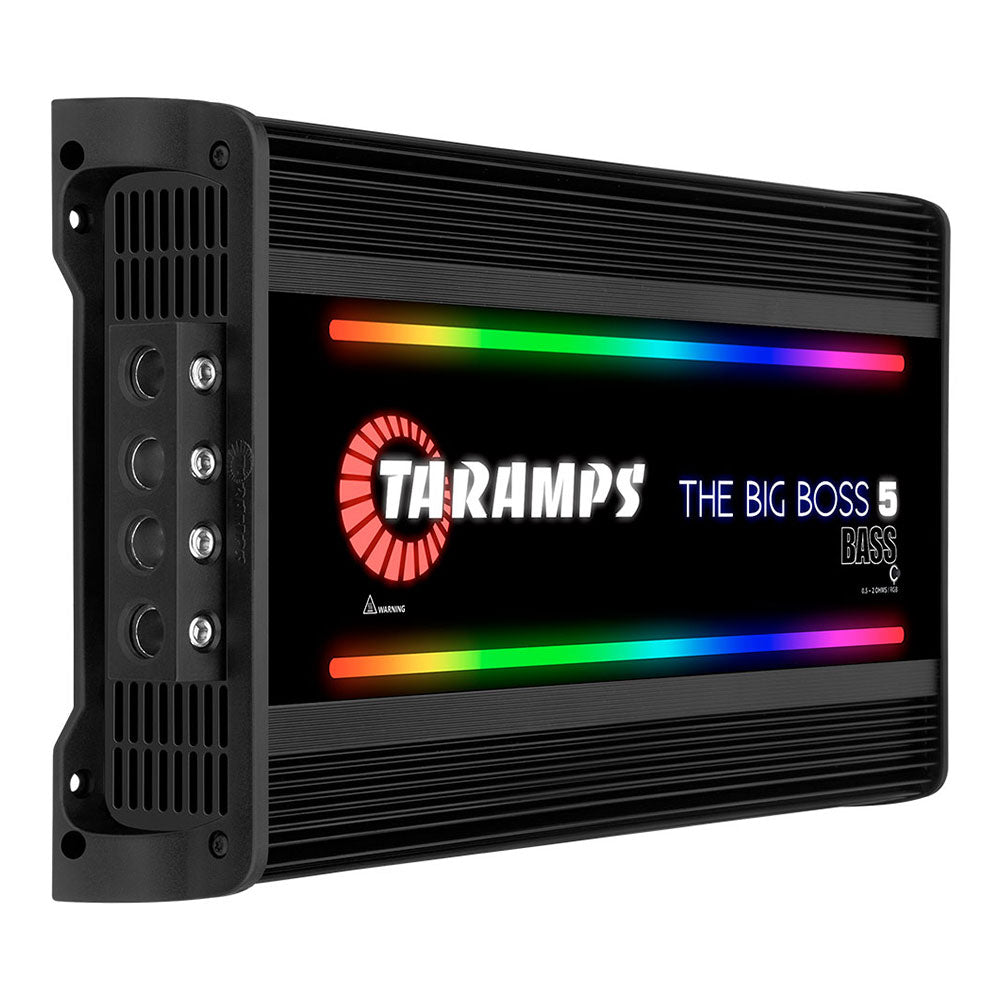

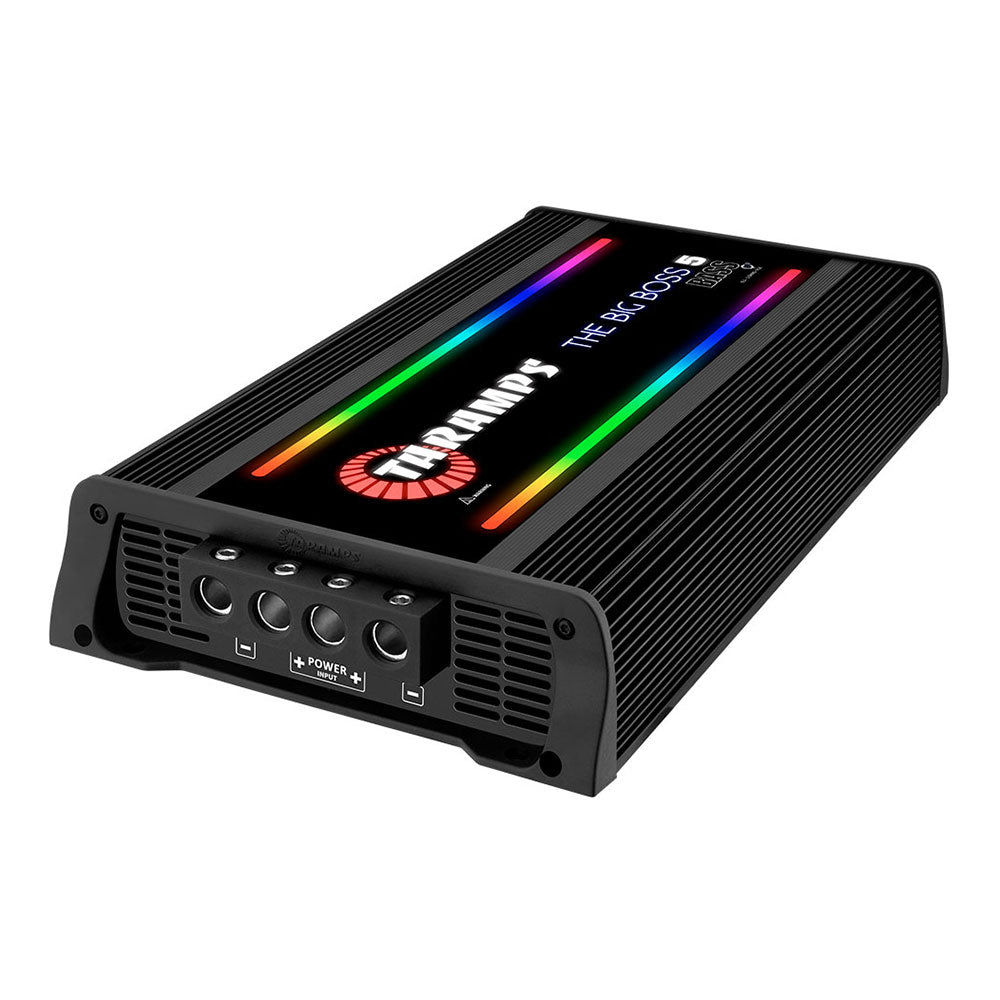

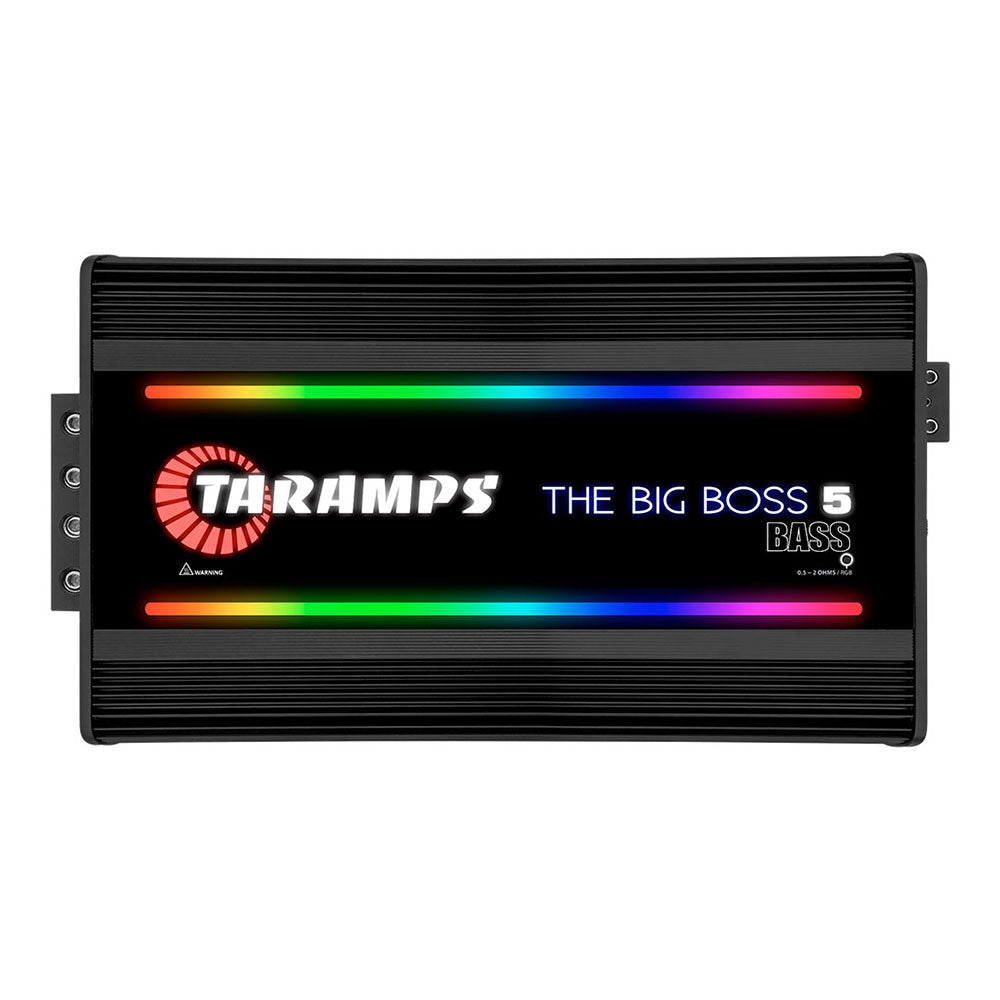

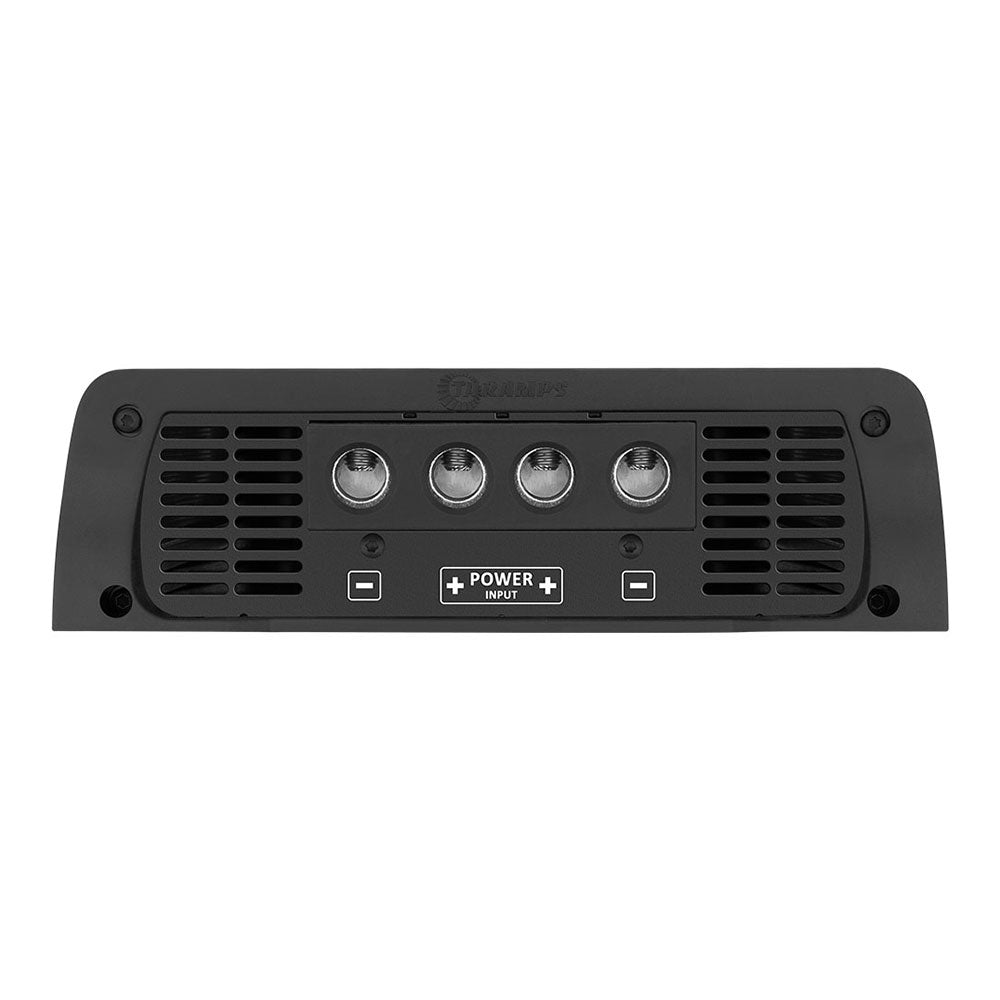

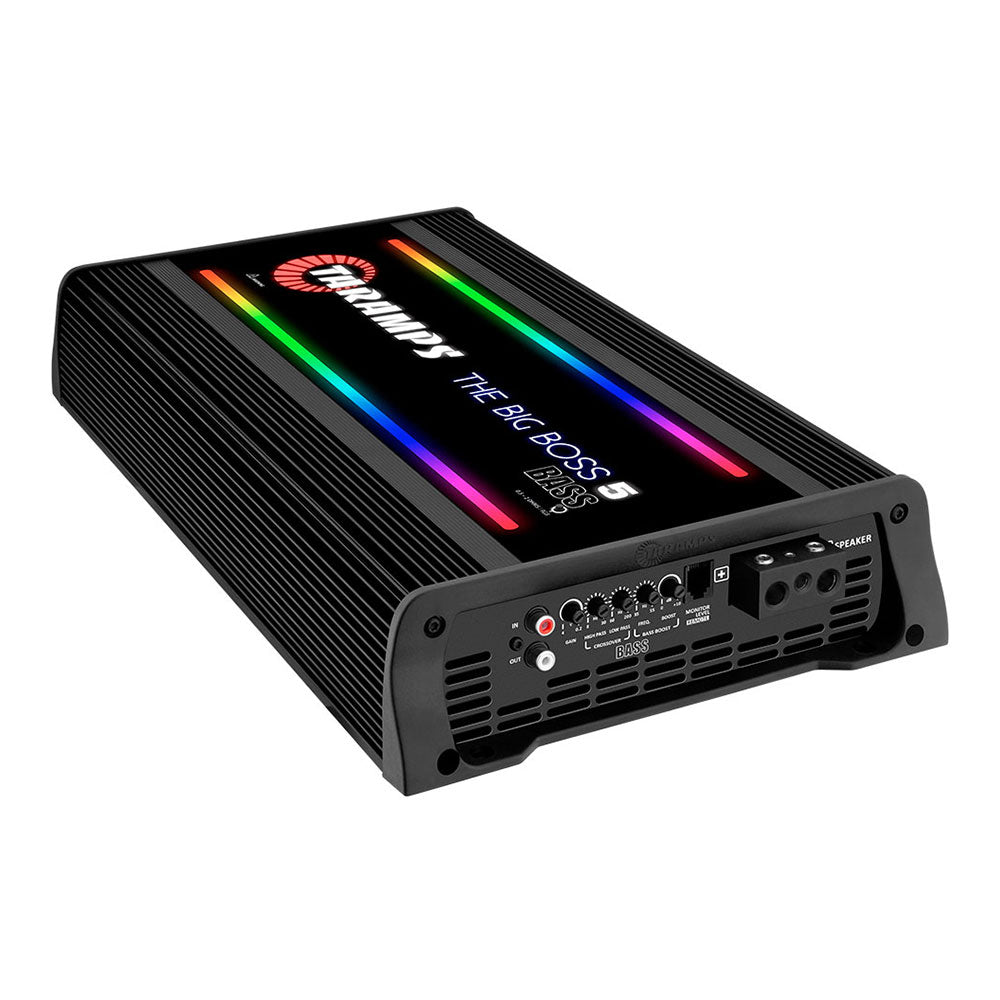

The Taramps THE BIG BOSS 5 BASS is a high-performance mono amplifier designed specifically for demanding subwoofer applications. With an output power of up to 5,000 watts RMS, this power amplifier offers enormous power reserves for high-performance bass and SPL systems.

One standout feature is the automatic multi-impedance technology. The amplifier can operate within a load range of 0.5 to 2 ohms, delivering up to 5,000 watts RMS. This allows for a wide variety of subwoofer configurations without having to use a separate amplifier model for each impedance.

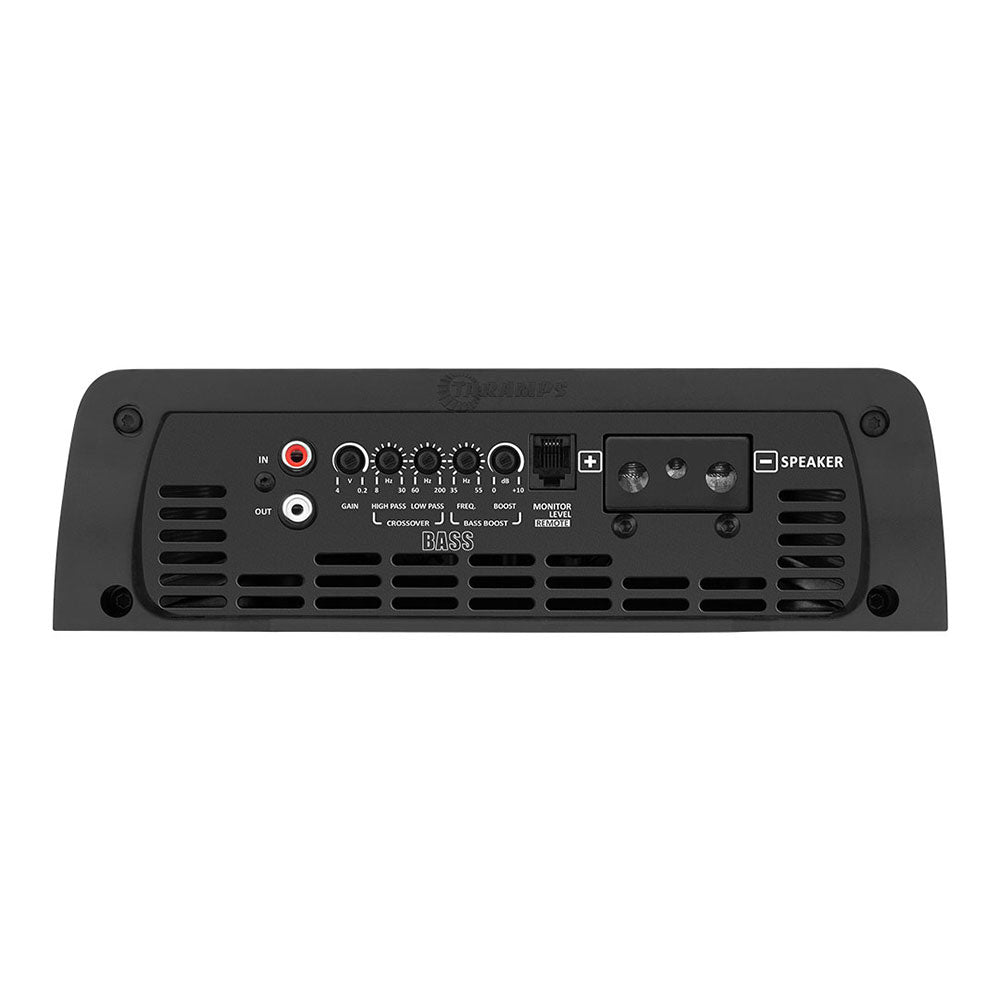

To adapt to the subwoofer system, the THE BIG BOSS 5 BASS features a variable high-pass filter ranging from 8 to 30 Hz and a variable low-pass filter ranging from 60 to 200 Hz. In addition, a bass boost with an adjustable frequency between 35 and 55 Hz and a boost of up to +10 dB is available.

In addition to its high output power, the amplifier features built-in RGB lighting with 108 different LED effects. The lighting can display different colors and effects in sync with the music, making the amplifier an attractive option for visible show installations.

Technical Specifications

Amplifier Type: Mono Amplifier for Subwoofers
Number of channels: 1 channel
Multi-impedance operation: 0.5–2 ohms
Rated power at 14.4 V / 0.5 ohms: 1 x 5,000 watts RMS
Rated power at 14.4 V / 1 ohm: 1 x 5,000 watts RMS
Rated power at 14.4 V / 2 ohms: 1 x 5,000 watts RMS
Rated power at 14.4 V / 4 ohms: 1 x 2,700 watts RMS
Input sensitivity: 0.2–4 V
Signal-to-noise ratio: > 90 dB
Frequency response: 8 – 200 Hz (-3 dB)
High-pass filter (HPF): 8–30 Hz, variable
HPF slope: 12 dB/oct.
Low-pass filter (LPF): 60–200 Hz, variable
LPF slope: 12 dB/oct.
Bass boost frequency: 35–55 Hz
Bass Boost: 0 to +10 dB
Input impedance: 10 kOhm
Output impedance: 0.5–2 ohms
Efficiency at 0.5 ohms: 76%
Efficiency at 1 ohm: 80%
Efficiency at 2 ohms: 84%
Supply voltage: 9–17 V DC
Standby current consumption: 2.60 A
Maximum music current draw at 0.5 ohms: 230 A
Maximum music current draw at 1 ohm: 215.5 A
Maximum music current draw at 2 ohms: 210 A
Maximum current draw with a sine wave signal / 0.5 ohms: 461 A
Maximum current draw with a sine wave signal / 1 ohm: 431 A
Maximum current draw with a sine wave signal / 2 ohms: 420 A
Protection circuits: output short circuit, undervoltage, overvoltage, and overtemperature
RGB Lighting: 108 LED Effects
Recommended power cable cross-sectional area: 2 x 70 mm²
Recommended speaker cable cross-sectional area: 10 mm²
Dimensions (W x H x D): 238 x 71 x 427 mm
Weight: 5.80 kg
