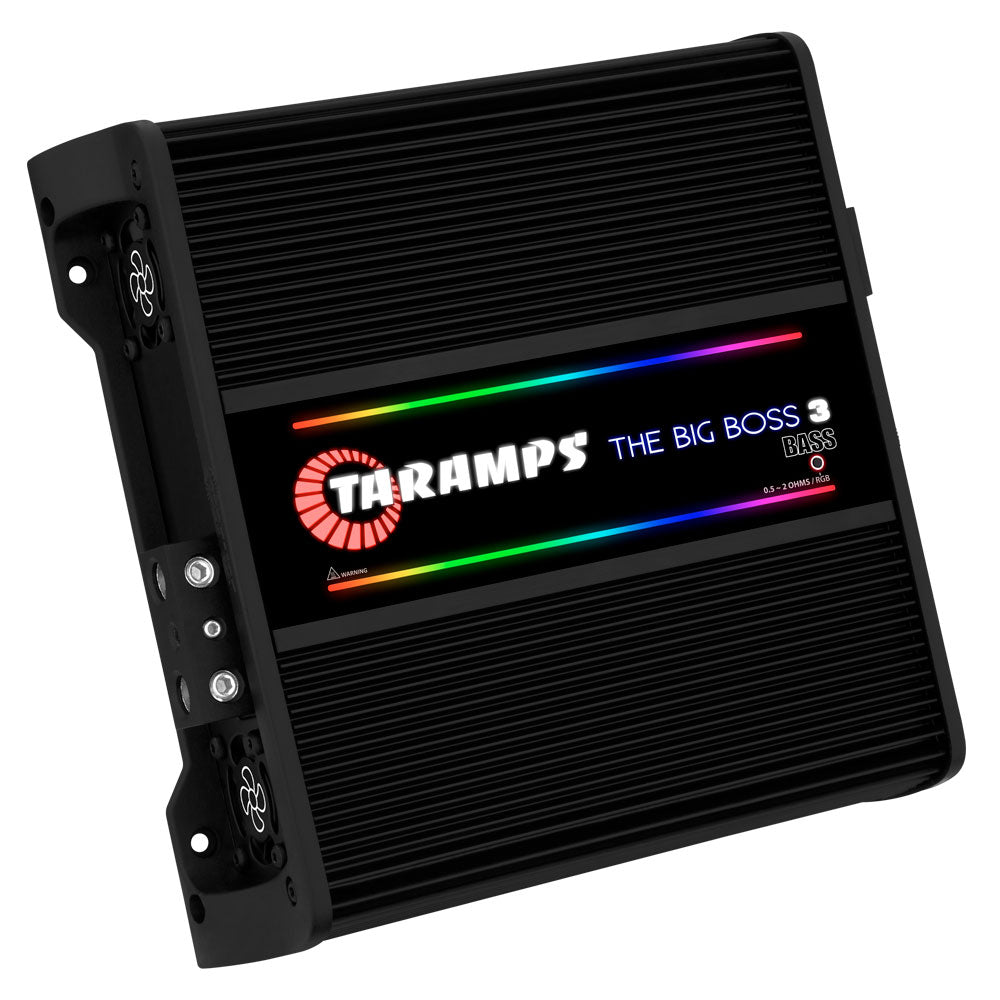

Taramps THE BIG BOSS 3 BASS

The Taramps THE BIG BOSS 3 BASS is a high-performance mono amplifier designed specifically for driving subwoofers and performance-oriented bass systems. With up to 3,000 watts RMS, this power amplifier offers high power reserves for demanding car audio and SPL applications.

A unique feature of the THE BIG BOSS 3 BASS is its automatic multi-impedance technology. The amplifier can operate within a load range of 0.5 to 2 ohms while delivering its full rated power of 3,000 watts RMS. This makes the power amplifier particularly versatile when paired with different subwoofer configurations.

To adjust the bass range, a variable high-pass (or subsonic) filter ranging from 8 to 30 Hz and a variable low-pass filter ranging from 60 to 200 Hz are available. In addition, the bass boost can be adjusted between 0 and +10 dB, with the cutoff frequency selectable between 35 and 60 Hz.

In addition to its high output power, the THE BIG BOSS 3 BASS features various protective circuits against output short circuits, under- or over-voltage, and thermal overload. The built-in RGB lighting with 108 effects adds an eye-catching visual element to the amplifier and can display various light patterns in sync with the music.

Technical Specifications

• Amplifier Type: Mono Amplifier for Subwoofers
• Number of channels: 1
• Automatic Multi-Impedance Technology
• Permissible output impedance range: 0.5 – 2 ohms
• Rated power at 14.4 V:
  • 0.5 ohms: 3,000 watts RMS
  • 1 ohm: 3,000 watts RMS
  • 2 ohms: 3,000 watts RMS
  • 4 ohms: 1,700 watts RMS
• Input sensitivity: 0.2–4 V
• Frequency response: 8 – 200 Hz (-3 dB)
• High-pass filter / HPF: 8–30 Hz, variable
• HPF slope: 12 dB/octave
• Low-pass filter / LPF: 60–200 Hz, variable
• LPF slope: 12 dB/octave
• Bass boost frequency: 35–60 Hz
• Bass Boost: 0 to +10 dB
• Efficiency: 75%
• Input impedance: 10 kOhm
• Minimum supply voltage: 9 V DC
• Maximum supply voltage: 17 V DC
• Quiescent current: 2.30 A
• Maximum current draw during music playback: 190 A
• Maximum current draw with a sine wave signal: 278 A
• Protection circuits: output short circuit, undervoltage, overvoltage, and thermal overload
• RGB lighting with 108 lighting effects
• Dimensions (W x H x D): 238 x 71 x 240 mm
• Weight: 3.00 kg



Connections & Power Supply

• Recommended battery capacity/power supply: at least 150 A
• Ideal power supply: approx. 180–200 A
• Recommended cross-sectional area for the power supply: at least 21 mm²
• Maximum cross-sectional area of the power supply: 50 mm²
• Recommended speaker cable cross-sectional area: 6 mm²
