Taramps | Barcode: 7898556849197

Taramps DS 4000X4

599,00€

Tax included Shipping calculated at checkout.

Amplifier

Packaging Unit

Variant

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

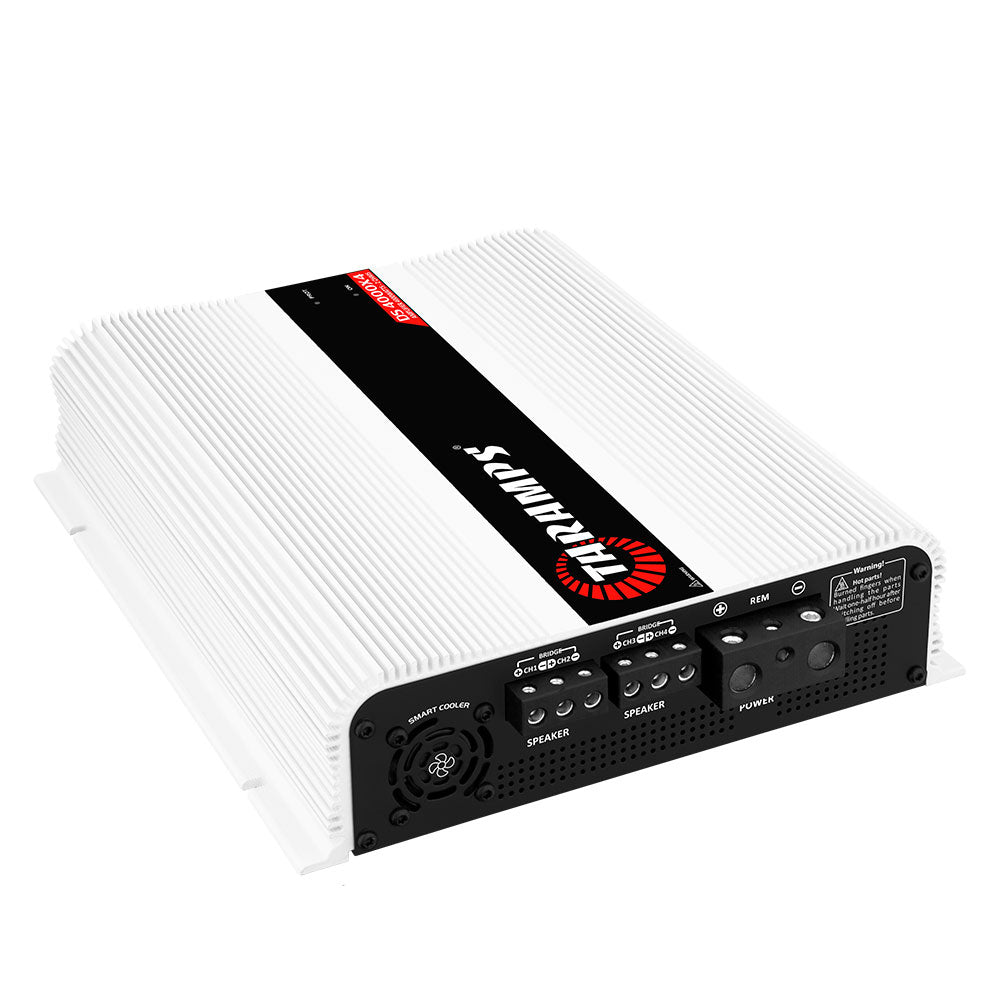

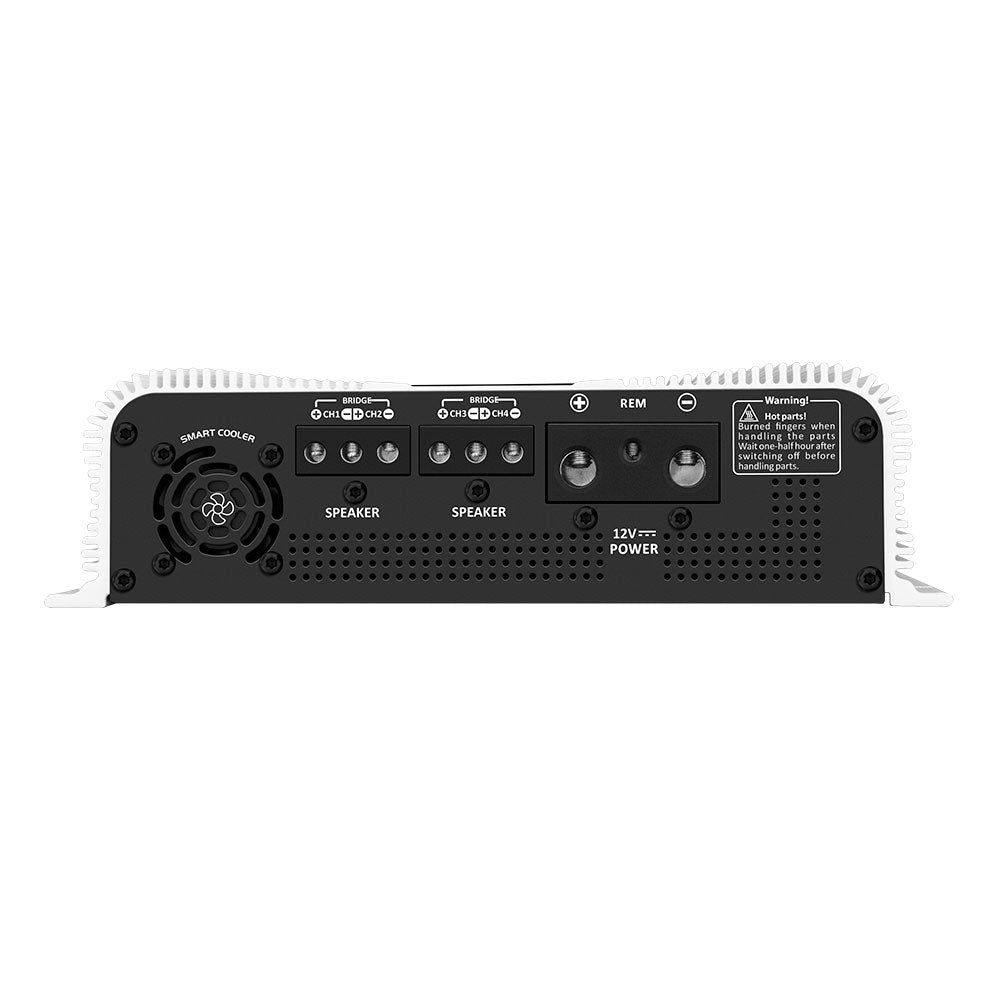

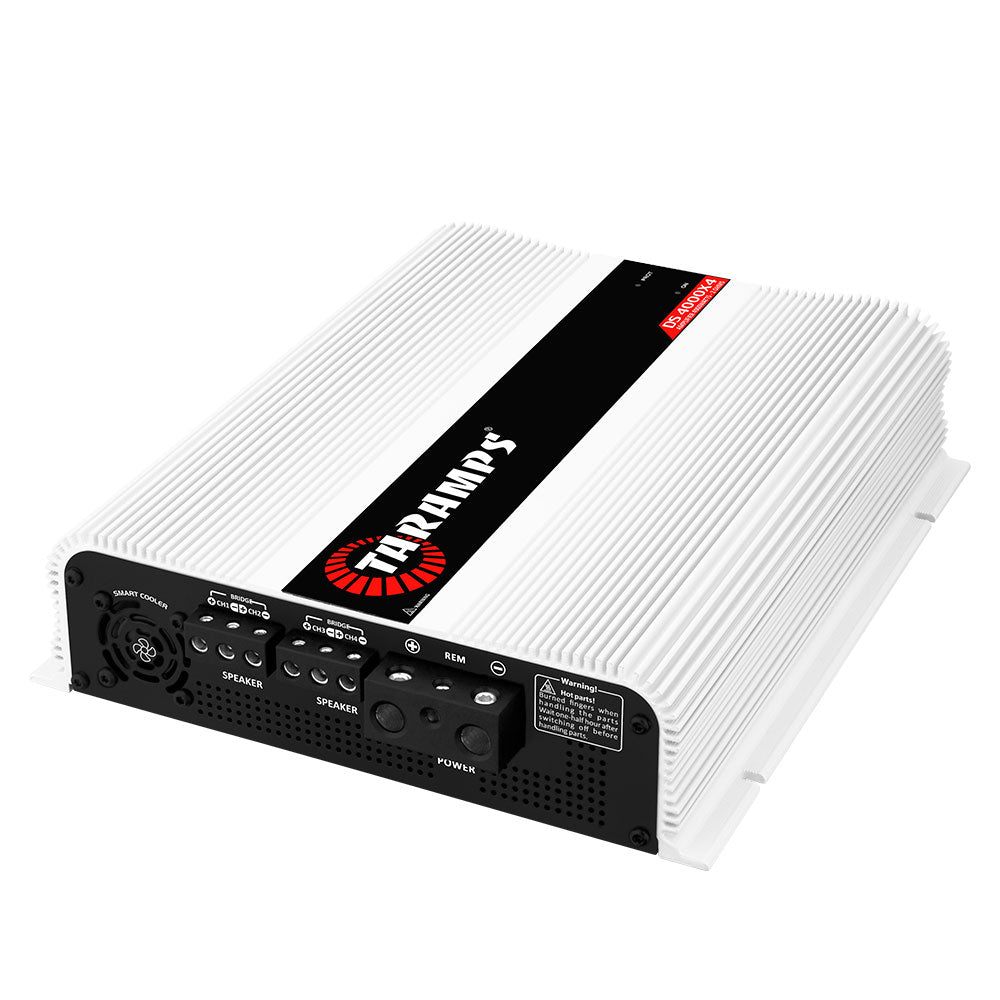

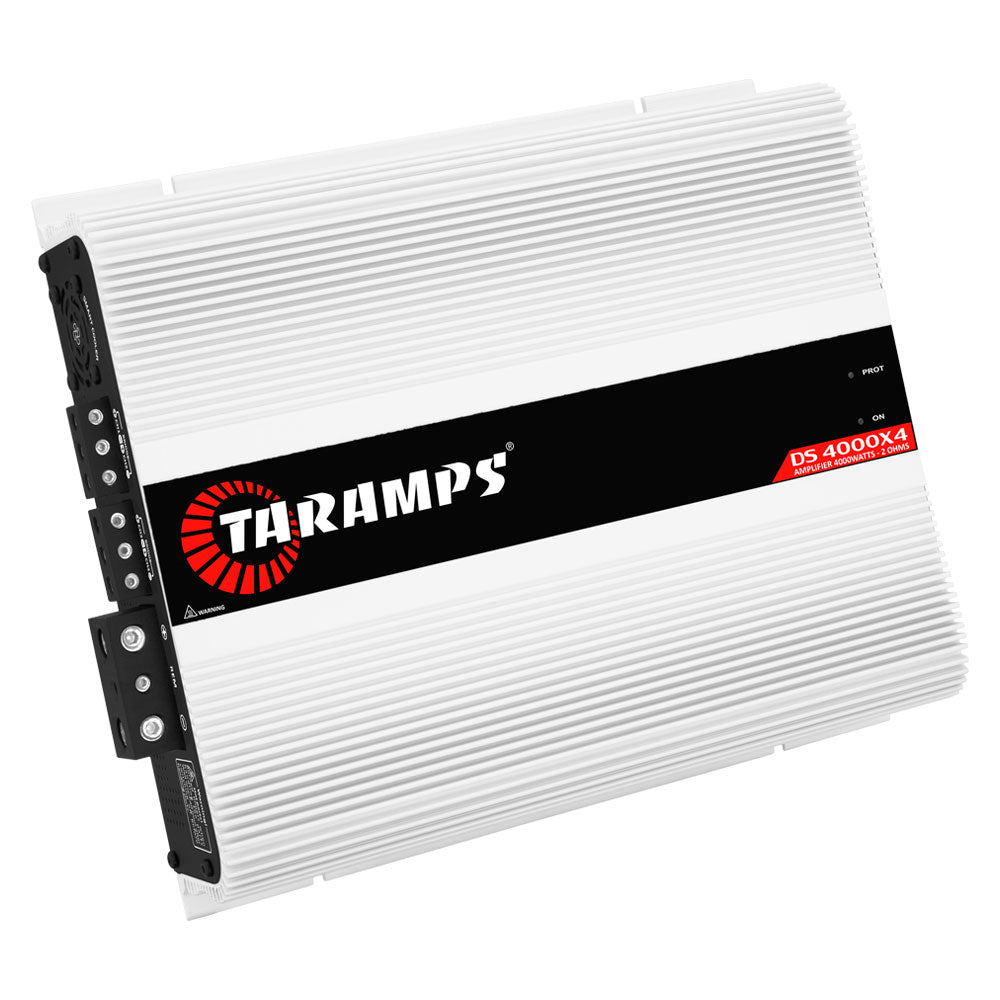

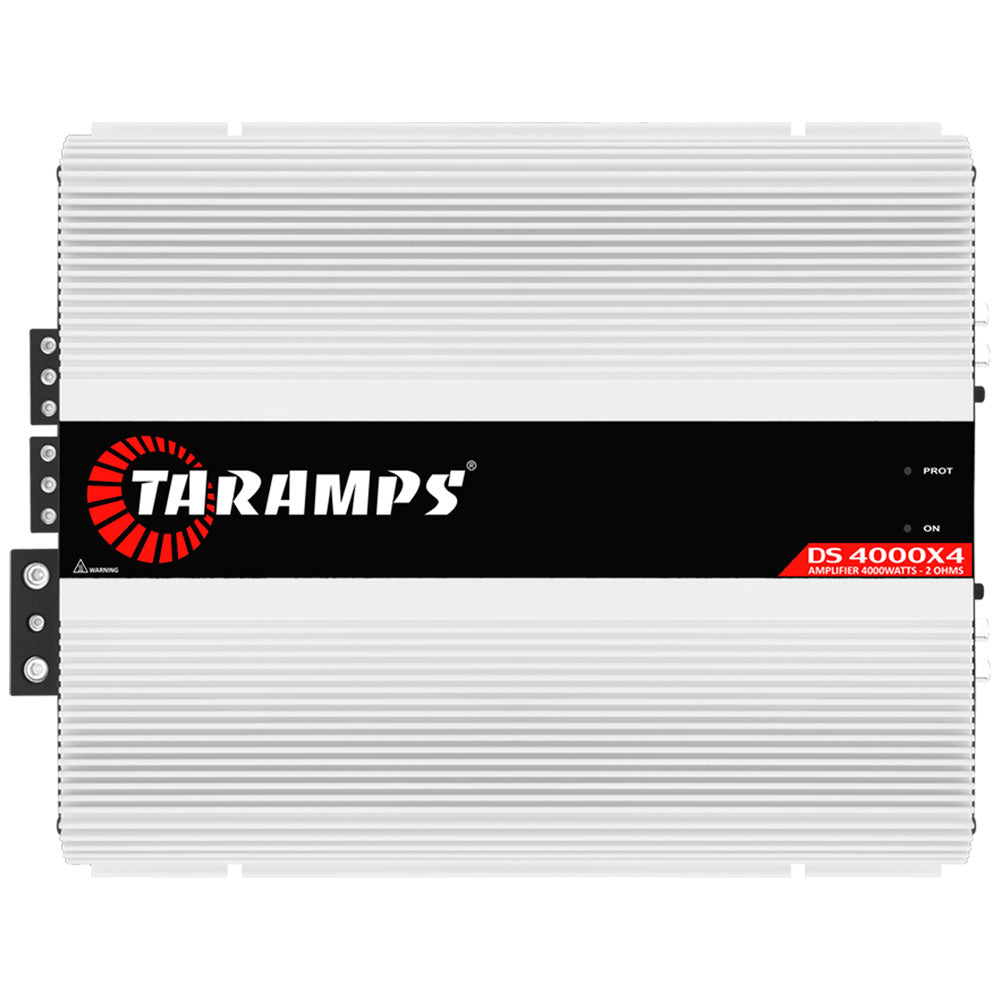

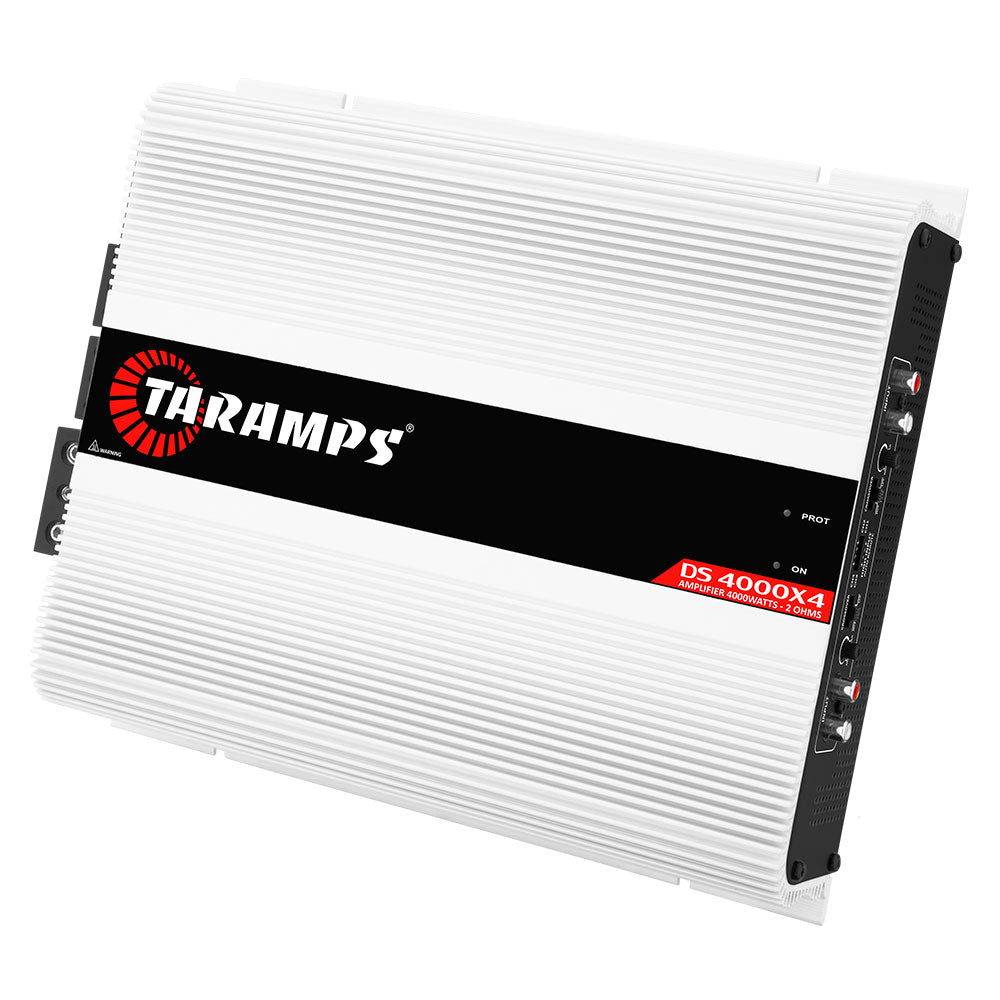

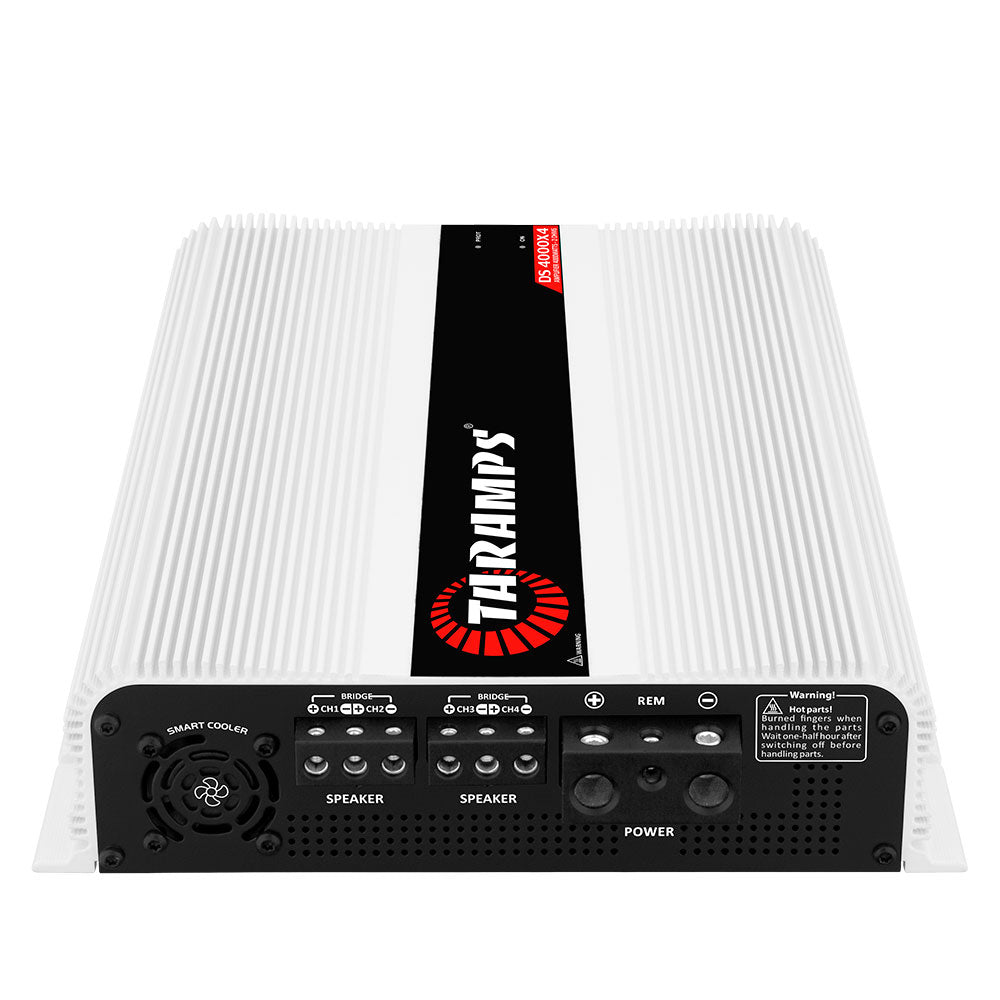

The Taramps DS 4000X4 is a high-performance 4-channel amplifier designed for demanding car audio systems that require high output power and flexible connection options. With a total of up to 4,000 watts RMS, this power amplifier is particularly well-suited for high-power speakers, midrange drivers, mid-bass drivers, or custom-built SPL and SQL systems.

The four amplifier channels can be operated individually or bridged in pairs. This allows, for example, four speakers to be powered separately or two particularly high-power loads, each with up to 2,000 watts RMS, to be driven.

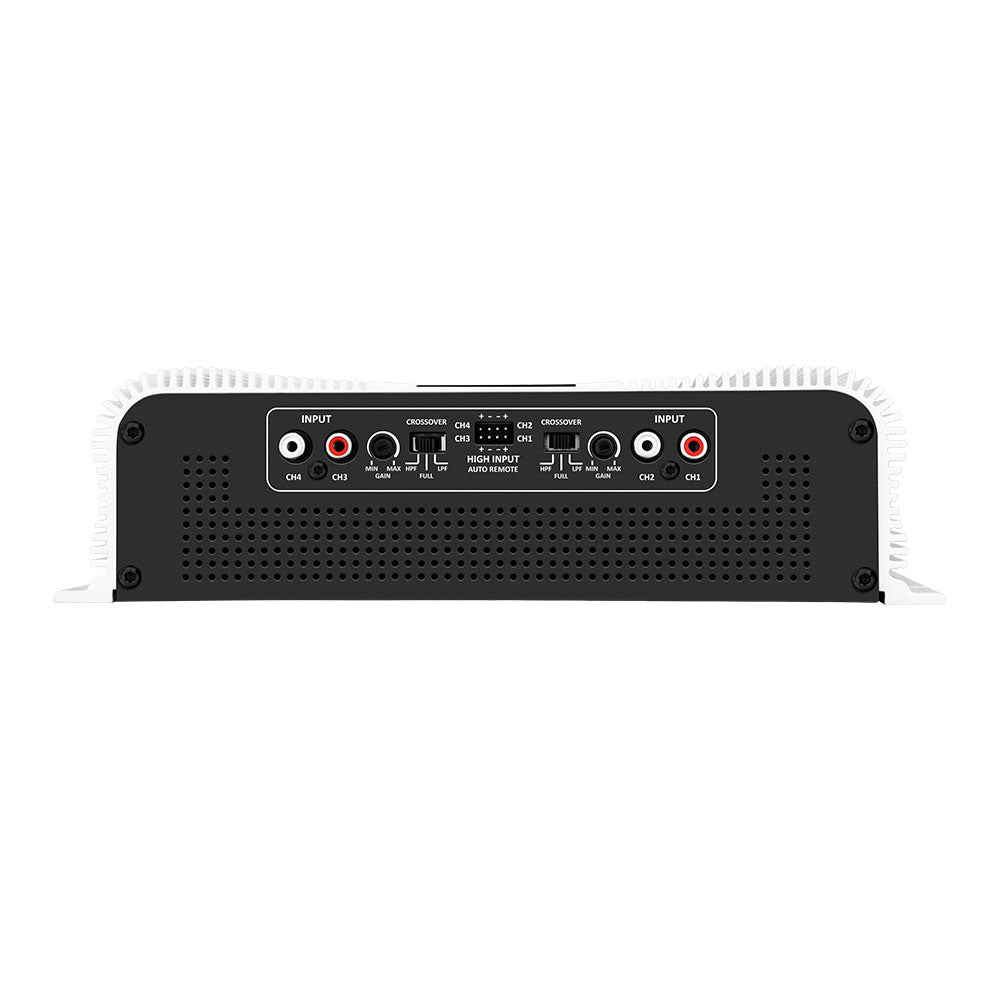

In addition to standard RCA inputs, the DS 4000X4 features a 4-channel high-level input with an automatic power-on function. This allows the power amplifier to be integrated into many vehicles equipped with a factory-installed radio or multimedia system without necessarily requiring an additional high-low adapter. The FULL, HPF, and LPF operating modes are available for adapting to different speaker configurations.

Technical Specifications – DS 4000X4 1 Ohm

Verstärkertyp: 4-Kanal Car-HiFi-Verstärker
Verstärkerklasse: Class D
Anzahl Kanäle: 4
Minimum output impedance: 1 ohm per channel
Nennleistung gemessen bei 14,4 V
Power at 1 ohm: 4 x 1,000 watts RMS
Total power at 1 ohm: 4,000 watts RMS
Power at 2 ohms: 4 x 600 watts RMS
Total power output at 2 ohms: 2,400 watts RMS
Bridge mode at 2 ohms: 2 x 2,000 watts RMS
Gesamtleistung im Brückenbetrieb: 4000 Watt RMS
RCA-/Cinch-Eingänge vorhanden
High-Level-/Wire-Eingang vorhanden
Automatische Einschaltfunktion über High-Level-Eingang
Eingangsempfindlichkeit bei maximalem Gain: 250 mV RCA / 3 V High-Level
Eingangsempfindlichkeit bei minimalem Gain: 4 V RCA / >10 V High-Level
Signal-Rausch-Abstand: >86 dB
Frequenzgang: 8 Hz – 20 kHz (-3 dB)
Betriebsarten: FULL / HPF / LPF
Hochpassfilter (HPF): 90 Hz, fest
HPF-Flankensteilheit: -12 dB/Oktave
Tiefpassfilter (LPF): 90 Hz, fest
LPF-Flankensteilheit: -12 dB/Oktave
Schutzschaltung gegen Ausgangskurzschluss bzw. Ausgangsüberlastung
Minimale Betriebsspannung: 9 V DC
Maximale Betriebsspannung: 17 V DC
Standby current consumption: 2.5 A
Maximum current draw during music playback: 185 A
Maximum current draw with a sine wave signal: 370 A
Abmessungen (B x H x T): 268 x 72 x 333 mm
Gewicht: 5,06 kg
EAN: 7898556849258

Technical Specifications – DS 4000X4 2 Ohms

Verstärkertyp: 4-Kanal Car-HiFi-Verstärker
Verstärkerklasse: Class D
Anzahl Kanäle: 4
Minimum output impedance: 2 ohms per channel
Nennleistung gemessen bei 14,4 V
Power at 2 ohms: 4 x 1,000 watts RMS
Total power output at 2 ohms: 4,000 watts RMS
Power at 4 ohms: 4 x 625 watts RMS
Total power output at 4 ohms: 2,500 watts RMS
Bridge mode at 4 ohms: 2 x 2,000 watts RMS
Gesamtleistung im Brückenbetrieb: 4000 Watt RMS
RCA-/Cinch-Eingänge vorhanden
High-Level-/Wire-Eingang vorhanden
Automatische Einschaltfunktion über High-Level-Eingang
Eingangsempfindlichkeit bei maximalem Gain: 250 mV RCA / 3 V High-Level
Eingangsempfindlichkeit bei minimalem Gain: 4 V RCA / >10 V High-Level
Signal-Rausch-Abstand: >86 dB
Frequenzgang: 8 Hz – 20 kHz (-3 dB)
Betriebsarten: FULL / HPF / LPF
Hochpassfilter (HPF): 90 Hz, fest
HPF-Flankensteilheit: -12 dB/Oktave
Tiefpassfilter (LPF): 90 Hz, fest
LPF-Flankensteilheit: -12 dB/Oktave
Schutzschaltung gegen Ausgangskurzschluss bzw. Ausgangsüberlastung
Minimale Betriebsspannung: 9 V DC
Maximale Betriebsspannung: 17 V DC
Standby current consumption: 2.8 A
Maximum current draw for an audio signal: 160 A
Maximum current draw with a sine wave signal: 320 A
Abmessungen (B x H x T): 268 x 72 x 333 mm
Gewicht: 5,06 kg
EAN: 7898556849197
