Stetsom BRAVO FULL 12K
Regular price
1.299,00€
Unit price
/
Unavailable
Stetsom BRAVO FULL 12K

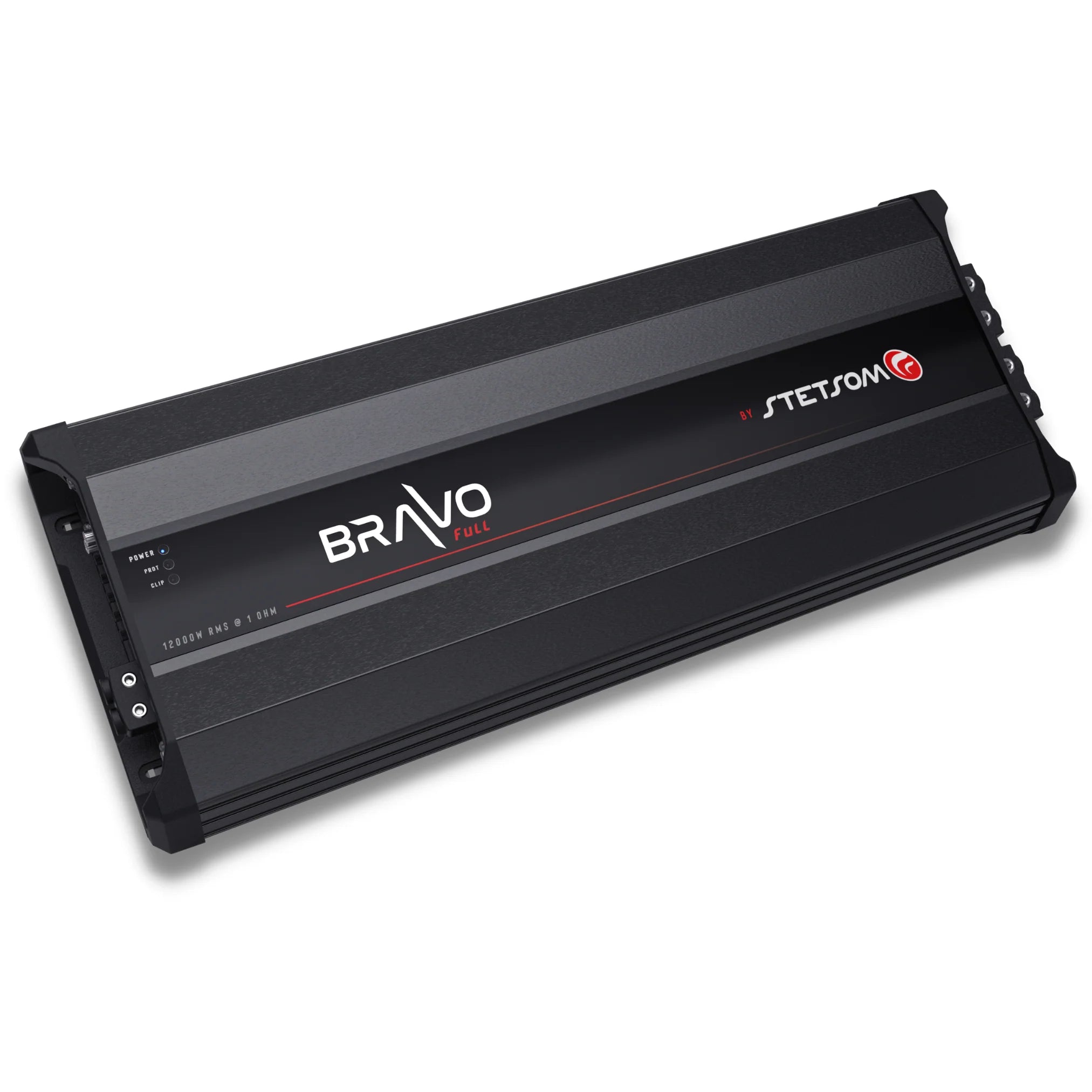

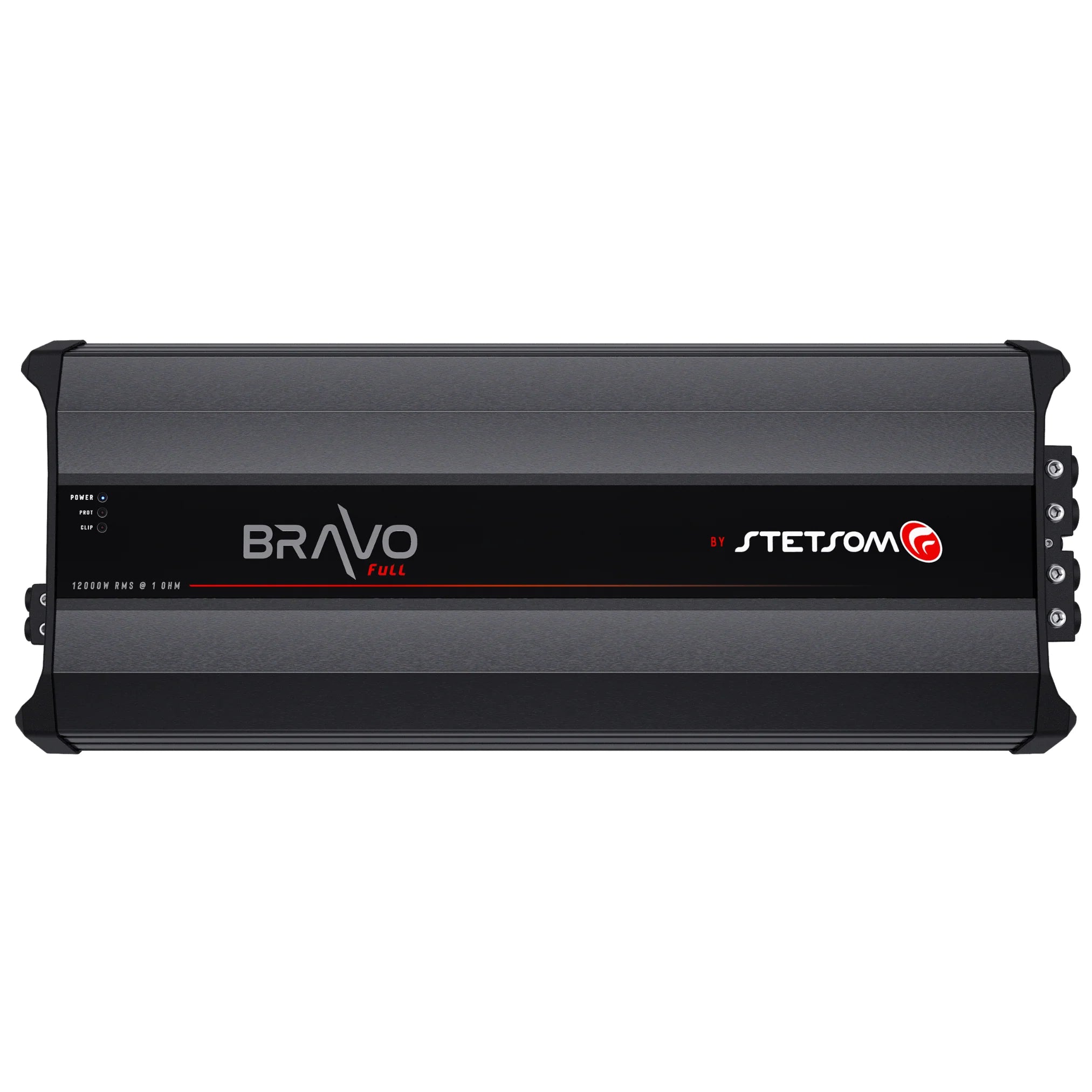

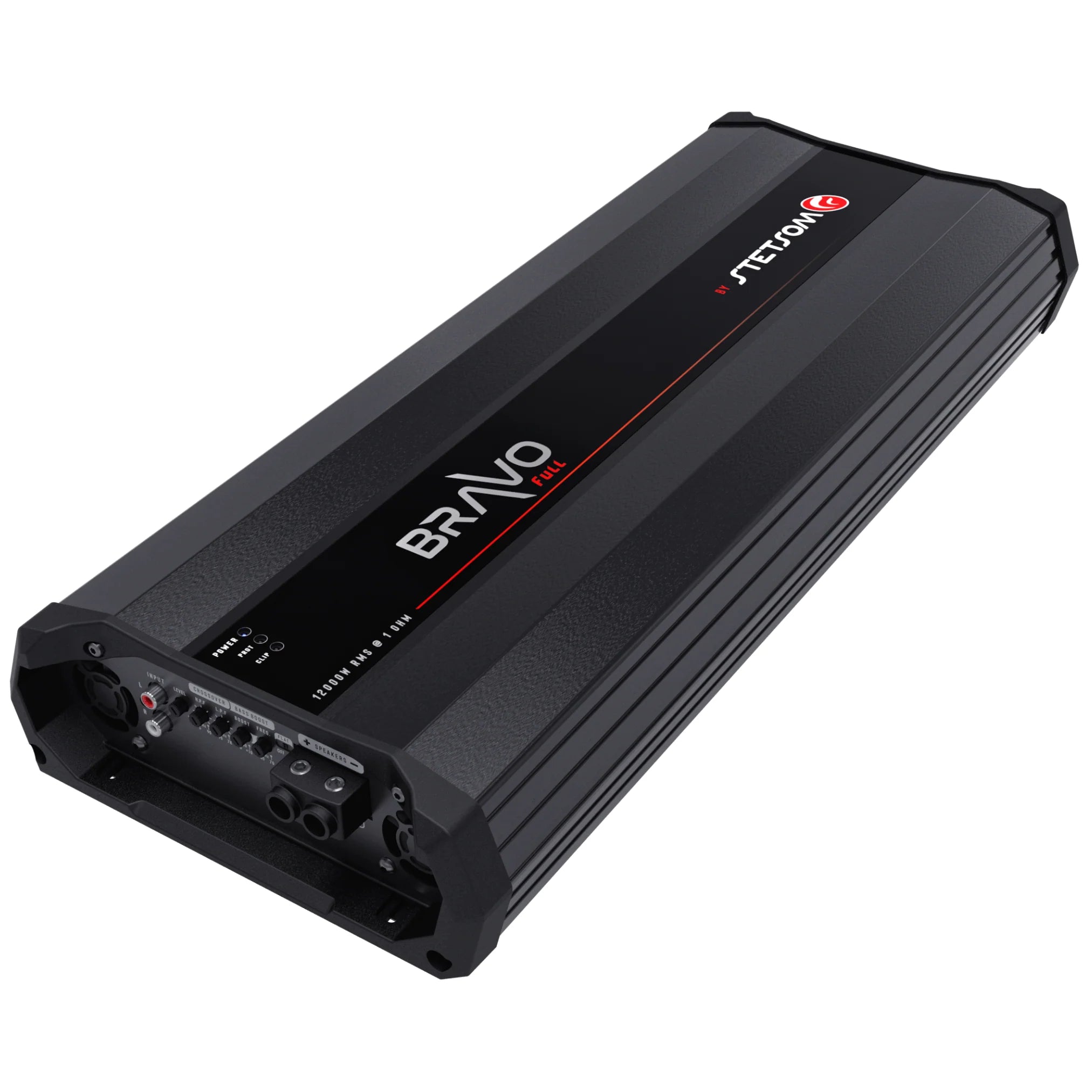

The Stetsom BRAVO FULL 12K - 1 Ohm is an uncompromising full-range monoblock for extreme car hi-fi projects with maximum power and exceptional sound quality. With a massive 12,000 watts RMS, the power amplifier offers enormous power reserves for powerful subwoofer, midrange and tweeter systems.
The BRAVO FULL series was specially developed for demanding full-range applications and impresses with an extended frequency range of 5 Hz to 7 kHz. This makes the amplifier not only suitable for massive bass setups, but also perfect for powerful woofer, driver and tweeter systems.
Thanks to modern Class D technology, the power amplifier works extremely efficiently and delivers a stable and controlled performance even under high loads. The integrated variable high-pass and low-pass filters enable precise adjustment to any sound system.
With massive power connections, robust construction and enormous output power, the Stetsom BRAVO FULL 12K - 1 Ohm is the ideal choice for SPL, trio and high-performance sound systems with uncompromising performance.
Technical data:
- Model: Stetsom BRAVO FULL 12000
- Channels: 1
- RMS power: 12,800 W RMS
- Minimum impedance: 1 Ohm / 2 Ohm
Power at 14.4 V | 1 Ohm version:
- 12,800 W RMS @ 1 Ohm
- 8,510 W RMS @ 2 Ohm
Power at 12.6 V | 1 Ohm version:
- 12,000 W RMS @ 1 Ohm
- 7,120 W RMS @ 2 Ohm
Power at 14.4 V | 2 Ohm version:
- 13,140 W RMS @ 2 Ohm
- 7.115 W RMS @ 4 Ohm
Power at 12.6 V | 2 Ohm version:
- 12,200 W RMS @ 2 Ohm
- 6,770 W RMS @ 4 Ohm
Further technical data:
- Supply voltage: 9 V - 16 V DC
- Frequency response: 5 Hz - 7 kHz
- Low-pass filter: 90 Hz - 7 kHz
- High-pass filter: 5 Hz - 90 Hz
- Signal-to-noise ratio: > 90 dB
- Input sensitivity: 200 mV
- Input impedance: 19 kOhm
- Current consumption music signal: 590 A
- Current consumption bass signal: 1180 A
- Fuse: 700 A

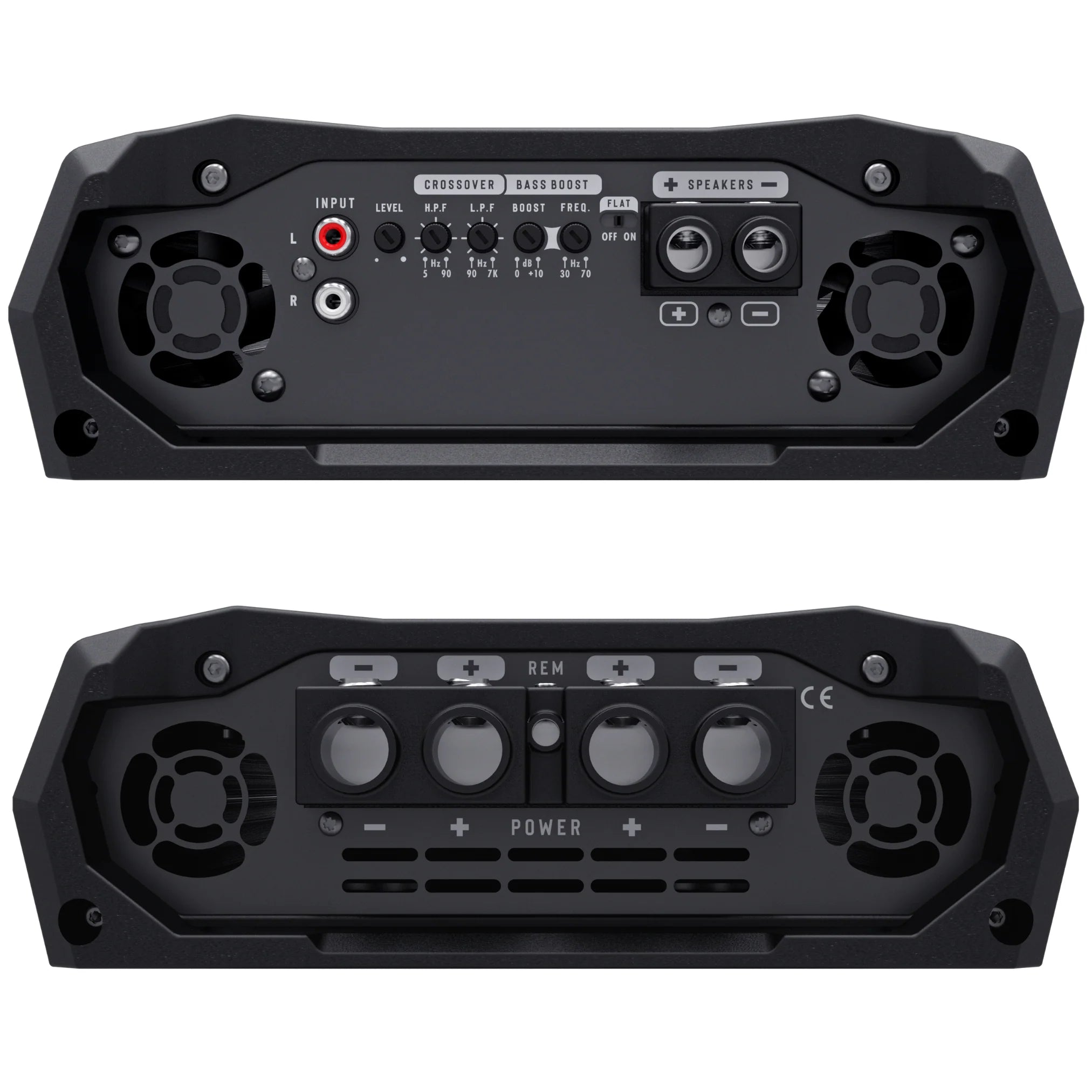

Connections:
- Power connections: 50mm²
- Earth connections: 50mm²
- Speaker connections: 16mm²
Dimensions & weight:
- Dimensions (H × W × L): approx. 8.0 × 23.2 × 57.4 cm
- Weight: approx. 8.6 kg
