Punch Pro PP4-X
Regular price
109,00€
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Punch Pro PP4-X is backordered and will ship as soon as it is back in stock.
Free shipping from 49€
Free shipping from 49€
Shipping
✓ Free shipping from 49€ within Germany and from 99€ to the EU.
✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.
✓ In most cases, shipping is carried out by DHL, UPS and GLS.
✓ Depending on the product and location, items can also be shipped with other providers.
✓ Tracking will be sent by email after the shipment has been processed.
Normal shipping route
✓ 1 - 40Kg = DHL, UPS and GLS
✓ 40.1 - maximum kg = forwarding agency
✓ Bulky goods = freight forwarder
✓ Customs shipments = DHL, GLS or freight forwarder
Parcel collection
✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.
5% discount for prepayment
5% discount for prepayment
Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.
Wiring wizard & port computer
Wiring wizard & port computer
Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!
Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.
Downloads
Downloads
Punch Pro PP4-X
Regular price
109,00€
Unit price
/
Unavailable

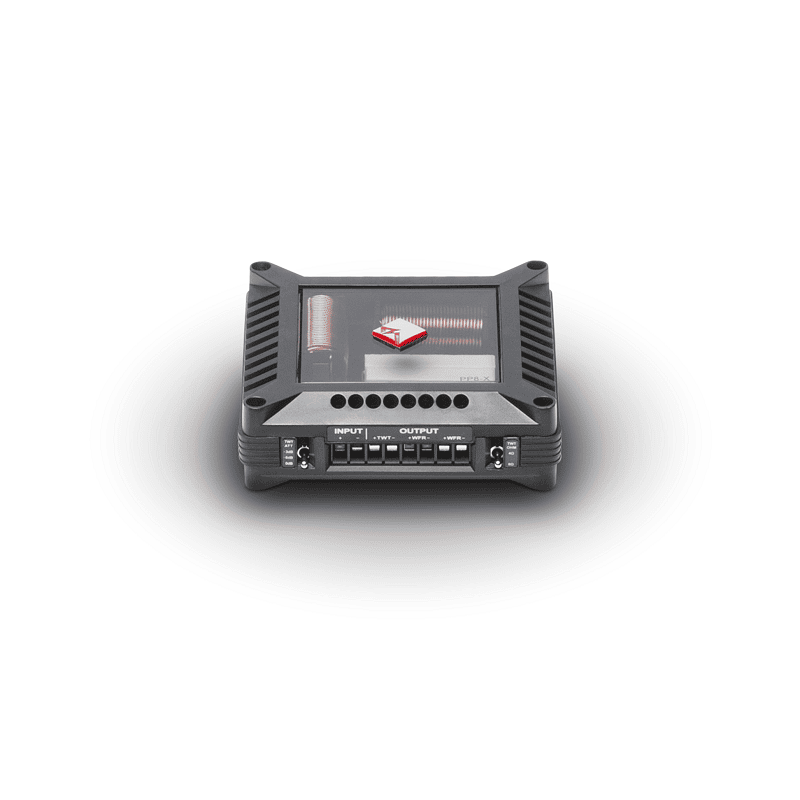

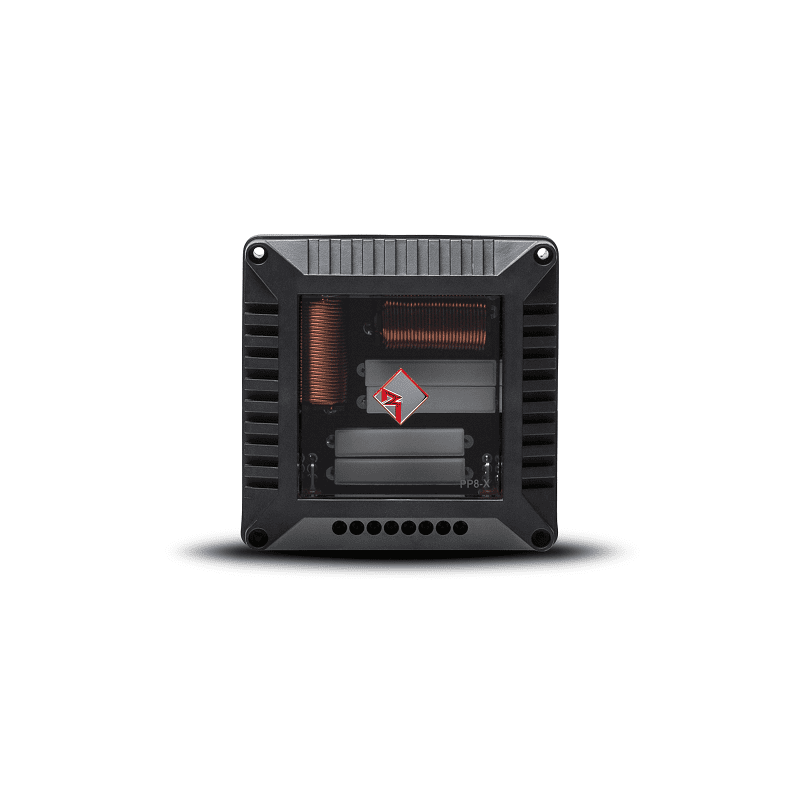

The Rockford Fosgate Punch Pro PP4-X is a high-performance passive 2-way crossover designed specifically for use with midrange speakers and tweeters from the Rockford Fosgate Punch Pro series. It is particularly well-suited for performance-oriented car audio systems with high sound pressure level (SPL) requirements and enables a balanced frequency distribution between the speakers.
The crossover features two outputs for Punch Pro midrange drivers with a rated load impedance of 4 ohms, as well as a separate tweeter output. The tweeter impedance can be switched between 4 and 8 ohms. In addition, the treble level can be adjusted in three steps to ensure optimal tuning for the respective speaker system.
With a power handling capacity of 125 watts RMS and 250 watts peak, the PP4-X provides the necessary power reserves for demanding Punch Pro installations. Its rugged construction and the included mounting hardware ensure reliable installation.
Technical Specifications
Manufacturer: Rockford Fosgate
Model: Punch Pro PP4-X
Series: Punch Pro
Product Type: Passive 2-Way Crossover
Applications: Car audio / SPL speaker systems
RMS Power Handling: 125 watts
Maximum power handling: 250 watts
Woofer/midrange impedance: 4 ohms
Tweeter impedance: 4 or 8 ohms, switchable
Low-pass cutoff frequency: 3,000 Hz
Low-pass slope: 6 dB/octave
High-Pass: Use with the built-in 6 dB/octave high-pass filter on compatible Punch Pro tweeters
Tweeter Level Adjustment: 0 dB / -3 dB / -6 dB
Number of midrange outputs: 2
Number of tweeter outputs: 1
Number of amplifier inputs: 1

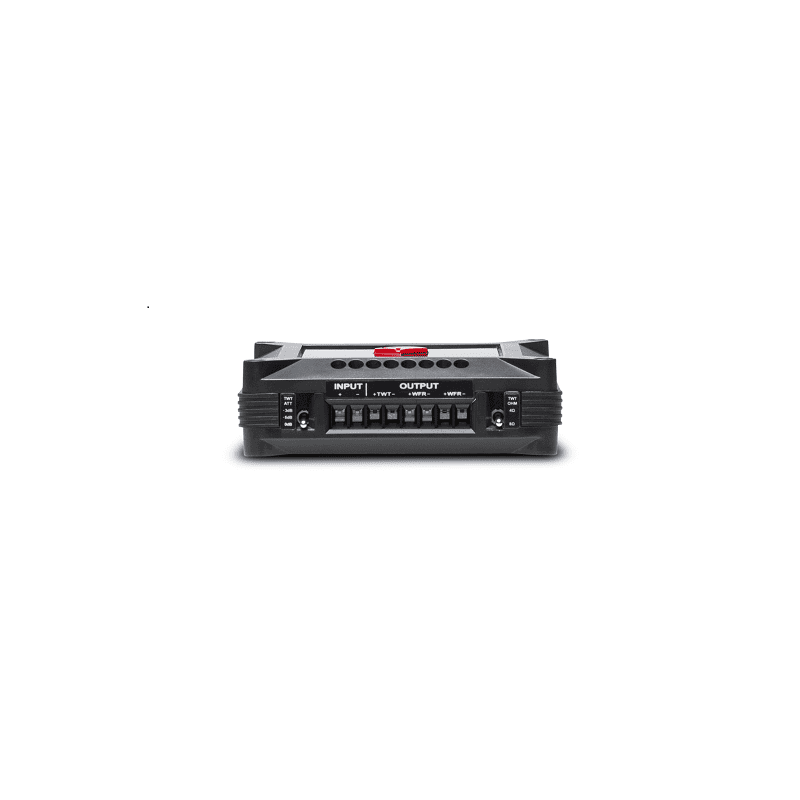

Connection type: Screw terminals
Compatibility: Rockford Fosgate Punch Pro Speakers
Housing dimensions (W × D × H): 116 × 116 × 36 mm
Installation: Screw mounting
Sales unit: 1 piece
Special Features
Designed specifically for Rockford Fosgate Punch Pro speaker systems
Two midrange outputs for flexible speaker configurations
Adjustable tweeter impedance for 4- and 8-ohm models
Three-level treble cut for custom sound tuning
Passive 6-dB/octave low-pass filter for Punch Pro midrange driver
Suitable for high-power SPL applications
Compact and robust design
What's Included
1 × Rockford Fosgate Punch Pro PP4-X Crossover
4 × mounting screws
1 × 3-mm Allen bit
1 × User's/Installation Manual
