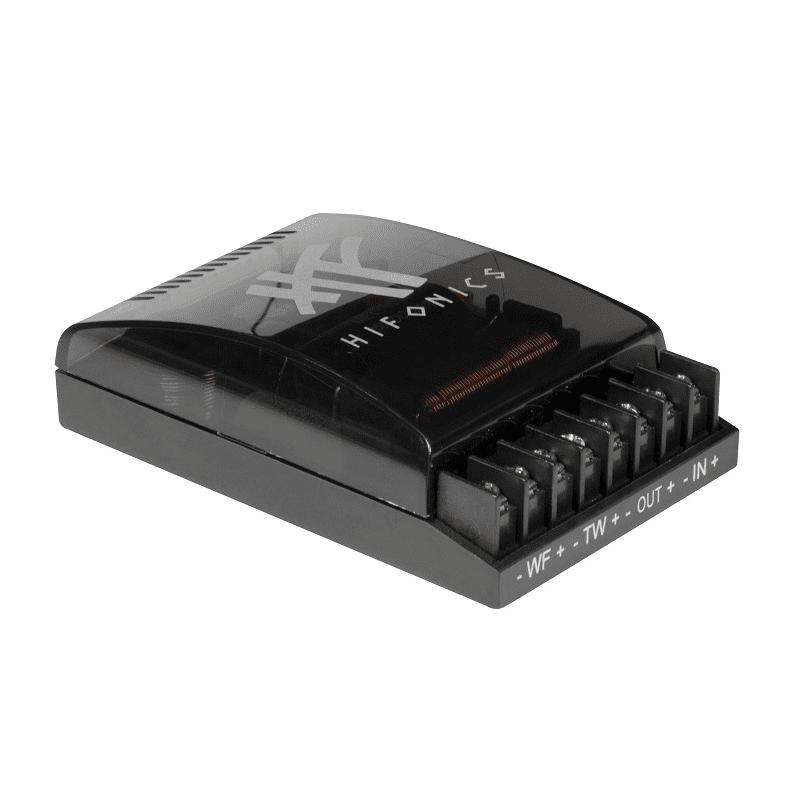

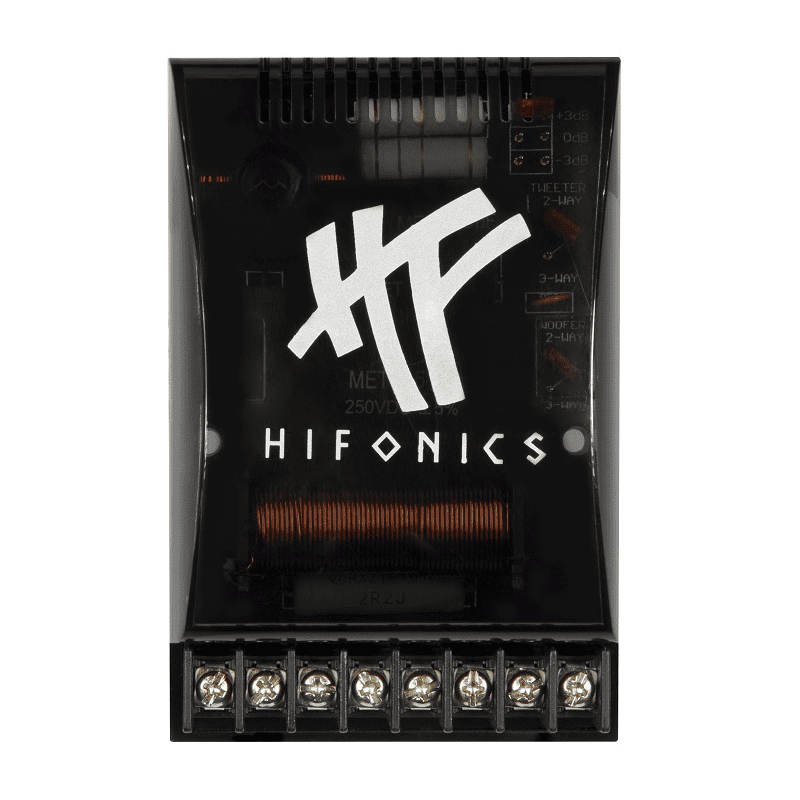

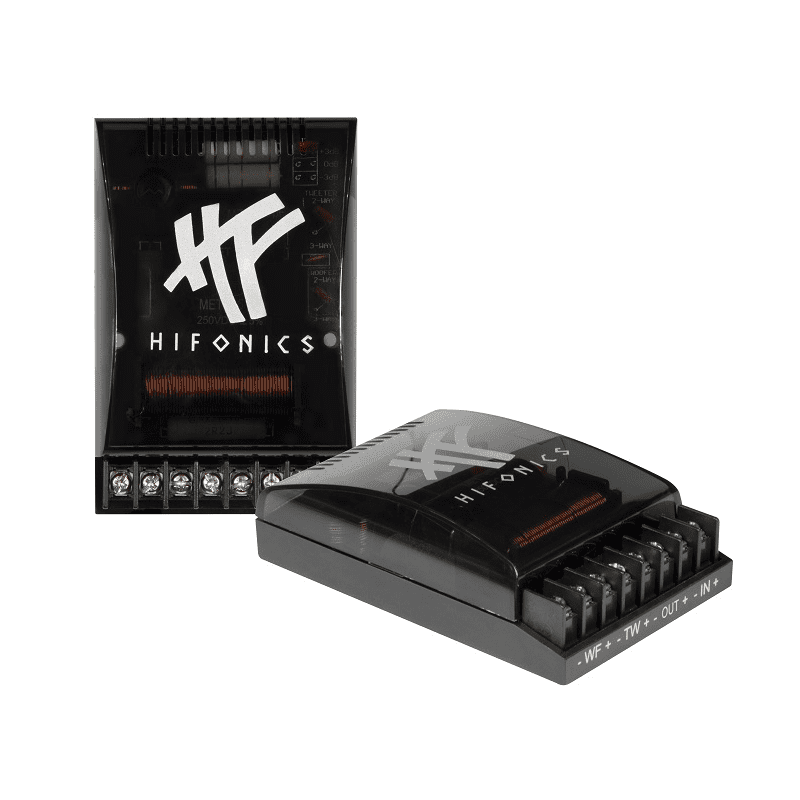

The HiFonics ZXO2 from the high-end ZEUS series are passive 12-dB crossovers for high-performance car audio speaker systems. They enable precise division of the audio signals between the low-midrange driver and the tweeter and are designed for both classic 2-way operation and expansion to a 3-way system.

One notable feature is the ability to switch flexibly between 2-way and 3-way operation. Using built-in jumpers, the crossover can be configured to accommodate the optional HiFonics ZXM3 midrange driver. This requires a corresponding bandpass crossover.

To allow for individual adjustment of the high-frequency range, the crossovers feature a three-step high-frequency level control. With settings of +3 dB, 0 dB, and -3 dB, the tweeters' output can be tailored to the acoustic conditions inside the vehicle.

The ZXO2 speakers are particularly well-suited for use with HiFonics ZEUS speaker components and provide a flexible foundation for high-quality 2-way and expandable 3-way sound systems.

Technical Specifications

Manufacturer: HiFonics
Model: ZXO2
Series: ZEUS ZX
Product Type: Passive Speaker Crossovers
Configuration: 2-way / 3-way switchable
Filter slope: 12 dB/octave
Rated Power Handling (RMS): 125 watts
Maximum power handling (MAX): 250 watts
Nominal impedance: 4 ohms
Crossover frequency: 3,300 Hz
High-frequency level adjustment: +3 dB / 0 dB / -3 dB
Switching: 2-way or 3-way operation via jumpers
Midrange Speaker Upgrade: Compatible with HiFonics ZXM3 (7.5 cm)
Additional bandpass crossover: Required for 3-way operation
Compatible speakers: HiFonics ZEUS ZX6.2W, ZX6.2T, and (optionally) ZXM3
Operating mode: Passive, without a separate power supply
Application: Car audio speaker systems
Sales unit: 1 pair (2 pieces)
