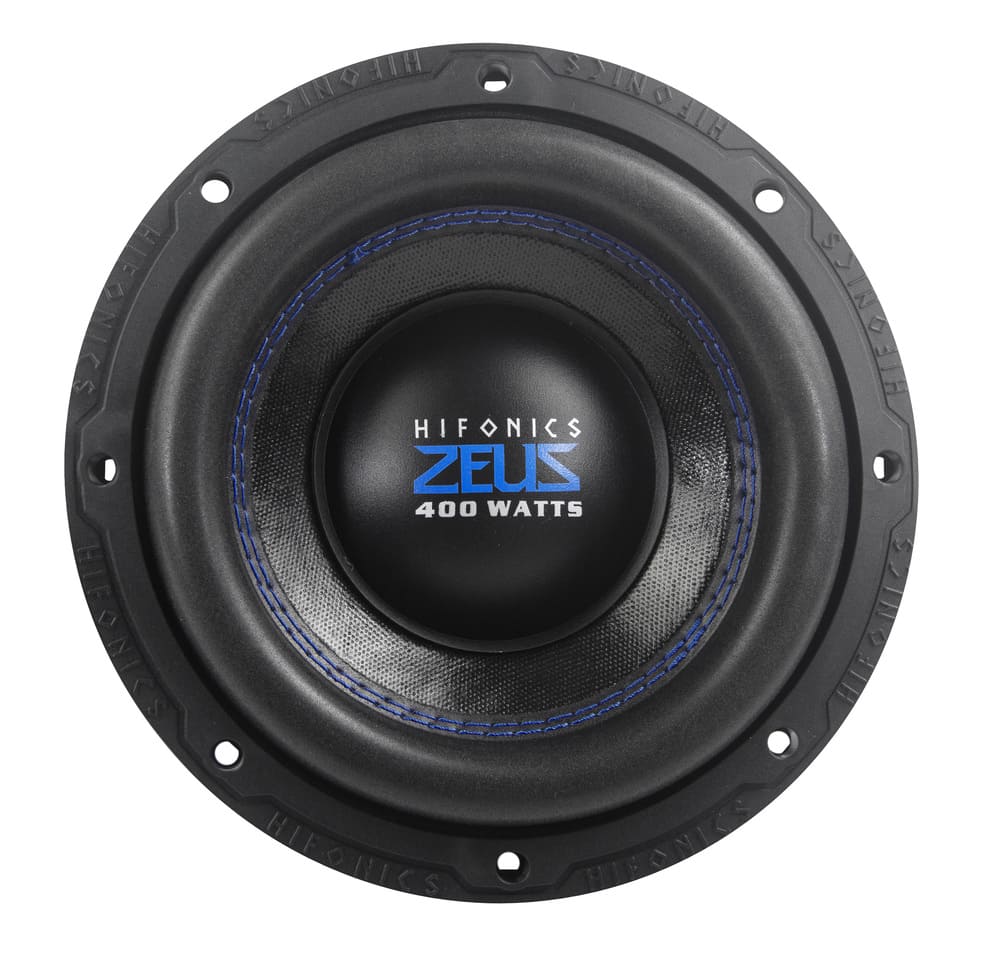

HiFonics ZXE8S4
Regular price
79,00€
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
HiFonics ZXE8S4 is backordered and will ship as soon as it is back in stock.
Free shipping from 49€
Free shipping from 49€
Shipping
✓ Free shipping from 49€ within Germany and from 99€ to the EU.
✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.
✓ In most cases, shipping is carried out by DHL, UPS and GLS.
✓ Depending on the product and location, items can also be shipped with other providers.
✓ Tracking will be sent by email after the shipment has been processed.
Normal shipping route
✓ 1 - 40Kg = DHL, UPS and GLS
✓ 40.1 - maximum kg = forwarding agency
✓ Bulky goods = freight forwarder
✓ Customs shipments = DHL, GLS or freight forwarder
Parcel collection
✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.
5% discount for prepayment
5% discount for prepayment
Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.
Wiring wizard & port computer
Wiring wizard & port computer
Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!
Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.
Downloads
Downloads
HiFonics ZXE8S4
Regular price
79,00€
Unit price
/
Unavailable
The HiFonics ZXE8S4 from the ZEUS EVOLUTION series is a powerful 20 cm (8-inch) subwoofer designed to deliver punchy, dynamic, and precise bass reproduction. With a power handling capacity of 200 watts RMS and 400 watts of peak power, it provides a solid foundation for compact and high-performance car audio bass systems.
At the heart of the subwoofer is a powerful Y35 magnetic drive with 40 ounces of magnet weight. The 50-mm voice coil, combined with the vented pole piece, ensures reliable heat dissipation and high power handling.
The hand-formed and coated paper cone impresses with its stability and excellent acoustic properties. A double-stitched foam surround ensures a durable connection between the diaphragm and the suspension. The robust steel basket provides additional stability, while the distinctive blue magnet protector and the blue-stitched diaphragm highlight the signature HiFonics ZEUS design.
Thanks to its tuned Thiele-Small parameters, the ZXE8S4 is suitable for both sealed subwoofer enclosures and bass-reflex designs. This makes it possible to create powerful bass solutions even in limited spaces.
Technical Specifications
General Characteristics
Manufacturer: HiFonics
Model: ZXE8S4
Series: ZEUS EVOLUTION
Product Type: Subwoofer Driver
Nominal diameter: 20 cm (8 inches)
Impedance: 4 ohms
Voice coils: 1 × 4 ohms (SVC)
RMS Power Handling: 200 watts
Maximum Power Handling: 400 watts
Recommended amplifier power: 200–250 watts RMS
Frequency range: 30–300 Hz
Efficiency: 84 dB (2.83 V/1 m)
Diaphragm and Actuator
Diaphragm material: hand-made, coated paper diaphragm
Piping: Foam, double-stitched
Basket material: Steel
Magnetic material: Y35 ferrite
Magnet weight: 40 oz (approx. 1.13 kg)
Magnet diameter: 140 mm
Voice coil diameter: 50 mm
Voice coil height: 15 mm
Voice coil former: Aluminum
Core ventilation: available
Centering spider: Polycot
Dust-proof cap: polypropylene
Maximum mechanical stroke: ±13 mm
Thiele-Small parameters
Resonance frequency (Fs): 46 Hz
Overall Quality (Qts): 0.49
Mechanical Quality (Qms): 4.16
Electrical Quality (Qes): 0.56
Equivalent volume (Vas): 8.1 liters
DC resistance (Re): 3.6 ohms
Mass in motion (Mms): 83.6 g
Effective membrane area (Sd): 201 cm²
Recommended Case
Sealed enclosure: 10–20 liters
Bass-reflex enclosure: 18 liters
Recommended bass-reflex tuning frequency: 40 Hz
Dimensions
Outer diameter: 220 mm
Installation diameter: 180 mm
Installation depth: 98 mm
What's Included
1 × HiFonics ZXE8S4 subwoofer, 20 cm (8 inches), 4 ohms
