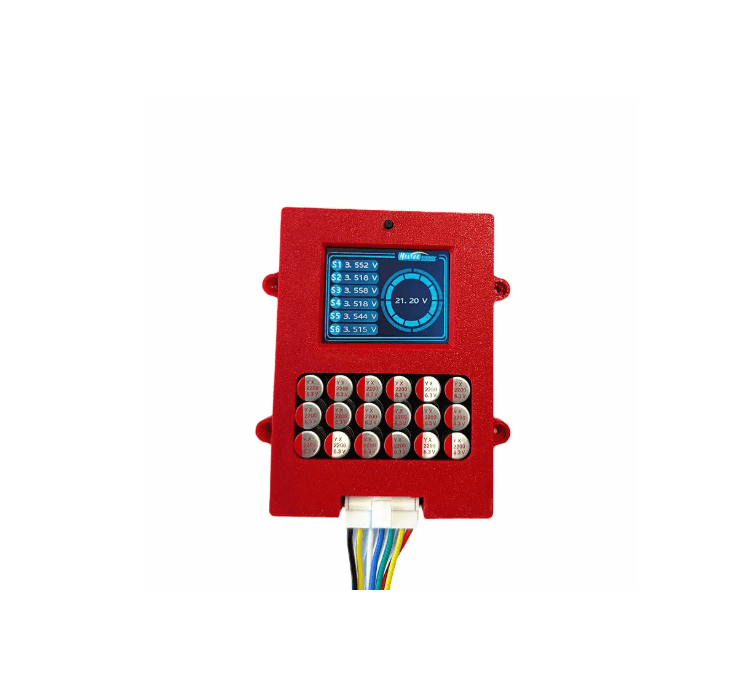

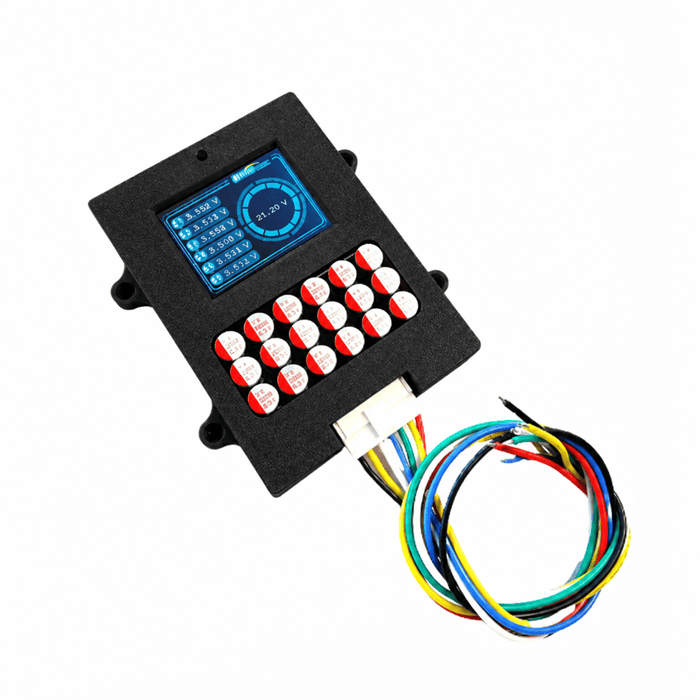

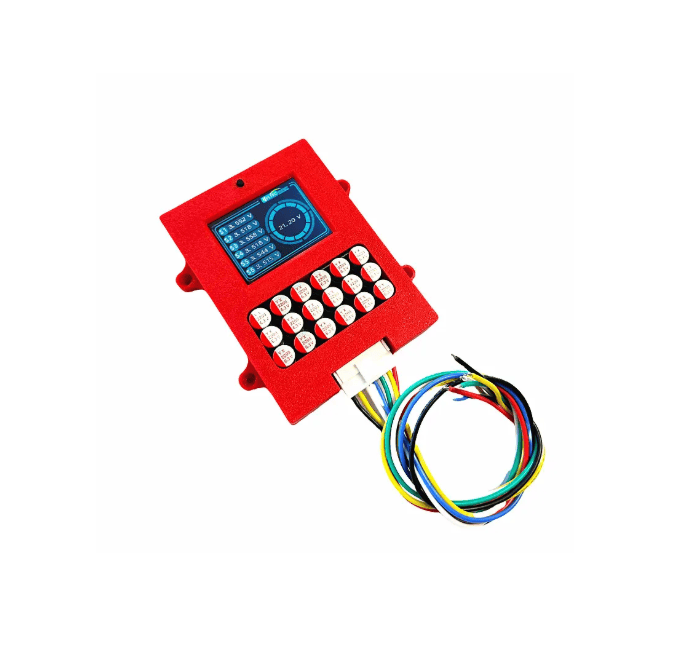

Heltec 6S Balancer with LCD Display

The Heltec 6S 5A Active Balancer is designed for active charge balancing within lithium battery packs consisting of six cells connected in series. Unlike passive balancers, which primarily convert excess energy into heat, this model uses capacitive energy transfer. Energy is transferred between the cells within the battery pack to compensate for existing voltage differences.

The balancer operates with the entire 6S battery pack and, depending on the existing voltage difference, achieves a balancing current of up to 5 A. As the voltage difference decreases, the balancing current also decreases. Balancing can begin with a cell voltage difference as low as approximately 0.01 V.

The TFT-LCD display allows you to directly monitor both the individual cell voltages and the total voltage of the battery pack. The typical measurement accuracy at room temperature is approximately ±5 mV. The display also features a sleep/always-on function and allows you to switch the display orientation.

The active balancer does not require a separate external power supply. The energy needed for balancing is drawn directly from the connected battery pack. It can also be used in parallel with an existing BMS or another balancer.

Technical Specifications:

• Manufacturer: Heltec Energy
• Product Type: Capacitive Active Balancer / Battery Equalizer
• Model: DS1004 / DS1004C
• Number of cells: 6S
• Supported battery types: NCM / Li-ion, LiFePO4 (LFP), and LTO
• Model DS1004: for NCM / LiFePO4
• Model DS1004C: for LTO
• Balancing Method: Active Capacitive Power Compensation
• Balancing Mode: Simultaneous inclusion of the entire battery pack in the power balancing process
• Balancing current: up to approx. 5 A
• Manufacturer's specification for the maximum possible balancing current: up to 5.5 A
• Balancing current depends on the cell voltage difference, battery capacity, and internal resistance
• Balancing current at a voltage difference of approximately 0.1 V: approximately 0.5 A
• Minimum balancing start difference: approx. 0.01 V
• Balancing accuracy: typically about 5 mV
• Operating voltage range for NCM / LFP: 2.7–4.2 V per cell
• LTO operating voltage range: 1.8–2.7 V per cell
• Measurable single-cell voltage range: 1.0–4.5 V
• Measurement accuracy: 0.5% / typically ±5 mV
• Typical display measurement accuracy at approximately 25 °C: ±5 mV
• Display measurement accuracy over an extended temperature range: ±8 mV
• Quiescent current during normal operation: approx. 20 mA
• Sleep current: less than 0.1 mA
• Undervoltage sleep function available
• Undervoltage sleep threshold according to the parameter table: 2.7 V for NCM/LFP and 1.8 V for LTO
• Operating temperature: -10 to +60 °C
• External power supply: not required
• Power supplied directly from the connected battery pack
• Display: TFT-LCD
• Display of the six individual cell voltages
• Display of the total voltage of the battery pack
• Display with Sleep/Always-On button
• Switchable display orientation
• Parallel operation with BMS is possible
• Circuit board: 2-oz copper PCB
• MOSFETs with low internal resistance
• Housing: ABS
• Certification according to the manufacturer: FCC
