HELIX NEXT V TWO

HELIX NEXT V TWO

549,00€

HELIX NEXT V TWO

549,00€
Packaging Unit: Individually

HELIX NEXT V TWO

The perfect addition for powerful audio setups
The compact 2-channel amplifier HELIX V TWO combines audiophile sound requirements with impressive performance in a unique way. The broadband frequency response, excellent signal-to-noise ratio and extremely low distortion ensure a sound quality that will satisfy even the most demanding music lovers. The bridgeable speaker outputs allow flexible configuration and guarantee maximum power output - whether in mono mode for demanding subwoofers or as a high-resolution stereo amplifier for power-hungry speaker systems. Anyone looking for a powerhouse with audiophile DNA will find the perfect solution here.

Power meets audiophile performance
With a high signal-to-noise ratio of > 109 dB, an extremely low distortion factor of < 0.004 % THD+N and a high damping factor, it effortlessly meets even the highest sound requirements. The bridgeable speaker outputs enable maximum output power exactly where it is needed. This makes the V TWO the ideal choice for anyone who wants to combine uncompromising sound performance with a wide range of applications.

Stereo performance for versatile speaker applications
In full-range stereo mode, the V TWO delivers more than enough power with 2 x 200 watts RMS into 4 ohms or 2 x 400 watts RMS into 2 ohms to drive even demanding woofers or hybrid subwoofers, such as the COMPOSE i5 S200FM, with ease. In addition to its powerful performance, it also impresses with its sonic precision: the wide frequency response and its audiophile characteristics ensure that even the finest details are reproduced accurately and unadulterated.

Mono bridge mode for level-oriented subwoofer applications
In bridge mode, the V TWO provides up to 800 watts RMS into 4 ohms - more than enough to drive even high-performance subwoofers with full dynamics and control. Particularly powerful DVC2 subwoofers (2 x 2 ohms) such as the models in the HELIX IMPACT Q series or two SVC2 subwoofers (1 x 2 ohms) from the HELIX IMPACT K series connected in series benefit from the high efficiency and excellent sound quality of this configuration. Thanks to the integrated mono mode, a single input signal is sufficient for control - the perfect prerequisite for use with DSPs in which the subwoofer channel is already summed.

Full control - automatic or manual
The new, innovative Amplifier Control Panel (ACP) of the V TWO offers intuitive and precise control of central amplifier functions - from automatic and manual gain adjustment to the input mode and ground connection.
The highlight here is the Auto Gain Ranging (AGR) function: it automatically detects the output voltage of the connected signal source and precisely adjusts the gain to this to ensure optimum signal quality - quickly, reliably and without clipping or unnecessary distortion.
Those who prefer to intervene manually can configure the input sensitivity in precise 0.5 volt increments between 0.5 and 8 volts. The integrated clipping display provides visual feedback at all times and enables precise adjustment.

Optimized for DSP-controlled sound concepts - pure, linear, lossless
The DirectDSP input is a broadband RCA input that has been specially adapted to the outputs of modern standalone DSPs or DSP amplifiers. By dispensing with classic crossovers, the signal remains linear and unaltered - for maximum transparency and sound fidelity. Ideally suited for DSP-based systems.

V-AMP Link - high-level connection, tailor-made for HELIX V amplifiers
The integrated V-AMP Link is a specially developed high-level input that is perfectly matched to the speaker outputs of the HELIX V series. The decisive advantage: not only the RCA outputs of the V amplifier are available for system expansion, but also its speaker outputs. This means that several V TWO power amplifiers can be flexibly integrated - for example, one for powerful woofers and another for the subwoofer. This gives the V-AMP Link maximum flexibility when setting up complex and powerful multi-channel setups.

Maximum efficiency - even under extreme conditions
Thanks to the intelligent power supply unit with an extended input voltage range of 6 to 18 V and the sophisticated energy management, maximum system stability is guaranteed under all conditions - from classic combustion engines to fully electric vehicles.
The Stabilized Output Power technology (SOP) ensures that the output power remains largely stable even in the event of voltage fluctuations in the vehicle electrical system. This ensures consistent system performance even under real vehicle conditions.

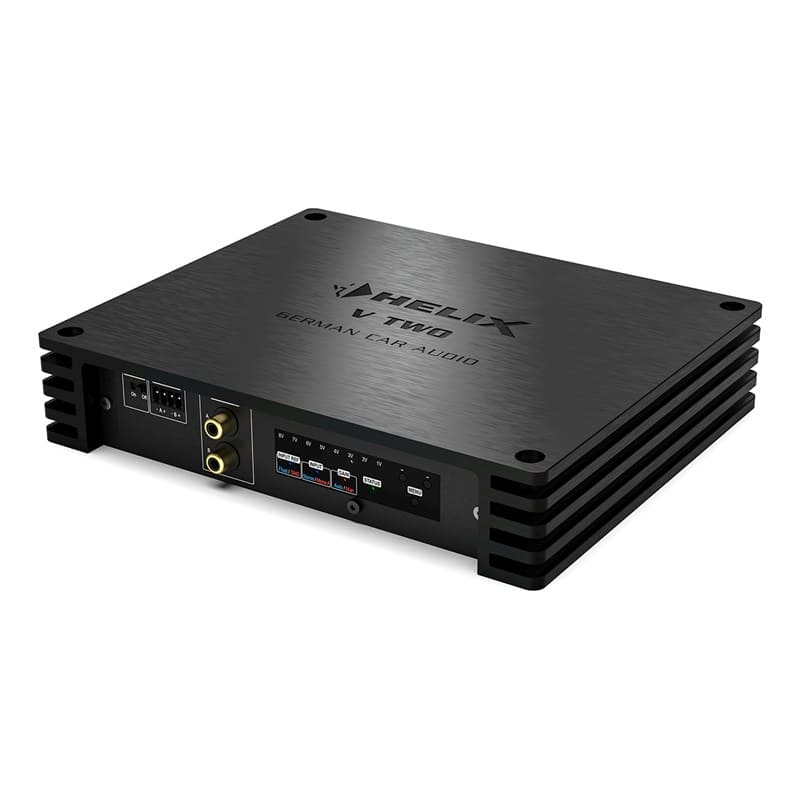

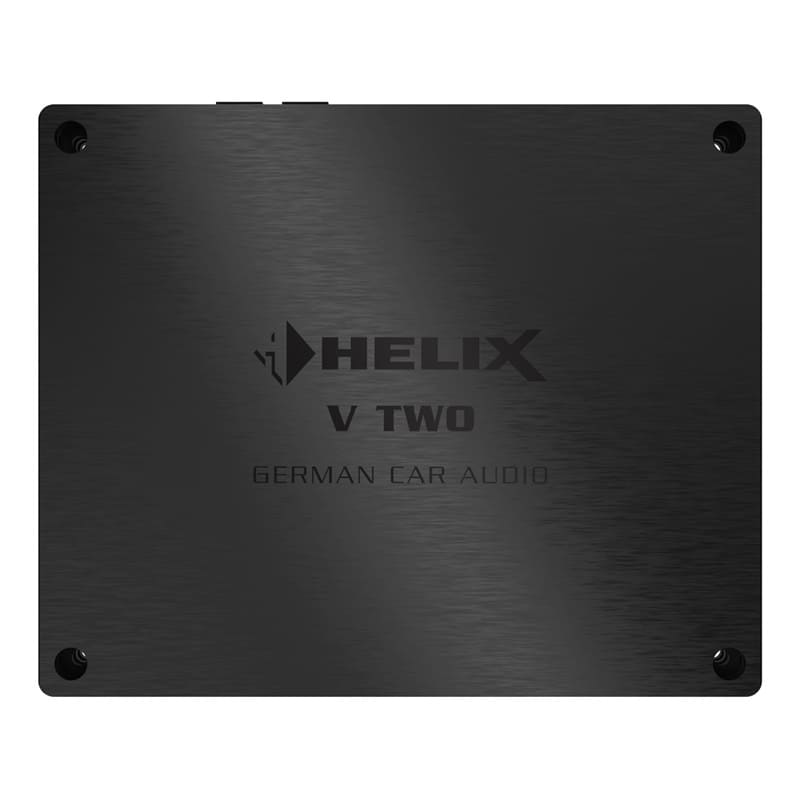

Compact design with a clear design language
The V TWO comes in the typical HELIX design and fits seamlessly into the V amplifier line. It has exactly the same dimensions as the V EIGHT - ideal for uniform installation concepts.
The very compact dimensions also enable space-saving installation even where space is limited.
The V TWO is therefore the perfect combination of power, efficiency and form.

Features

✓ 2-channel amplifier with state-of-the-art Class D concept, which combines outstanding sound quality with maximum efficiency
✓ Bridgeable output channels for flexible system configurations and maximum power output
✓ High output power of up to 1000 W RMS bridged to 4 Ω - ideal for driving powerful subwoofers
✓ Innovative ACP (Amplifier Control Panel) for intuitive adjustment of central amplifier functions such as:
Automatic or manual gain adjustment
Input mode
Mass connection
✓ Precise gain adjustment for optimum signal processing - either automatically or manually:
Auto Gain Ranging (AGR) automatically detects the input sensitivity and adjusts the gain range for maximum sound quality
Manual gain adjustment from 0.5 to 8 volts in 0,5 volt steps for precise adjustment to individual system requirements
✓ V-AMP Link - input specially designed for connecting HELIX V-Series amplifiers for powerful further amplification for
high-performance subwoofer or speaker applications
✓ Designed for HELIX DSP Products - DirectDSP-input perfectly tuned for highest signal quality and performance
✓ MSM (Mono / Stereo Mode) - Allows the amplifier to be operated both as a powerful mono block for subwoofers and as a stereo amplifier for power-hungry speakers
✓ Stabilized Output Power-Technology (SOP) for stable and reliable output power even with fluctuating operating voltage
✓ Intelligent energy management for perfect voltage stability across all modern vehicle platforms
✓ Start-stop-capable power supply with extended input voltage range up to 18 V - ideal for modern electric vehicles
✓ Auto remote switch for automatic switching on of the amplifier without additional remote line
✓ Extremely compact dimensions and low heat generation thanks to very high efficiency

Special features:

Class D amplifier technology
Digital amplifier concepts based on Class D technology offer significantly higher energy efficiency compared to classic Class AB amplifiers. The lower power consumption protects the battery and alternator and significantly reduces heat generation - ideal for use in modern vehicles.
Thanks to continuous technological development, high-quality Class D amplifiers today also achieve top-level values in sound-relevant disciplines such as distortion factor, bandwidth and damping factor - and are therefore in no way inferior to classic analog concepts.

Bridgeable speaker outputs
The amplifier outputs of the V TWO are bridgeable - this means that two channels can be combined to form a more powerful channel. This means that a single subwoofer, for example, can be driven much more powerfully. This flexibility opens up additional options for system configuration and allows targeted power bundling - without compromising on sound quality.

Innovative operating concept - the Amplifier Control Panel (ACP)
The ACP enables the convenient setting of central amplifier functions such as automatic gain configuration via proprietary AGR (Auto Gain Ranging), manual gain setting, input mode and ground connection. Instead of conventional switches or controls, the modern button control with LED displays offers particularly intuitive operation and direct visual feedback on the device.

Auto Gain Ranging - automatically set to perfection
The AGR function precisely adjusts the input gain in just a few seconds - quickly, reliably and error-free. It automatically adjusts the input sensitivity to the output voltage of the connected signal source and thus ensures maximum sound quality. The gain & clipping display provides visual control at all times - ideal for professional results at the touch of a button.

V-AMP Link - developed for maximum power extension
The V-AMP Link was specially developed for connecting HELIX V-Series amplifiers and optimized for maximum signal quality - ideal when additional power is required for subwoofers or powerful woofers.

Stabilized Output Power (SOP) - consistently powerful
Our SOP technology ensures stable output power even with fluctuating on-board voltage - for example during engine start-up or under high system load. Thanks to the intelligent voltage management in the power supply unit, the amplifier output remains constant and the sound dynamic and precise at all times. Ideal in particular for vehicles with dynamic alternator control and therefore changing voltage ratios.

Start-stop capability
The power supply unit in the HELIX V TWO amplifier ensures the internal voltage supply even in the event of short-term dips down to 6 volts. This ensures that the amplifier remains fully functional even when the engine is started.


Technical data

Power RMS ≤ 1% THD+N
- @ 4 Ohm 2 x 200 watts
- @ 2 Ohm 2 x 400 Watt
- @ 1 Ohm -
- bridged to 4 Ohm 1 x 800 Watt
- bridged to 2 Ohm -
Max. Power per channel* Up to 500 watts RMS @ 2 ohms
Up to 1000 watts RMS @ 4 ohms bridged
Amplifier
technology
Class D

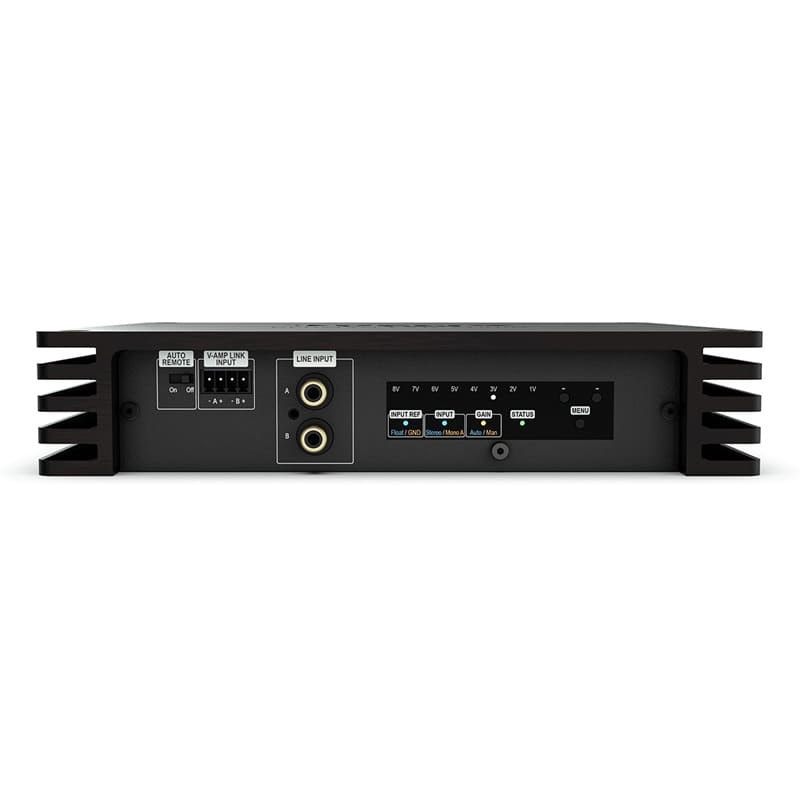

Inputs 2 x RCA
2 x V-AMP Link
1 x Remote In
Input
sensitivity
Cinch: 0.5 - 8 volts
V-AMP Link: 1.5 - 21 volts
Input impedance Cinch: 3 kOhm
V-AMP Link: 13 Ohm

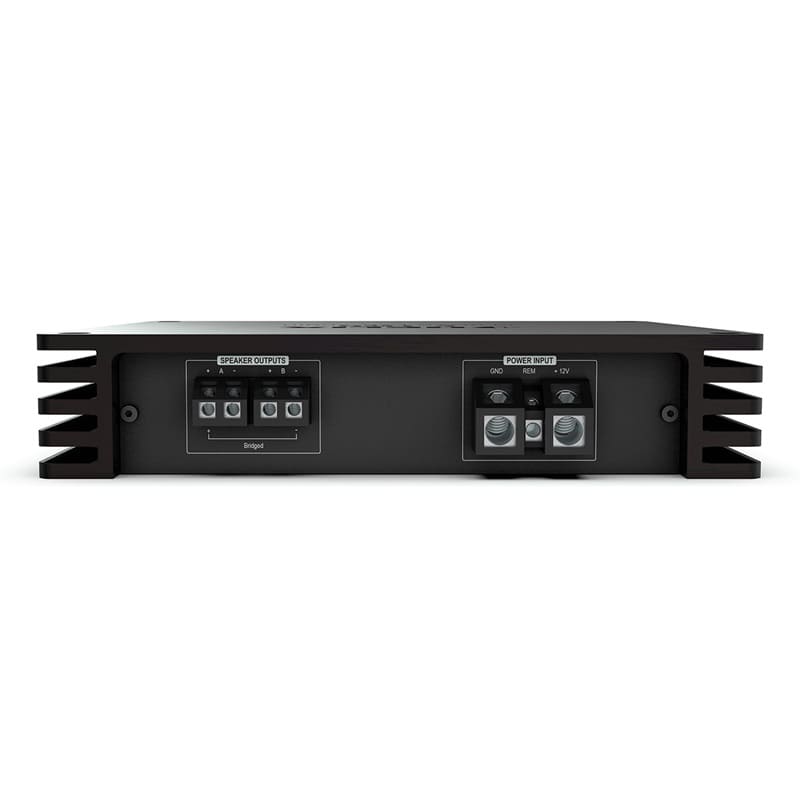

Outputs 2 x speaker output
Output voltage RCA -
Signal converter for the digital input -
Frequency range 10 Hz - 22,000 Hz
Bass boost -
High pass -
Low pass -
bandpass -
Supsonic -
Phase -
Edge steepness high / low pass -
Slope Subsonic -
Edge steepness subsonic / low pass -
Signal-to-noise ratio
(A-weighted)
109 dB
Distortion factor (THD @ 1 kHz, 1 W into 4 ohms) < 0,003%
Distortion factor (THD+N @ 1 kHz, 1 W into 4 ohms) < 0,004 %

Distortion factor (THD @ 100 Hz, 1 W into 4 ohms)

-
Distortion factor (THD+N @ 100 Hz, 1 W into 4 ohms) -
Attenuation factor 350
Operating voltage 10.5 - 18 Volt (max. 5 sec. down to 6 Volt)
No-load current consumption 1,400 mA
Fuse 3 x 30 A
LP mini plug-in fuse
Power consumption DC 12 V ⎓ 86 A max.
Operating temperature range -40 °C to +70 °C
Additional features Auto gain ranging, mono / stereo mode, start-stop capability, V-AMP link, regulated power supply unit
Dimensions (H x W x D) 44 x 220 x 180 mm

Scope of delivery

1 x HELIX NEXT V TWO amplifier
2 x Allen key
3 x fuse
1 x mounting material
1 x operating instructions


Operating instructions
☞(Download)


Shipping

✓ Free shipping from 49€ within Germany

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by e-mail after the shipment has been processed.

Normal shipping route

✓ 1 - 31,5Kg = DHL

✓ 31,6 - 40Kg = GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL or forwarding agency

Collection

✓ Collection takes place regularly, orders received by 3 p.m. are usually disposed of on the same day for stock goods and transported directly to the parcel center.

Further information

✓ T-shirts and hoodies are made to order and have separate delivery times

✓ Forwarding goods can be picked up the following day at the earliest

Trust is good, control is better - use our social media channels and find out about our work: whether it's installations, tuning meetings, competitions, product presentations, explanations or direct support. We offer you a comprehensive design:

Instagram:
Regular posts and stories
Youtube:
Regular videos about car hi-fi.
Facebook
Regular information about new products and much more.
TikTok:
Short and crisp videos

Wiring wizard

Use our wiring wizard for simple wiring of speakers and subwoofers or to find the optimal setup for your cabinet! The right connection is important for your amplifier! Low impedance operation can damage the amplifier!

✓ Series connection: The impedance increases in number

✓ Parallel connection: The impedance decreases in the number

The data sheet shows you which connection the respective amplifier is designed for!

Port calculator

Our port calculator shows you which tuning your housing has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

The net volume design for your woofer size in music mode can look like this

Bass reflex:

✓ 6.5" (16.5cm) = 10 - 15 liters

✓ 8" (20cm) = 20 - 30 liters

✓ 10" (25cm) = 40 - 50 liters

✓ 12" (30cm) = 60 - 80 liters

✓ 15" (38cm) = 100 - 125 liters

✓ 18" (46cm) = 180 - 240 liters

✓ 21" (54cm) = 230 - 290 liters
