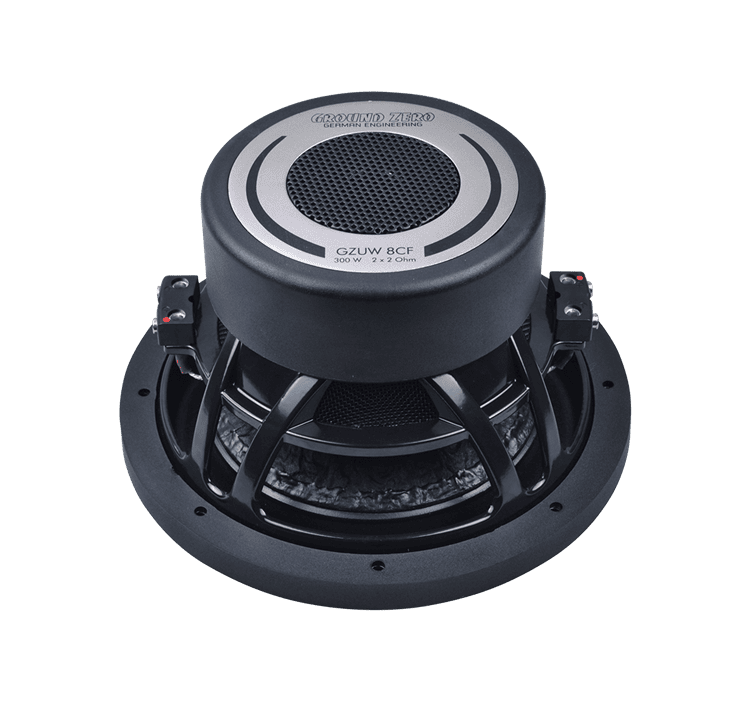

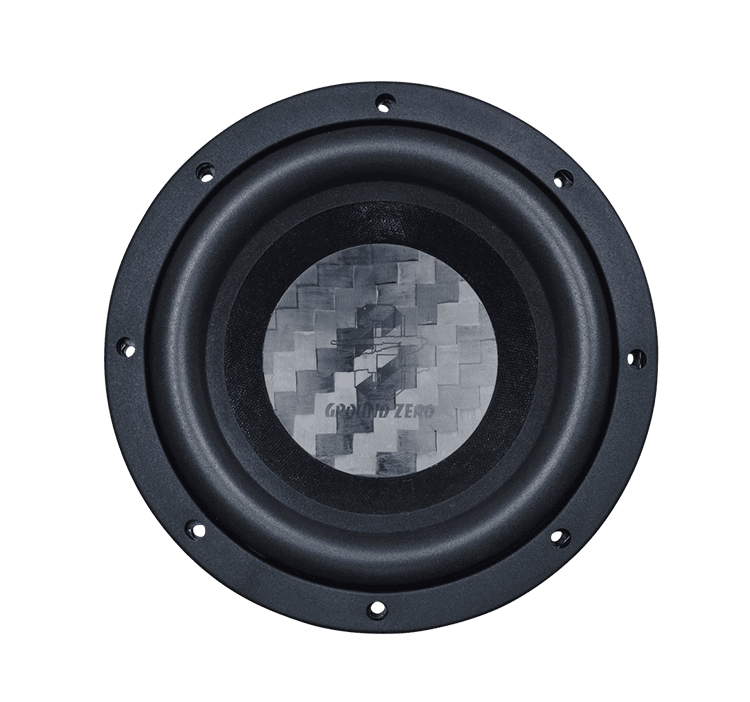

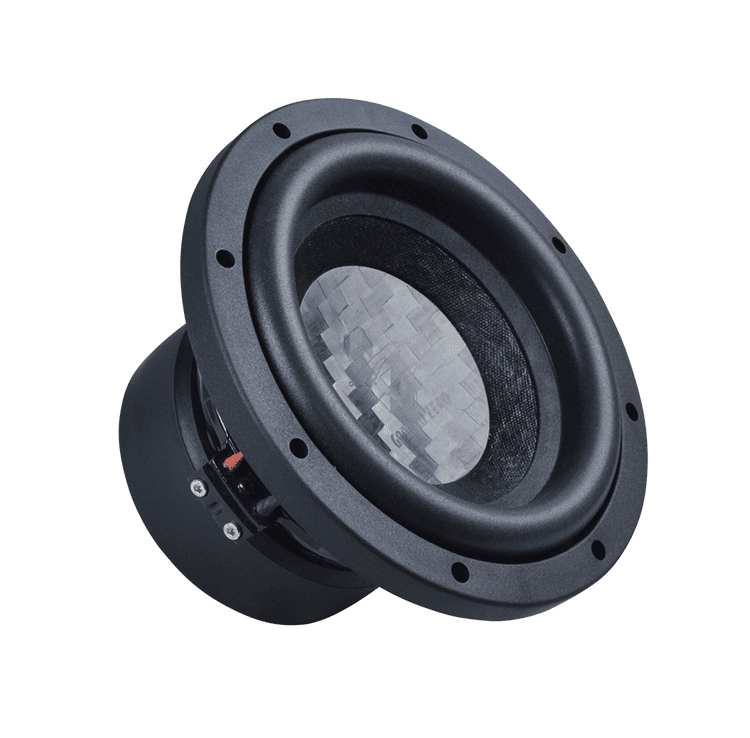

The Ground Zero GZUW 8CF is a compact 20-cm subwoofer from the URANIUM series, designed specifically for precise and controlled bass reproduction. With a 300-watt RMS power handling capacity, a 2 × 2-ohm dual voice coil, and a long-throw driver, it is particularly well-suited for high-end car audio systems where not only volume but, above all, clean, musical reproduction is essential.

The pressed and coated paper diaphragm combines light weight with the stability required for controlled bass reproduction. A carbon dust cap complements the diaphragm design. A U-shaped foam surround and an audiophile Polycot centering ring are used for mechanical guidance.

The sturdy chassis is based on a cast aluminum basket. The driver features a 50-mm copper voice coil, while Klippel® optimization is designed to ensure the speaker’s behavior is as controlled as possible. With a maximum excursion of 20 mm, the GZUW 8CF offers excellent conditions for powerful bass reproduction despite its compact 20-cm size.

Thanks to its relatively shallow installation depth of just 108 mm, the subwoofer can be used even in tight spaces. Ground Zero recommends an amplifier power output between 200 and 400 watts. This makes the GZUW 8CF ideal for integration into high-end, sound-oriented car audio systems.

Product Features

20 cm / 8-inch Sound-Quality Subwoofer
Part of the Ground Zero URANIUM series
Klippel®-Optimized Speaker Design
Pressed and coated paper membrane
Carbon Dust Cap
U-shaped foam bead
Sturdy cast aluminum basket
50 mm copper voice coil
Audiophile Polycot Centering
Dual-voice-coil driver with 2 × 2 ohms
Designed for sound-oriented car audio applications
Suitable for compact subwoofer enclosures

Technical Specifications

Manufacturer: Ground Zero
Model: GZUW 8CF
Product Type: Sound-Quality Subwoofer
Series: URANIUM
Nominal diameter: 20 cm / 8 inches
RMS Power Handling: 300 watts
Recommended amplifier power: 200–400 watts
Impedance: 2 × 2 ohms
Voice coil: 50 mm / 2 inches
Voice coil material: Copper
Efficiency: 83 dB
Diaphragm: pressed and coated paper diaphragm
Dust cap: Carbon
Bead: U-shaped foam bead
Centering: Polycot
Basket: Cast aluminum basket
Maximum deflection (Xmax): 20 mm
Resonance frequency (Fs): 56.9 Hz
Overall Quality (Qts): 0.69
Equivalent air volume (Vas): 4.8 liters
Installation diameter: 181 mm
Installation depth: 108 mm
Outer diameter: 215 mm

Case Recommendation

Sealed container: approx. 8–20 liters net
Bass-reflex enclosure: 18 liters net volume
Bass reflex port: 1 × 7 cm in diameter
Port length: 25 cm
Bass reflex tuning: approx. 46 Hz
