GZRT 25SQ

109,00€

Tax included Shipping calculated at checkout.

Speaker

Barcode: 4037072020342

Packaging unit

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

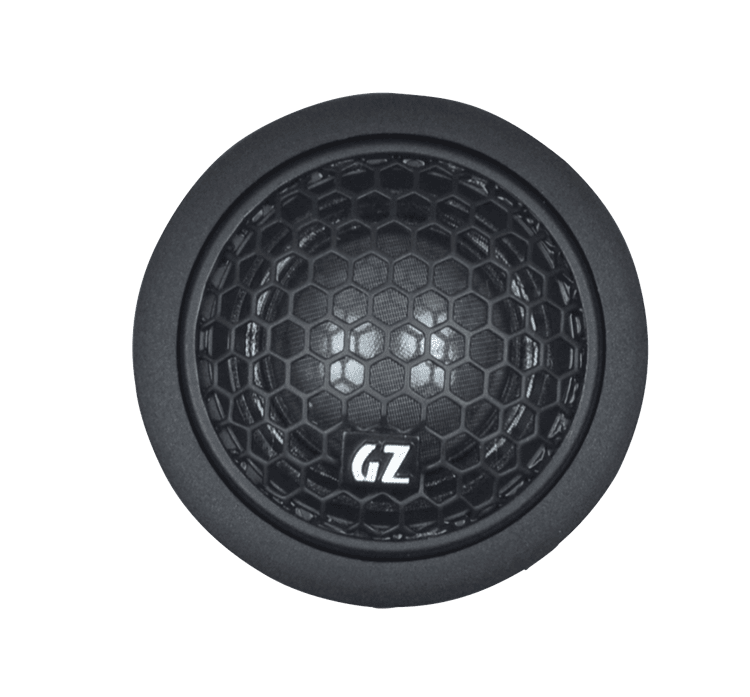

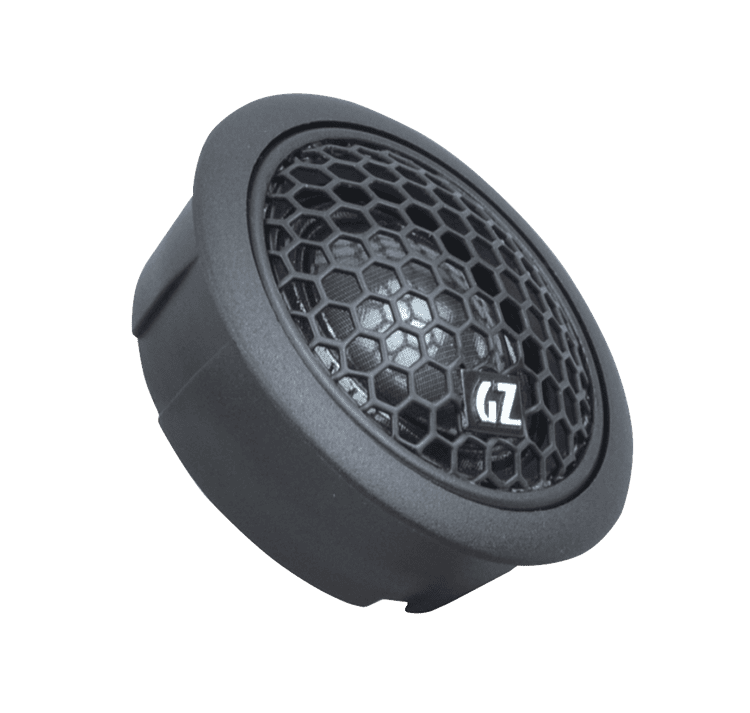

The GROUND ZERO GZRT 25SQ is a compact 25-mm tweeter from the RADIOACTIVE series, designed to deliver detailed and clean high-frequency reproduction for car audio systems. Its coated silk dome combines high-resolution sound reproduction with a pleasantly balanced tonal character, making it particularly well-suited for sound-oriented speaker systems.

The driver features a high-performance, vented neodymium magnet system. In combination with the ferrofluid cooling of the voice coil, the GZRT 25SQ is rated for an RMS power handling capacity of 70 watts and a maximum power handling capacity of 110 watts. The tweeter achieves a sensitivity of 89 dB at a nominal impedance of 4 ohms.

Another advantage is its compact design. With an installation depth of just 16 mm, the tweeter can be integrated even into installation locations with limited space. The plastic housing, including the mounting frame, allows for seamless integration into custom-built car audio systems.

The recommended frequency response ranges from 2,500 Hz to 24 kHz. This makes the GZRT 25SQ suitable for both traditional passive multi-way systems and active or DSP-controlled systems. For the specified power handling capacity, GROUND ZERO recommends a high-pass filter at 2,500 Hz with a slope of 12 dB/octave.

Technical Specifications

Manufacturer: GROUND ZERO
Model: GZRT 25SQ
Product Line: RADIOACTIVE
Speaker Type: Sound-Quality Tweeter
Type: Silk-dome tweeter
Diaphragm diameter: 25 mm
Diaphragm material: coated silk dome
Voice coil: 25 mm
Nominal impedance: 4 ohms
RMS Power Handling: 70 watts
Maximum power handling: 110 watts
Sensitivity: 89 dB (1 W / 1 m)
Frequency range: 2,500 Hz to 24,000 Hz
Resonance frequency (Fs): 1,550 Hz
Magnet material: Neodymium
Magnetic system: ventilated
Cooling: Ferrofluid
Outer diameter, including mounting ring: 54 mm
Installation diameter: 48 mm
Installation depth: 16 mm
Housing / Mounting Frame: Plastic
Connection: Connection cable
Recommended high-pass filter: 2,500 Hz and above
Recommended filter slope: 12 dB/octave
What's Included: 2 tweeters

Product Features

Sound-oriented 25-mm tweeter for car audio applications
Coated silk dome for high-resolution treble reproduction
Ventilated neodymium motor in a compact design
Ferrofluid cooling to provide thermal support for the voice coil
High power handling capacity of up to 110 watts maximum
Very shallow installation depth of just 16 mm
Suitable for passive, active, and DSP-separated multi-way systems
Sold as a pair (2 tweeters)
