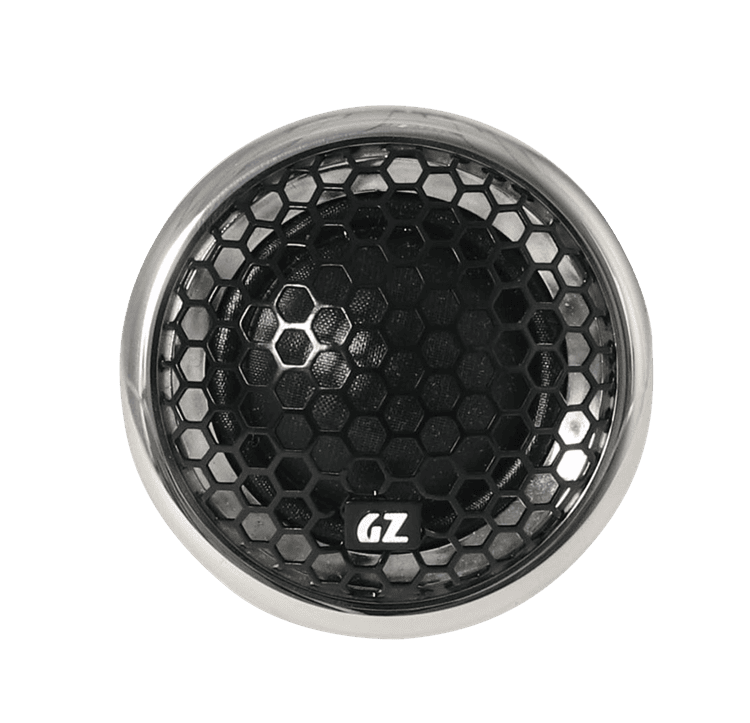

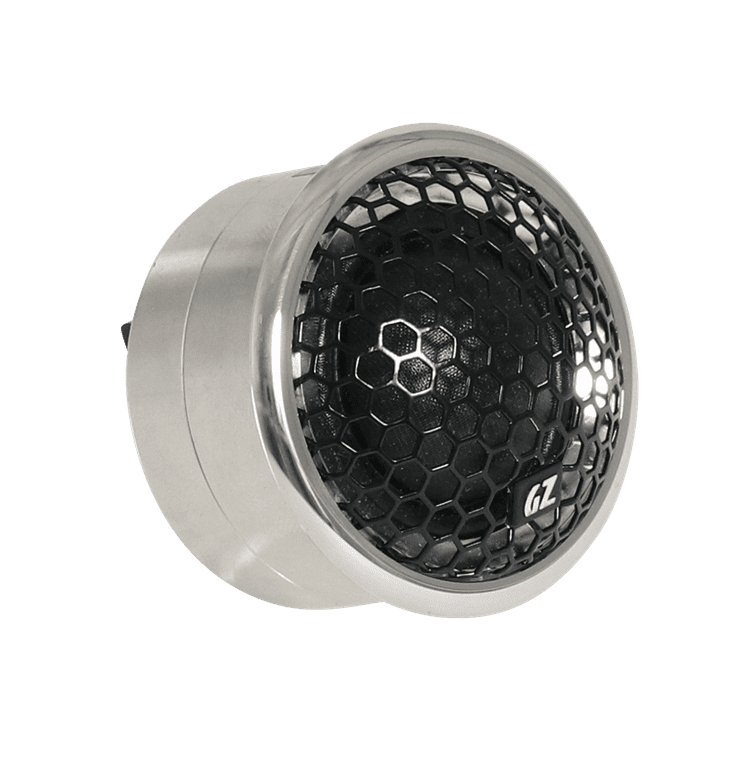

The GROUND ZERO GZPT 28SQ is a high-quality 28-mm tweeter from the PLUTONIUM series, designed specifically for precise and detailed high-frequency reproduction. The double-coated silk dome combines high-resolution reproduction with a pleasantly natural sound character, making it particularly well-suited for high-end car audio systems that prioritize sound quality.

A key feature of the GZPT 28SQ is its solid, polished stainless steel enclosure. Inside, the tweeter operates with a damped resonance chamber and a specially designed wave diffuser. This design promotes controlled sound radiation and a uniform frequency response. Ground Zero developed the design with the goal of reducing distortion and achieving clean phase behavior across a wide frequency range.

The driver features a high-performance neodymium magnet system combined with a heavy-duty copper voice coil. As a result, this compact tweeter has a power handling capacity of 100 watts RMS and a maximum of 150 watts. The usable frequency range extends up to 30 kHz, while the resonance frequency is comparatively low at 770 Hz.

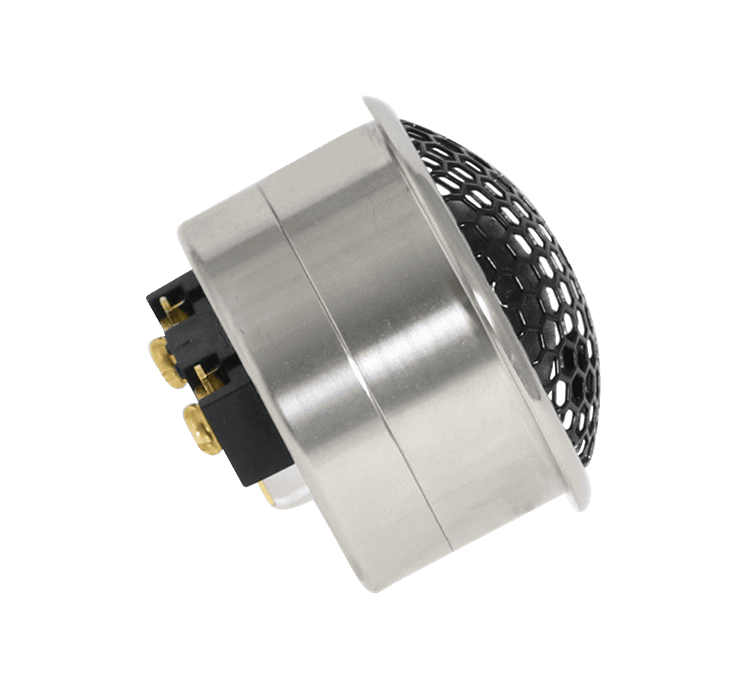

The GZPT 28SQ also features high-quality construction when it comes to installation: Gold-plated screw terminals ensure reliable connections, while the black hexagonal protective grille shields the delicate dome. With a mounting diameter of 48 mm and a mounting depth of 35 mm, the tweeter can be integrated into appropriately prepared mirror triangles, A-pillars, or custom-made speaker mounts.

The GZPT 28SQ is manufactured in Germany and is designed for users who place particular emphasis on resolution, spatial imaging, and high-quality craftsmanship in their car audio systems. The tweeters are sold as a pair.

Technical Specifications

Manufacturer: Ground Zero
Model: GZPT 28SQ
Product Series: PLUTONIUM
Model: High-End Tweeter
Tweeter type: Silk dome tweeter
Diaphragm diameter: 28 mm
Diaphragm material: two-layer / double-coated silk
Case material: Stainless steel
Case surface: polished
Magnetic system: Neodymium drive
Voice coil: heavy-duty copper voice coil
Nominal impedance: 4 ohms
RMS Power Handling: 100 watts
Maximum power handling: 150 watts
Efficiency: 90 dB
Frequency response: 2,000 Hz – 30,000 Hz
Resonance frequency (Fs): 770 Hz
Recommended high-pass filter according to the user manual: 2,500 Hz at 12 dB/octave
Installation diameter: 48 mm
Installation depth: 35 mm
Coupling volume: damped
Connections: gold-plated screw terminals
Protection: black hexagonal protective grille
Manufacturing: Made in Germany
Package Contents: 2x GZPT 28SQ tweeters
