GZNM 80SQ-K

269,00€

Tax included Shipping calculated at checkout.

Speaker

Barcode: 4037072025293

Packaging unit

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

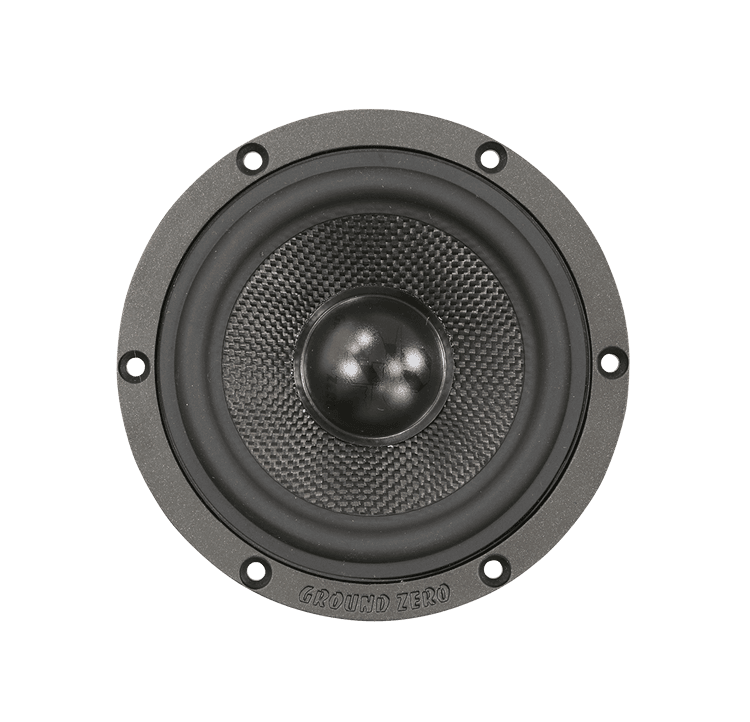

The Ground Zero GZNM 80SQ-K is a high-quality 80-mm midrange driver from the NUCLEAR series, designed specifically for precise and detailed music reproduction. Thanks to its lightweight Kevlar® cone, the midrange driver combines high rigidity with controlled vibration behavior—ideal conditions for clean and dynamic reproduction of the particularly important midrange.

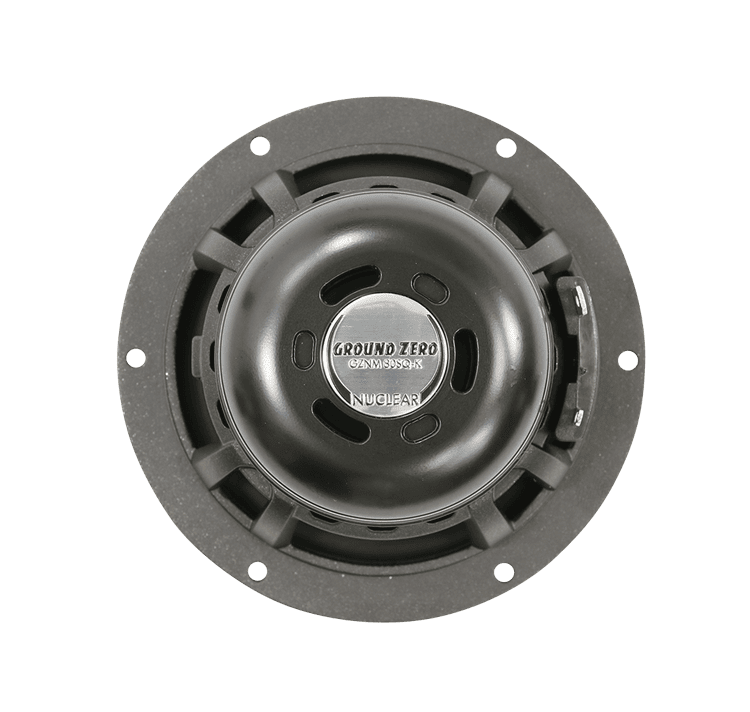

For the driver, Ground Zero relies on a linearized neodymium magnet system combined with a 20-mm voice coil. This combination enables controlled cone movement and is ideal for demanding multi-way and active car audio systems. With a 70-watt RMS power handling capacity, a sensitivity of 88 dB, and a usable frequency range from 150 Hz to 4 kHz, the GZNM 80SQ-K can be flexibly combined with tweeters and woofers.

The sturdy die-cast aluminum basket provides a torsionally rigid base for the chassis and helps ensure low-resonance operation. Despite its high-performance design, the speaker requires only 39 mm of installation depth. This makes it suitable for installations where space is limited, such as behind door panels or in custom-made speaker mounts.

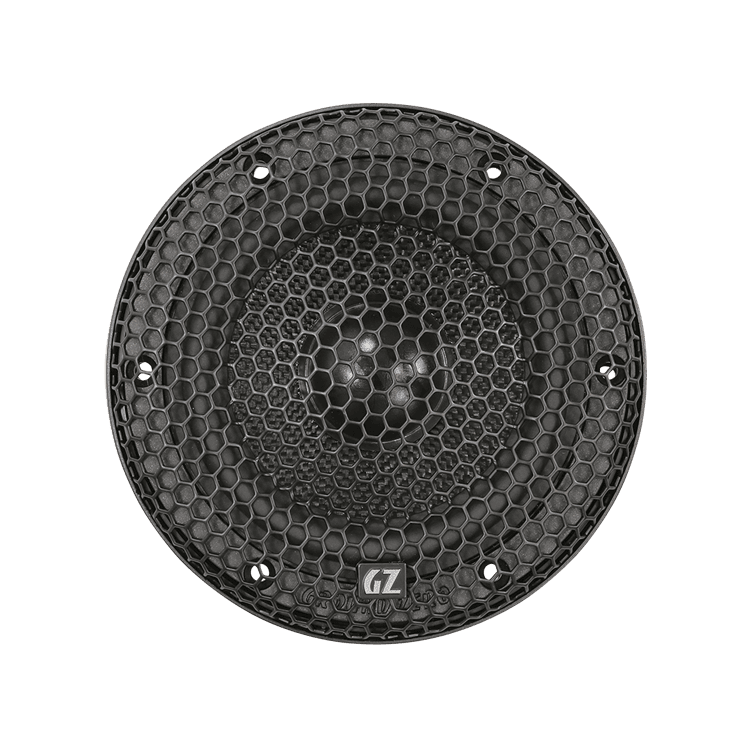

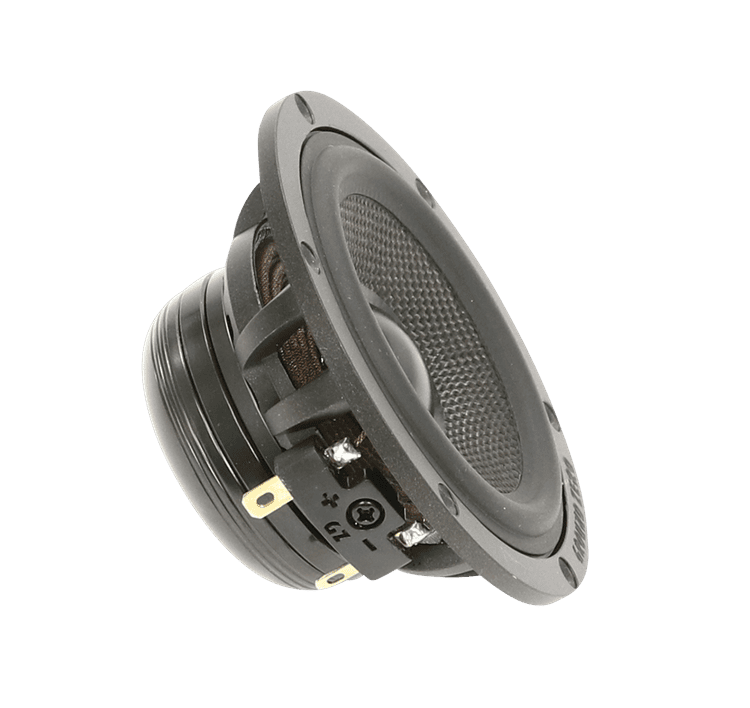

A gold-plated solder terminal ensures a durable and reliable electrical connection. The Hexagon-NRG protective grille, which matches the design, protects the diaphragm while also allowing for a visually appealing, exposed installation.

The GZNM 80SQ-K is therefore an interesting choice for sound-oriented car audio systems designed to reproduce vocals, instruments, and subtle musical details with precision and control.

Product Features

80 mm Sound-Quality Midrange Speaker
High-quality Kevlar® diaphragm
20 mm voice coil
Highly efficient, linearized neodymium drive
Sturdy die-cast aluminum basket
Ground Zero Hexagon-NRG Protective Grille
Gold-plated solder terminals
Compact installation depth of just 39 mm
Suitable for high-quality 3-way and multi-way car audio systems
Sold as a pair

Technical Specifications

Manufacturer: Ground Zero
Model: GZNM 80SQ-K
Series: NUCLEAR
Speaker Type: SQ Midrange Speaker
Nominal diameter: 80 mm
Nominal impedance: 4 ohms
RMS Power Handling: 70 watts
Maximum power handling: 110 watts
Frequency response: 150 Hz – 4,000 Hz
Efficiency / SPL: 88 dB
Resonance frequency (Fs): 97 Hz
Voice coil diameter: 20 mm
Diaphragm material: Kevlar®
Magnet / Drive: Neodymium
Basket material: Die-cast aluminum
Installation diameter: 77 mm
Installation depth: 39 mm
DC resistance (Re): 4.2 ohms
Mechanical Grade (Qms): 3.70
Electrical quality (Qes): 0.44
Total Quality (Qts): 0.39
Equivalent volume (Vas): 1.66 liters
Moving mass (Mms): 2.8 g
Force factor (BL): 4.06 N/A
Mechanical loss resistance (Rms): 0.47 kg/s
Elasticity (cm/N): 0.95 mm/N
Voice coil inductance (Le): 0.10 mH
Maximum linear travel (Xmax): 7 mm total
Connection: gold-plated solder terminal
Protective Grille: Ground Zero Hexagon-NRG
Packaging unit: 1 pair / 2 speakers
