GZIF 6.5

69,00€

Tax included Shipping calculated at checkout.

Speaker

Barcode: 4037072023398

Packaging unit

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

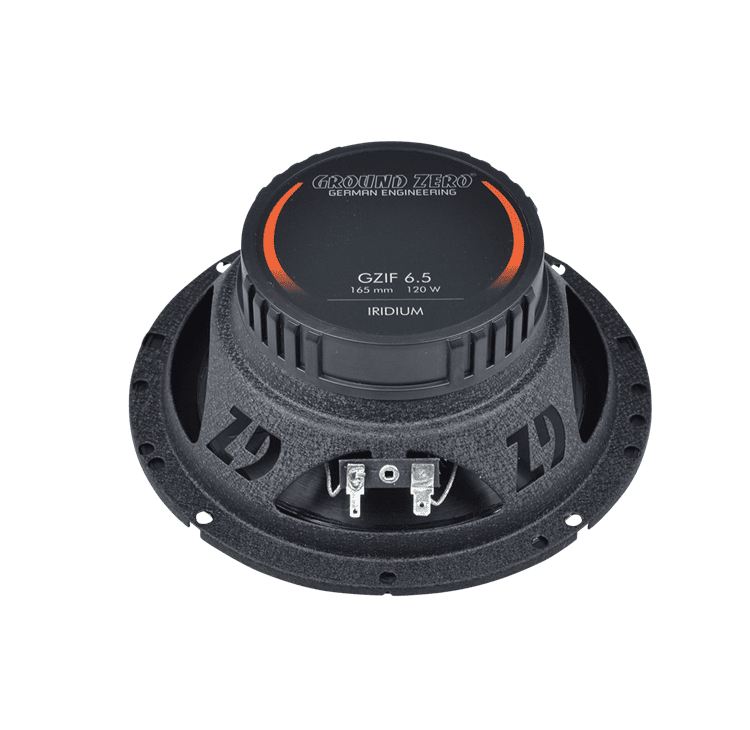

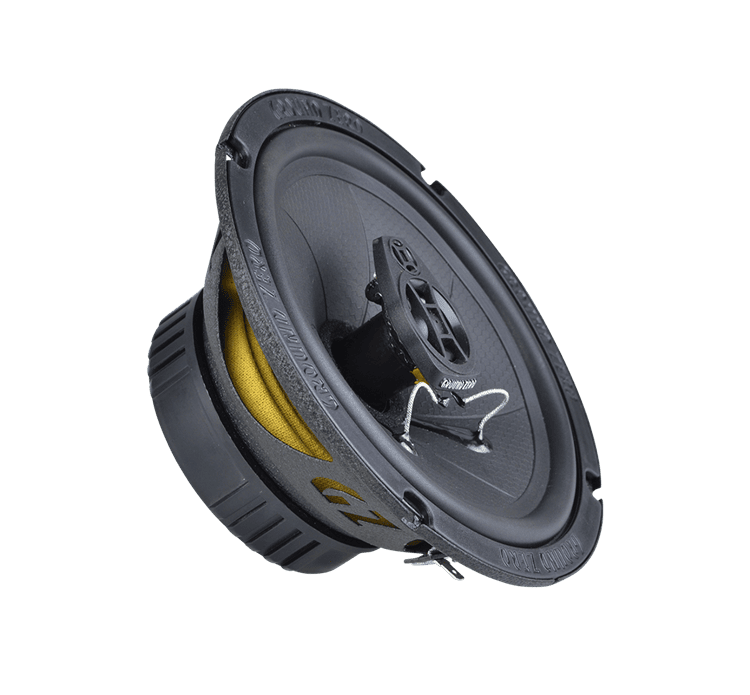

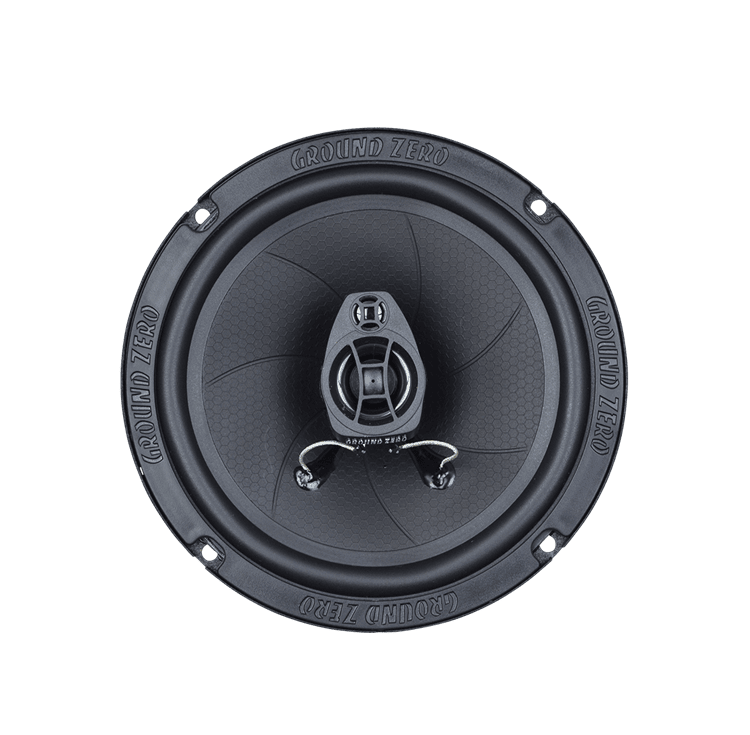

The Ground Zero GZIF 6.5 is a high-performance 16.5-cm coaxial speaker system designed for in-vehicle use. Thanks to its coaxial design, the mid-bass driver and tweeter are aligned on a single axis. This allows the system to be easily installed in many standard speaker locations.

The lightweight HQPP cone, featuring a special 3D structure, works in conjunction with the flexible rubber surround to ensure controlled sound reproduction. A compact 13-mm Mylar tweeter is used for the high-frequency range. An integrated 6 dB/octave high-pass filter handles the appropriate filtering for the tweeter.

With a power handling capacity of 80 watts RMS and up to 120 watts maximum, the GZIF 6.5 is suitable for use with a car stereo as well as in combination with a compatible power amplifier. Its efficiency of 91 dB delivers a powerful sound level even at moderate amplifier power.

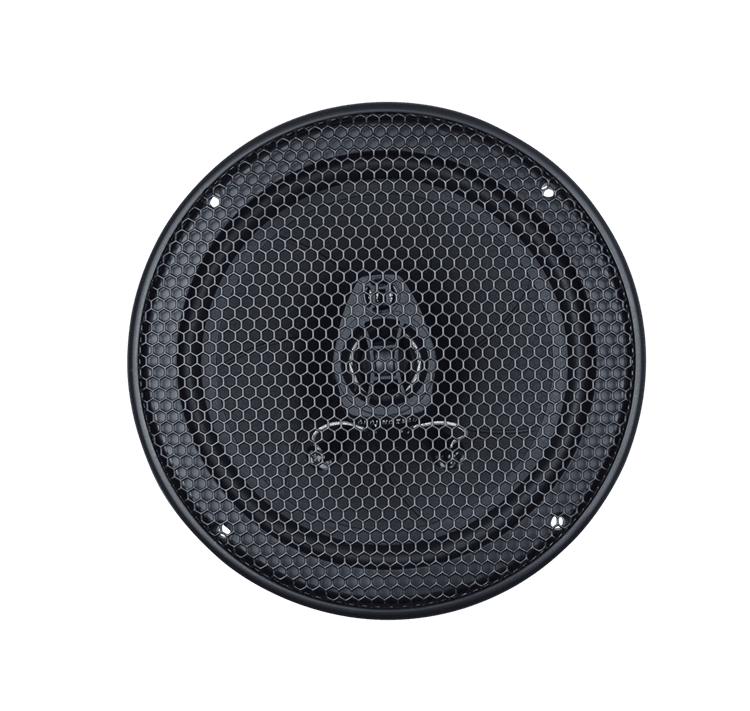

The low-resonance steel cage in Euro-DIN format makes it easy to integrate into a wide range of vehicles. However, with an installation diameter of 142.5 mm and an installation depth of 63 mm, you should check the available space before installation. Matching protective grilles in a hexagonal design are included with the system.

Product Features

16.5 cm / 165 mm 2-way coaxial speaker system
Coaxially arranged mid-bass driver and tweeter
Lightweight HQPP membrane with a 3D structure
Flexible rubber bead
Low-resonance steel basket
Basket design according to Euro-DIN installation dimensions
13 mm Mylar tweeter
Ferrite Magnet System
Built-in 6 dB/octave high-pass filter
Universal 4-ohm version
Hexagonal protective grille included

Technical Specifications

Manufacturer: Ground Zero
Model: GZIF 6.5
Speaker Type: 2-way coaxial speaker system
Nominal diameter: 165 mm / 6.5 inches
RMS Power Handling: 80 watts
Maximum power handling: 120 watts
Impedance: 4 ohms
Efficiency: 91 dB
Frequency range: 50 Hz – 20,000 Hz
Resonance frequency: 67 Hz
Tweeter: 13 mm Mylar
Diaphragm material: HQPP
Membrane Type: HQPP membrane with a 3D structure
Bead: Rubber
Magnet system: Ferrite
High-pass filter: 6 dB/octave
Installation diameter: 142.5 mm
Installation depth: 63 mm
Xmax: 8 mm
Protective grille: Hexagon design, included

What's Included

2x Ground Zero GZIF 6.5 Coaxial Speakers
2 Hexagon Protective Grilles
