GZCW 10PROC

249,00€

Tax included Shipping calculated at checkout.

Speaker

Barcode: 4037072027617

Packaging unit

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

The Ground Zero GZCW 10PROC is a high-performance 25-cm low-midrange driver from the Competition Pro series, designed for demanding car audio systems capable of handling high volume levels. With a power handling capacity of 500 watts RMS and up to 1,000 watts peak, the driver offers ample power reserves for powerful low-midrange and midbass reproduction.

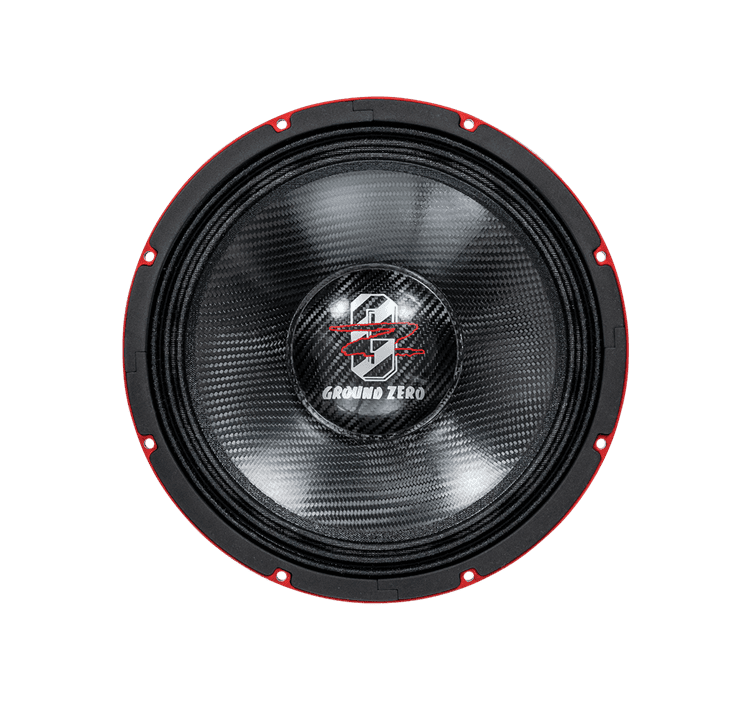

A rigid carbon diaphragm provides the foundation for precise and controlled response. The dust cap is also made of carbon. Combined with the W-shaped long-throw surround, the diaphragm can handle large deflections and thus remains stable even at higher volume levels.

To ensure high power handling, Ground Zero uses a 75-mm copper voice coil. The sturdy die-cast aluminum basket provides the necessary mechanical foundation and ensures consistently reliable guidance of the moving system. The chassis was also optimized using the Klippel® measurement system.

With a frequency range of 30 to 2,400 Hz, the GZCW 10PROC can be flexibly integrated into performance-oriented speaker designs. Its combination of a carbon diaphragm, powerful driver, and high electrical power handling makes it particularly well-suited for installations that require high sound levels and a powerful low-midrange.

Features & Specifications

Manufacturer: Ground Zero
Model: GZCW 10PROC
Series: Competition Pro
Type: High-Performance Low-Midrange Driver
Nominal diameter: 25 cm / 10 inches
RMS Power Handling: 500 watts
Maximum power rating: 1,000 watts
Impedance: 4 ohms
Efficiency: 90 dB
Frequency response: 30 Hz – 2,400 Hz
Frequency specification: F-3 in the recommended enclosure
Resonance frequency (Fs): 30 Hz
Total quality (Qts): 0.22
Equivalent air volume (Vas): 53 liters
Voice coil diameter: 75 mm / 3 inches
Voice coil material: Copper
Diaphragm material: Carbon
Dust cap: Carbon
Bead: W-shaped long-stroke bead
Basket: Ground Zero Die-Cast Aluminum Basket
Optimization: Klippel®-optimized
Connection: compact screw connections
Installation diameter: 227 mm
Installation depth: 122 mm
Package Contents: 1 Ground Zero GZCW 10PROC
