GZCT 28M-SPL

79,00€

Tax included Shipping calculated at checkout.

Speaker

Barcode: 4037072025392

Packaging unit

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

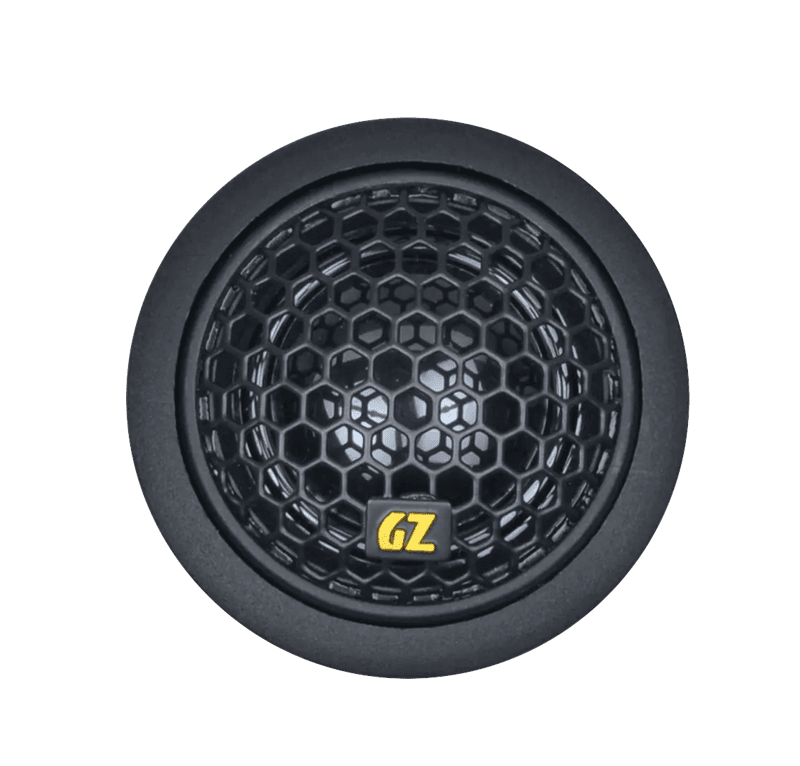

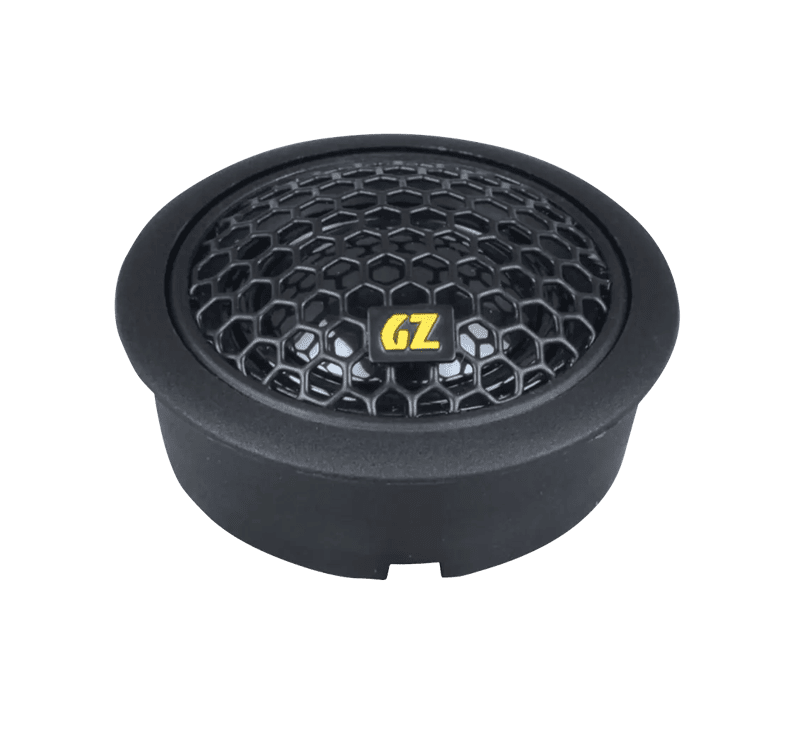

The Ground Zero GZCT 28M-SPL is a high-performance 28-mm dome tweeter from the Competition Series, designed for demanding car audio installations that require clean and prominent high-frequency reproduction. Its lightweight Mylar dome combines a direct response with detailed sound reproduction and covers a frequency range up to 20 kHz.

For the driver, Ground Zero relies on a compact neodymium magnet. The 28-mm voice coil is ferrofluid-cooled, ensuring reliable heat dissipation at higher volume levels. With a power handling capacity of 80 watts RMS and 110 watts peak, the GZCT 28M-SPL offers sufficient power reserves for high-performance speaker systems.

The package includes a 12-dB/octave high-pass filter with a cutoff frequency of 5,500 Hz. This filter not only handles frequency separation but also protects the tweeter from unsuitable low frequencies. In addition, the system features a PTC protection component.

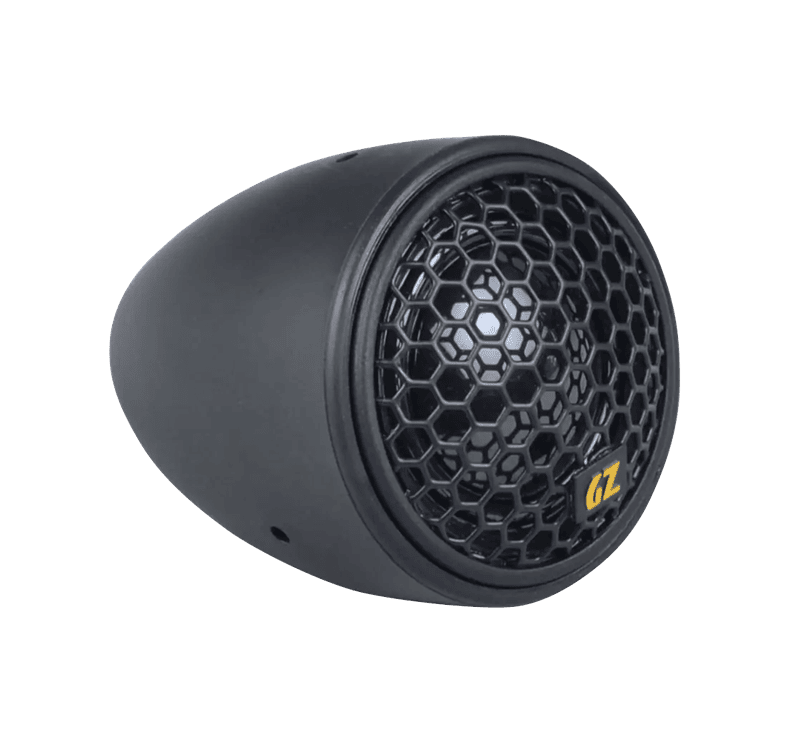

Thanks to its compact installation dimensions, the tweeter can be flexibly used in a variety of vehicle designs. A surface-mount bracket also allows for an alternative installation if a standard mounting location is not available. The GZCT 28M-SPL is sold as a pair.

Technical Specifications

Manufacturer: Ground Zero
Model: GZCT 28M-SPL
Product Line: Competition
Speaker Type: High-Performance Dome Tweeter
Diaphragm/dome diameter: 28 mm (1.1")
Dome material: Mylar
Voice coil: 28 mm (1.1")
Magnet material: Neodymium
Impedance: 4 ohms
RMS Power Handling: 80 watts
Maximum power handling: 110 watts
Frequency range: 2,500 Hz – 20,000 Hz
Resonance frequency (Fs): 1,250 Hz
Sound pressure level (SPL): 86 dB
High-pass filter: 12 dB/octave
Cutoff frequency of the high-pass filter: 5,500 Hz
Protection circuit: PTC
Cooling: Ferrofluid
Outer diameter: 54 mm
Installation diameter: 48 mm
Installation depth: 16 mm
Installation: Flush-mount or surface-mount
Mounting bracket: included
High-pass filter: included
What's Included: 1 pair of tweeters
