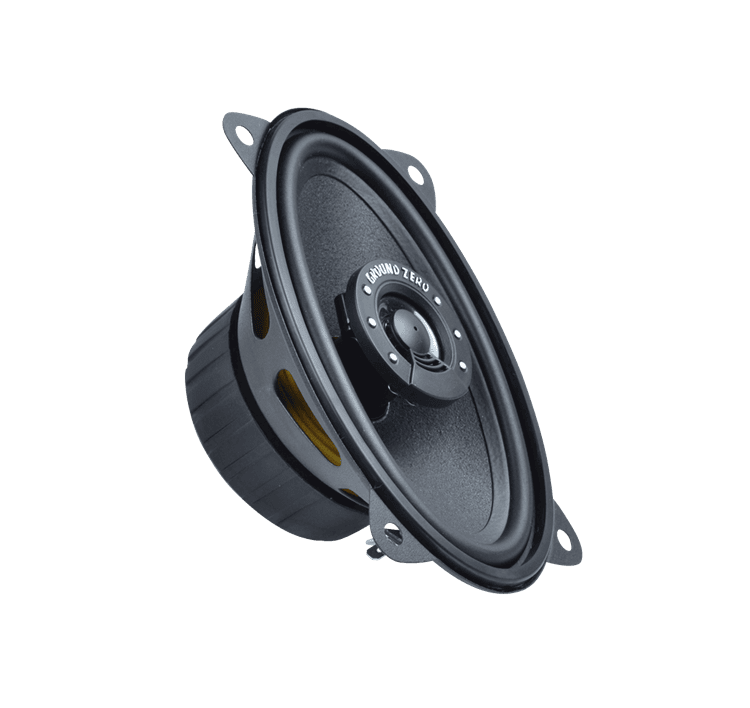

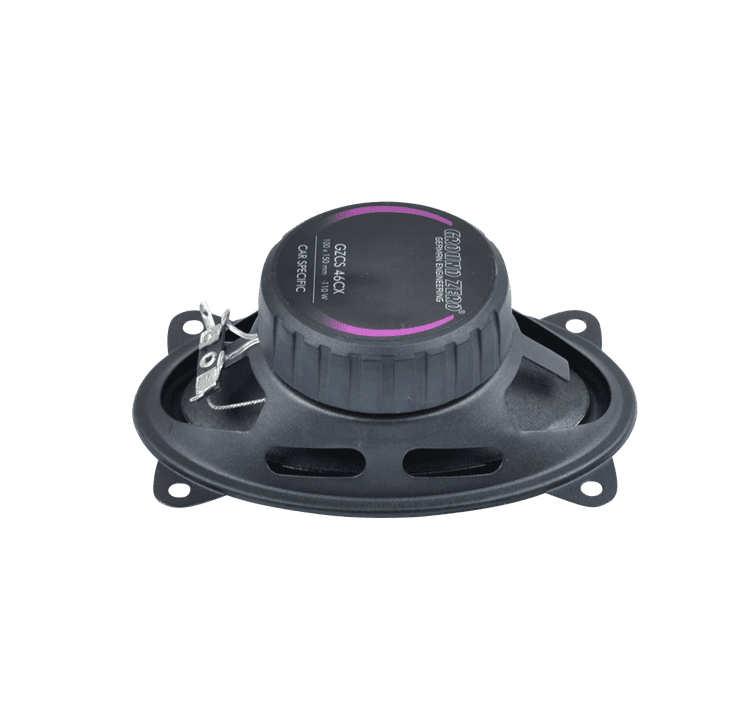

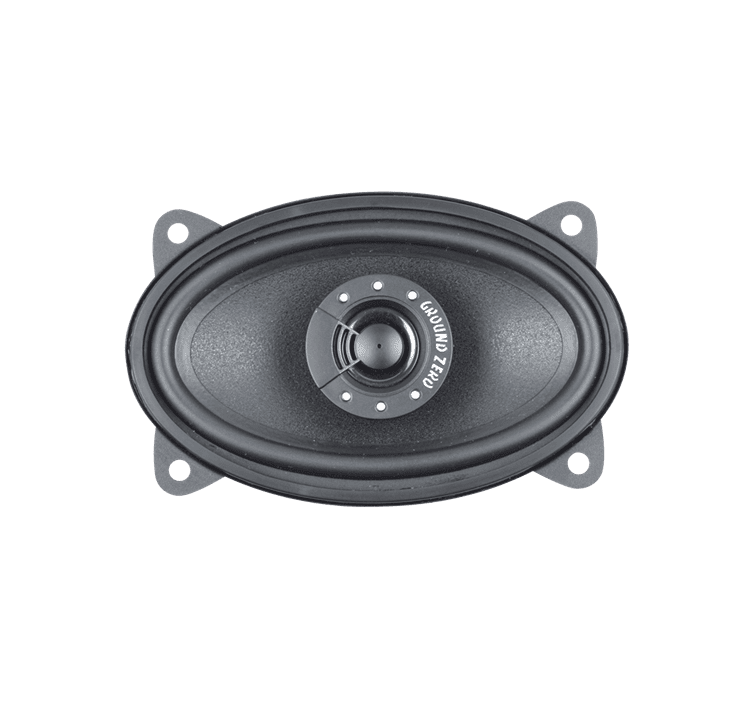

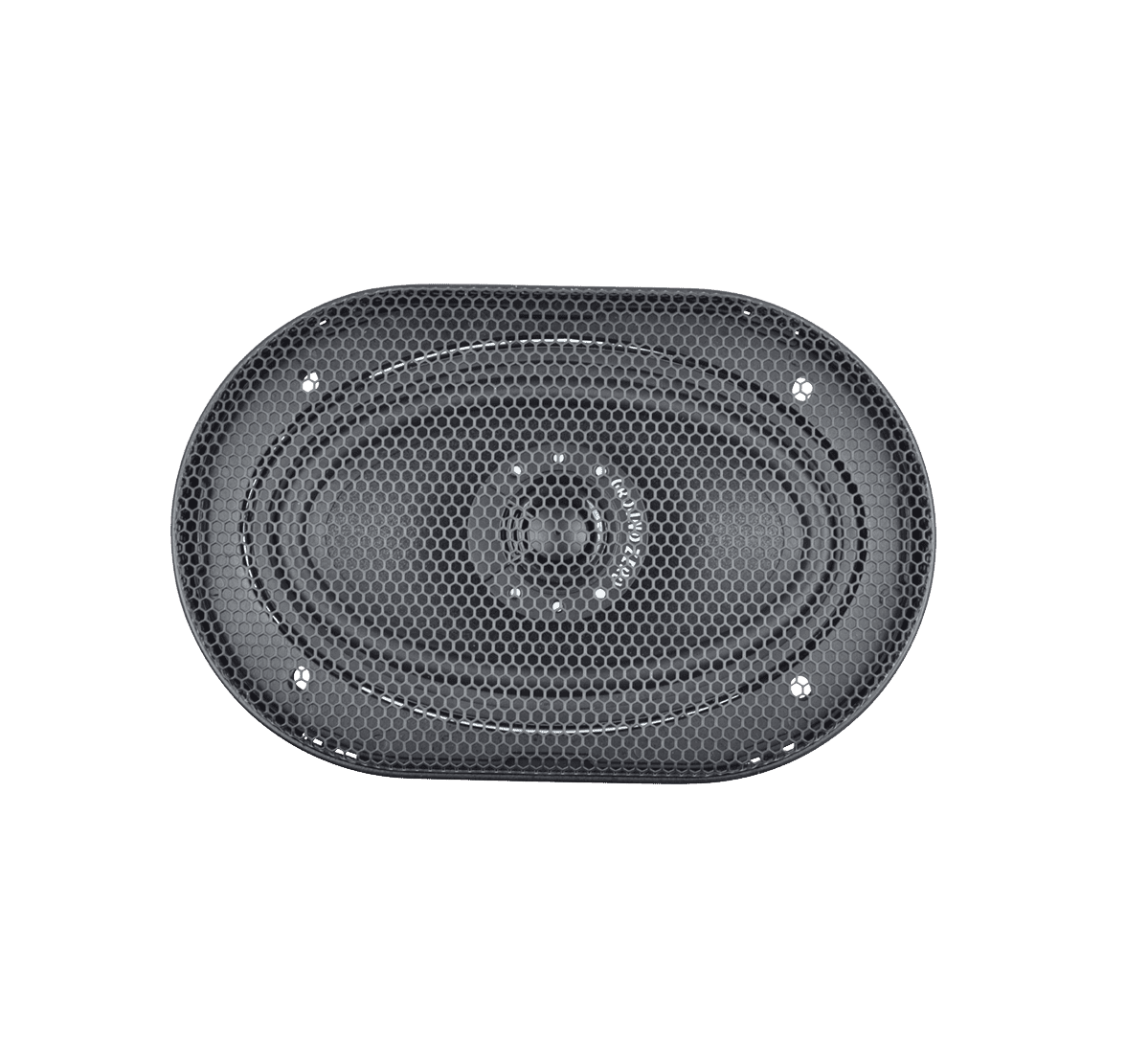

The Ground Zero GZCS 46CX is a compact 2-way coaxial speaker in the classic 4x6-inch format. The system is suitable for a variety of vehicles and is particularly appealing when existing 4x6-inch speakers need to be replaced with a more powerful car audio solution.

To reproduce midrange and low frequencies, Ground Zero uses a coated paper cone with a rubber surround. This combination of materials allows for controlled cone movement and is optimized for balanced performance in a vehicle. The low-resonance steel basket provides a stable base for the speaker.

A 13-mm Mylar tweeter is integrated directly into the speaker, allowing the high-frequency and midrange/low-frequency ranges to be housed in a single, space-saving 2-way coaxial system. With a power handling capacity of 70 watts RMS (maximum 110 watts), a sensitivity of 89 dB, and an impedance of 4 ohms, the GZCS 46CX can be used with both compatible car stereos and external car audio amplifiers.

The shallow installation depth of just 48 mm makes them easy to use in tight spaces. The speakers are sold as a pair.

Technical Specifications

Manufacturer: Ground Zero
Model: GZCS 46CX
Speaker type: 2-way coaxial speaker
Dimensions: 4 x 6 inches
Nominal diameter: 100 x 150 mm
RMS Power Handling: 70 watts
Maximum power handling: 110 watts
Impedance: 4 ohms
Efficiency / Sound Pressure Level: 89 dB
Frequency response: 80 Hz – 20,000 Hz
Tweeter: 13 mm Mylar
Diaphragm: coated paper diaphragm
Bead: Rubber
Speaker basket: Steel
Installation depth: 48 mm
Connection type: Solder connection
What's Included: 1 pair of speakers (2 pieces)
