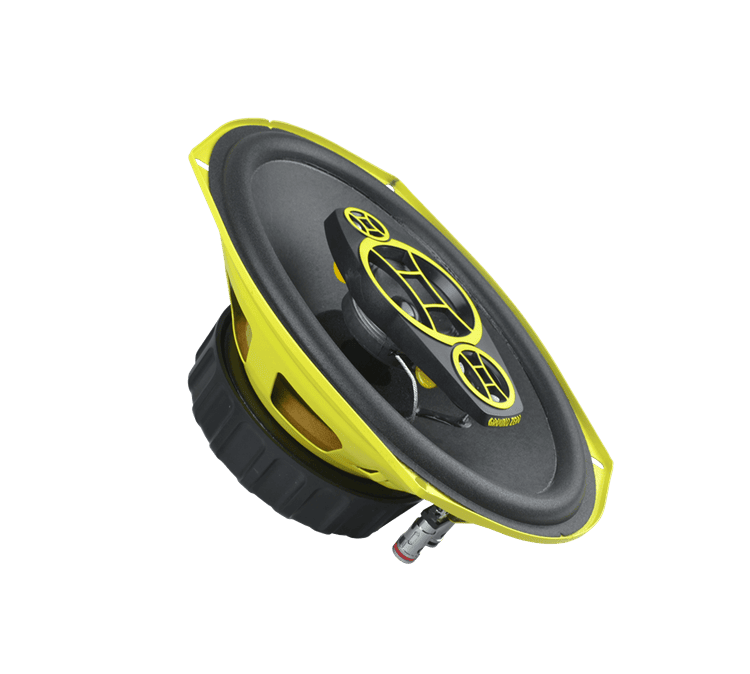

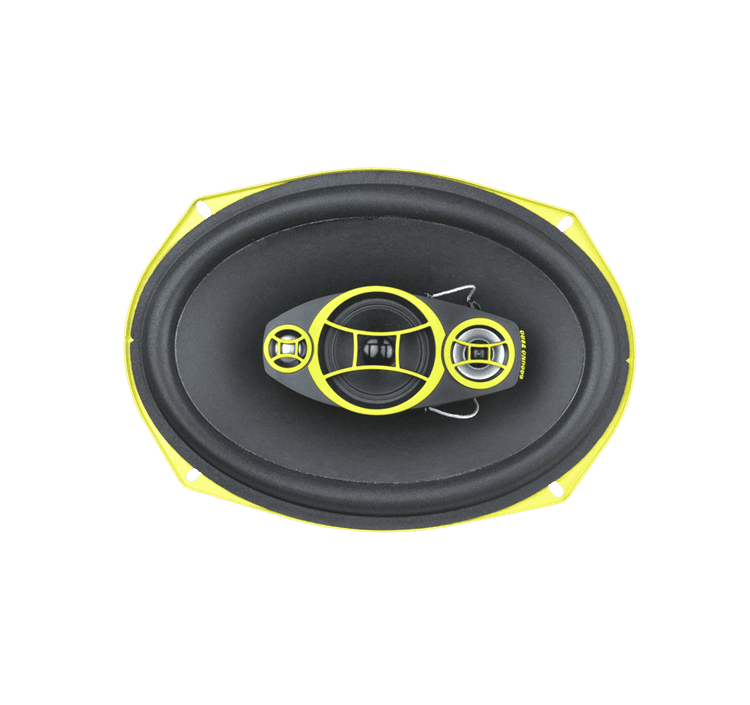

The Ground Zero GZCF 7104XSPL is a high-performance 7x10-inch coaxial speaker system designed for car audio applications that require high volume levels and a wide frequency response. Thanks to its 4-way design, the system combines a woofer/midrange driver, a midrange driver, a tweeter, and a super-tweeter into a single, compact speaker.

The large fiber-reinforced paper cone ensures effective reproduction in the low- and mid-frequency ranges. A foam surround allows for the necessary cone movement. For the higher frequencies, a separate 50-mm midrange driver with a paper cone, a 13-mm PEI tweeter, and a 13-mm piezo super-tweeter are used. As a result, the GZCF 7104XSPL covers a specified frequency range from 35 Hz to 25 kHz.

With a power handling capacity of 200 watts RMS and 300 watts maximum, the system is also suitable for high-performance car audio installations with an external power amplifier. Its efficiency of 93 dB ensures high sound output. The impedance is a practical 4 ohms.

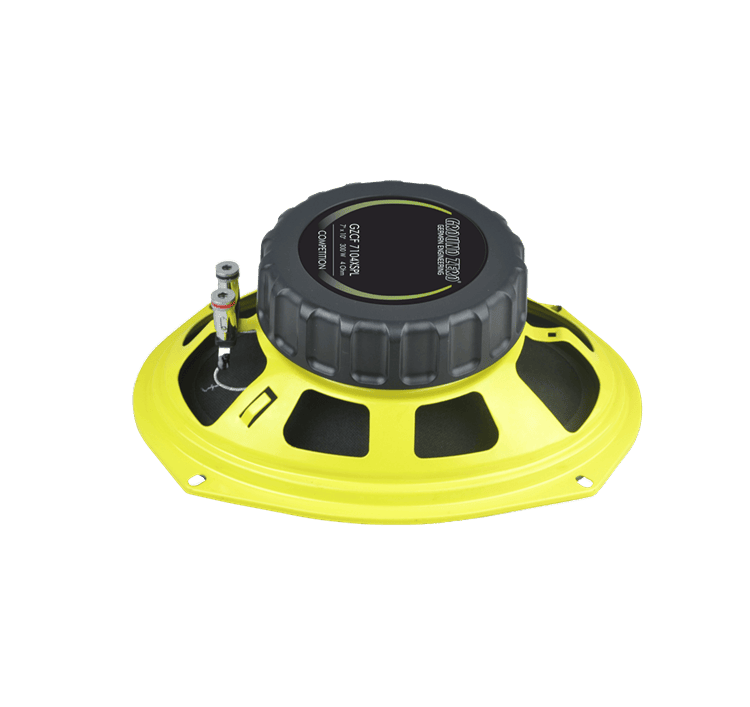

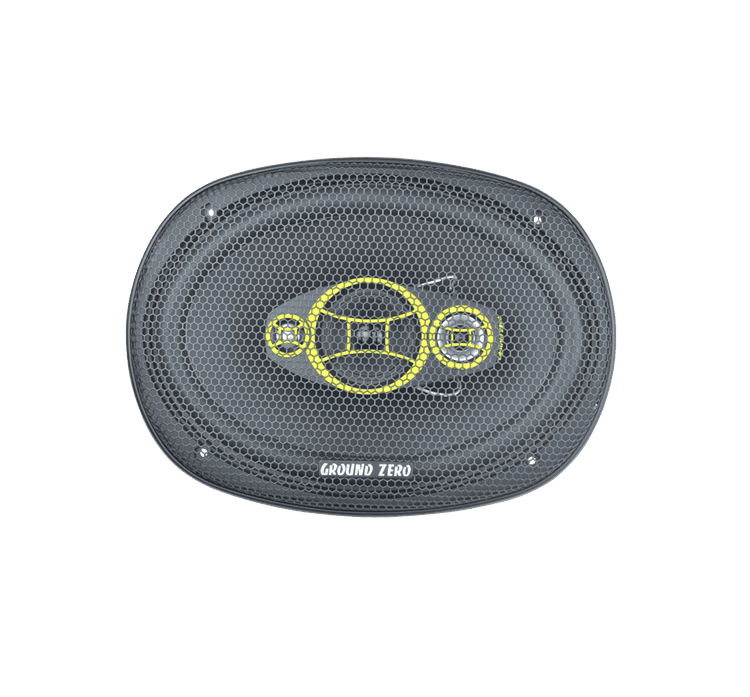

To ensure a sturdy construction, Ground Zero uses a low-resonance steel basket. Cables are connected via simple terminal blocks. Matching protective grilles are also included and protect the speakers when they are mounted in plain view or in an easily accessible location.

Technical Specifications

Manufacturer: Ground Zero
Model: GZCF 7104XSPL
Series: Competition Series
Speaker Type: 4-way coaxial speaker system
Nominal size: 7 x 10 inches
Speaker dimensions: approx. 18 x 25 cm
RMS Power Handling: 200 watts
Maximum power handling: 300 watts
Impedance: 4 ohms
Efficiency / SPL: 93 dB
Frequency response: 35 Hz – 25 kHz
Resonance frequency: 60 Hz
Maximum excursion: 10 mm peak-to-peak
Low- and midrange driver: fiber-reinforced paper cone
Bead: Foam bead
Midrange driver: 50 mm / 2 inches with a paper cone
Tweeter: 13 mm PEI
Super-high-frequency tweeter: 13 mm piezo
Basket: low-resonance steel basket
Connection: Terminal connection
Installation depth: 86 mm
Installation opening: approx. 165 x 239 mm
Protective grille: included

Special Features

High-Performance 7x10-Inch Speaker System
4-way coaxial design for an exceptionally wide frequency range
High power handling capacity at 200 watts RMS
93 dB efficiency for high sound levels
Large Fiber-Reinforced Paper Membrane
Separate midrange, high-frequency, and super-high-frequency drivers
Sturdy, low-resonance steel basket
Convenient Clamp Connections
Includes speaker grilles
Suitable for high-performance car audio systems

What's Included: 2x Ground Zero GZCF 7104XSPL speaker system, including protective grilles
