GZ REFERENCE M-80

The Ground Zero GZ REFERENCE M-80 is an 80-mm midrange driver from the REFERENCE series, designed without compromise for high-quality music reproduction. Its design is aimed at reproducing the particularly important midrange with precision, control, and rich detail—ideal for sophisticated active 3-way car audio systems and custom high-end sound setups.

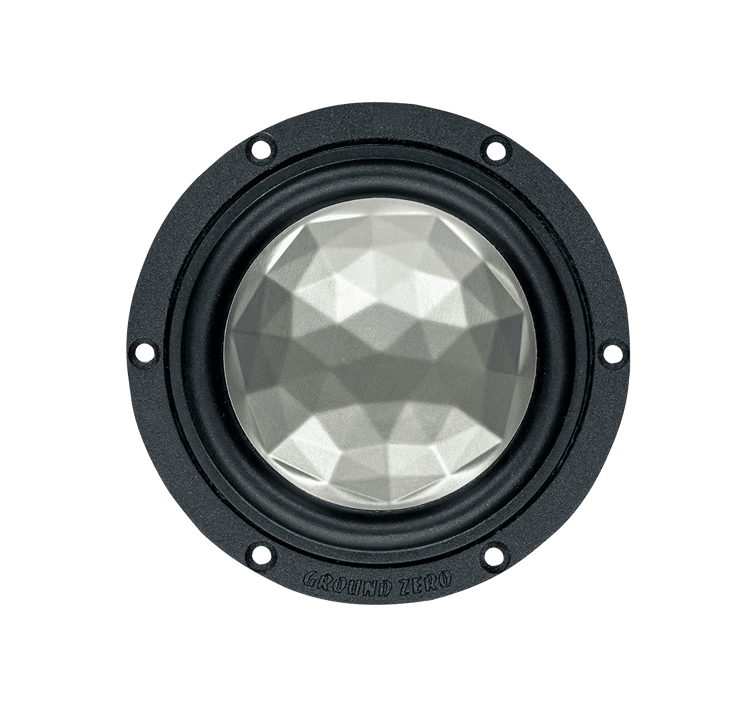

At the heart of the M-80 is the ceramic-coated aluminum diaphragm with a diamond pattern. This sophisticated diaphragm design combines high rigidity with targeted damping and is complemented by an additional high-damping support cone. This provides the midrange driver with the conditions necessary for a clean and nuanced reproduction of vocals, instruments, and subtle musical details.

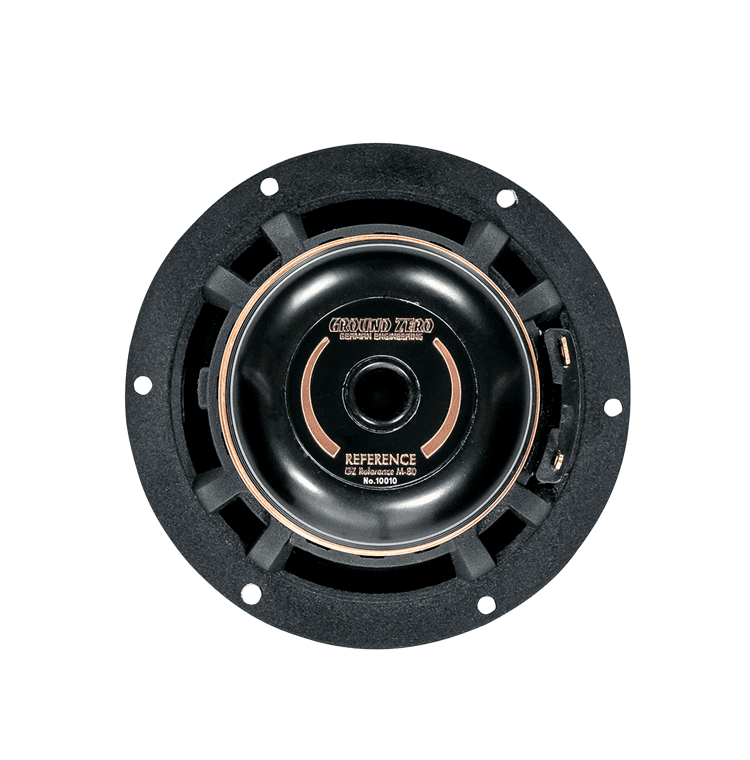

For the driver, Ground Zero relies on a high-performance neodymium magnet system, the design of which was optimized using the Klippel® measurement system. An additional aluminum ring serves to linearize the impedance and helps ensure the speaker’s electrical behavior is as consistent as possible.

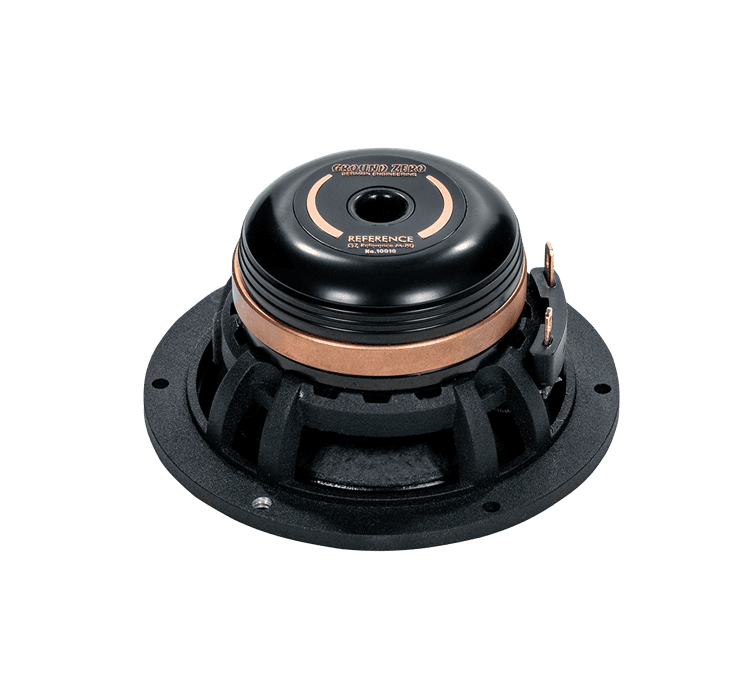

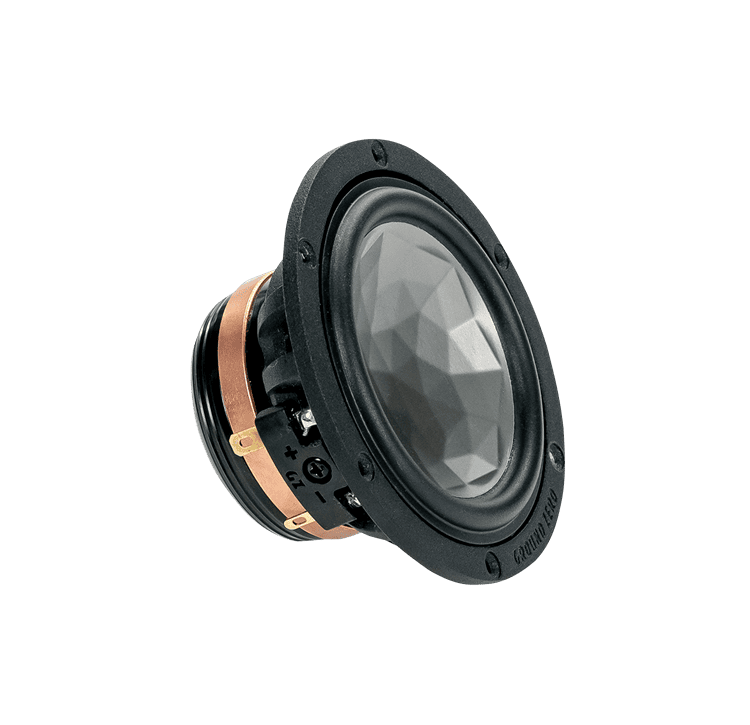

The GZ REFERENCE M-80 also features a consistently high-quality mechanical design. The sturdy die-cast aluminum basket provides a torsionally rigid base, while gold-plated terminals ensure reliable contact. With an installation depth of just 43 mm, this high-end midrange driver can be integrated relatively compactly despite its sophisticated design.

With a usable frequency range of 220 Hz to 12 kHz, a 70-watt RMS power handling capacity, and a nominal impedance of 4 ohms, the GZ REFERENCE M-80 is particularly well-suited as a high-quality link between the low-midrange driver and the tweeter. This model is sold as a pair.

Product Features

• 80 mm Pure High-End SQ Midrange Driver
• Ceramic-Coated Aluminum Diaphragm
• High-Tech Membrane with a Diamond Structure
• Additional high-damping support cone
• Klippel®-Optimized Speaker Design
• Highly efficient, linearized neodymium drive
• Aluminum ring for impedance linearization
• Sturdy die-cast aluminum basket in the Ground Zero design
• 25-mm copper voice coil
• Gold-plated connectors
• GZ Hexagon-NRG Protective Grille
• For high-quality SQ and high-end car audio systems
• Sold as a pair (2 speakers)



Technical Specifications

• Model: Ground Zero GZ REFERENCE M-80
• Item Number: 32220020
• Speaker Type: Pure High-End Midrange Driver
• Nominal diameter: 80 mm / 3.15 inches
• Nominal impedance: 4 ohms
• RMS Power Handling: 70 watts
• Maximum power handling: 110 watts
• Sound pressure level (SPL): 85 dB
• Frequency response: 220 Hz – 12 kHz
• Resonance frequency (Fs): 109 Hz
• Voice coil: 25 mm / 1 inch copper
• Diaphragm material: aluminum, ceramic-coated
• Outer diameter: 94 mm
• Installation diameter: 77 mm
• Installation depth: 43 mm
• DC resistance (Re): 3.4 ohms
• Mechanical Grade (Qms): 4.25
• Electrical quality (Qes): 0.38
• Total quality (Qts): 0.35
• Equivalent volume (Vas): 0.72 liters
• Moving mass (Mms): 4.8 g
• Force factor (BL): 5.45 Tm
• Mechanical resistance (Rms): 0.78 kg/s
• Elasticity (cm/N): 0.44 mm/N
• Voice coil inductance (Le): 0.084 mH
• What's Included: 1 pair of midrange drivers (2 speakers)
