GAS Audio MAD A2-600.1DFL

GAS Audio MAD A2-600.1DFL

0,00€ 149,00€

GAS Audio MAD A2-600.1DFL

0,00€ 149,00€
Packaging Unit: Individually

READY FOR LOUD
Swap your mind and go completely crazy for the A2 series amplifiers. We've made some "cool" choices when it comes to cooling, such as a custom-built heavy and extremely stable heatsink, while increasing the space between the side panels to allow air to circulate freely under the amplifier - even in difficult mounting conditions. We have also implemented a two-layer PCB for increased performance and reliability. This is INSANITY taken to the next level!

LETTHE HATTERS TALK
Inspired by the near-perfect MAX series amplifiers, we decided that there was one more feature that we needed to integrate into the MAD series amplifiers: The so-called "balanced differential inputs", which means less noise - and better sound. The powerful Class D amplifier topology ensures that the A2-600.1DFL delivers incredible power and a smooth sound. This is a full-range amplifier that can cover the full frequency band. Tweeter, midrange or subwoofer are no problem!

SOMETHING FOR EVERYONE
What's the difference between your sound system and the others? Apart from the enormous power... control, of course! We've given the MAD A2 Series HPF and LPF crossovers a 12 dB slope and equipped them with a wide range of features. Build the system of your dreams, the choice is yours!

MAKINGIT LOOK EASY SINCE 1997
We know what it's like. You want to install your amplifier as quickly as possible so you can show people how loud your sound system can be. Don't worry, we'll take care of it - how about a CLIPPING function for even easier installation, the function helps to recognize when 1% distortion is reached? AND additionally integrated, the latest high-level input technology with ATO, automatic switch-on.

SAFETY FIRST
If you drive a little beyond the limits, things can take a turn for the worse. That's something you want to avoid, right? To make sure your sound system can handle it, we've integrated state-of-the-art protection circuitry. This minimizes the risk of DC current, thermal overload and short circuit problems!

Type amplifier
Channels 1
Input mode RCA/High-LvL
Power RMS (1 Ohm) 1x 600W
Power RMS (2 Ohm) 1x 420W
RMS power (4 Ohm) 1x 240W
Playback range 15-20,000 Hz
Low pass filter 50 - 4000 Hz
High pass filter N/A
S/N ratio >95 dB
Bass EQ 0-12 dB at 45 Hz
Crossover slope 12 dB
Voltage range 11-16V
REM voltage 11-16V
Input sensitivity 0,5-6V
THD <0,02 %
Current fuse 2x40A
Attenuation factor >130
High-level input Yes
RCA line-out Yes

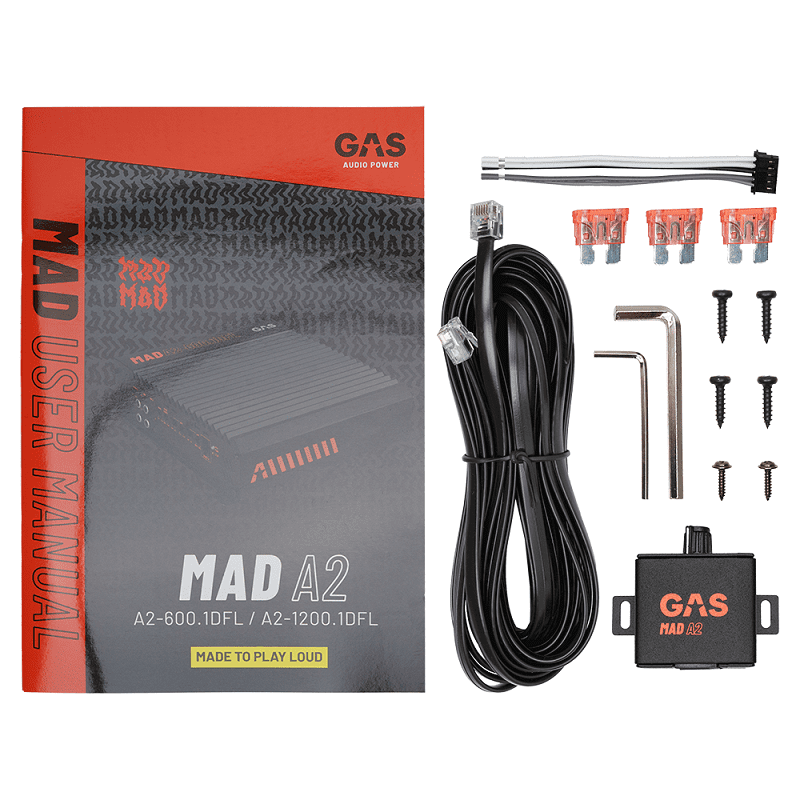

Operating instructions
☞(Download)


Data sheet
☞(Download)


Shipping

✓ Free shipping from 49€ within Germany

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by e-mail after the shipment has been processed.

Normal shipping route

✓ 1 - 31,5Kg = DHL

✓ 31,6 - 40Kg = GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL or forwarding agency

Collection

✓ Collection takes place regularly, orders received by 3 p.m. are usually disposed of on the same day for stock goods and transported directly to the parcel center.

Further information

✓ T-shirts and hoodies are made to order and have separate delivery times

✓ Forwarding goods can be picked up the following day at the earliest

Trust is good, control is better - use our social media channels and find out about our work: whether it's installations, tuning meetings, competitions, product presentations, explanations or direct support. We offer you a comprehensive design:

Instagram:
Regular posts and stories
Youtube:
Regular videos about car hi-fi.
Facebook
Regular information about new products and much more.
TikTok:
Short and crisp videos

Wiring wizard

Use our wiring wizard for simple wiring of speakers and subwoofers or to find the optimal setup for your cabinet! The right connection is important for your amplifier! Low impedance operation can damage the amplifier!

✓ Series connection: The impedance increases in number

✓ Parallel connection: The impedance decreases in the number

The data sheet shows you which connection the respective amplifier is designed for!

Port calculator

Our port calculator shows you which tuning your housing has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

The net volume design for your woofer size in music mode can look like this

Bass reflex:

✓ 6.5" (16.5cm) = 10 - 15 liters

✓ 8" (20cm) = 20 - 30 liters

✓ 10" (25cm) = 40 - 50 liters

✓ 12" (30cm) = 60 - 80 liters

✓ 15" (38cm) = 100 - 125 liters

✓ 18" (46cm) = 180 - 240 liters

✓ 21" (54cm) = 230 - 290 liters
