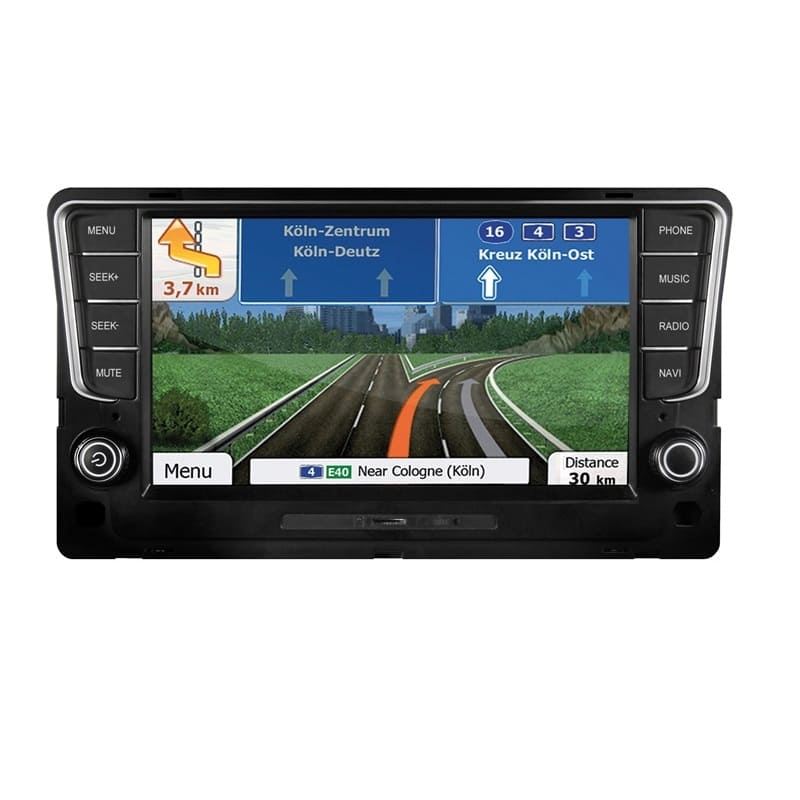

ESX VN810-VW-G7

Vehicle-specific i10 naviceiver with 20.3 cm (8") touchscreen

The ESX VN810-VW-G7 is the perfect multimedia navigation system for your Golf 7. With a large 10.1" touchscreen, integrated DAB+ radio, navigation, Bluetooth and perfect vehicle connection, it offers maximum functionality and modern infotainment with an OEM look.

Features:

✓ iGO Primo navigation software with TMC on 8GB SD card, 46 countries incl. Turkey with point of interest display and search, TTS voice output, warnings, over 25 system and announcement languages. Latest Map Guarantee after registration on www.naviextras.com

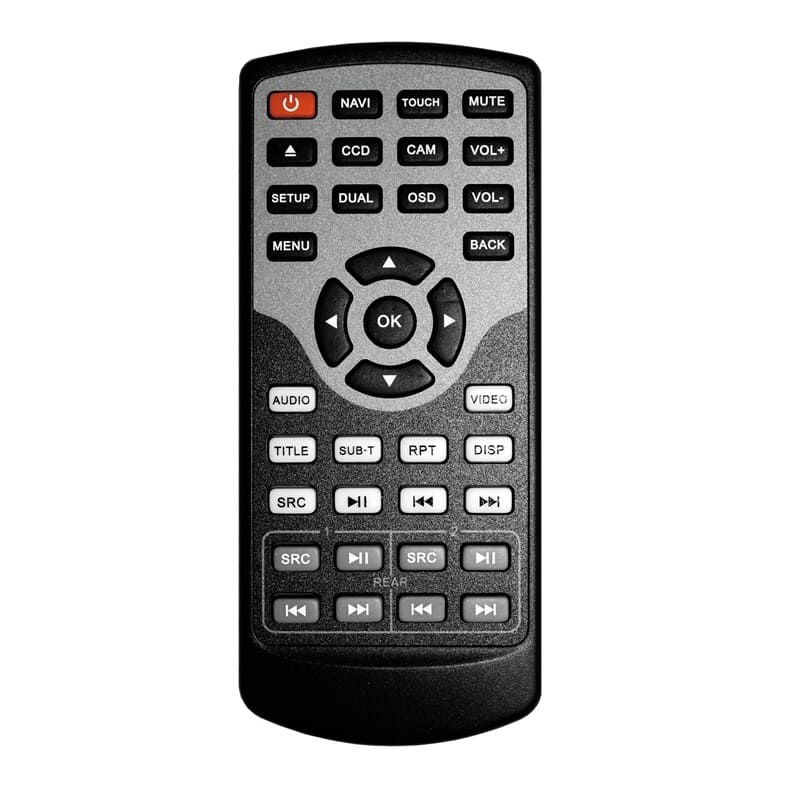

✓ 20.3 cm (8") touchscreen with 800 x 480 px, incl. IR remote control
✓ Supplied with silver trim (Dark Rhodium) and external DVD drive
✓ i10 operating system, based on Microsoft Windows CE 6
✓ 600 MHz CPU, 4 GB iNand Flash drive, 256 MB DDR1 RAM,
256 MB NAND Flash RAM
✓ Audio amplifier with 4 x 50 watts max.
✓ Pre-amplifier outputs (4V) Subwoofer / Center
✓ DSP audio processor with 9-band equalizer and 5.1 surround sound
✓ Bluetooth hands-free kit incl. audio streaming
✓ iPod/iPhone connection via USB

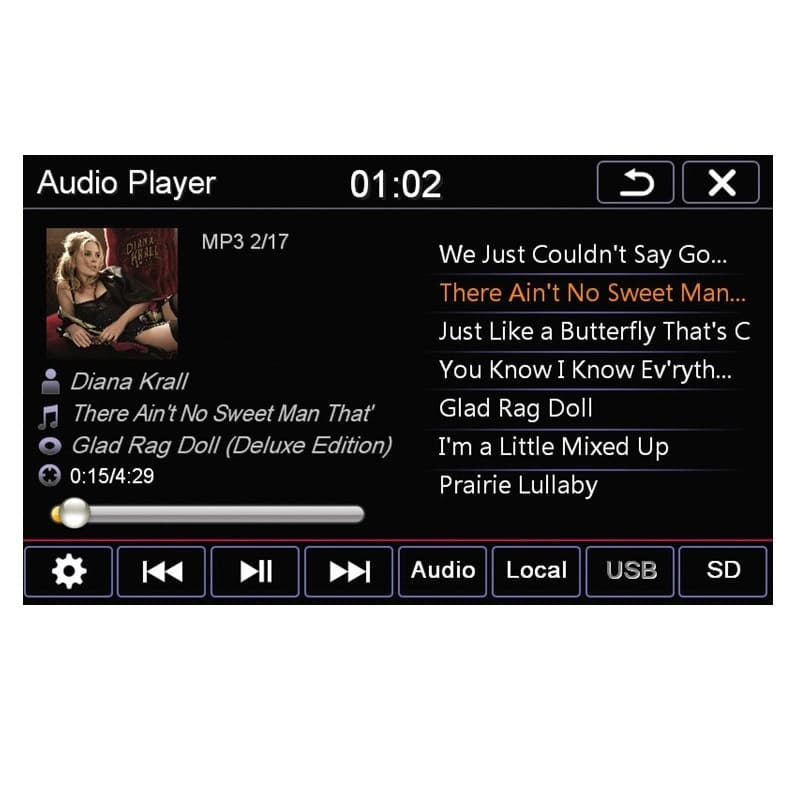

✓ Media playback (MP3/WMA/MPEG4/MPEG1/2/WMV/AVI/DivX etc.) ✓ Media playback (MP3/WMA/MPEG4/MPEG1/2/WMV/AVI/DivX etc.))

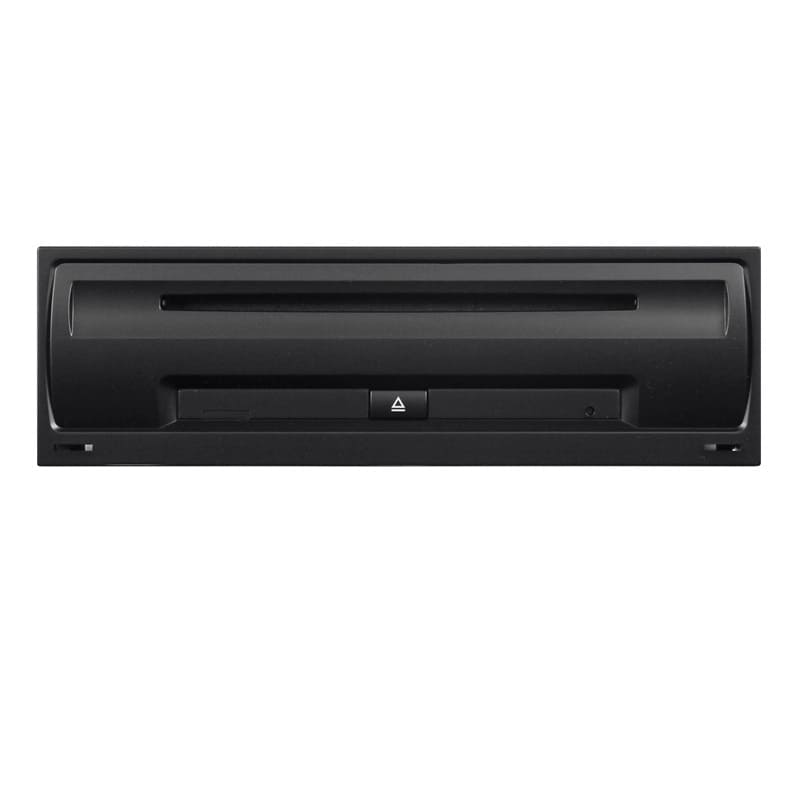

✓ External DVD drive (DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD-R/RW, MP3),
fits perfectly in the glove compartment

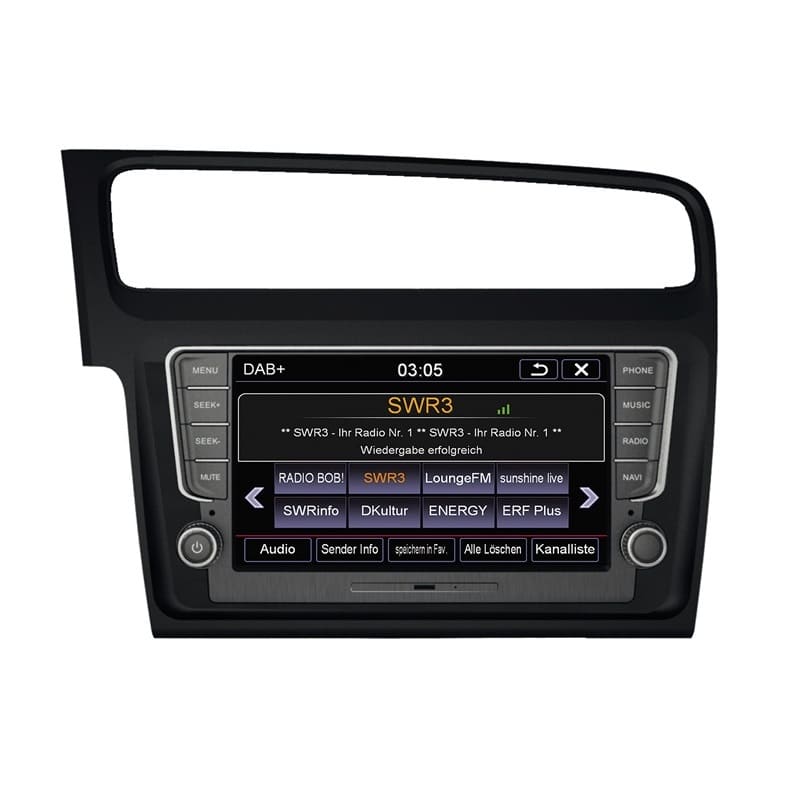

✓ Radio DAB+ (only with VN810 VW-G7-DAB)
✓ AM/FM radio with RDS function (supports Europe, North America, Asia)

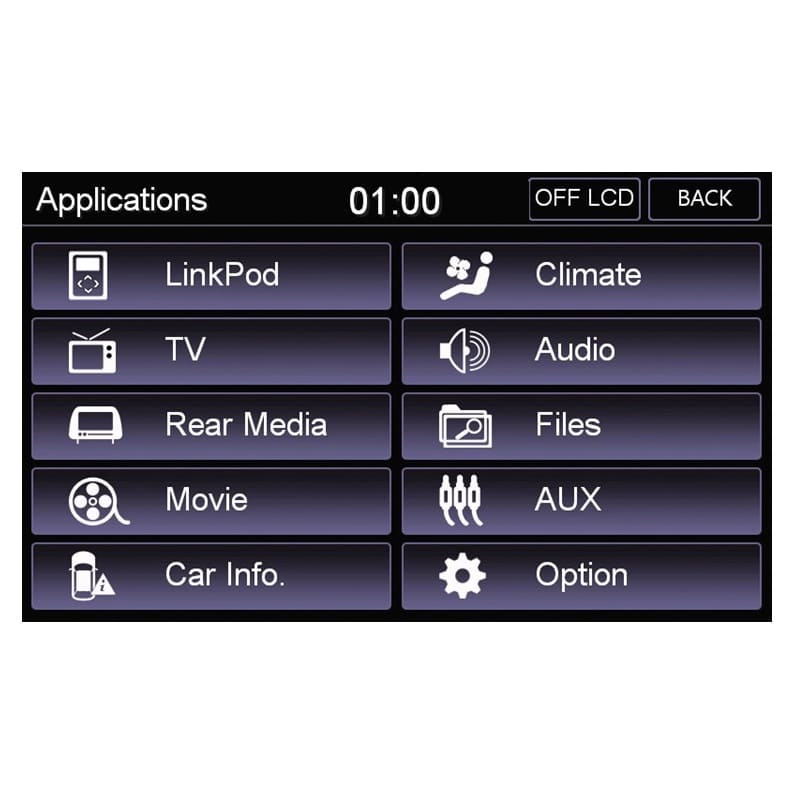

✓ User-defined settings (individual background image, start logo, menu)
✓ Several design themes (skins) for individual
design of the user interface
✓ Individually adjustable volume of the individual applications
✓ File manager with open file structure, photo slideshow, compatible
with MS Office applications
✓ MicroSD card slot and USB port with copy function
✓ Integration of external applications (compatible with Windows CE 6)
✓ Date/time function, 12- or 24-hour display
✓ Video output for two monitors with Real Dual-Zone audio outputs
✓ Front and rear view camera connection
✓ Support of steering wheel remote control
✓ Support of 2D/3D navigation applications with TMC Pro
✓ Support of an external TV or radio receiver (DVB-T, DAB, etc.) ✓ Support of 3G navigation applications with TMC Pro ✓ Support of an external TV or radio receiver (DVB-T, DAB, etc.))
✓ Support of 3G/UMTS sticks for mobile Internet
✓ Support of the factory AUX/USB connection
✓ Support of the original parking heater***

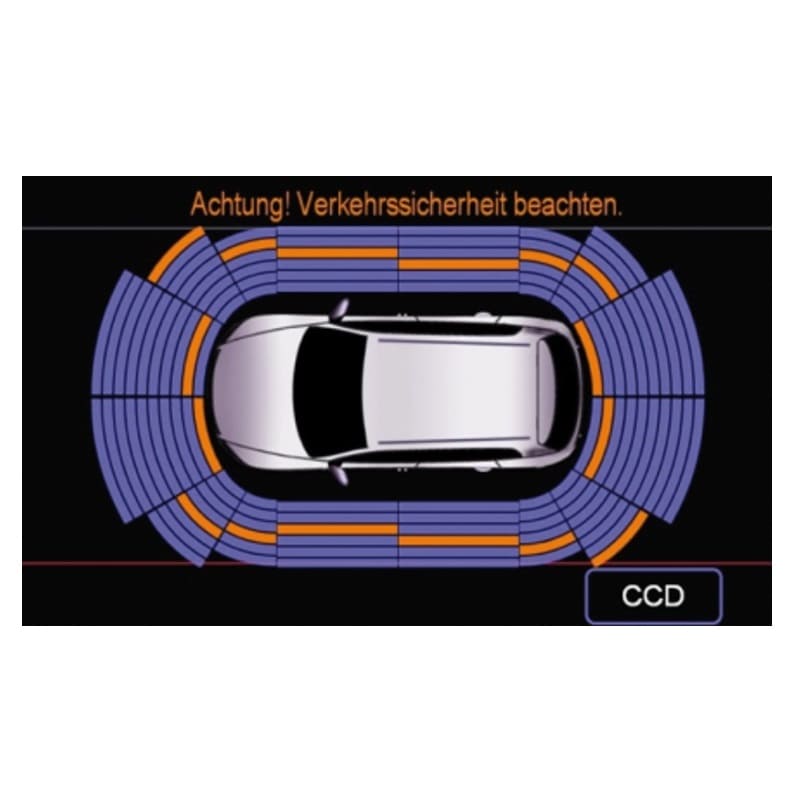

✓ Support of the side parking sensors***
✓ Support of the arrow display in the MFA
(only if the original navigation system
Discover Media or Discover Pro was installed ex works)***
✓ Support of the multifunction (MFA)-, parking sensor (OPS) and climate display (Climatronic)**

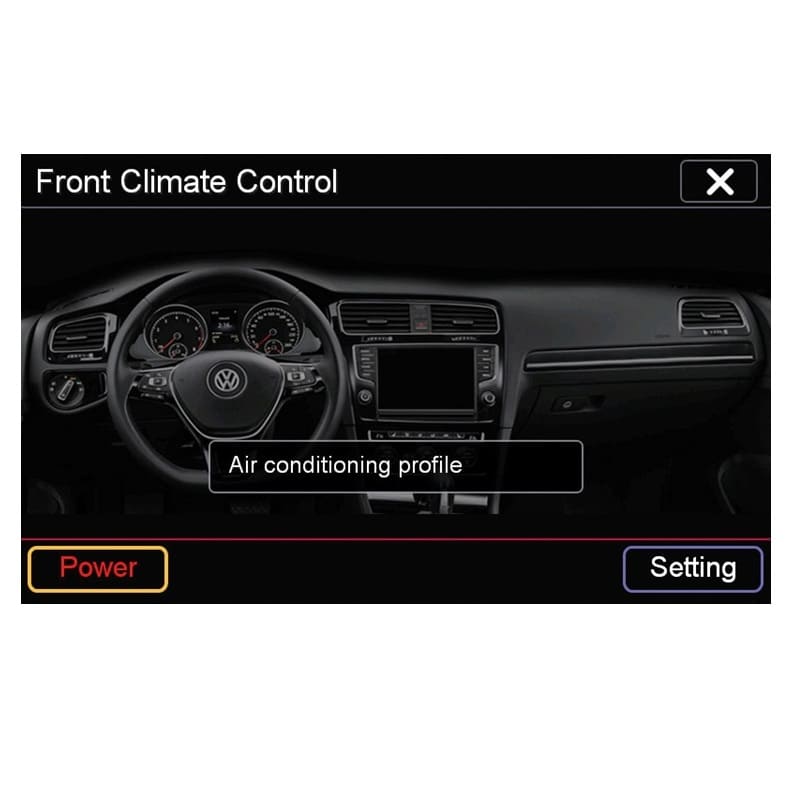

✓ Vehicle settings such as lighting, climate profilee.g. lighting, climate profile, central locking, windshield wipers,
✓ With certificate of authenticity


Compatibility:

Volkswagen
Golf VII (2012-2017)

Not compatible with Golf VII Facelift and Golf VII Sportsvan and not compatible with DYNAUDIO active system (fiber optic technology).

Note: A holder in the glove compartment is required to install the external DVD drive. If your vehicle does not have this drive holder, it must be ordered from VW. The compatibility of some functions is not guaranteed with certain vehicle-specific special equipment.

User manual
☞(Download)

Installation instructions
☞(Download)

iGO Quick Start Guide
☞(Download)

DAB+ instructions
☞(Download)
