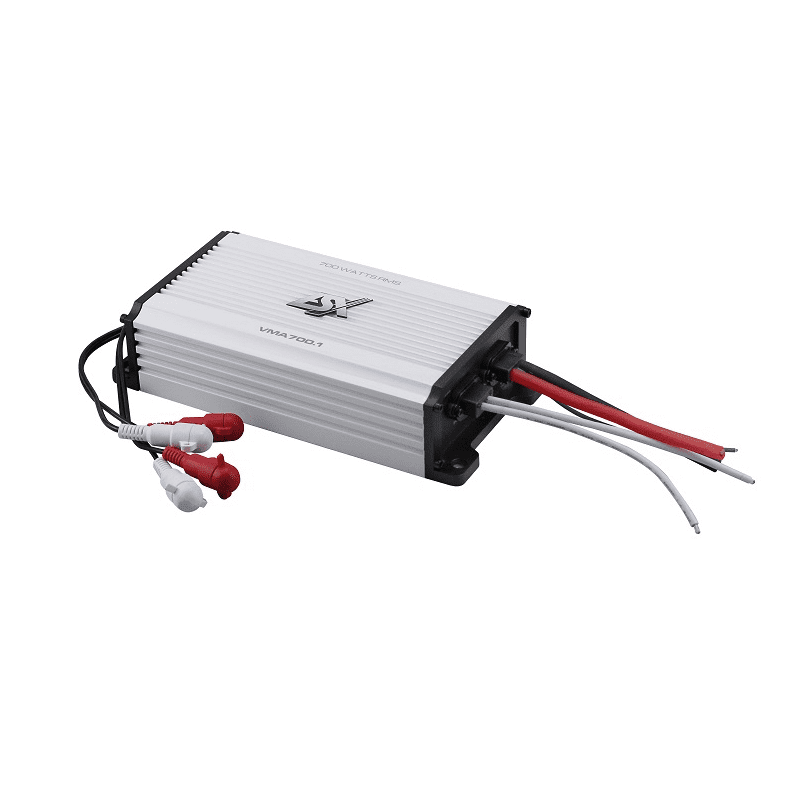

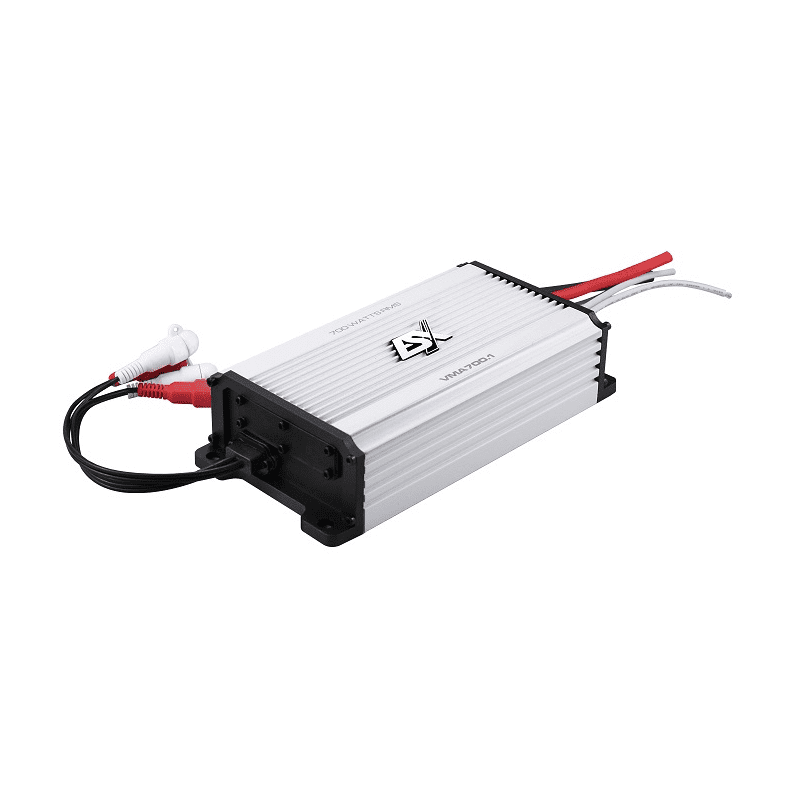

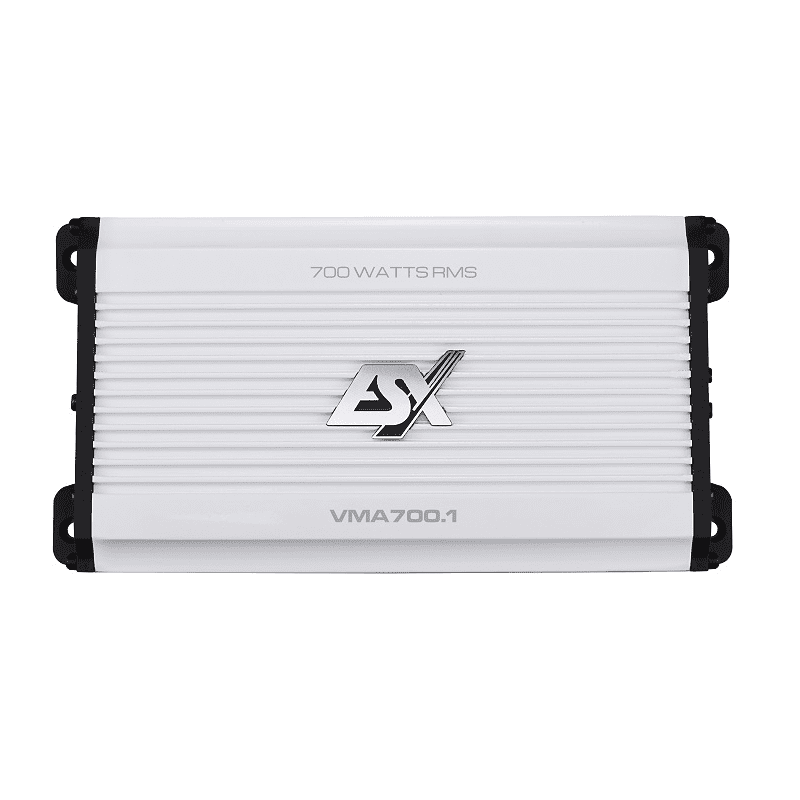

ESX VMA700.1

In order to be able to offer optimum sound on boats or other demanding locations, ESX has recently expanded its innovative amplifier range to include MARINE AUDIO and now also offers two modern VISION Class D amplifiers to provide hobby captains who want to listen to better and more powerful music on the high seas with the performance they need. The prerequisite for marine suitability is certification in the IP67 protection class, i.e. the two robust VMA700.4 and VMA700.1 amplifiers are not only dustproof, but can even be temporarily submerged under water. This means that the two VMA amplifiers are ideally protected even against adverse conditions on land, at sea and in the air.

If a front and rear system still does not provide enough power, there is no way around installing a subwoofer. With a subwoofer, the smaller loudspeakers can be relieved of low tones, allowing them to perform much more dynamically. The lowest frequencies are then taken over by a large subwoofer, ideally driven by a separate amplifier. The ultra-compact ESX Monoblock VMA700.1 is ideal for this. The Class D amplifier, which delivers up to 700 watts RMS, will make every boatman happy. This model also has all the control knobs well protected behind a watertight screw-fastened cover to meet the IP67 protection classification.


Features:
✓ Efficient Class D amplifier with ultra-compact dimensions
✓ Protection classification: IP67
✓ RCA inputs
✓ Automatic switch-on function


Technical data:

Marine Mono Class D Digital Amplifier

1 x 275/450/700 Watt RMS @ 4/2/1 Ω

Subsonic 10 - 50 Hz

LPF 50 - 250 Hz

Bass Boost 0 - 18 dB

Dimensions 108 x 51 x 218 mm

Efficiency up to 91 %


Operating instructions
☞(Download)
