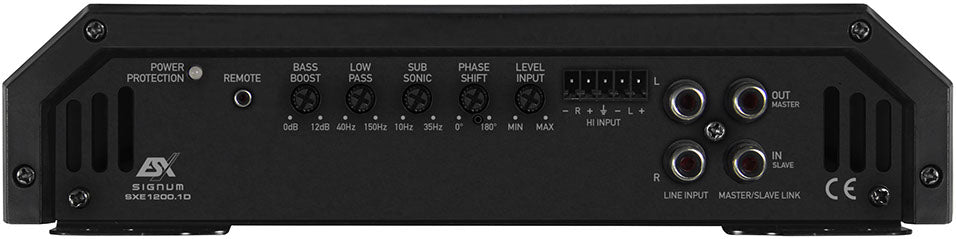

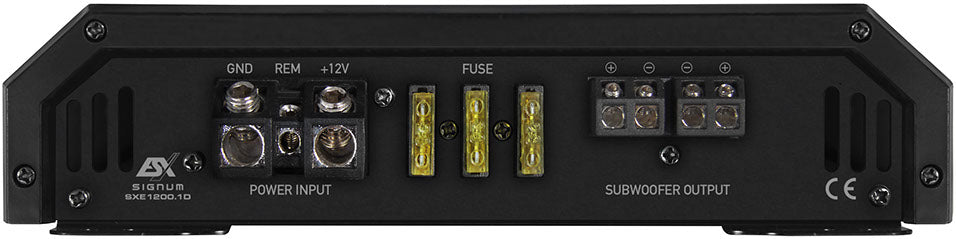

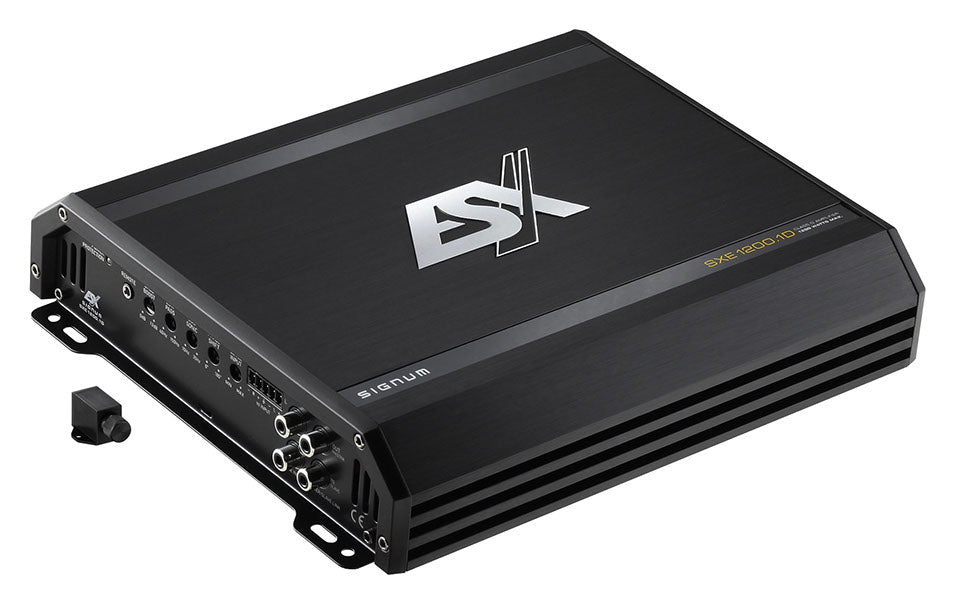

ESX SXE1200.1D
Regular price
199,00€
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
ESX SXE1200.1D - Individually is backordered and will ship as soon as it is back in stock.
Free shipping from 49€
Free shipping from 49€
Shipping
✓ Free shipping from 49€ within Germany and from 99€ to the EU.
✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.
✓ In most cases, shipping is carried out by DHL, UPS and GLS.
✓ Depending on the product and location, items can also be shipped with other providers.
✓ Tracking will be sent by email after the shipment has been processed.
Normal shipping route
✓ 1 - 40Kg = DHL, UPS and GLS
✓ 40.1 - maximum kg = forwarding agency
✓ Bulky goods = freight forwarder
✓ Customs shipments = DHL, GLS or freight forwarder
Parcel collection
✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.
5% discount for prepayment
5% discount for prepayment
Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.
Wiring wizard & port computer
Wiring wizard & port computer
Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!
Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.
Downloads
Downloads
Manufacturer Information
ESX SXE1200.1D
Regular price
199,00€
Unit price
/
Unavailable
ESX Signum series
The SIGNUM SXE series is visually based on the successful HORIZON HXE series, but its solid connection terminals and elegant aluminum end panels show that it is in a class of its own. The new amplifiers are also first choice in terms of sound: the high-quality NE5532 operational amplifiers in the input section ensure the finest resolution across the entire frequency range and guarantee the lowest distortion values. Further upgrades have also been made to the high-level inputs with automatic switch-on function; they are equipped with the "Error Protection System" (EPS) so that no functions are impaired or error messages are written to the vehicle memory when connected to OEM factory radios. The powerful Class D mono blocks also offer a phase control and the master/slave option for linking two identical amps, including a very small, easy-to-install cable remote control for the bass level.
Features:
✓ Aluminum heat sink with acrylic glass inserts
✓ Diamond-cut logo embedded in the surface
✓ Aluminum frame on the end panels
✓ Solid connection terminals
✓ Base plate with robust mounting brackets
✓ High-levelInputs with Error Protection System (EPS)
✓ Automatic switch-on function via high-level inputs
✓ MOSFET PWM power supply, 3-way protection circuit
✓ Master/slave link mode
✓ Compact bass level remote control
Technical data:
Mono Class D digital amplifier
1 x 300/450/600 Watt RMS @ 4/2/1 Ω
LPF 40-150 Hz
Subsonic 10-35 Hz
Bass Boost 0-12 dB
Phase Shift 0-180°
Dimensions 220 x 53 x 268 mm
Efficiency up to 88%
Operating instructions
☞(Download)
