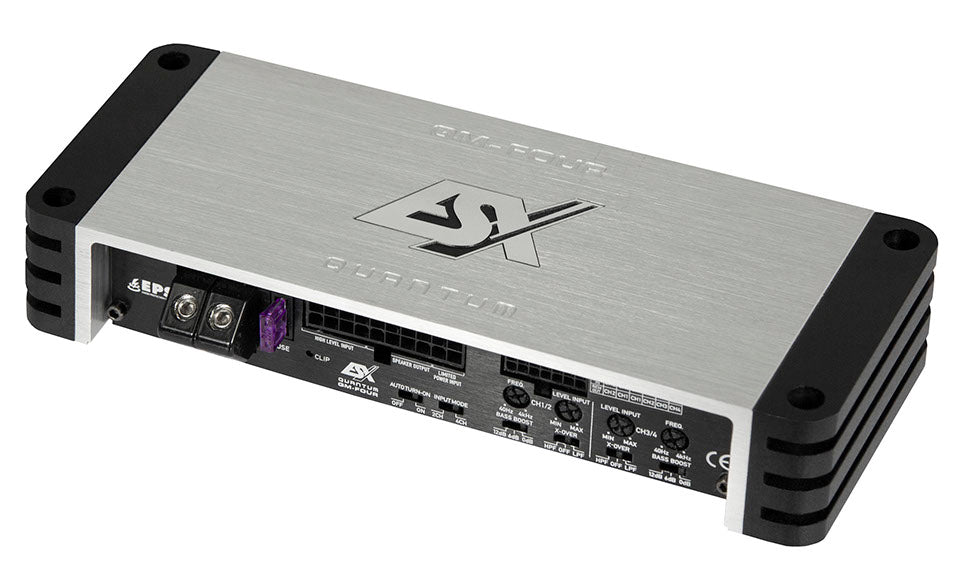

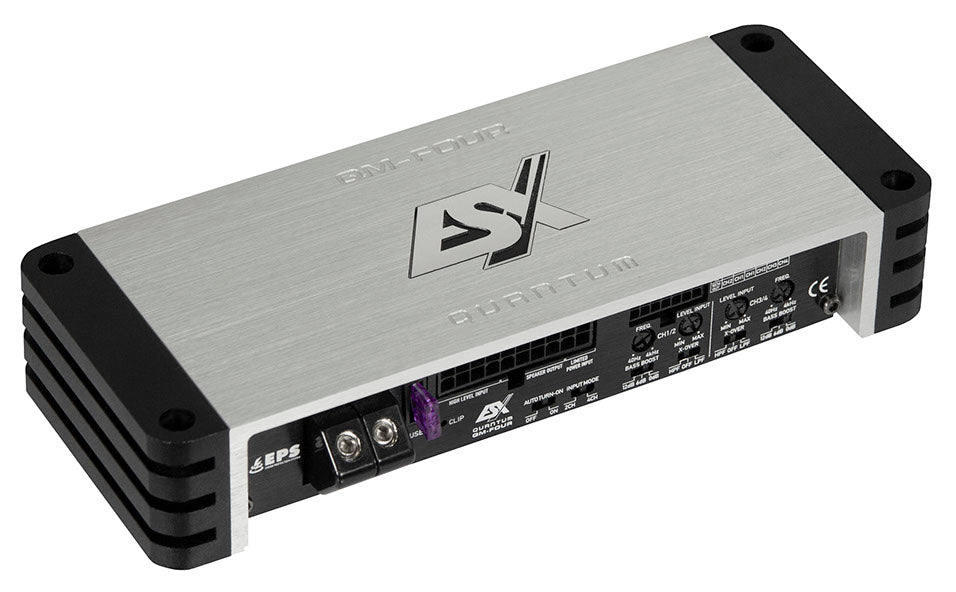

ESX QM-FOUR
Regular price
199,00€
Unit price
/
Unavailable
ESX Quantum Series
The roughly palm-sized 2-channel mini amplifier QUANTUM QM-TWO caused astonishment among ESX fans and connoisseurs of the car hifi scene immediately after its introduction. The small powerhouse with a solid 240 watts RMS power was immediately considered a hidden gem. After last year's improved V2 version with an incredible 300 W RMS power topped it, ESX is now adding two more models to the QM class: For 4-channel applications, the powerful amplifier QM-FOUR is now available, and those who want to drive a separate subwoofer can now opt for the new monoblock QM-ONE. Both powerhouses deliver a hefty 360 watts RMS and are visually perfectly matched. All models feature modern and efficient Class D technology combined with EPS, top features, and perfect sound characteristics. The QM-ONE monoblock is not only the perfect visual match for the QM-FOUR but also serves a clear purpose if a separate woofer is to be powered. With a solid 360 watts RMS at 2 Ω, there is enough power, even conveniently adjustable via bass level remote control.
Features:
✓ Efficient Class D amplifier with ultra-compact dimensions
✓ Heavy-duty cast heat sink with optimal cooling properties
✓ Automatic power-on function
✓ High-level inputs with Error Protection System (EPS)
✓ Start/Stop Ready
✓ Compact bass level remote control
✓ Cinch inputs
Technical Specifications:
2-Channel Class D Mini Digital Amplifier
4 x 52/90 Watt RMS @ 4/2 Ω
2 x 180 Watt RMS @ 4 Ω bridged
HPF/LPF 40 - 4000 Hz (CH1/2)
HPF/LPF 40 - 4000 Hz (CH3/4)
Bass Boost 0 / 6 / 12 dB (CH1/2)
Bass Boost 0 / 6 / 12 dB (CH3/4)
Input selector switch 2CH/4CH
Dimensions 216 x 39 x 84 mm
Efficiency up to 86%
User Manual
☞(Download)
