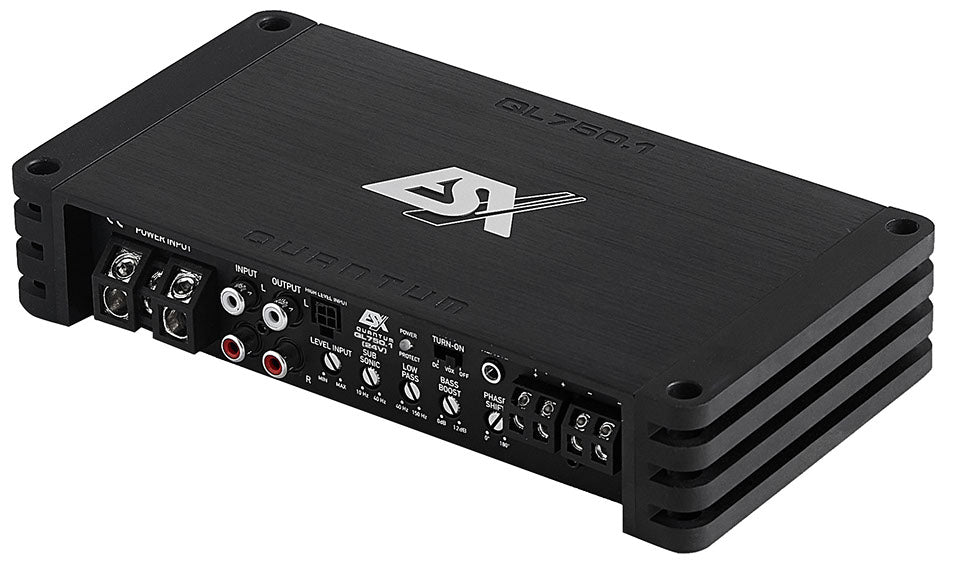

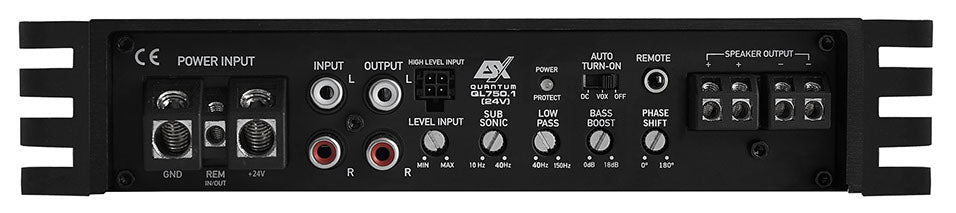

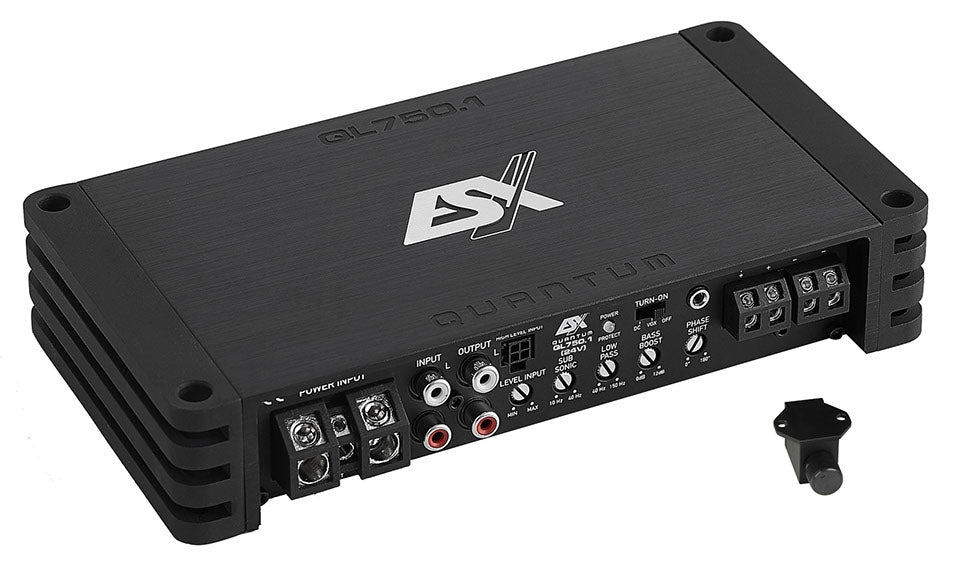

ESX QL750.1 (24V)
Regular price
299,00€
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
ESX QL750.1 (24V) - Individually is backordered and will ship as soon as it is back in stock.
Free shipping from 49€
Free shipping from 49€
Shipping
✓ Free shipping from 49€ within Germany and from 99€ to the EU.
✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.
✓ In most cases, shipping is carried out by DHL, UPS and GLS.
✓ Depending on the product and location, items can also be shipped with other providers.
✓ Tracking will be sent by email after the shipment has been processed.
Normal shipping route
✓ 1 - 40Kg = DHL, UPS and GLS
✓ 40.1 - maximum kg = forwarding agency
✓ Bulky goods = freight forwarder
✓ Customs shipments = DHL, GLS or freight forwarder
Parcel collection
✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.
5% discount for prepayment
5% discount for prepayment
Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.
Wiring wizard & port computer
Wiring wizard & port computer
Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!
Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.
Downloads
Downloads
Manufacturer Information
ESX Quantum Series
The compact QUANTUM QL amplifiers are technically the smaller siblings of the QUANTUM QE models. They are ideal for use where installation space is at a premium. They are also emission-free and, like the large QE models, have the finest Class D technology on board, which leaves nothing to be desired in terms of performance, sound quality and setting options. The space-saving remote control is also included with the QL models. The 24V versions can be operated in trucks and coaches with a 24 volt on-board power supply.
Features:
✓ Advanced Class D technology with very high efficiency
✓ Selected and audiophile-tuned components
✓ Solid aluminum heat sink
✓ Heavy side panels made of cast aluminum
✓ High-levelInputs with Error Protection System (EPS)
✓ Automatic power-on function
✓ Start/Stop Ready
✓ MOSFET PWM power supply
✓ 3-fold protection circuit
✓ Compact bass level remote control
Technical data:
1-channel Class D digital amplifier
1 x 450/750 Watt RMS @ 4/2 Ω
Subsonic 10-40 Hz
LPF 40-150 Hz
Bass Boost 0-18 dB
Phase Shift 0-180°
Dimensions 226 x 43 x 120 mm
Efficiency up to 92%
Instruction manual
☞(Download)
