ESX HXA100.4
Regular price
149,00€
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
ESX HXA100.4 - Individually is backordered and will ship as soon as it is back in stock.
Free shipping from 49€
Free shipping from 49€
Shipping
✓ Free shipping from 49€ within Germany and from 99€ to the EU.
✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.
✓ In most cases, shipping is carried out by DHL, UPS and GLS.
✓ Depending on the product and location, items can also be shipped with other providers.
✓ Tracking will be sent by email after the shipment has been processed.
Normal shipping route
✓ 1 - 40Kg = DHL, UPS and GLS
✓ 40.1 - maximum kg = forwarding agency
✓ Bulky goods = freight forwarder
✓ Customs shipments = DHL, GLS or freight forwarder
Parcel collection
✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.
5% discount for prepayment
5% discount for prepayment
Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.
Wiring wizard & port computer
Wiring wizard & port computer
Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!
Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.
Manufacturer Information
ESX HXA100.4
Regular price
149,00€
Unit price
/
Unavailable
ESX Horizon Series

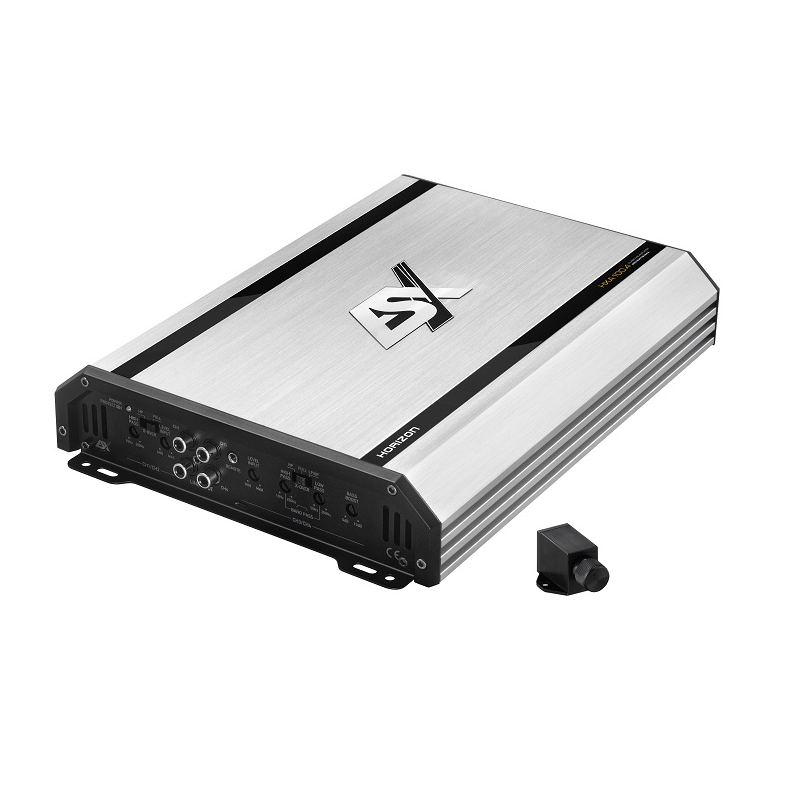

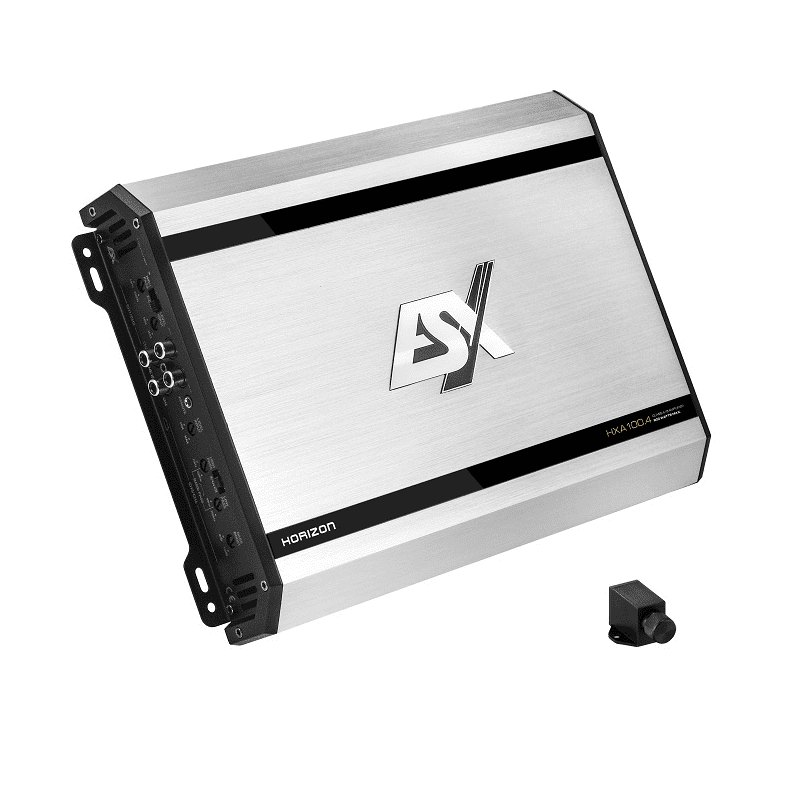

The HORIZON HXA100.4 is a Class A/B power amplifier that offers plenty of power with 4x 60/100 watts RMS into 4 or 2 ohms. It drives front and rear systems effortlessly and is equipped with all the necessary filters and a bandpass function. But that's not all: in bridge mode, it delivers a stable 200 watts RMS into 4 ohms, which means it can also drive medium-sized subwoofers and bass speakers. Additional convenience is provided by the included bass level remote control, which can be used to control the subwoofer volume from the comfort of the driver's seat. The integrated bass boost also ensures a powerful, fuller sound.
Features:
✓ Aluminum heat sink with acrylic glass inserts
✓ Flat embedded diamond-cut logo
✓ Solid connection terminals
✓ MOSFET PWM power supply, 3-way protection circuit
✓ 3-way protection circuit
✓ Compact bass level remote control
Technical data:
4-channel Class A/B analog amplifier
4 x 60/100 Watt RMS @ 4/2 Ω
2 x 200 Watt RMS bridged @ 4 Ω
2 x HPF 10-250 Hz
LPF 50-250 Hz
Bass Boost 0-12 dB
Bandpass function
Dimensions 220 x 51 x 342 mm
Efficiency up to 61%
Operating instructions
☞(Download)
