Titan - 8mm

The Comfort Mat TITAN was developed specifically for areas of a vehicle with high noise levels and is one of the most effective multi-layer sound insulators in the Comfort Mat lineup. Thanks to its three-layer construction with an integrated acoustic membrane, it reduces airborne noise, resonances, and road noise particularly effectively. TITAN is used as a second insulation layer on top of an already-bonded aluminum butyl insulation mat and, in many applications, replaces the need for an additional third insulation layer. Thanks to its waterproof material and high-adhesion sealing adhesive, it is suitable for both horizontal and vertical surfaces and remains securely in place even under extreme temperature fluctuations.

Technical Specifications

• Multilayer sound insulator with an integrated acoustic membrane
• Used as a second layer of insulation on vibration-damping aluminum-butyl mats
• Material Construction:
  • 4 mm high-density acoustic membrane
  • 4 mm sound-absorbing insulation layer
  • High-performance adhesive with high bonding strength
• Material thickness: 8 mm
• Sheet size: 480 × 700 mm
• Area per panel: 0.336 m²
• Weight per panel: 2.76 kg
• Weight per unit area: 7.8 kg/m²
• Adhesive strength: 6–8 N/cm
• Noise reduction: up to 38 dB
• Waterproof material
• Waterproof High-Performance Adhesive
• Temperature resistance of the adhesive: -50 °C to +150 °C
• Resistant to moisture and rot
• Extremely high adaptability to curved and complex body shapes
• Also suitable for vertical surfaces
• Available as a single disc or in a package
• Contents per package: 5 sheets



Scope of Application

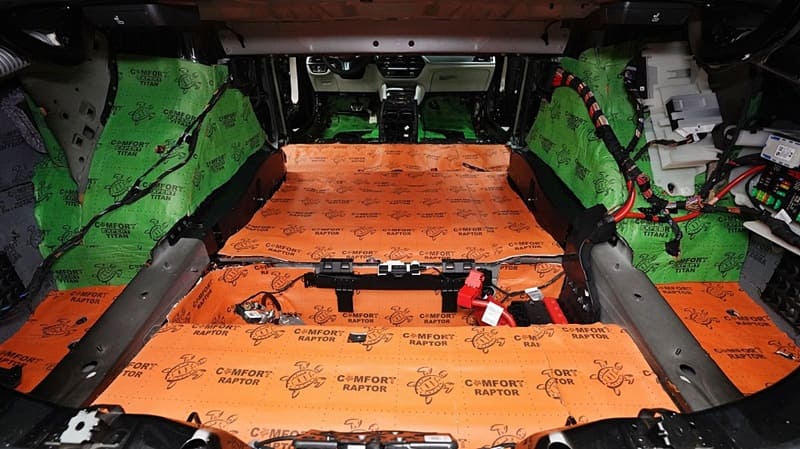

• As a second layer over aluminum butyl insulation mats that have already been adhered
• Vehicle floor in the passenger compartment
• Trunk floor
• Wheel wells on the inside of the vehicle
• Front bulkhead / Engine compartment bulkhead
• Side Panels of Vans and Motorhomes
• Areas with particularly high levels of road, tire, and driving noise



Effect

• Significantly reduces airborne noise and road noise
• Minimizes tire, road, and splash noise
• Improves ride comfort on long trips
• Increases the effectiveness of the underlying aluminum-butyl insulation
• Attenuates sound waves through the integrated high-density membrane
• Creates a quieter cabin and improves the sound quality of the car audio system
• Replaces an additional third layer of insulation in many applications



Quick Installation Guide

1. Thoroughly clean the vehicle's surface and completely remove all dust, grease, and moisture.
2. First, properly install a vibration-damping aluminum butyl mat (first layer).
3. Cut the Comfort Mat TITAN to size.
4. At low ambient temperatures, gently heat the adhesive layer to about 40–50 °C to achieve maximum adhesion.
5. Remove the protective film and apply TITAN to the aluminum butyl layer without creating any bubbles.
6. Carefully and evenly press down on the entire surface with a pressure roller to ensure an optimal bond.
