Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!
Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.
The RIOT series from B² Audio is the entry-level series and is already extensively equipped, a series that meets a high standard both technically and functionally. The RIOT63 system is an absolute all-rounder for this price segment and surprises with its very clear sound.

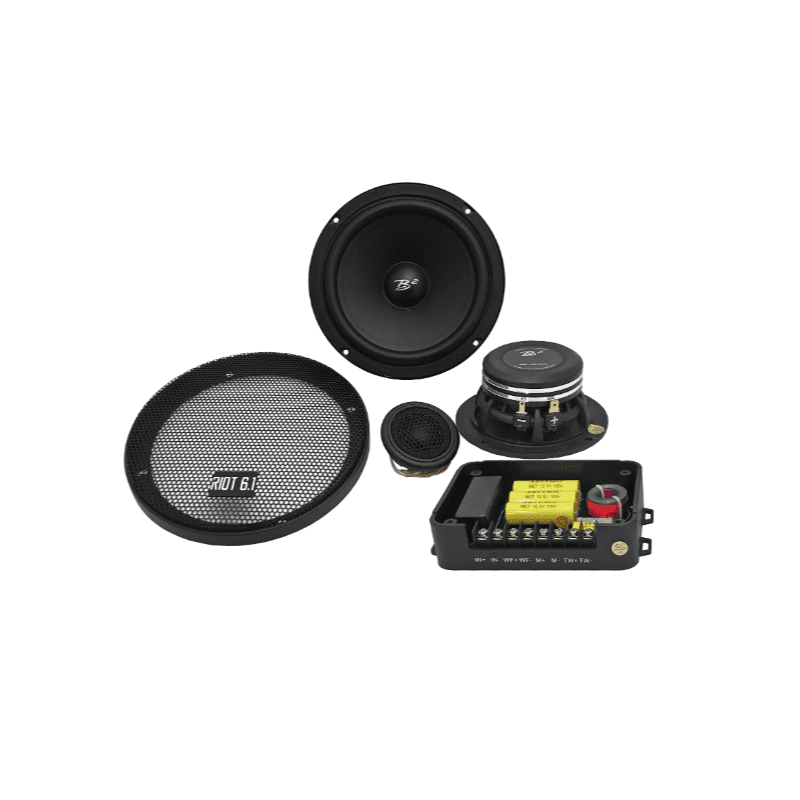

The elegant yet simple 16.5 cm 3-way system impresses with its high resolution and very clear sound. Thanks to the specially coated cone, the low-mid speakers sound very warm and enable a very easy and pleasant connection to the mid and high frequencies in the upper frequency range. The large tweeter has a very present sound and yet no shrill characteristics, while the RAGE63 mid-range driver and the 3-way crossover complement the conventional 2-way RIOT61 system and significantly enhance the sound characteristics in the mid-range, making every journey a personal listening pleasure.

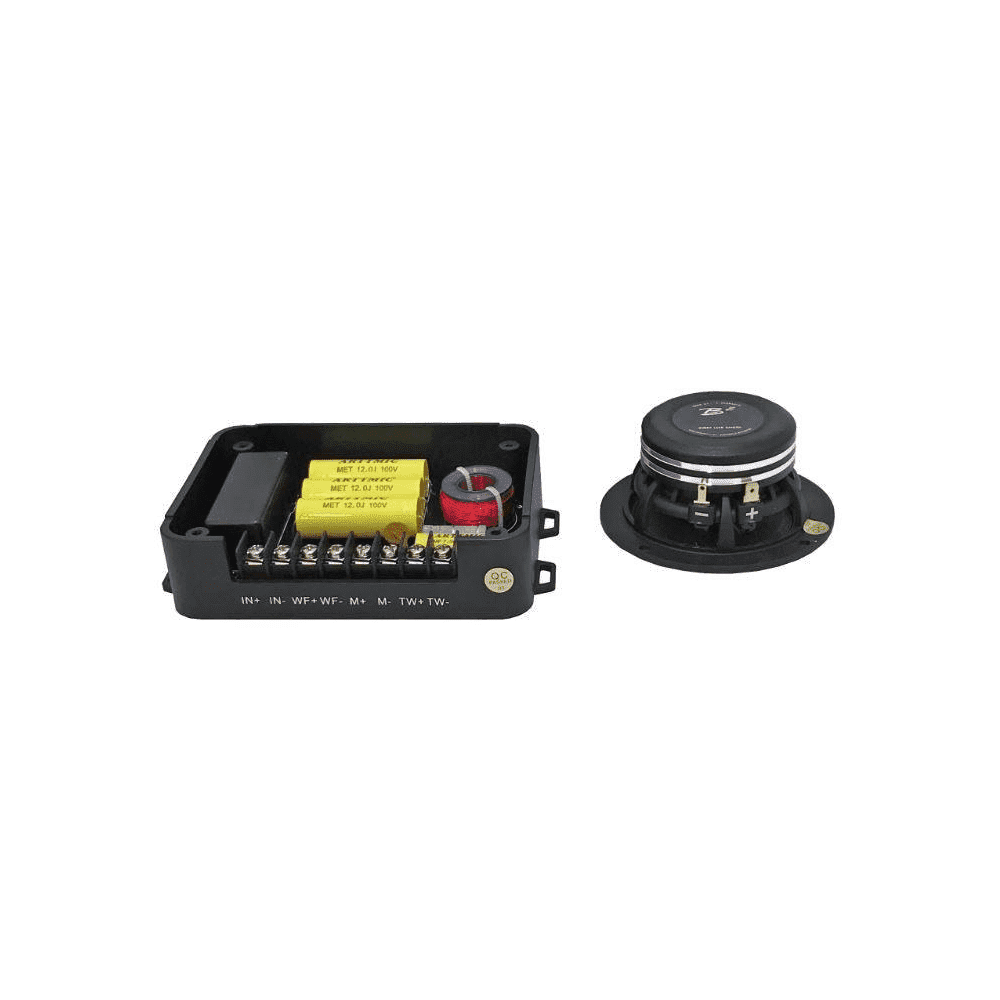

The crossovers have been optimally adapted to the 3-way system and the speakers harmonize perfectly with each other. The crossovers are very easy to connect and enable simple connection to any 2- or 4-channel amplifier.

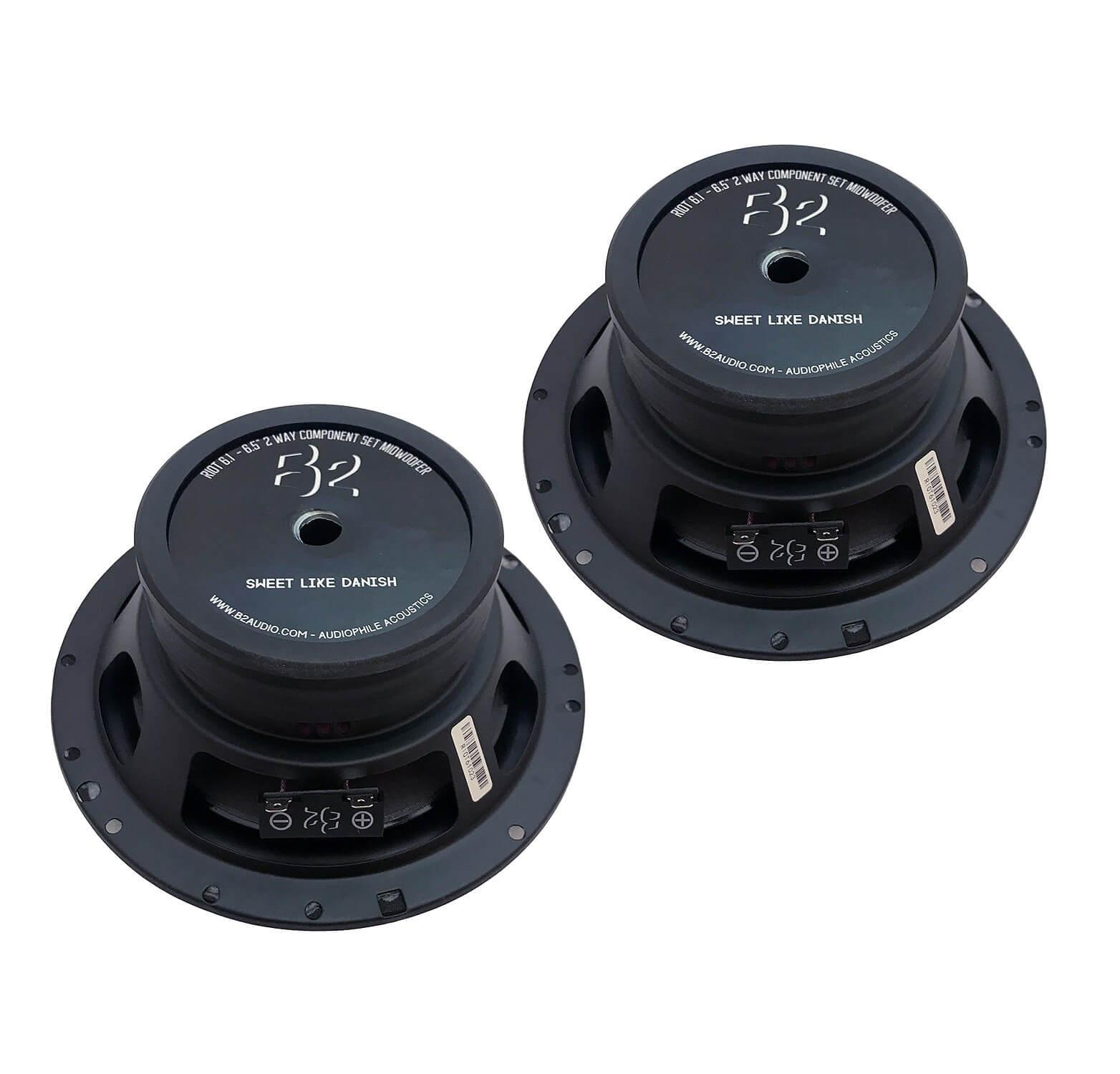

| Technical data: | RIOT61 |
| FQ range: | 60 Hz ~23 KHz |
| SPL: | 91.4 dB |
| Impedance: | 4 Ohm |
| DC Resistance (RE): | 3.4 Ohm |
| Resonant frequency: | 62 Hz |
| RMS Power: | 75 Watts |
| Max Power: | 150 Watts |
| QMS: | 3.55 |
| QES: | 0.83 |
| QTS: | 0.675 |
| VAS: | 12.69 L |
| Coil size: | 1" |
| CMS: | 502 um/N |
| MMS: | 13.18 g |
| BL: | 4.58 |

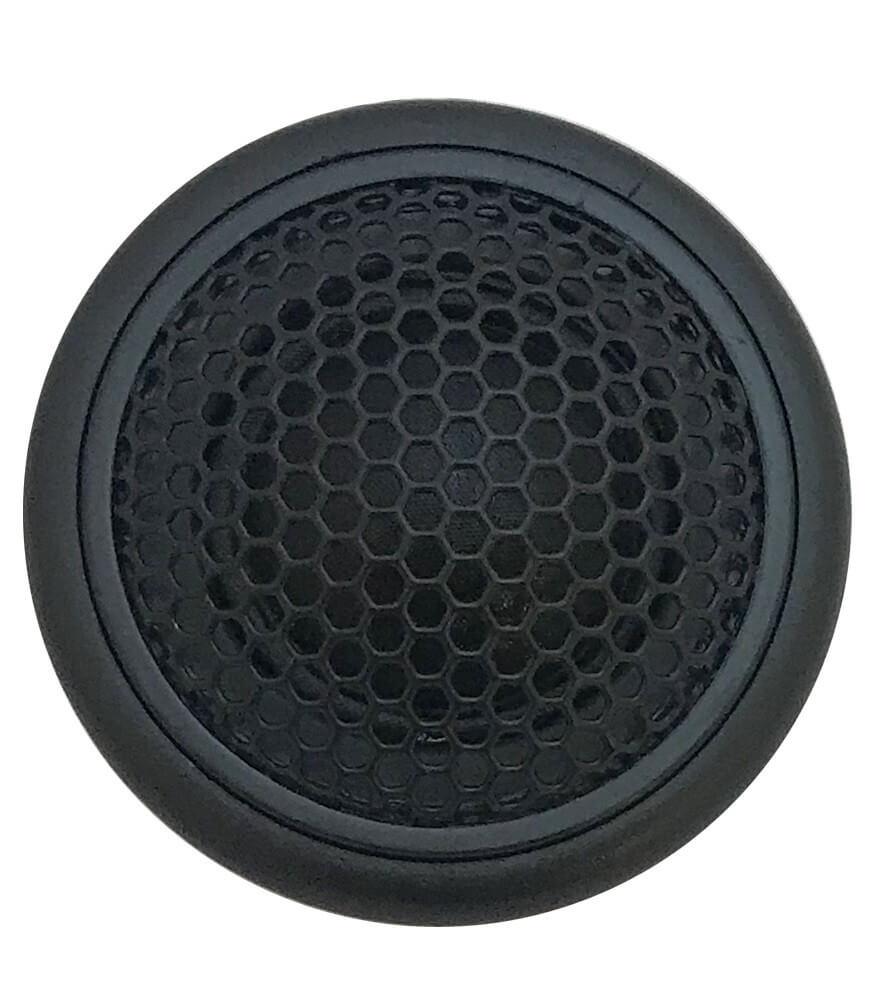

| Technical data: | Tweeter |
| SPL: | 94 dB |
| DC Resistance (RE): | 3.4 Ohm |
| Resonant frequency: | 1.8 KHz |
| RMS Power: | 15 Watts |

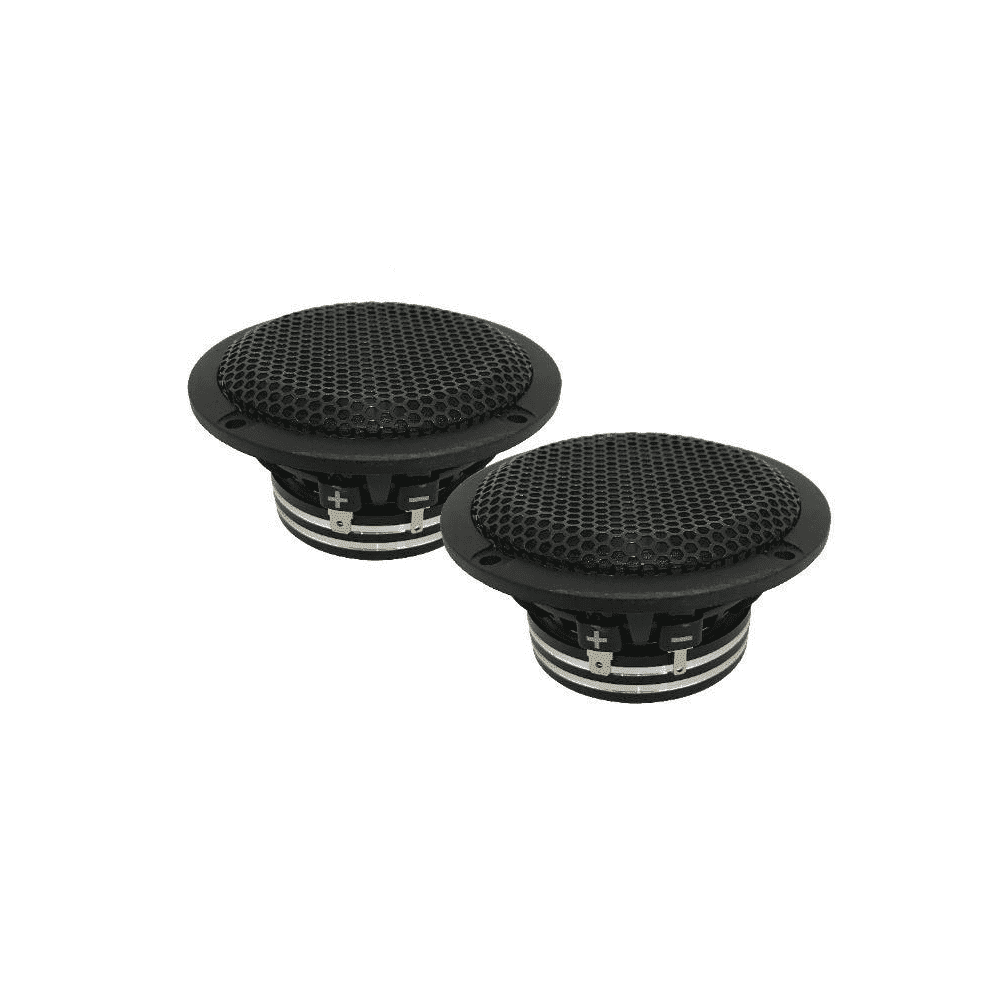

| Technical data: | RAGE63 Midrange |
| FQ range: | 200 Hz - 10 KHz |
| SPL: | 83.7 dB |
| Impedance: | 6 Ohm |
| DC Resistance (RE): | 5.34 Ohm |
| Resonant frequency: | 208.9 Hz |
| RMS Power: | 80 Watts |
| QMS: | 6 |
| QES: | 1.28 |
| QTS: | 1.05 |
| Coil size: | 1" |
| BL: | 5.9 |
| Magnet type: | Neodymium |
Data sheet ISX61 (RIOT61)
☞(Download)
Data sheet RAGE63MT
☞(Download)

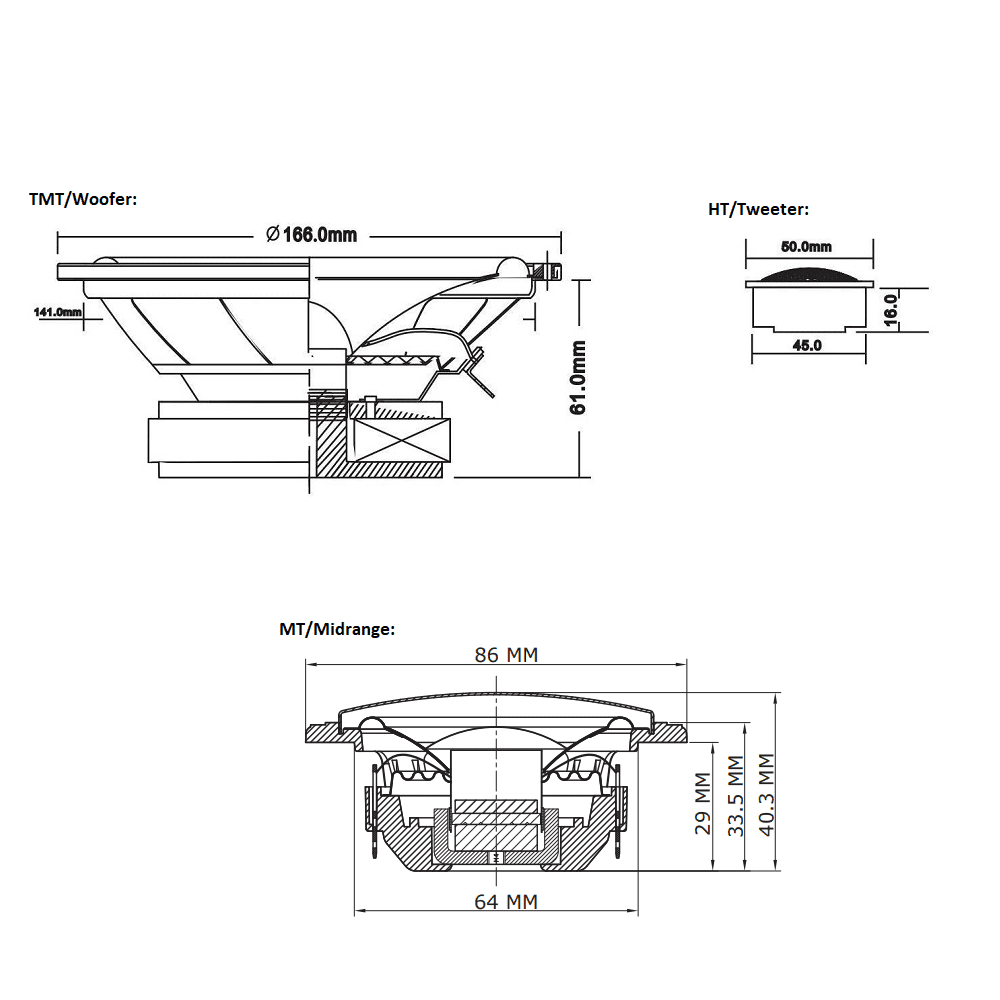

Speaker dimensions
☞(Download)
