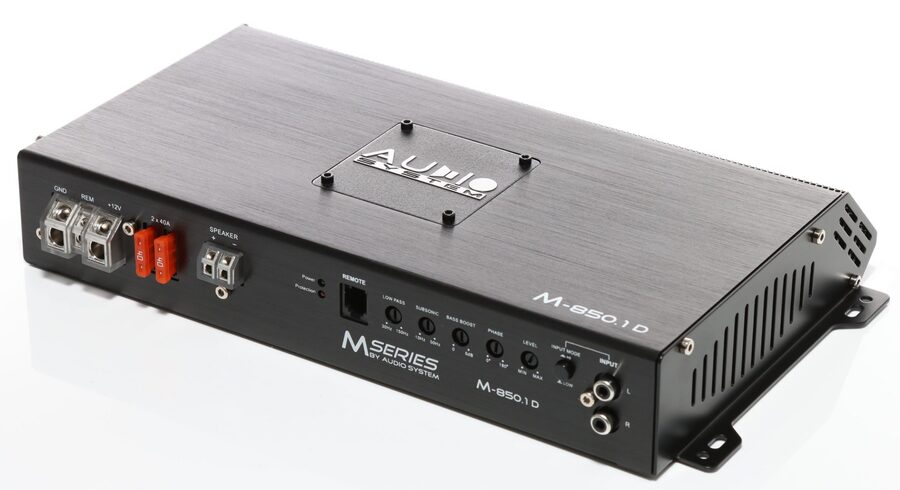

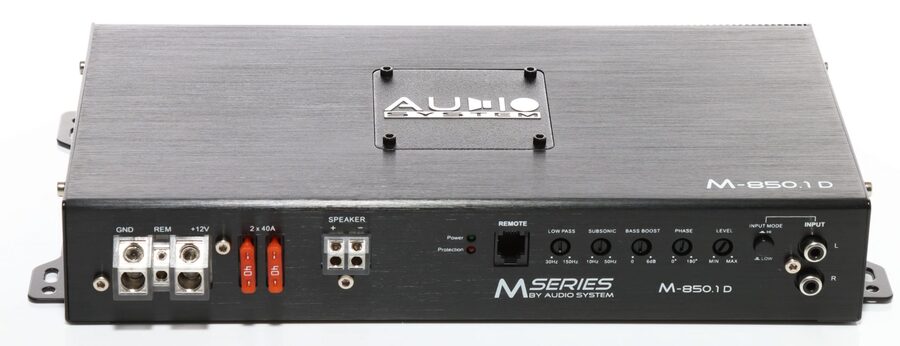

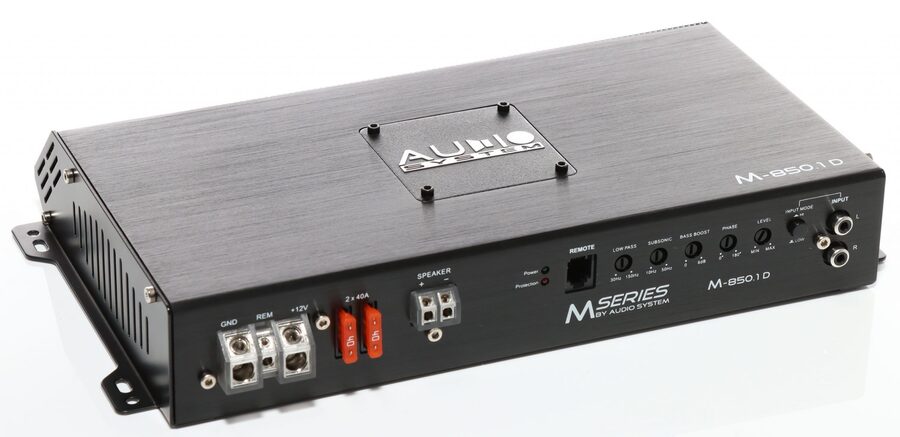

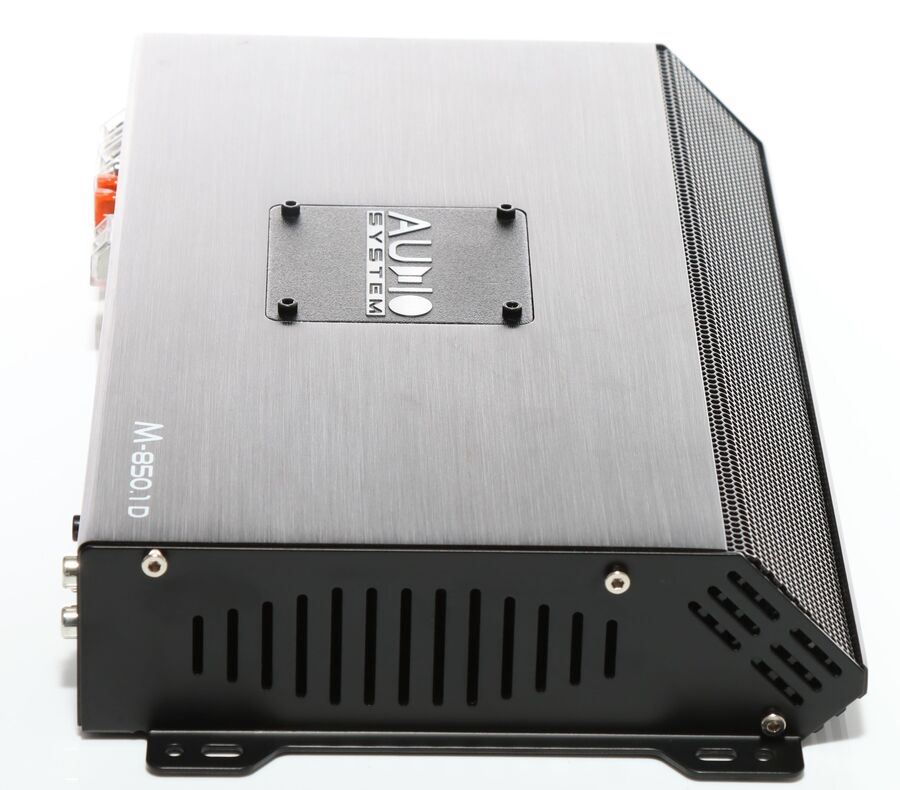

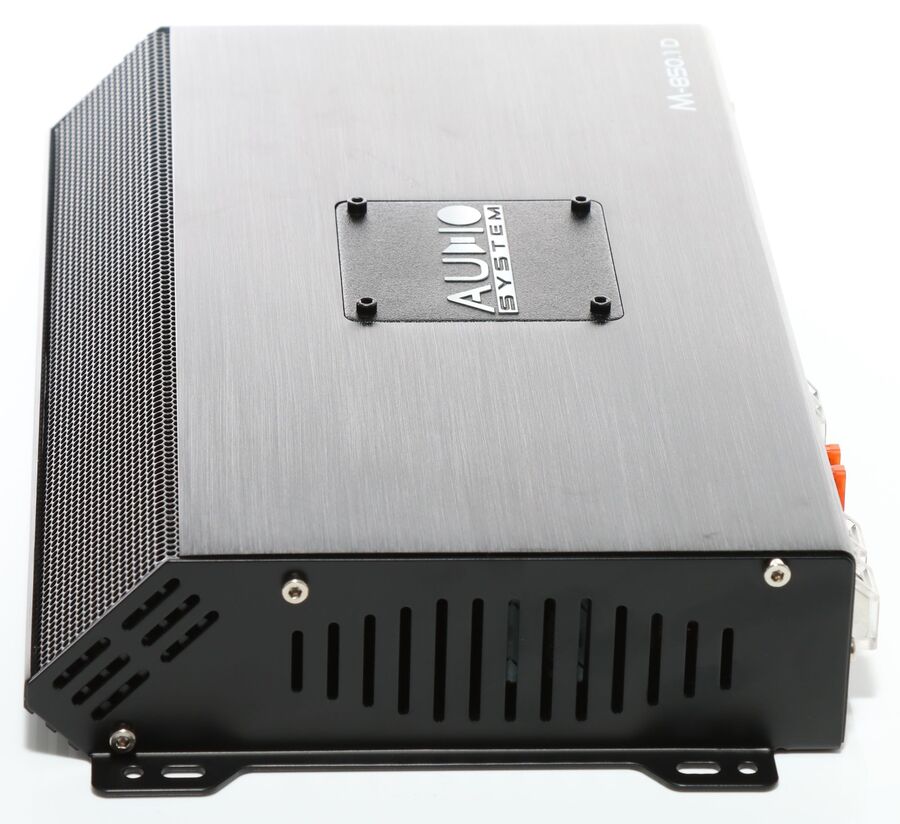

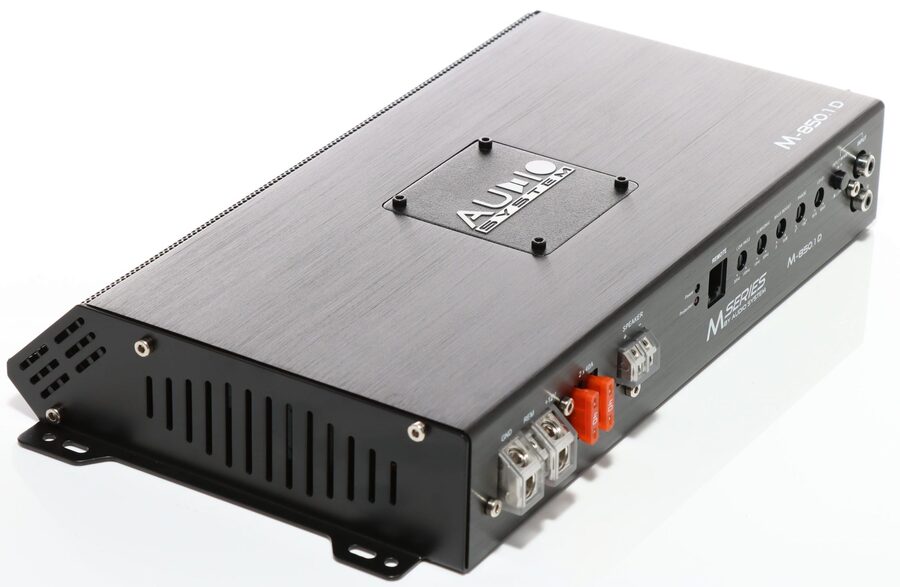

Audio System M-850.1 D
Regular price
349,00€
Unit price
/
Unavailable
The Audio System M-850.1 D was developed for demanding subwoofer applications and combines high output power with a compact design. Thanks to modern Class D technology, this mono power amplifier operates with exceptional efficiency and delivers superb bass control even at high volume levels. Extensive adjustment options—such as a low-pass filter, subsonic filter, bass boost, and a continuously adjustable phase switch—allow for precise adaptation to virtually any sound system
The built-in high-level input with automatic power-on function makes it easy to connect to factory radios without RCA outputs. The included remote control allows for convenient bass adjustment right from the driver's seat. This makes the M-850.1 D suitable for both high-quality aftermarket systems and powerful OEM upgrades
Technical Specifications
- 1-Channel Class-D Monoblock Amplifier
- RMS power at 4 ohms: 1 × 550 watts
- RMS power at 2 ohms: 1 × 850 watts
- RMS power at 8 ohms: 1 × 300 watts
- Operating voltage: 10–16 volts
- Efficiency: up to 85%
- Low-pass filter: 30–150 Hz
- Subsonic filter: 10–50 Hz
- Continuously adjustable phase switch: 0–180°
- Bass boost: 0–6 dB at 45 Hz
- Frequency range: 10–150 Hz (±3 dB)
- Total Harmonic Distortion (THD): < 0.061%
- Signal-to-noise ratio: > 96 dB
- Input sensitivity: 200 mV–8 V
- RCA and high-level inputs with auto turn-on

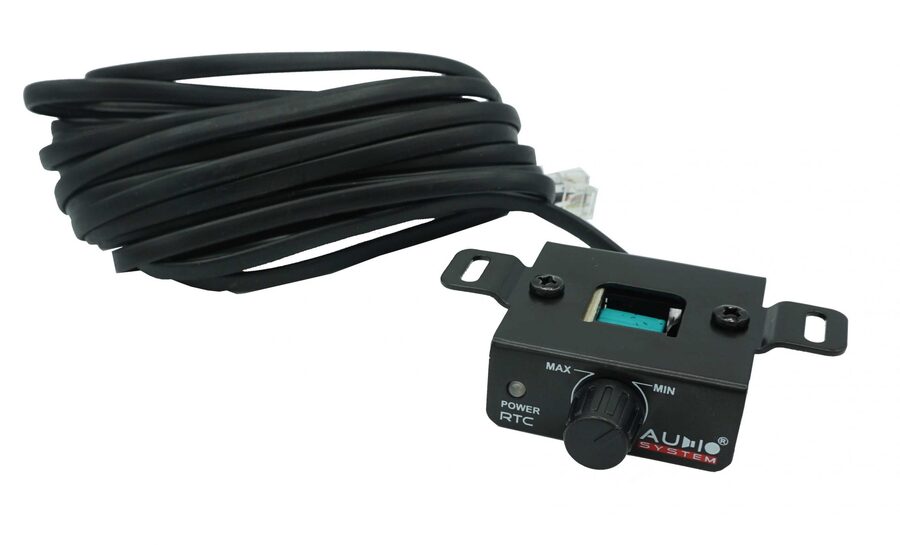

- Includes RTC (Remote Level Control) cable remote control
- SMD Technology
- Dimensions (L × W × H): 295 × 185 × 50 mm
- Sturdy aluminum housing with the Audio System logo
