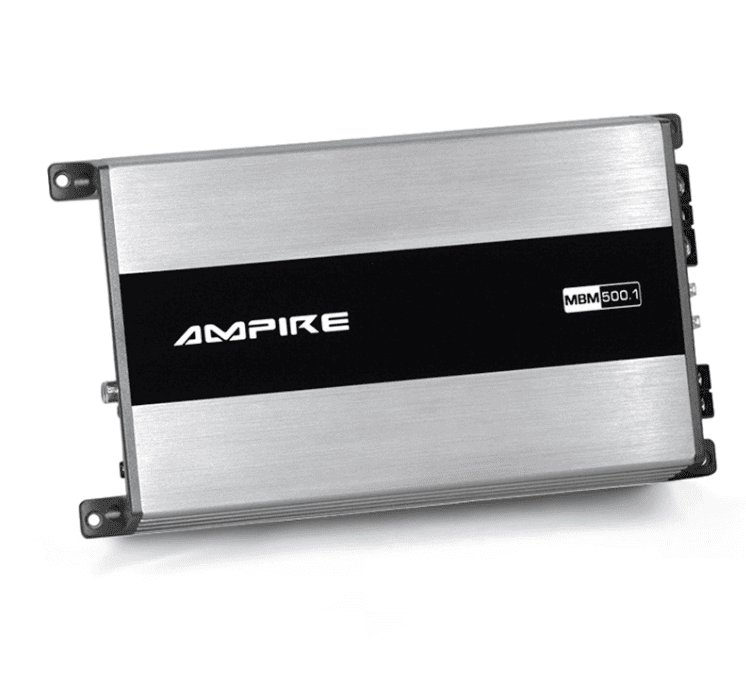

Ampire MBM 500.1-4G

The Ampire MBM500.1-4G is an exceptionally compact single-channel Class D power amplifier designed to deliver high power to a subwoofer. Despite its small size, this monoblock delivers up to 500 watts RMS into 2 ohms, making it ideal for car audio installations where high bass output is required in a limited installation space.

In addition to RCA inputs, the MBM500.1-4G features high-level inputs, allowing it to be connected directly to many factory-installed radios. The built-in Auto-Turn-On feature enables the power amplifier to activate automatically via the speaker signal, eliminating the need for a separate remote wire from the radio.

A variable low-pass filter and an adjustable bass boost are available for customizing the sound of the connected subwoofer. In addition, a built-in subsonic filter at 20 Hz protects the subwoofer from unwanted extremely low-frequency signal components. The compact enclosure, measuring just 251 x 141 x 50 mm, makes it easy to install the subwoofer under a seat, behind trim panels, or in space-saving trunk installations, for example.

Technical Specifications

• Amplifier type: 1-channel / mono

• Amplifier Technology: Class D

• Operating voltage: 10–16 V DC

• Quiescent current (power on): 0.86 A

• Quiescent current (off): < 0.4 mA



RMS output power at 14.4 V:

• 1 x 300 watts RMS at 4 ohms

• 1 x 500 watts RMS at 2 ohms



Maximum output power at 14.4 V:

• 1 x 600 watts max. at 4 ohms

• 1 x 1,000 watts max. at 2 ohms



Signal & Amplifier:

• Total Harmonic Distortion (THD): < 0.5%

• Signal-to-noise ratio: > 85 dB

• Damping factor: 200

• Input sensitivity: 200 mV – 6.0 V



Filters & Sound Adjustment:

• Low-pass filter: 30–250 Hz

• Low-pass slope: 12 dB

• Bass Boost: 0–12 dB

• Bass boost frequency: adjustable from 40 to 100 Hz

• Subsonic filter: 20 Hz / 24 dB



Connections & Features:

• 2 RCA inputs

• 2 x High-Level/Speaker Inputs

• High-Level Auto Turn-On for Radios with BTL Power Amplifiers

• Illuminated Ampire Logo

• Power connection for cable cross-sections up to 35 mm²

• Speaker terminal for cable cross-sections up to 10 mm²

• Fuse rating: 2 x 25 A



Dimensions & Weight:

• Dimensions (L x W x H): 251 x 141 x 50 mm

• Weight: 1.90 kg



Approval:

• E Number: E8 10R-04 1281



What's Included:

• Ampire MBM500.1-4G Mono Power Amplifier

• Adapter for speaker input
