B² Audio Rage1600.5
Regular price
820,00€
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
B² Audio Rage1600.5 - Individually is backordered and will ship as soon as it is back in stock.
Free shipping from 49€
Free shipping from 49€
Shipping
✓ Free shipping from 49€ within Germany and from 99€ to the EU.
✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.
✓ In most cases, shipping is carried out by DHL, UPS and GLS.
✓ Depending on the product and location, items can also be shipped with other providers.
✓ Tracking will be sent by email after the shipment has been processed.
Normal shipping route
✓ 1 - 40Kg = DHL, UPS and GLS
✓ 40.1 - maximum kg = forwarding agency
✓ Bulky goods = freight forwarder
✓ Customs shipments = DHL, GLS or freight forwarder
Parcel collection
✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.
5% discount for prepayment
5% discount for prepayment
Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.
Wiring wizard & port computer
Wiring wizard & port computer
Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!
Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.
Downloads
Downloads
Manufacturer Information

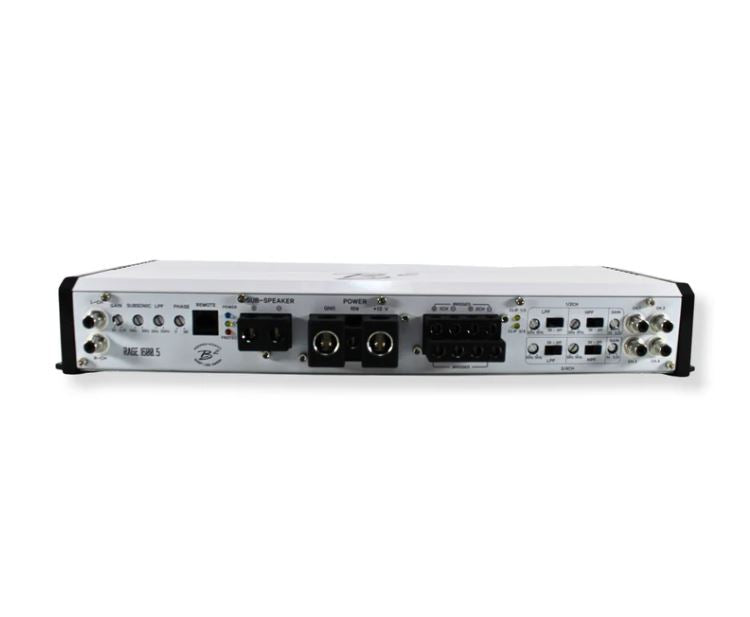

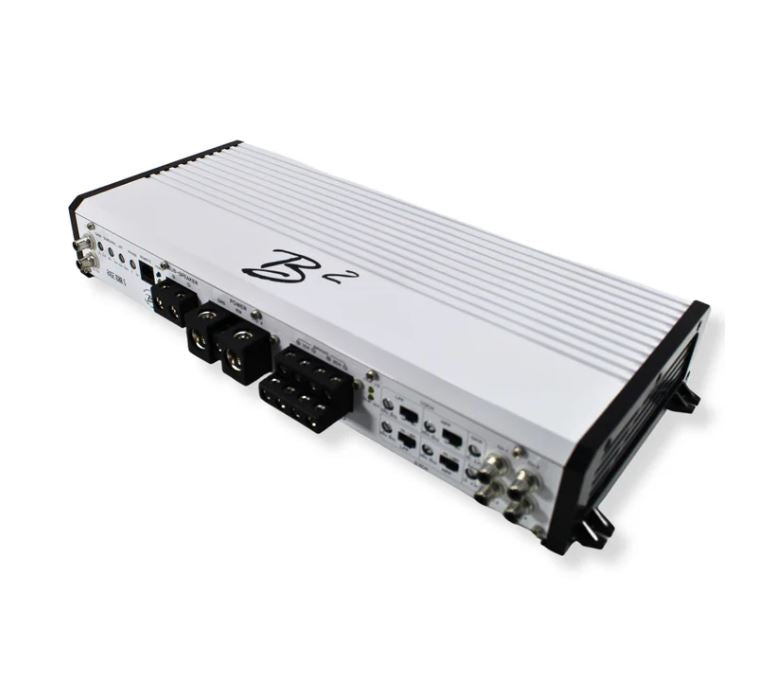

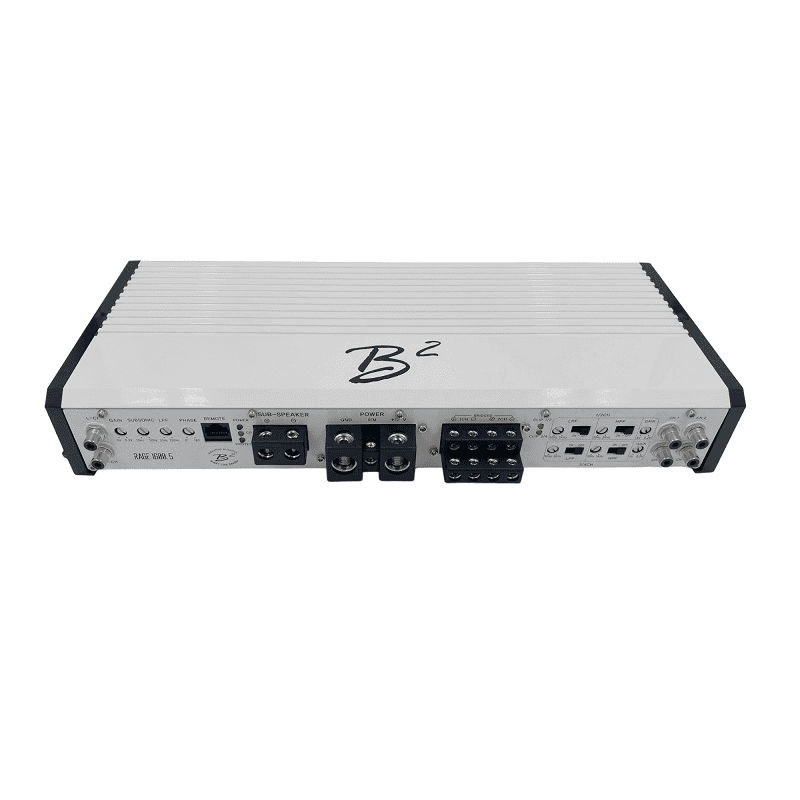

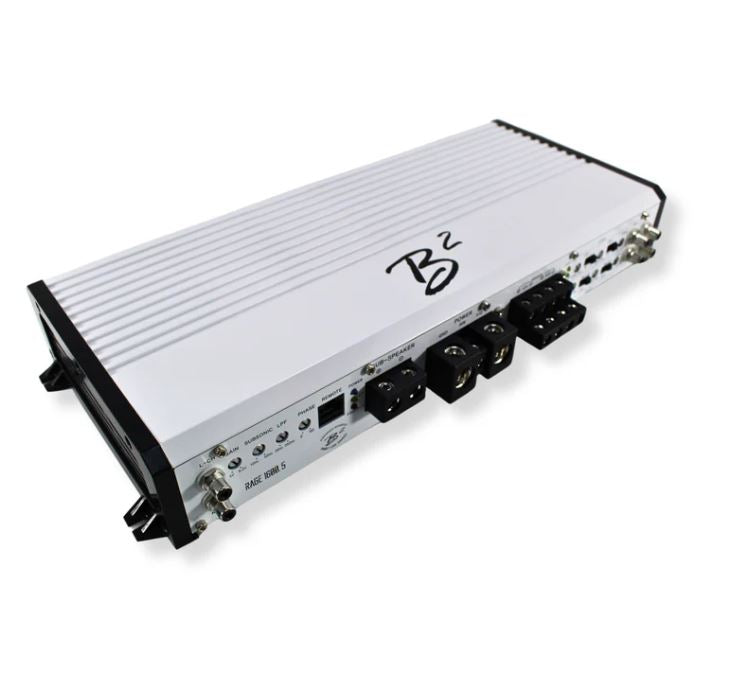

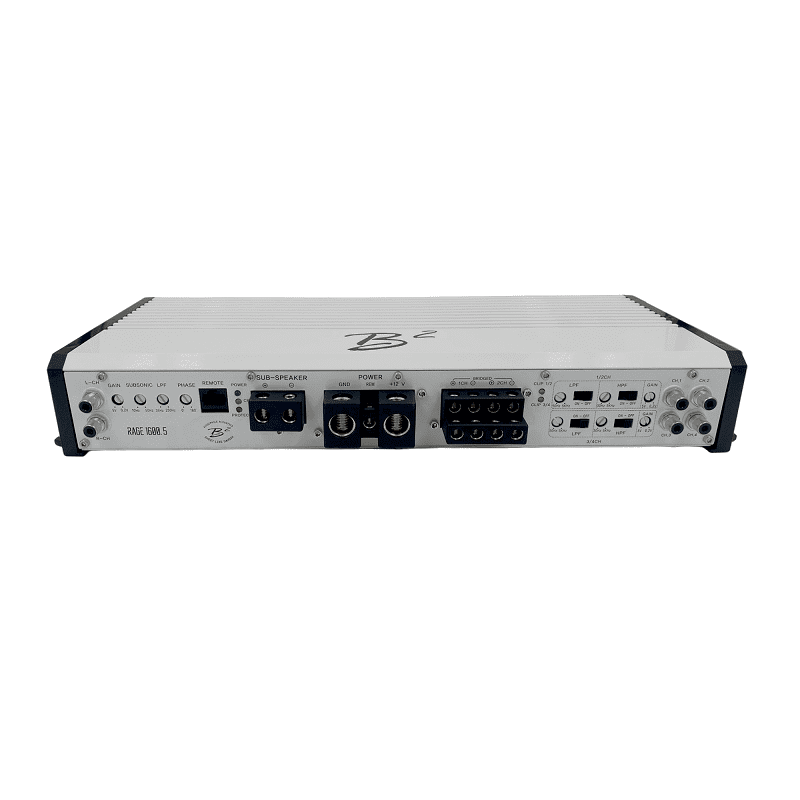

B² Audio Rage1600.5
Regular price
820,00€
Unit price
/
Unavailable
Perfection, performance & prestige.
The Rage series from B² Audio combines price and performance at the highest level. A series that meets a high standard visually, technically and functionally. The Rage amplifiers are characterized by enormous power in the smallest of spaces, despite very elegant design.
To avoid problems with cooling, B2 Audio uses a specially designed cooling system to optimally dissipate heat. The large power terminals also provide a sufficient power supply. With a cross-section of up to 50mm², a very good power supply can be guaranteed here. Thanks to the digital technology and the very high efficiency of the RAGE 1600.5, a high output power can be generated with low power consumption.

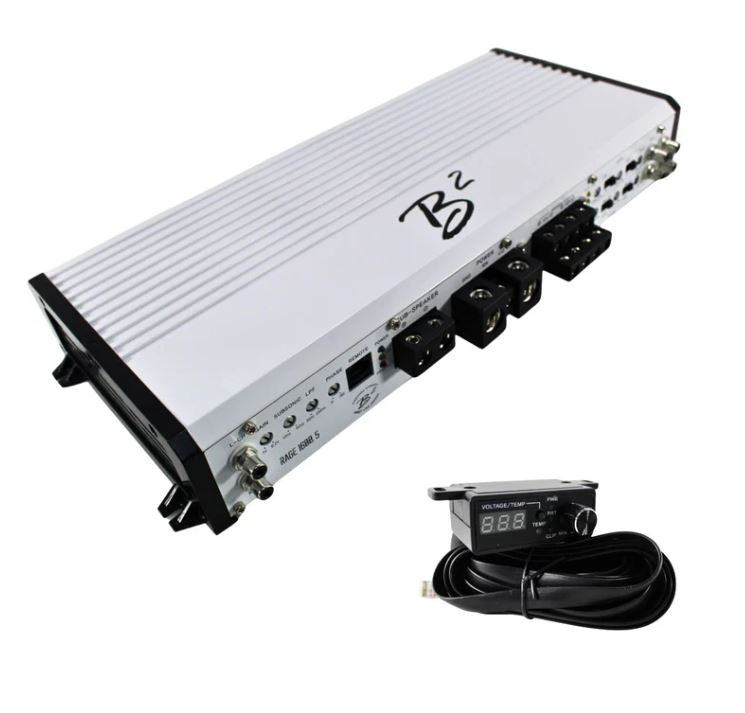

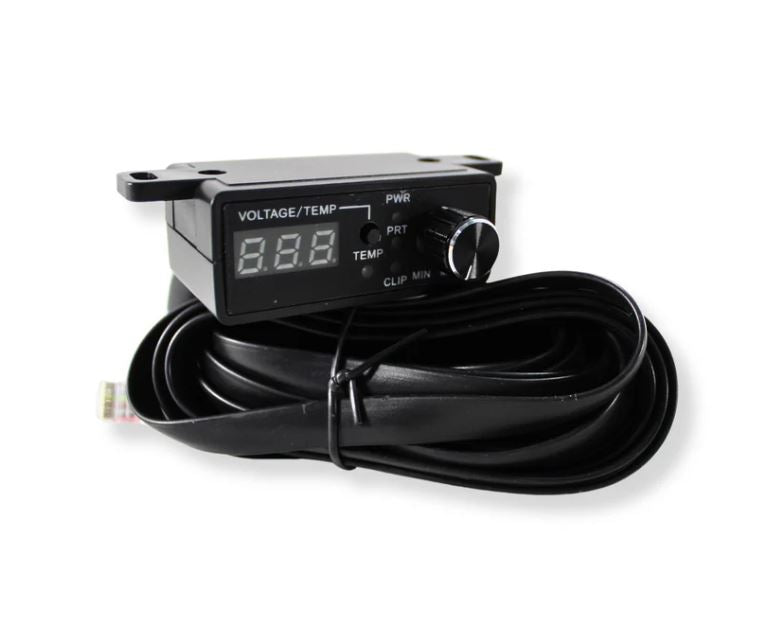

The RAGE 1600.5 is suitable for loudspeaker systems with at least 2 Ohm connection per channel and can drive a larger subwoofer with up to 1100 watts RMS at 1 Ohm on the sub-channel. The bass control included in the scope of delivery allows infinitely variable bass control, and the control also includes voltage monitoring and a clipping indicator. In combination, this 5-channel amplifier offers the option of operating a subwoofer up to 1 ohm connection, a front and a rear system simultaneously. The sufficient filter settings on the filter side of the output stages leave nothing to be desired in terms of the optimum setting for the front system or subwoofer.
| Technical data: | RAGE 1600.5 |
| FQ range: | 10 Hz ~ 27 KHz (Ch1-4) 10 Hz ~ 250Hz (Ch5) |
| Signal-to-noise ratio: | >95 dB |
| Input sensitivity: | 5V ~ 0.2 V |
| LPF 24 dB/ Oct: | 50 Hz ~ 5 KHz (Ch1-4) 35 Hz ~ 250Hz (Ch5 |
| HPF 24 dB / Oct: | 30 Hz ~ 5 KHz (Ch1-4) 10 Hz ~ 50Hz (Ch5) |
| Attenuation factor: | >200 |
| Current input: | 50mm² |
| Fuse recommendation: | 150 A |
| Voltage range: | 9 V ~ 16 V |
| Dimensions in inches: | 16.73" x 7.87" x 2.75" |
| Dimensions in cm: | 42.5 x 200 x 70 MM |
| Power @ 4Ω Ch1-4: | 4 x 80 w |
| Power @ 4Ω Ch5: | 1 x 350 w |
| Power @ 2Ω Ch1-4: | 4 x 125 w |
| Power @ 2Ω Ch5: | 4 x 600 w |
| Power @ 4Ω Ch1-4 bridge: | 2 x 250 w |
| Power @ 1Ω Ch5: | 2 x 1100 w |
