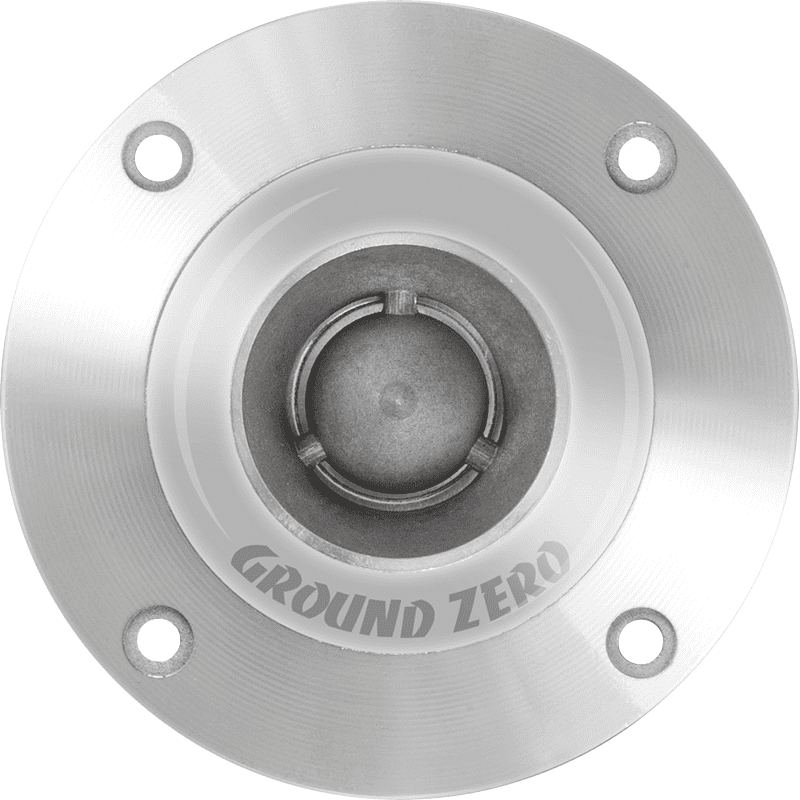

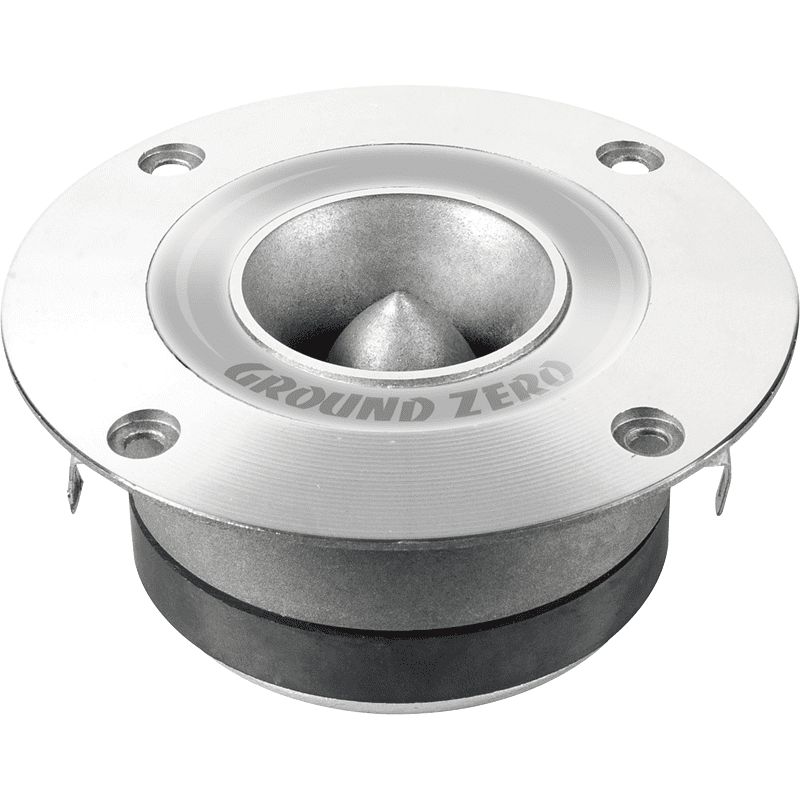

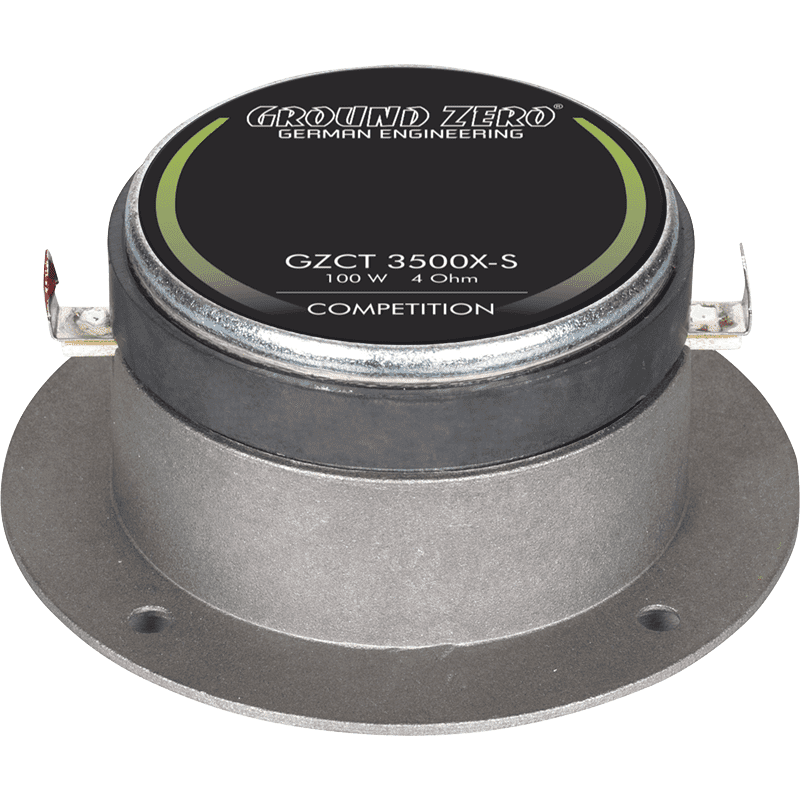

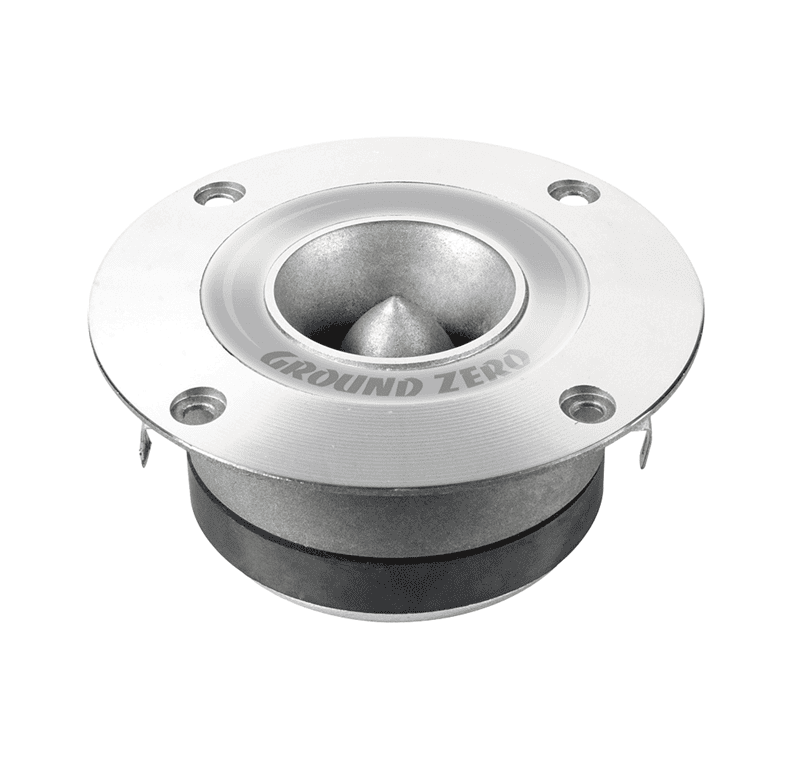

The Ground Zero GZCT 3500X-S is a high-performance compression tweeter from the Competition Series, designed for car audio systems with high volume requirements. The combination of an aluminum dome, a solid cast aluminum housing, and a ferrite driver enables direct and impactful high-frequency reproduction.

With a sensitivity of 99 dB (1 W / 1 m), the GZCT 3500X-S requires relatively little amplifier power to achieve high volume levels. Its usable frequency range extends from 3,000 Hz to 25,000 Hz, making it particularly well-suited for complementing high-performance midrange and subwoofer systems.

The 25-mm CCA voice coil drives an aluminum dome tweeter. Combined with the compression principle and a 40° dispersion angle, the tweeter is designed for focused, high-output sound reproduction. The sturdy cast aluminum housing also ensures a robust construction.

With 30 watts RMS and a maximum power handling capacity of up to 100 watts, the GZCT 3500X-S is particularly well-suited for performance-oriented car audio, SPL, and show installations. The silver finish adds a striking accent, even in visible speaker installations.

Technical Specifications

Manufacturer: Ground Zero
Model: GZCT 3500X-S
Product Type: High-Power Compression Tweeter
Series: Competition
Finish: Silver
Nominal diameter: 98 mm
Dome diameter: 25 mm / 1"
Diaphragm / Dome: Aluminum
Voice coil: 25 mm / 1"
Voice coil material: CCA / copper-clad aluminum wire
RMS Power Handling: 30 watts
Maximum power handling: 100 watts
Impedance: 4 ohms
Sensitivity: 99 dB (1 W / 1 m)
Frequency range: 3,000 – 25,000 Hz
Beam angle: 40°
Magnet: Ferrite
Magnet diameter: 68 mm
Magnet weight: 5 oz
Housing: Cast aluminum
Connection: Solder connection
Outer diameter: 98 mm
Installation diameter: 72 mm
Installation depth: 40 mm
Total height: 44 mm
Package Contents: 1 piece

Highlights

High-output 25-mm compression tweeter
High efficiency of 99 dB
Aluminum dome for direct high-frequency reproduction
25-mm CCA voice coil
Maximum power rating: 100 watts
Wide frequency range up to 25 kHz
Defined 40° beam angle
High-Performance Ferrite Magnet
Sturdy cast aluminum housing
Compact installation depth of just 40 mm
Silver finish for visible car audio installations
Ideal for power- and sensitivity-oriented speaker systems
