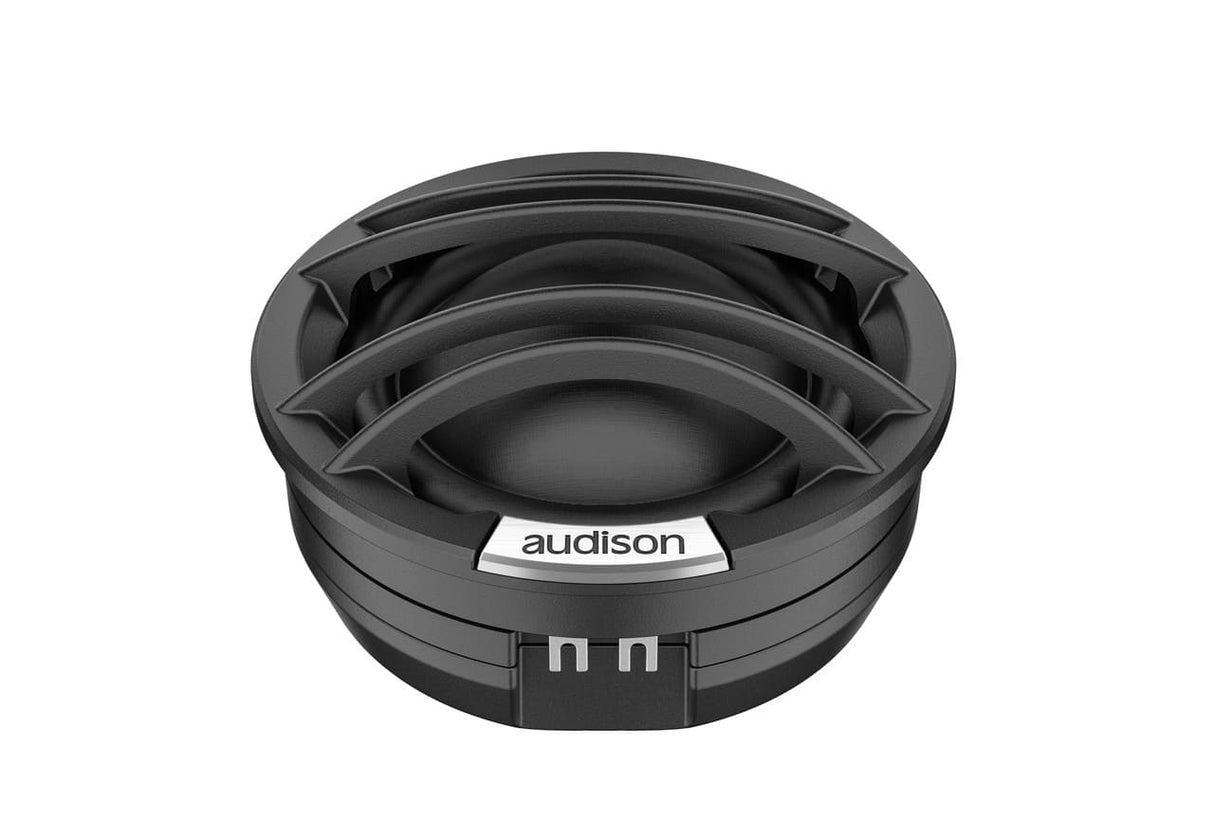

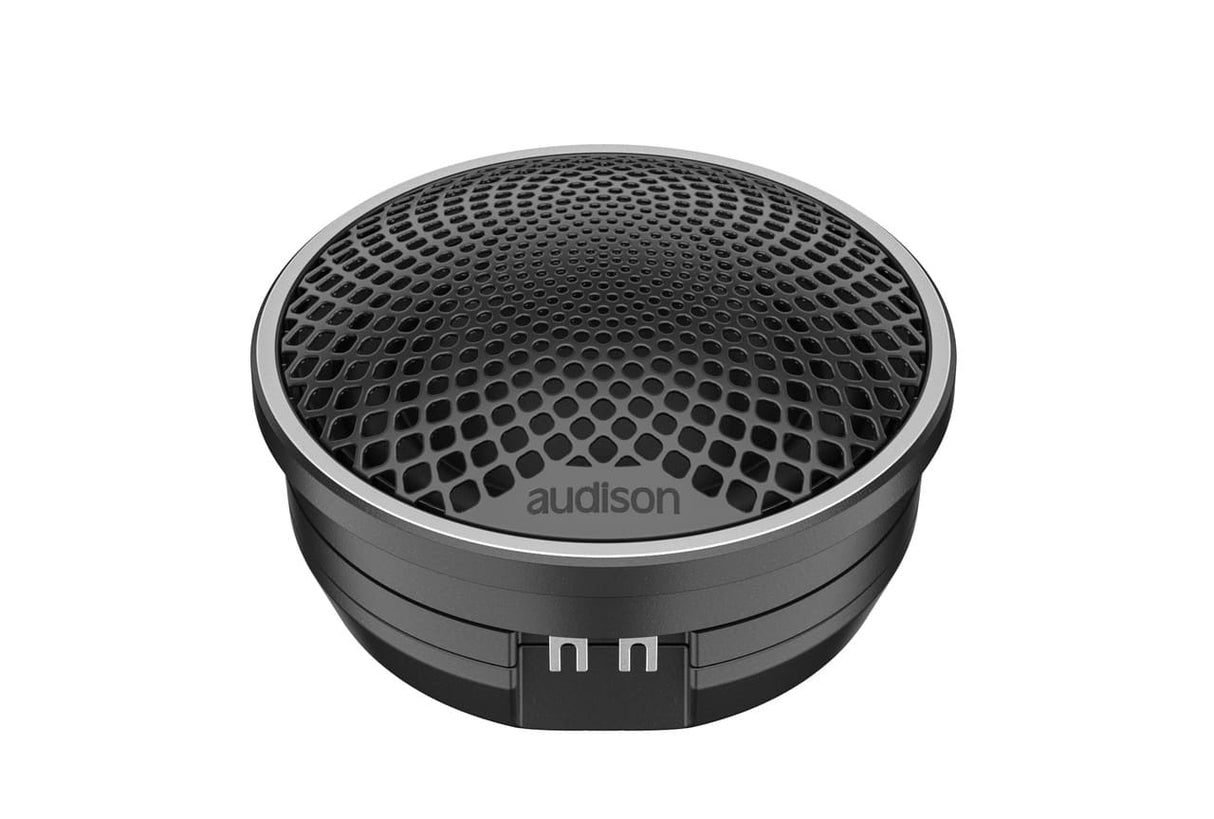

Audison AV 1.1 II

The Audison Voce AV 1.1 II tweeter demonstrates its technical capabilities by achieving Hi-Res Audio certification - a remarkable achievement for a tweeter with a Tetolon dome tweeter. Tetolon was specifically chosen for its excellent timbre, which allows the tweeter to extend its frequency response up to 40 kHz. This design provides unparalleled clarity and depth in the reproduction of high frequencies. Equipped with AIF (Any Install Faceplate) technology, the AV 1.1 II offers flexible installation options with various faceplates and accessories ensuring perfect integration into any vehicle environment. This careful blend of advanced materials and versatile installation underlines the tweeter's appeal to today's car audio enthusiasts who demand the highest levels of performance.


Features:

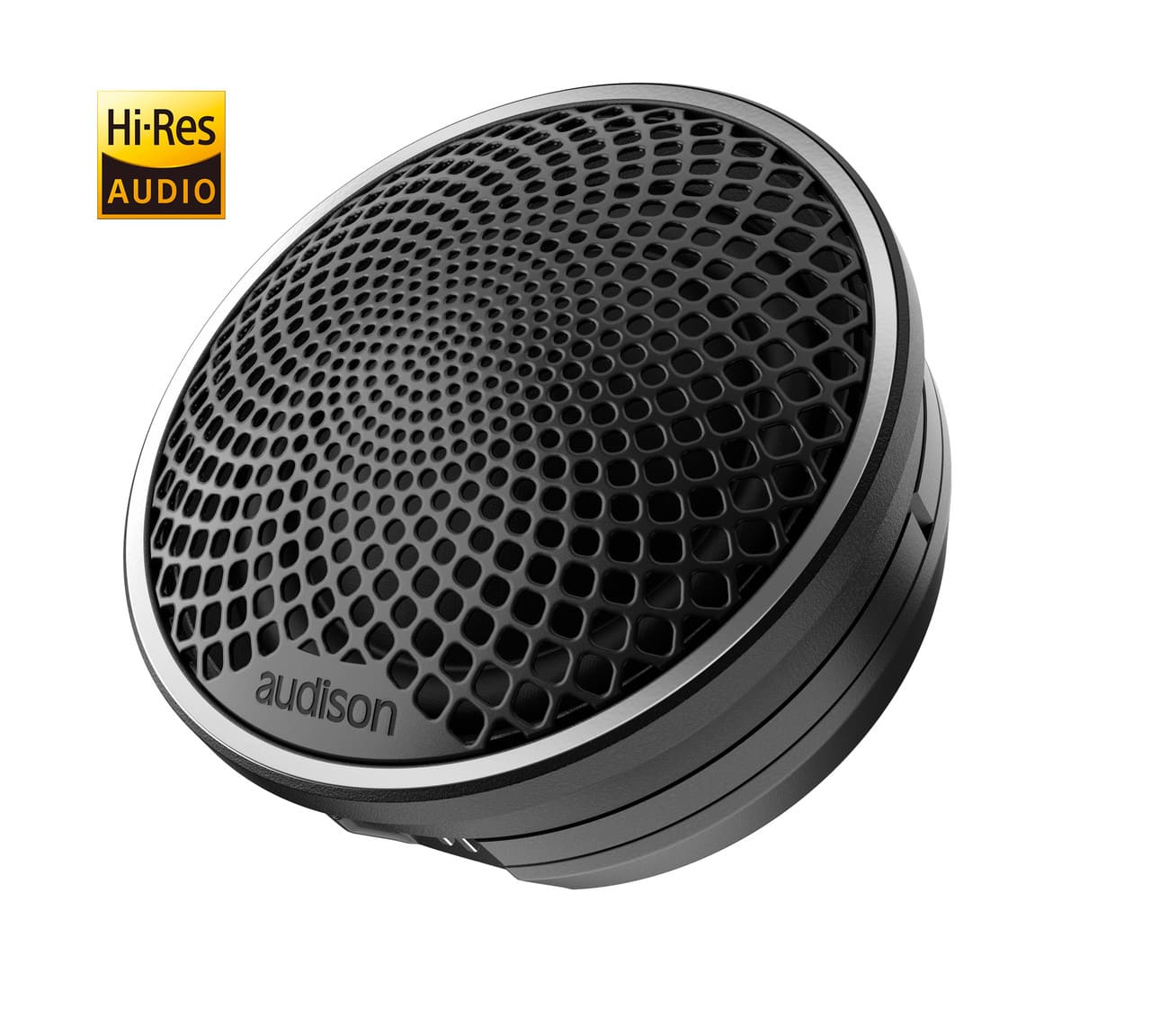

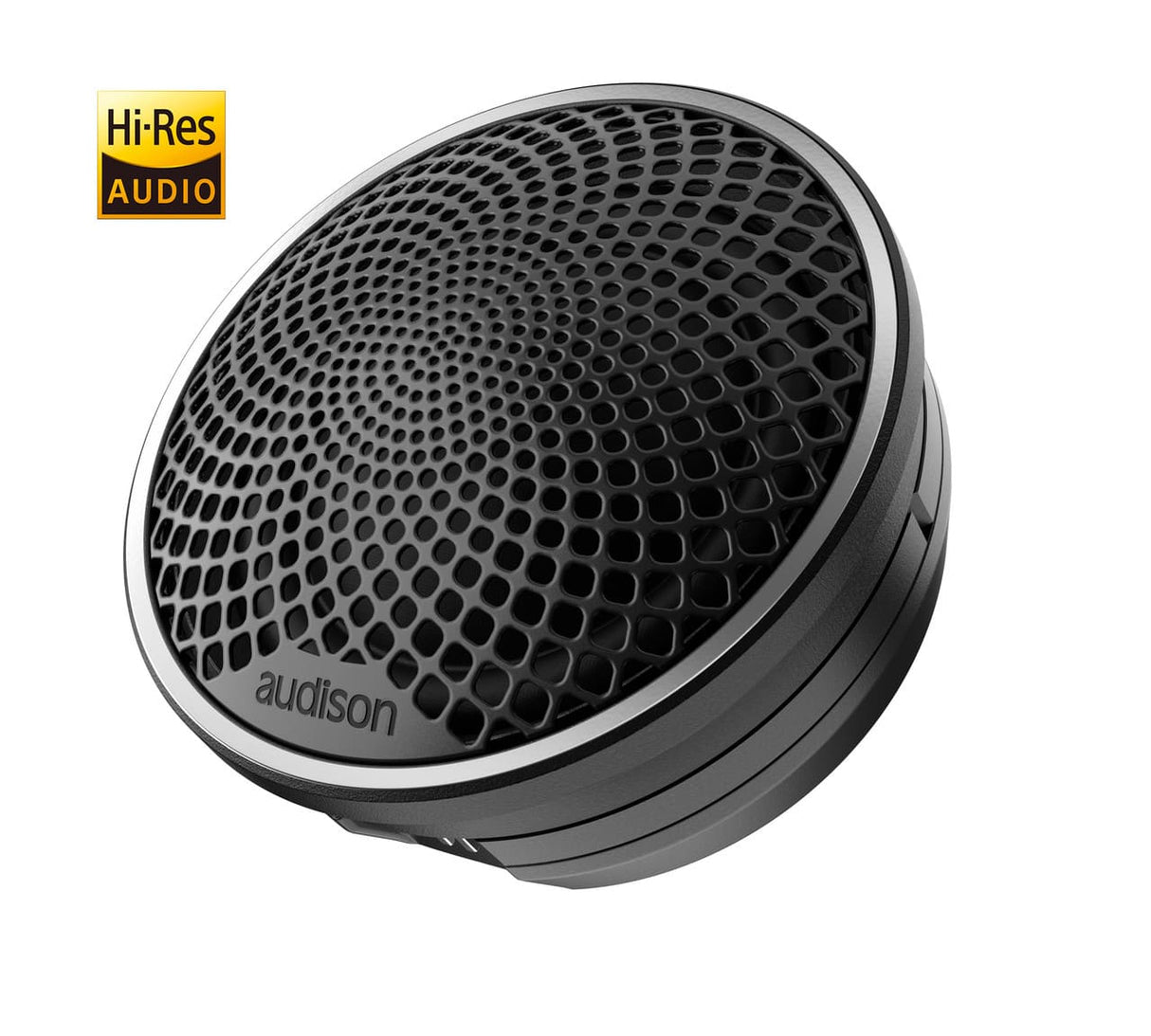

• Hi-Res Audio certified, extension up to 40 kHz: Delivers detailed high-frequency reproduction with enhanced off-axis response, ensuring exceptional performance even when the tweeter is not aimed directly at the listener - ideal for in-car installations.

• Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scans and simulations, it offers a soft, extended response with warm, natural sound reproduction.

• 1.1" (28 mm) CCAW voice coil: Lightweight and stable, eliminates transient compression and ensures low distortion for a clean, natural sound, even at high sound pressure levels.

• Powerful neodymium magnet: Engineered for superior dynamics and minimal distortion across the entire frequency range, improving clarity and precision.

• OEM style and Faston connector: Maximum versatility for quick and easy installation in any vehicle, no additional adapters required.

• AIF (Any Install Faceplate) technology: Provides complete installation flexibility and significantly reduces set-up time as two faceplates and three mounting accessories are included - perfect for any configuration.

• FEM-optimized faceplates: Improve sound dispersion for a balanced and intense sound experience from any listening angle.

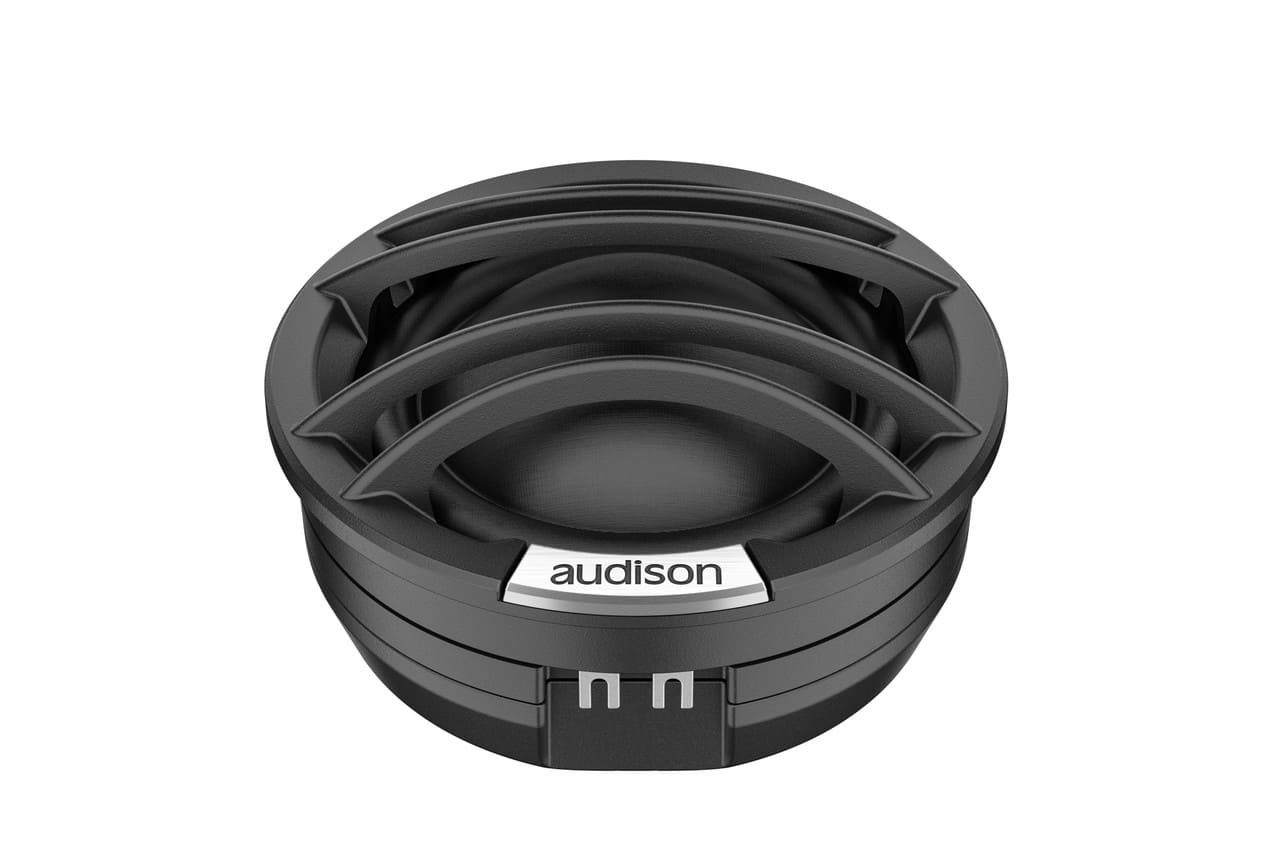

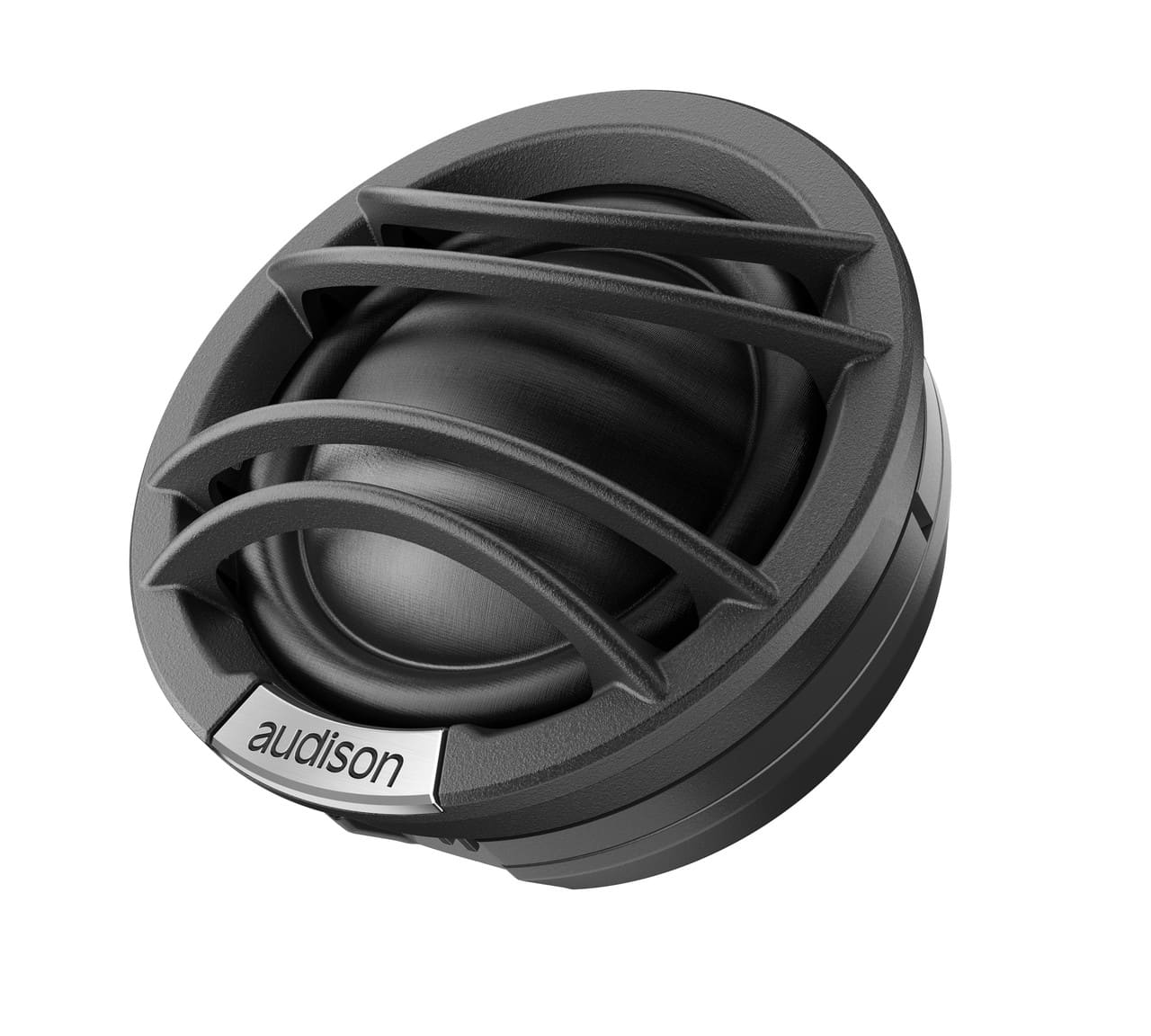

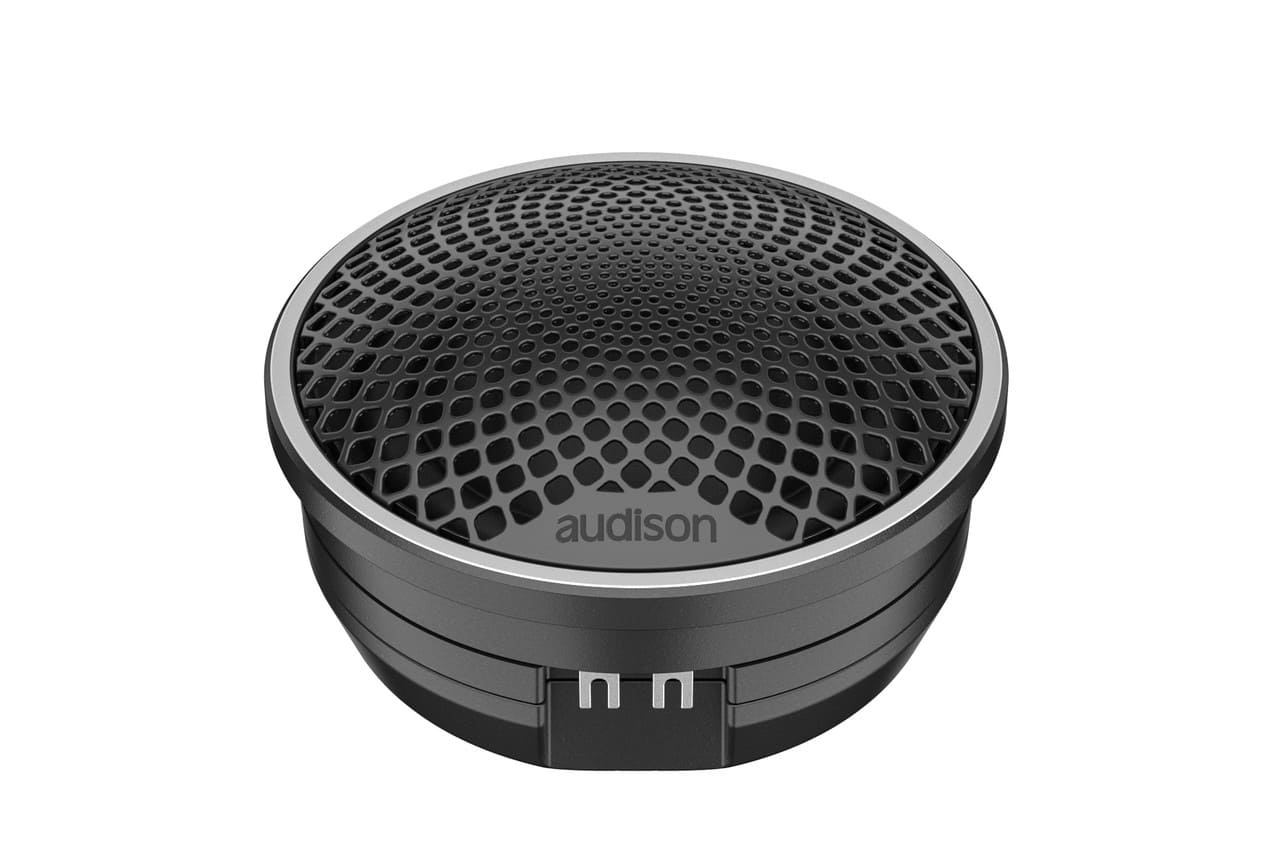

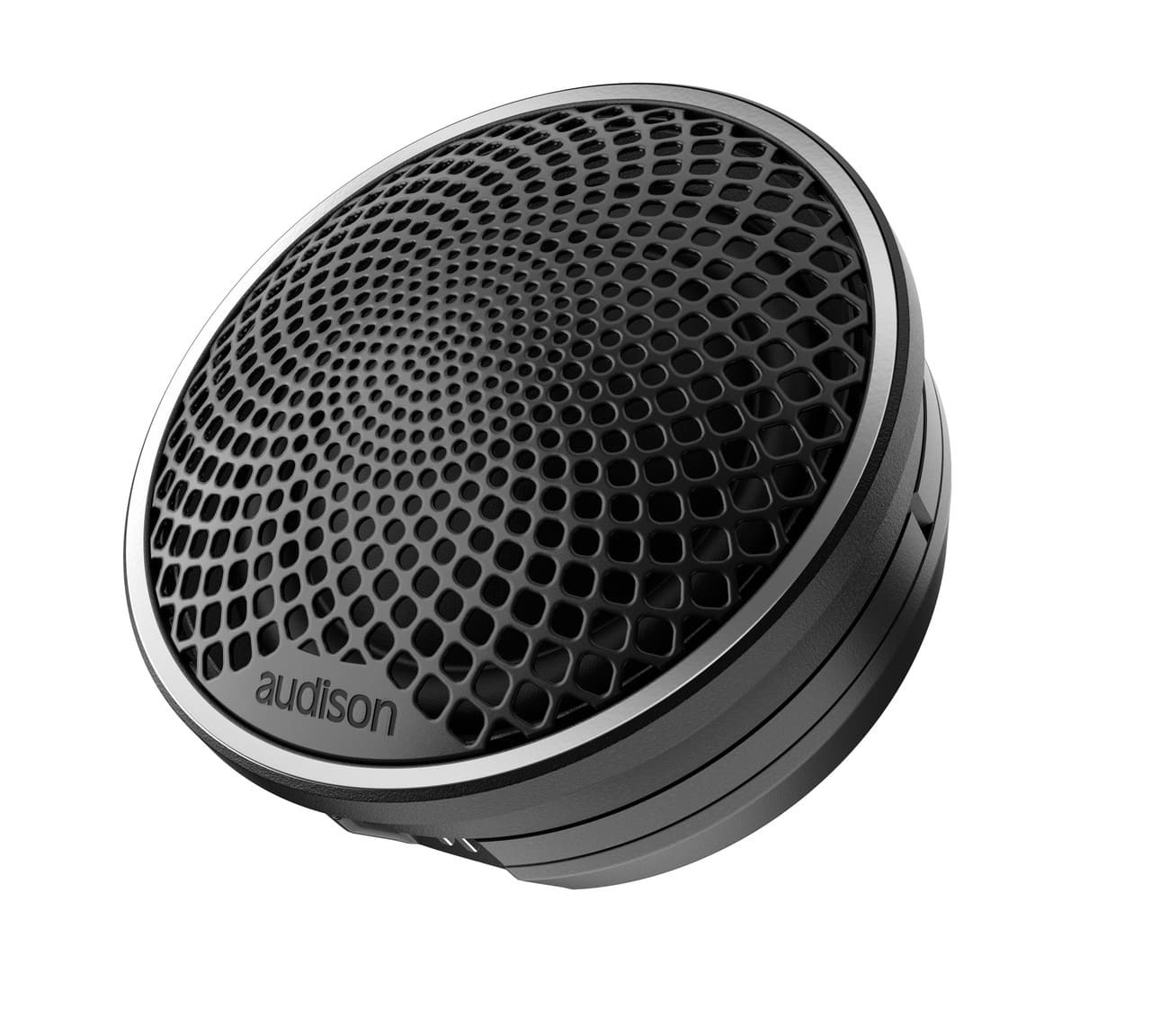

• Mesh and spoke grille included: Both grille options ensure perfect integration into the vehicle and combine aesthetics with performance. Two included self-adhesive Audison logos allow for customized placement to enhance branding and aesthetics.

• eID technology: Enables traceability from production to the owner and thus guarantees the authenticity and security of the product.



Technical data:

• Nominal diameter:
  28 mm (1.1 in)

• Impedance:
  4 Ohm

• Minimum impedance:
  3.9 Ohm

• Load capacity - peak:
  180 W

• Sensitivity:
  91 dB

• Frequency response:
  1000 - 40000 Hz

• Voice coil Ø:
  28 mm (1.1 in)

• Magnet material:
  NEODYMIUM

• Material of the voice coil:
  CCAW

• Membrane material:
  TELOTON FIBRE

• Basket material:
  ALUMINUM

• Diaphragm Surround Material:
  TETOLON FIBRE

• Ferrofluid:
  No
