Spl-Lab Smart Voltmeter - is a multifunctional digital voltmeter. Although most manufacturers claim that their amplifiers have protection against high voltage drops, it turns out in practice that not every expensive amplifier can implement this protection circuit well. This means that too many high voltage drops can usually end in expensive repairs or the purchase of a new amplifier.

However, if you add an inexpensive device from Spl-Lab to your system, you can forget about such problems once and for all. The main functions of the Smart Voltmeter are as follows: Measuring the exact characteristics of your car's voltage, analyzing the voltage dips that occur during the operation of electronics, protecting the installed components and the possibility of flexible settings.

The voltmeter can easily change the data update speed on the screen (from once per second to once per quarter of a second), which makes it possible to exclude unnecessary details or perform measurements with maximum accuracy.

The device has three working modes that can be changed with just one button: Voltmeter mode; Voltmeter mode with undervoltage and fluctuation indication; Voltmeter mode with undervoltage and fluctuation with remote cut protection function, there is a three-color LED to indicate the current mode.

The user can easily set the allowable voltage range to adjust the installed components. In display and source mode, the car's voltmeter displays the current voltage. If the permissible range is exceeded, the voltmeter informs the user by keeping the maximum or minimum value on the screen. If the permissible range is exceeded, the voltmeter interrupts the remote circuit in protection mode, thereby protecting the components from failure. It is worth mentioning that the smart voltmeter can switch the remote circuit with a current of up to 3 amps to replace an additional relay if necessary

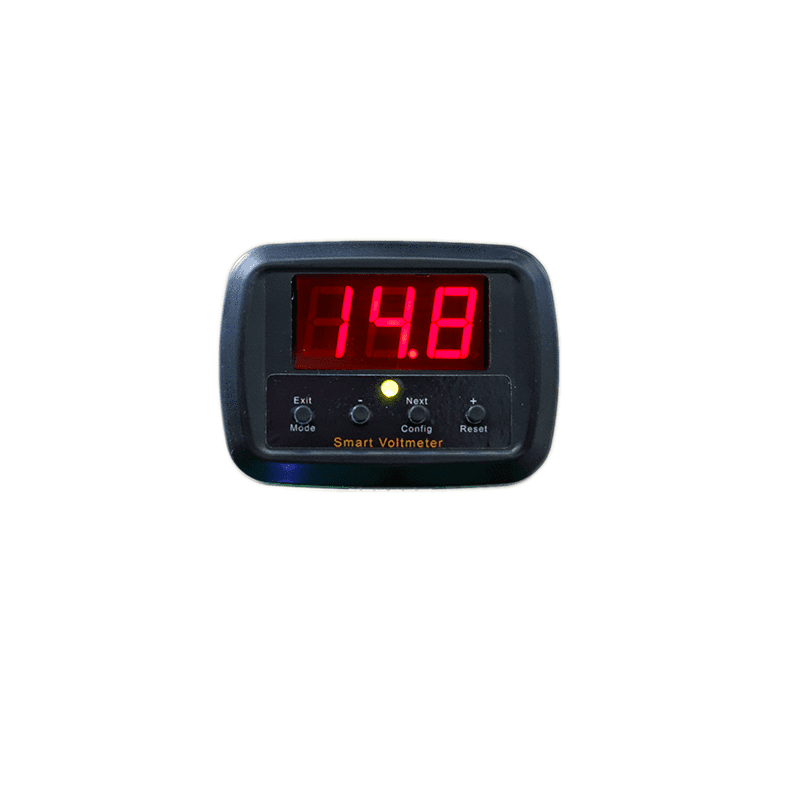

The Spl-Lab smart voltmeter has a compact housing with three segments, four operating buttons, three colored LEDs to indicate the active working mode and a slot for five contacts, which offers various connection options in the car.

Functions:
✓ Voltmeter mode - the device only displays current voltage values, the control circuit is closed.

✓ Voltmeter mode with dip and rise indicator - the device displays the measured voltage value and checks it for compliance with the range defined in the configuration. If the voltage exceeds the defined range, the device switches to pick-hold mode and only changes the value on the screen if the value becomes even lower or higher. The control circuit is closed. The LED and display start flashing until the reset button is pressed.

✓ Voltmeter mode with dip and rise indicator and function for interrupting the remote circuit - the device displays the measured voltage value and checks it for compliance with the range defined in the configuration. If the voltage exceeds the defined range, the device switches to pick-hold mode and only changes the value on the screen if the value becomes even lower or higher. The remote circuit is interrupted and the LED and display start to flash until the reset button is pressed.

Package contents:

✓ Smart Voltmeter (device)
