ESX QXB6A

The ESX QUANTUM QXB6A combines a powerful 16.5 cm (6.5-inch) subwoofer with a built-in Class-D digital amplifier in an exceptionally compact bass-reflex enclosure. With 250 watts RMS and up to 500 watts of peak power, this active subwoofer system delivers powerful bass reproduction without the need for an additional external power amplifier.

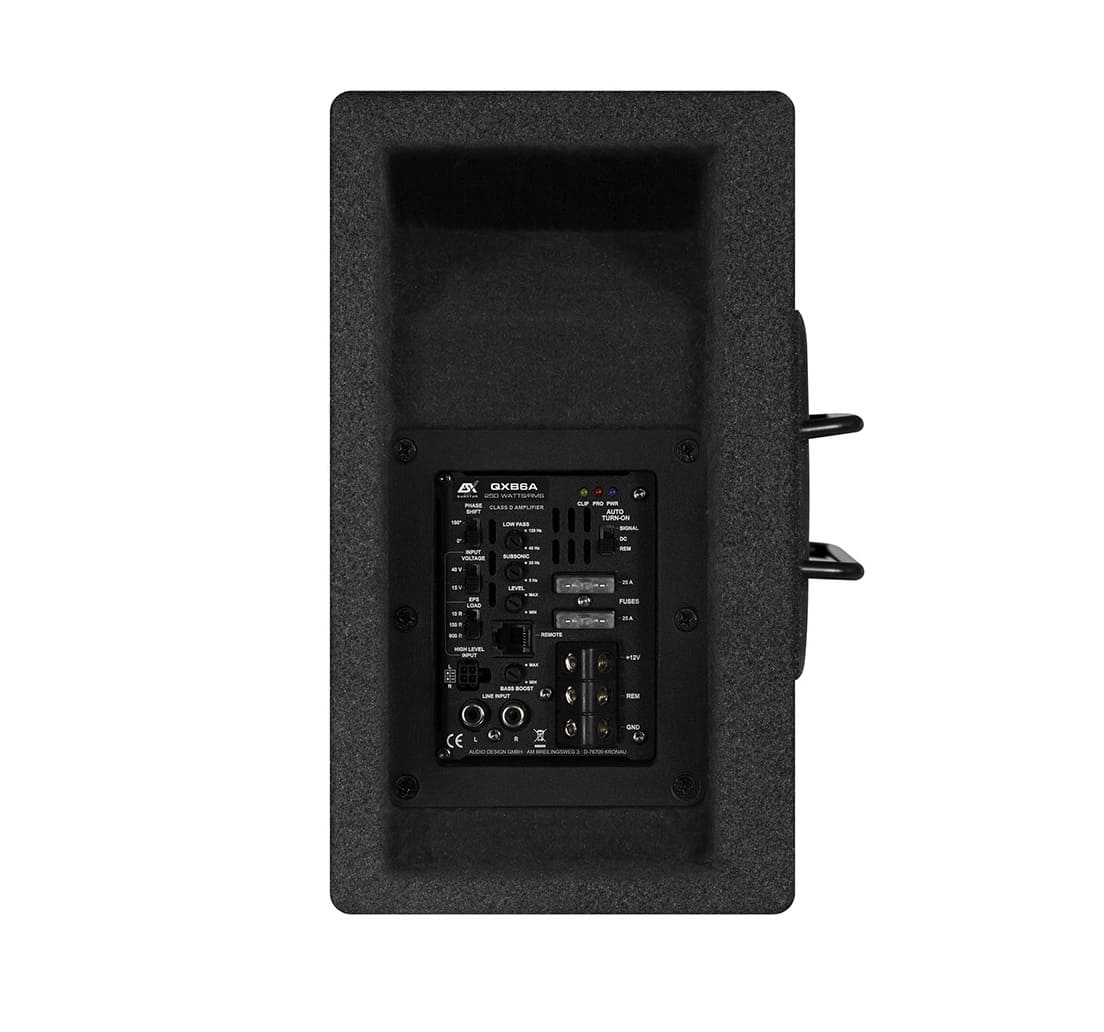

The integrated POWER4 Class-D amplifier module delivers impressive efficiency, with an efficiency rating of up to 84%. This advanced amplifier technology delivers high output power in a compact design. Thanks to the integrated EPS® PRO technology, the system is also suitable for retrofitting in modern vehicles equipped with factory-installed audio systems and speaker diagnostics.

Both low-level RCA and high-level inputs are available for flexible integration. The automatic power-on function detects either an audio signal or a voltage rise. In addition, an adjustable low-pass filter, subsonic filter, bass boost, and phase switch allow for customization to the vehicle and the existing speakers.

A unique feature of the QXB6A is the ability to convert the enclosure into a down-firing subwoofer using the included mounting feet. In this configuration, the speaker radiates sound downward, making the system ideal for installation in double trunk floors, for example. The included wired bass-level remote control allows you to conveniently adjust the bass volume from the driver’s seat.

Technical Specifications

Subwoofers and Enclosures

• Manufacturer: ESX

• Series: QUANTUM QXB

• Model: QXB6A

• Product Type: Active Subwoofer System

• Subwoofer diameter: 16.5 cm (6.5 inches)

• Enclosure type: Bass reflex

• Enclosure material: MDF

• Tank capacity: approx. 10.5 liters

• Voice coil diameter: 50 mm

• Integrated amplifier: POWER4 Class D for 10 mm² power cables

• Amplifier Technology: Digital Class D

• Efficiency of the amplifier module: up to 84%



Performance Data

• RMS output power: 1 × 250 watts at 14.4 V

• Maximum output power: 1 × 500 watts at 14.4 V

• Frequency response (-3 dB): 7–120 Hz (amplifier circuitry)

• Damping factor: over 200

• Signal-to-noise ratio: 102 dB

• Total Harmonic Distortion (THD) at 1 watt RMS: less than 0.02%



Filters and Sound Settings

• Low-pass filter: 40–120 Hz

• Low-pass slope: 12 dB/octave

• Subsonic filter: 5–35 Hz

• Subsonic slope: 12 dB/octave

• Bass Boost: 0 to +6 dB

• Bass boost frequency: 45 Hz

• Phase switch: 0° / 180°

• Limiter: Three-stage limiter function

• Clipping Indicator: LED



Connections and Input Sensitivity

• Low-level input: RCA (Cinch)

• High-level input: Speaker signal

• RCA input sensitivity: 0.2–5.5 V

• High-level input sensitivity: 0.5–15 V or 1.5–40 V

• High-level input sensitivity: Switchable

• EPS® PRO: Compatibility with Integrated Speaker Diagnostics

• EPS® PRO Input Resistance: 10 / 150 / 600 ohms, switchable

• Automatic Power-On: DC Voltage Detection or Signal Detection

• Start-Stop Compatibility: Yes, up to 7 V for 5 seconds



Power Supply and Features

• Operating voltage: 12 V vehicle electrical system

• Equipment fuses: 2 × 25 A

• Bass Level Remote Control: Wired, included

• Protective grille: Included

• Mounting feet: 4 pieces for down-firing operation

• Downfire Mounting: Possible

• Housing Design: Sturdy, compact housing with the ESX logo



Dimensions and Weight

• Width: 420 mm

• Height: 280 mm

• Depth: 160 mm

• Weight: approx. 11.3 kg
