Ground Zero | Barcode: 4037072020069

GZPW 10SQX

549,00€

Tax included Shipping calculated at checkout.

Subwoofer

Packaging Unit

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

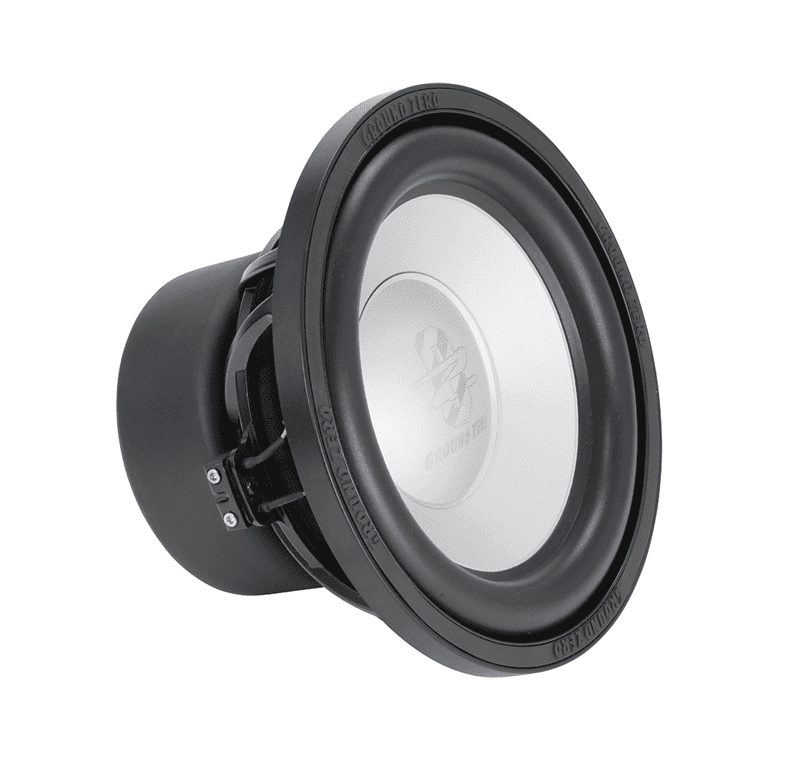

The Ground Zero GZPW 10SQX is a high-quality 25-cm subwoofer from the Plutonium series, designed specifically for precise and sophisticated bass reproduction. Rather than focusing solely on maximum volume, the GZPW 10SQX combines high power handling with a controlled, sound-oriented tuning, making it particularly well-suited for high-end sound-quality car audio systems.

The rigid, anodized aluminum diaphragm, in combination with the ConeGlide rubber surround, ensures controlled diaphragm movement. A solid cast aluminum basket provides a stable base for the driver. The design has been Klippel®-optimized and is specifically engineered for use in compact, enclosed subwoofer enclosures.

With its 2 x 2-ohm dual voice coil, the GZPW 10SQX offers flexible connection options for high-power mono and multichannel power amplifiers. The RMS power handling capacity is 400 watts, while Ground Zero recommends an amplifier power output of 300 to 700 watts

Product Features

High-End Sound-Quality Subwoofer from the Ground Zero Plutonium Series
25 cm / 10 inches nominal diameter
Klippel®-Optimized Design
Designed for precise and controlled bass reproduction
Optimized for use in enclosed subwoofer enclosures
Anodized aluminum membrane
ConeGlide Rubber Seam
Solid Cast Aluminum Basket
50-mm copper voice coil
Dual Centering
Aluminum Dust Cap
Dual voice coil with 2 x 2 ohms
High linear diaphragm stroke
Suitable for high-end car audio systems

Technical Specifications

Model: Ground Zero GZPW 10SQX
Series: Plutonium
Speaker Type: High-End SQ Subwoofer
Nominal diameter: 250 mm / 10 inches
RMS Power Handling: 400 watts
Maximum power handling: 700 watts
Recommended amplifier power: 300–700 watts
Impedance: 2 x 2 ohms
Efficiency: 84 dB
Frequency range: 20–350 Hz
Voice coil diameter: 50 mm
Voice coil: Copper
Diaphragm: Anodized aluminum
Basket: Die-cast aluminum
Magnet: Ferrite
Maximum excursion (Xmax): 36 mm peak-to-peak
Installation diameter: 236 mm
Installation depth: 148 mm
Resonance frequency (Fs): 36 Hz
Overall Quality (Qts): 0.59
Mechanical Quality (Qms): 10.78
Electrical quality (Qes): 0.63
Equivalent air volume (Vas): 22.0 liters
DC resistance Re (coils in series): 3.9 ohms
Mass in motion (Mms): 154.9 g
Force factor (BL): 14.7 N/A
Mechanical loss resistance (Rms): 3.21 kg/s
Elasticity (cm/N): 0.130 mm/N
Voice coil inductance (Le): 1.833 mH

Case Recommendation

Enclosure type: Sealed
Recommended net volume: 18 liters
RMS power handling capacity in the recommended 18-liter enclosure: 400 watts

What's Included

1 x Ground Zero GZPW 10SQX High-End Subwoofer
Cast Aluminum Mounting Ring
Safety grille
