The Ground Zero GZUF 60SQ-A from the Uranium Series is a compact 60-mm full-range speaker designed for high-end car audio systems that require precise and balanced reproduction of the midrange and high-frequency ranges. Thanks to its wide usable frequency range of 300 Hz to 20 kHz, the speaker can handle both midrange and high-frequency components, thereby enabling particularly interesting installation concepts.

The lightweight, black anodized aluminum diaphragm combines high rigidity with low moving mass. Together with the powerful neodymium driver and the 25-mm copper voice coil, the GZUF 60SQ-A is designed for controlled and detailed music reproduction. The fiber-reinforced plastic basket provides a stable and low-resonance base.

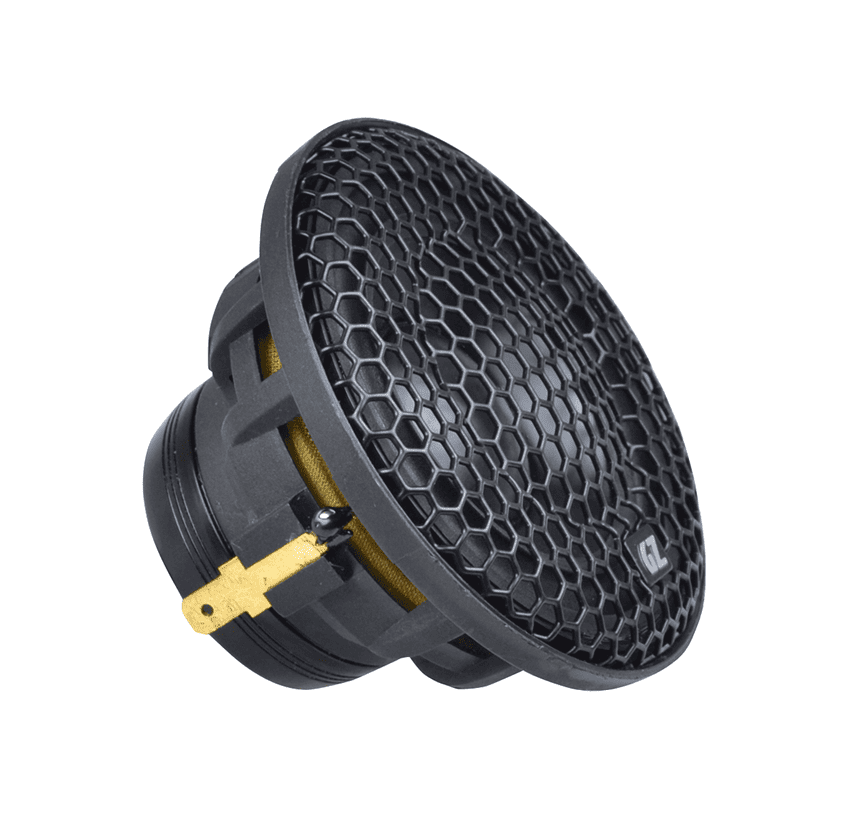

With an installation depth of just 36 mm, this full-range speaker is also suitable for installation locations with limited space. The included GZ-Design Hexagon protective grilles also allow for a clean integration when mounted in plain view. The GZUF 60SQ-A is sold as a pair

Product Features

60-mm Sound-Quality Midrange/Full-Range Speaker
Suitable for reproducing midrange and high-frequency sounds
Black anodized aluminum diaphragm
25-mm copper voice coil
High-Performance Neodymium Magnet Drive
Fiber-reinforced plastic basket
Durable rubber seal
Klippel®-Optimized Design
GZ-Design Hexagon Protective Grille Included
Two mounting options for the protective grilles
Solder terminals for speaker wiring
Compact installation depth of just 36 mm
Sold as a pair

Technical Specifications

Model: Ground Zero GZUF 60SQ-A
Series: Uranium
Speaker Type: SQ Midrange/Full-Range Speaker
Nominal diameter: 60 mm
Nominal impedance: 4 ohms
RMS power handling: 50 watts
Maximum power handling: 80 watts
Requirement for power handling rating: 300 Hz high-pass filter with 12 dB/oct.
Frequency response: 300 Hz – 20,000 Hz
Sound pressure level (SPL): 84 dB
Resonance frequency (Fs): 150 Hz
Voice coil diameter: 25 mm
Voice coil material: Copper
Diaphragm material: Aluminum
Diaphragm finish: Black anodized
Magnet material: Neodymium
Basket material: Fiber-reinforced plastic
Installation diameter: 61 mm
Installation depth: 36 mm
Outer diameter without mounting ring: 72 mm
Outer diameter with mounting ring: 89 mm
Total linear diaphragm stroke (Xmax): 4 mm

Thiele-Small parameters

Re: 3.9 ohms
Qms: 5.12
Qes: 0.74
Qts: 0.64
Vase: 0.5 liters
MMS: 1.9 g
BL: 3.0 Tm
RMS: 0.3 kg/s
Cms: 0.68 mm/N
Le: 0.12 mH
Xmax: 4 mm total

What's Included

2 Ground Zero GZUF 60SQ-A full-range speakers
GZ-Design Hexagon Protective Grille / Mounting Rings
Installation Accessories
