Ground Zero | Barcode: 4037072022162

GZNW 30SPL-D1/D2

699,00€

Tax included Shipping calculated at checkout.

Subwoofer

Packaging Unit

impedance

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

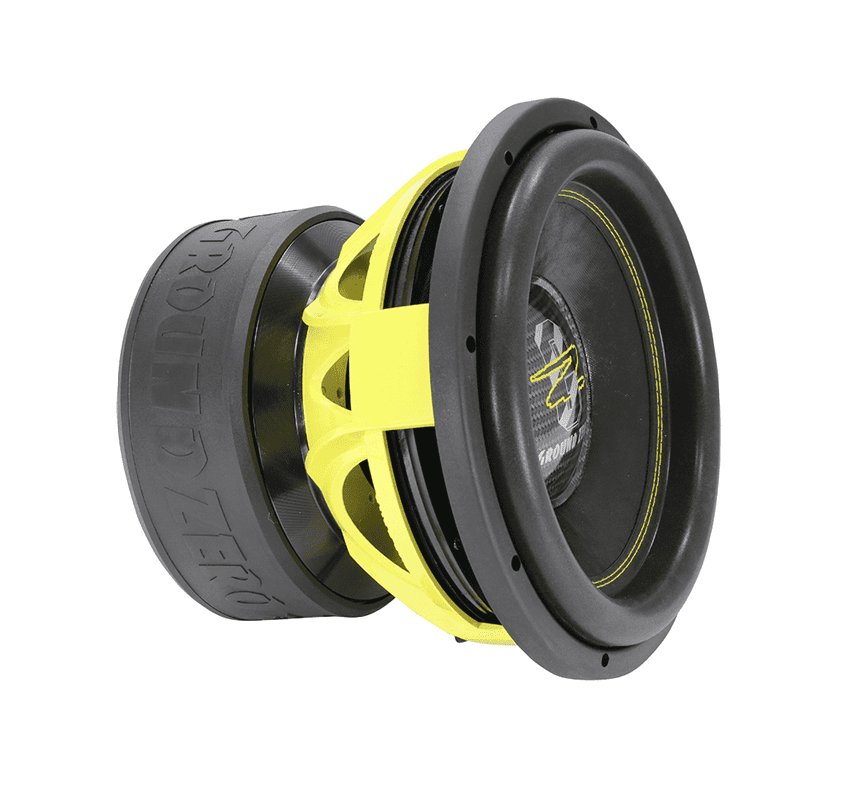

The Ground Zero GZNW 30SPL is a no-compromise 30-cm subwoofer from the NUCLEAR series designed for high-performance car audio and SPL systems. With a power handling capacity of 3,000 watts RMS and up to 6,000 watts SPL, the subwoofer is designed for applications that require high sound pressure levels, substantial mechanical reserves, and a robust construction.

The sturdy chassis is based on a solid cast aluminum basket and a fiber-reinforced paper cone. A 75-mm CCA round-wire voice coil provides the drive. In combination with the four-layer Nomex suspension, the GZNW 30SPL is designed to withstand high electrical and mechanical loads. The Klippel®-optimized design ensures controlled cone movement even at high volume levels.

With a maximum excursion of 70 mm, the 30-cm woofer offers enormous excursion reserves. This makes it suitable not only for high-performance SPL setups and competition vehicles, but also for extremely powerful bass systems for everyday use.

The GZNW 30SPL is available in two versions. The GZNW 30SPL-D1 features a 2 × 1-ohm dual voice coil, while the GZNW 30SPL-D2 is equipped with a 2 × 2-ohm dual voice coil. This allows you to select the appropriate impedance variant based on the amplifier being used and the number of subwoofers installed

Product Features

30 cm / 12-inch High-Performance SPL Subwoofer
From the Ground Zero NUCLEAR series
Klippel®-optimized design
Fiber-reinforced paper membrane
Solid Cast Aluminum Basket
75 mm / 3-inch CCA round-wire voice coil
4-layer Nomex centering ring
Dust cap in carbon fiber design
High mechanical stroke reserves
For high-performance car audio and SPL applications
Suitable for high amplifier power
Dual-voice-coil for flexible system configuration
Available in D1 and D2 versions

Technical Specifications for the GZNW 30SPL-D1

Model: High-Performance SPL Subwoofer
Nominal diameter: 30 cm / 12 inches
RMS Power Handling: 3,000 watts
SPL Power Handling: 6,000 watts
Recommended amplifier power: 2,000–6,000 watts RMS
Voice coil impedance: 2 × 1 ohm
Voice coil diameter: 75 mm / 3 inches
Voice coil type: CCA round wire
DC resistance Re, in series: 1.72 ohms
Sound pressure level (1 W / 1 m): 87.5 dB
Resonance frequency Fs: 38.6 Hz
Mechanical Grade Qms: 4.40
Electrical quality Qes: 0.42
Total quality (Qts): 0.38
Equivalent air volume (Vas): 23.6 liters
Mass in motion (Mms): 269.5 g
BL Force Factor: 16.3 Tm
Maximum deflection Xmax: 70 mm
Diaphragm material: fiber-reinforced paper
Outer diameter: 315 mm
Installation diameter: 281 mm
Installation depth: 237 mm
Magnet/housing diameter: 236 mm
Rim height: 10 mm

Technical Specifications for the GZNW 30SPL-D2

Model: High-Performance SPL Subwoofer
Nominal diameter: 30 cm / 12 inches
RMS Power Handling: 3,000 watts
SPL Power Handling: 6,000 watts
Recommended amplifier power: 2,000–6,000 watts RMS
Voice coil impedance: 2 × 2 ohms
Voice coil diameter: 75 mm / 3 inches
Voice coil type: CCA round wire
DC resistance Re, in series: 3.2 ohms
Sound pressure level (1 W / 1 m): 86.3 dB
Resonance frequency Fs: 41.3 Hz
Mechanical quality Qms: 3.61
Electrical quality Qes: 0.63
Overall quality (Qts): 0.54
Equivalent air volume (Vas): 25.0 liters
Mass in motion (Mms): 219.9 g
BL Force Factor: 17.0 Tm
Maximum deflection Xmax: 70 mm
Diaphragm material: fiber-reinforced paper
Outer diameter: 315 mm
Installation diameter: 281 mm
Installation depth: 237 mm
Magnet/housing diameter: 236 mm
Rim height: 10 mm

Difference between D1 and D2

GZNW 30SPL-D1: Dual voice coil with 2 × 1 ohm
GZNW 30SPL-D2: Dual voice coil with 2 × 2 ohms
Both models: 3,000 watts RMS / 6,000 watts SPL
Both versions: 75-mm CCA voice coil
Both versions: 70 mm maximum deflection
Both versions: identical installation dimensions
