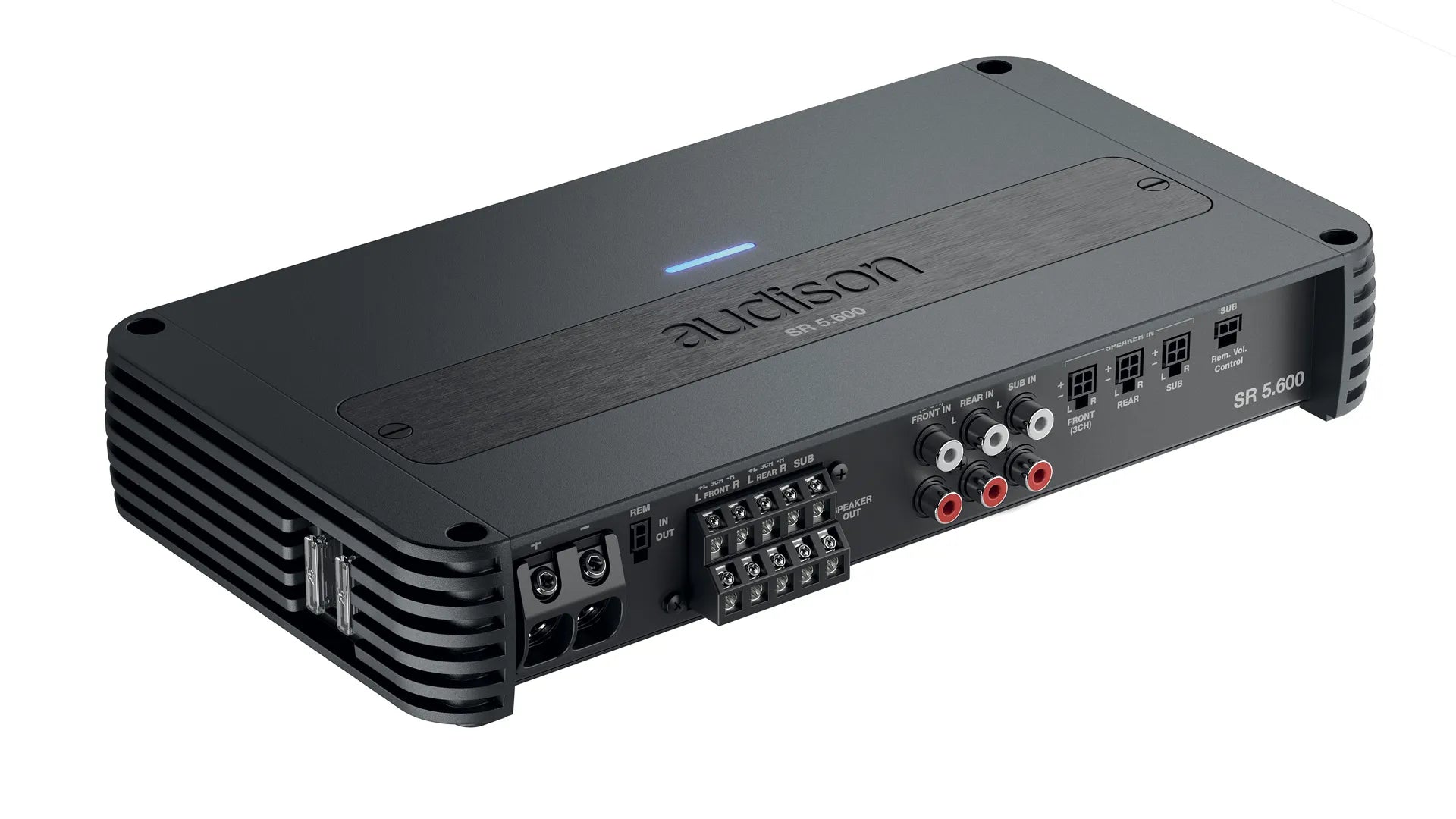

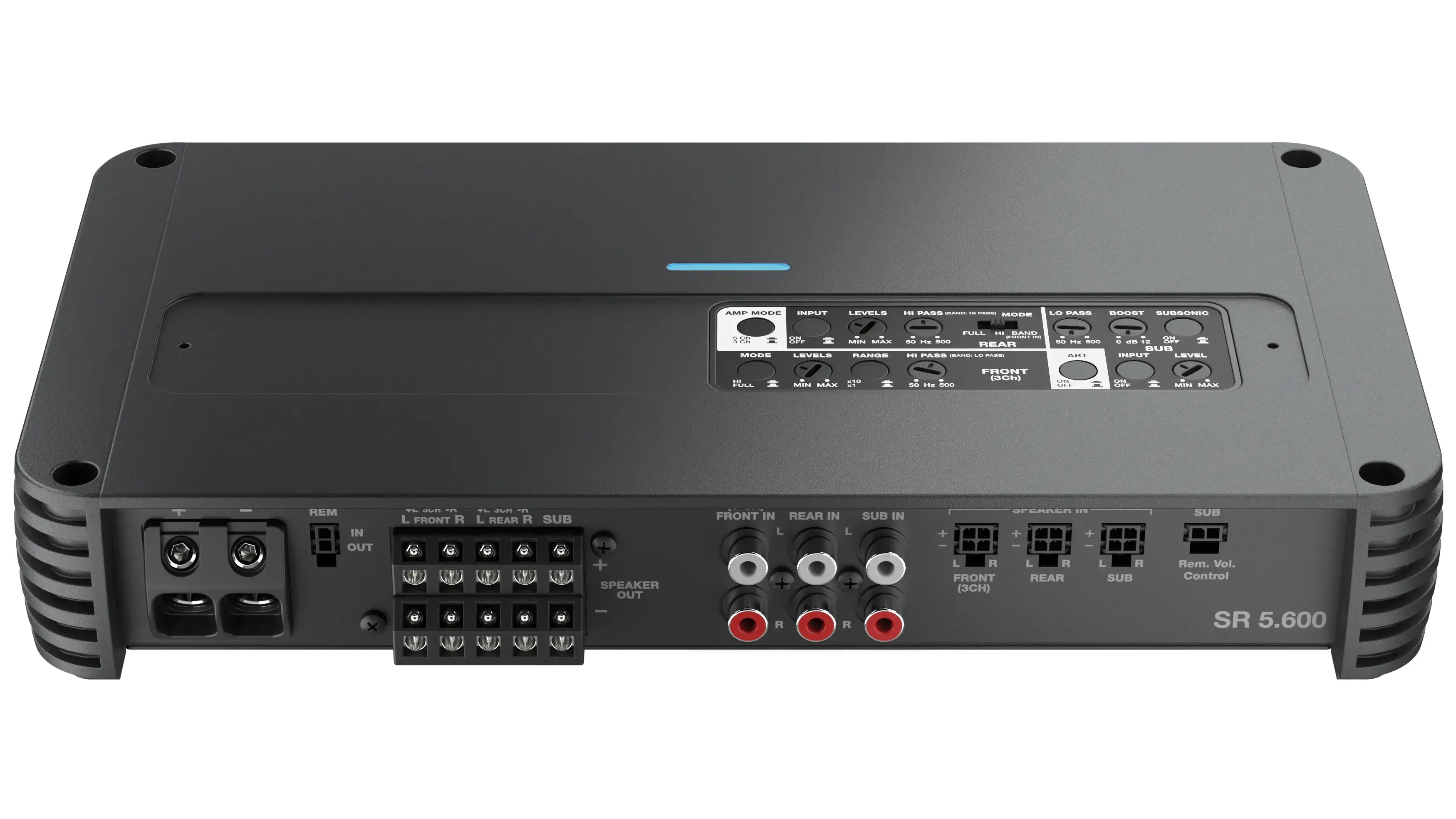

Audison SR 5.600
Regular price
499,00€
Unit price
/
Unavailable
The Audison SR 5.600 is a versatile 5-channel amplifier for powerful front systems and subwoofer combinations in modern car hi-fi systems. The current generation of the SR series combines high output power with a compact design, enabling flexible installations even where space is limited.
Thanks to the ADT technology (Audison D-Class Technology) developed by Audison, the amplifier works particularly efficiently and at the same time delivers dynamic, controlled sound reproduction. The combination of four powerful full-range channels and a powerful subwoofer channel makes the SR 5.600 the ideal solution for complete sound systems with just one power amplifier.
The integrated crossovers allow the system to be precisely tuned to the vehicle and speakers. High-level and low-level inputs ensure maximum compatibility with factory radios and aftermarket head units. In addition, functions such as ART (Automatic Remote Turn-On/Off) and USS (Universal Speaker Simulator) facilitate problem-free integration into modern OEM vehicles.
With its combination of high performance, audiophile sound quality and compact dimensions, the Audison SR 5.600 is suitable for both demanding OEM upgrades and high-quality complete car hi-fi systems.
Technical data:
- 5-channel Class-D amplifier
- Audison D-Class Technology (ADT)
- High-level inputs
- Low-level/RCA inputs
- Integrated crossovers
- ART Automatic Remote Turn-On/Off
- USS Universal Speaker Simulator
- RMS power @ 4 ohms:
- 4 x 75 watts + 1 x 330 watts
- RMS power @ 2 ohms:
- 4 x 115 watts + 1 x 550 watts
- 3-channel bridged:
- 2 x 230 Watt + 1 x 310 Watt @ 4 Ohmm2
- x 230 Watt + 1 x 550 Watt @ 2 Ohm
- Total power RMS: 1010 watts
- Minimum impedance:
- 5-channel: 2 Ohm3-channel
- : 4 Ohm + 4 Ohm + 2 Ohm
- Frequency range:
- 10 Hz - 35 kHzSubwoofer channel
- : 10 Hz - 500 Hz
- Distortion factor (THD): 0.02 %
- Signal-to-noise ratio: 105 dBA
- Attenuation factor: 100
- Input sensitivity pre-in: 0.2 - 5 VRMS
- Input sensitivity Speaker-In: 0.8 - 20 VRMS
- Supply voltage: 11 - 15 VDC
- Operating voltage: 6.5 - 17 VDC
- Fuse: 2 x 25 A
- Max. Current consumption: 44 A
- No-load current: 2.2 A
- Remote OUT: 6.5 - 15 VDC (150 mA)
- Dimensions (W x H x D): 294 x 47.5 x 155 mm
- Weight: 2.42 kg
