Musway MT169Q
Sale price
74,50€
Regular price
149,00€
Unit price
/
Unavailable

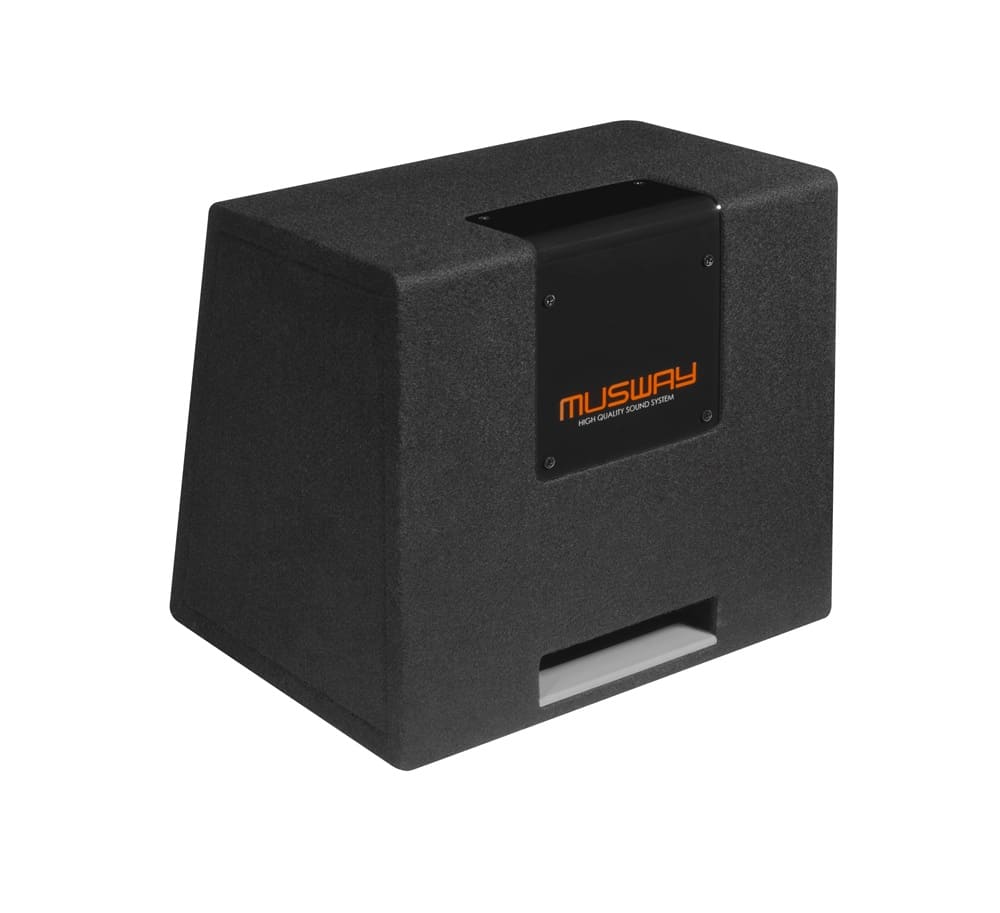

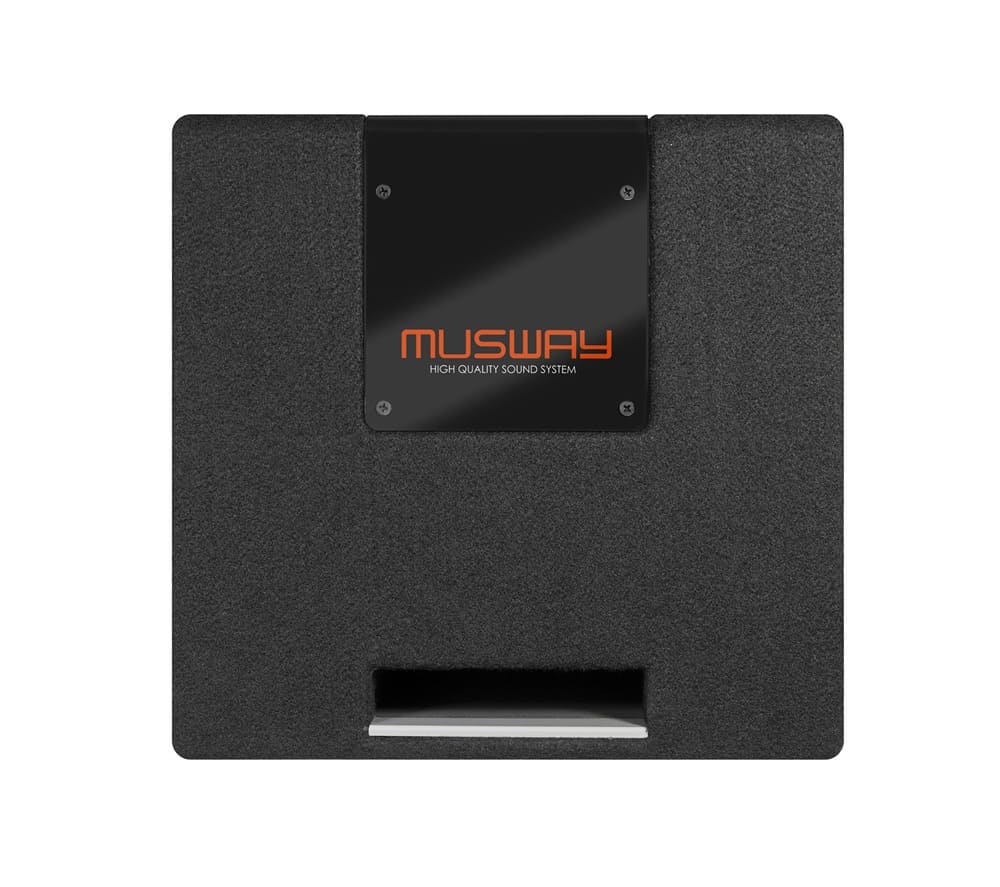

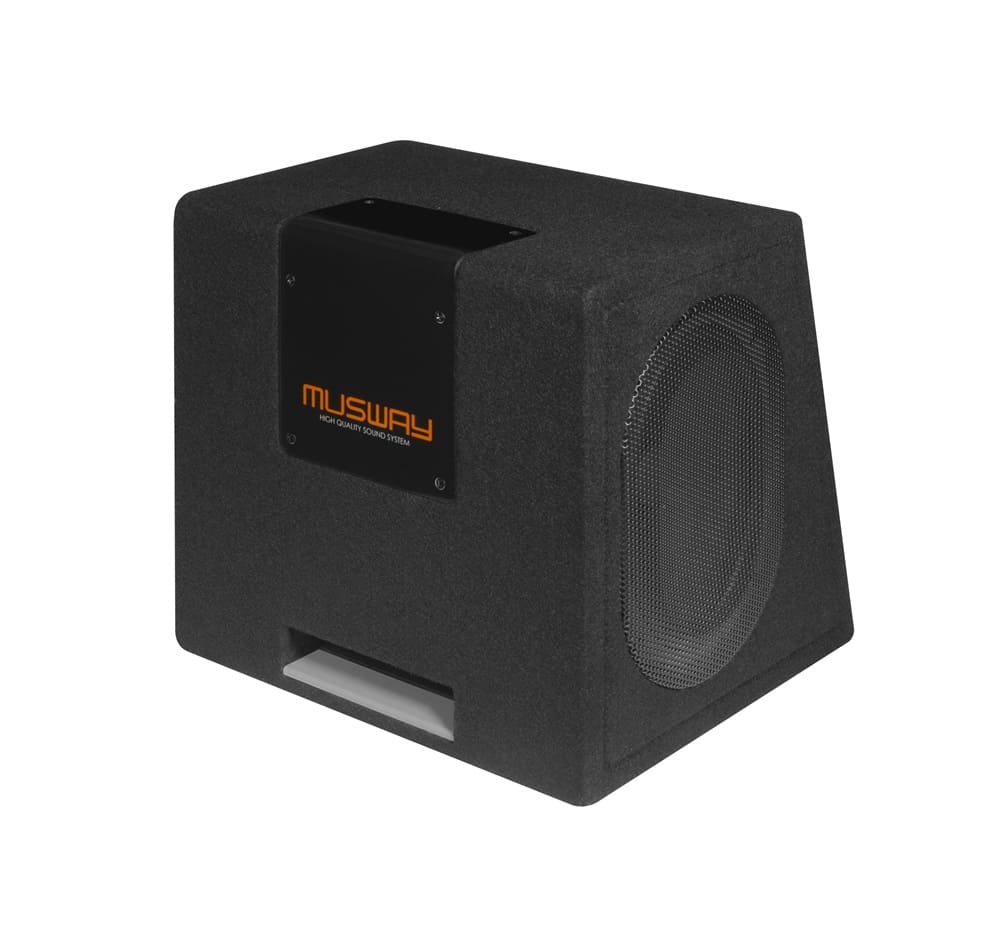

The MUSWAY MT169Q is an exceptionally compact bass-reflex subwoofer designed for car audio applications where a powerful and deep bass foundation is required despite limited space. Housed in a sturdy MDF enclosure is a 15 x 23 cm (6 x 9-inch) subwoofer with a dual voice coil, capable of handling 200 watts RMS. Thanks to its compact design, the MT169Q can also be installed in vehicles where there is limited space for a traditional 25- or 30-cm enclosed subwoofer.
The 2 + 2-ohm dual voice coil allows for flexible adaptation to different amplifier configurations. MUSWAY recommends a total amplifier power of 140 to 220 watts RMS. With a frequency response starting at 35 Hz, the bass-reflex system is designed to deliver powerful low-frequency output and is suitable both as a complement to a factory-installed sound system and for compact aftermarket solutions.
For easy integration, the MT169Q features a MUSWAY Quick Connect jack in addition to conventional terminals. When used with a compatible Quick Connect cable, the subwoofer can, for example, be connected directly to MUSWAY amplifiers equipped with the same connector. The rugged MDF enclosure, covered with black carpet, and a sturdy perforated metal grille protect the subwoofer during daily use in the trunk.
Technical Specifications:
- Single-Bass-Reflex-Enclosure Subwoofer
- Subwoofer size: 15 x 23 cm (6 x 9")
- Voice coil: Dual voice coil
- Voice coil diameter: 38.8 mm
- Power Handling: 200 watts RMS
- Maximum power handling: 400 watts
- Impedance: 2 + 2 ohms
- Recommended amplifier power: 140–220 watts RMS total
- Frequency range: 35–300 Hz
- Enclosure type: Bass reflex
- Enclosure material: sturdy MDF
- Case surface: black carpet covering

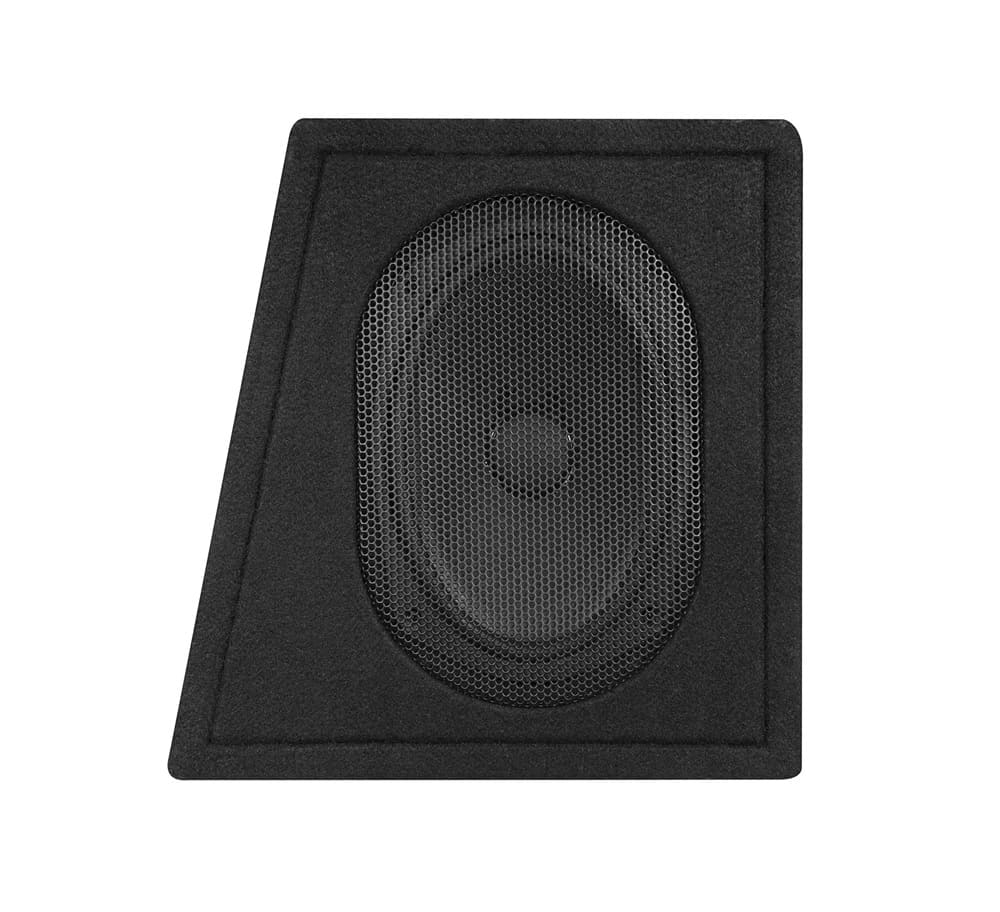

- Subwoofer protection: sturdy perforated metal grille

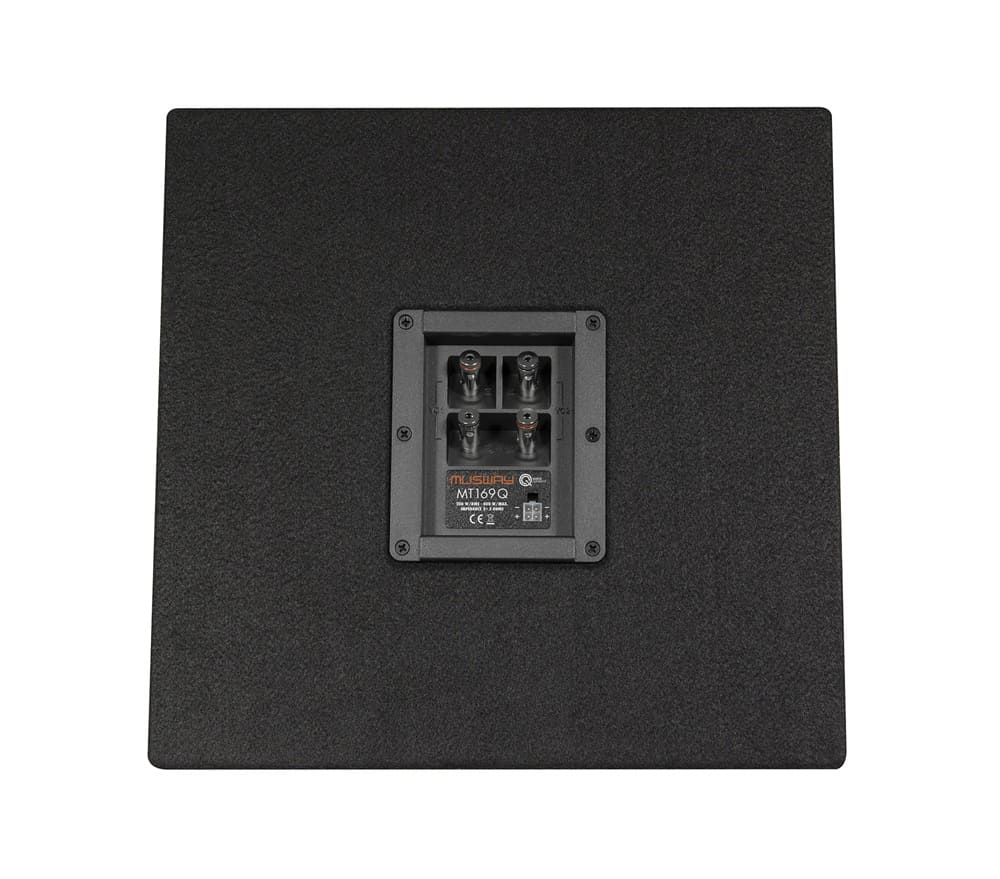

- Connector: MUSWAY Quick Connect connector socket
- In addition, conventional push-pin terminal blocks
- Dimensions (W x H x D): 35 x 33.5 x 30/23 cm
- Compact design for space-saving installation in vehicles
- Quick Connect allows for easy connection to compatible MUSWAY amplifiers and an optional connection cable
Connection Note:
According to MUSWAY, when using the Quick-Connect connection, it must not be used simultaneously with conventional terminals.
