MATCH UP 10DSP Mk2

The premium sound upgrade for complex multi-channel factory systems

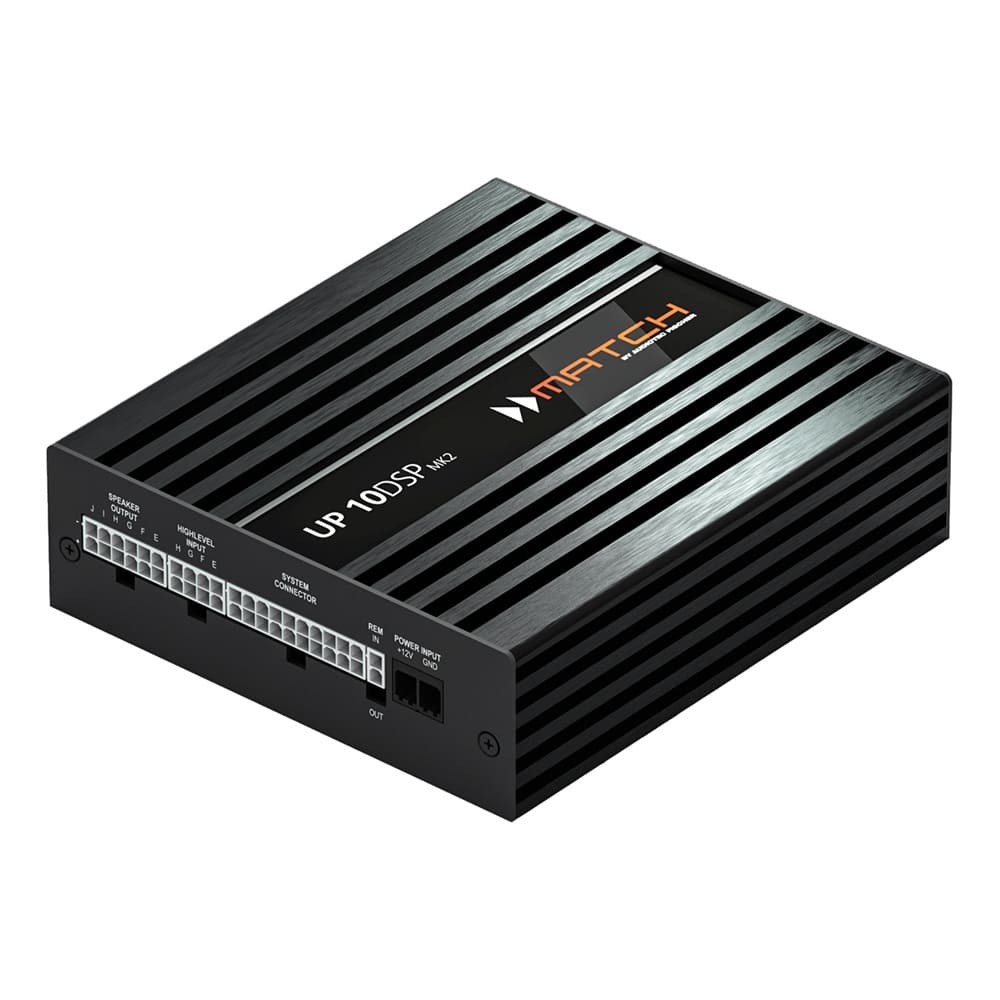

The MATCH UP 10DSP MK2 is the ideal solution for a high-quality sound upgrade in modern vehicles with multi-channel factory systems. It combines a powerful 10-channel amplifier with an integrated 11-channel DSP and thus enables a significant sound improvement with clean, almost invisible integration into the vehicle. As a further developed MK2 model, it also offers the latest features such as a USB-C connection and an Extension Card 2.0 slot. This means that the system is not only state of the art, but also flexibly expandable. All in all, the MATCH UP 10DSP MK2 forms the perfect basis for a modern premium sound system - powerful, versatile and optimally tailored to the requirements of current vehicle architectures.

Maximum connectivity and performance in a compact format

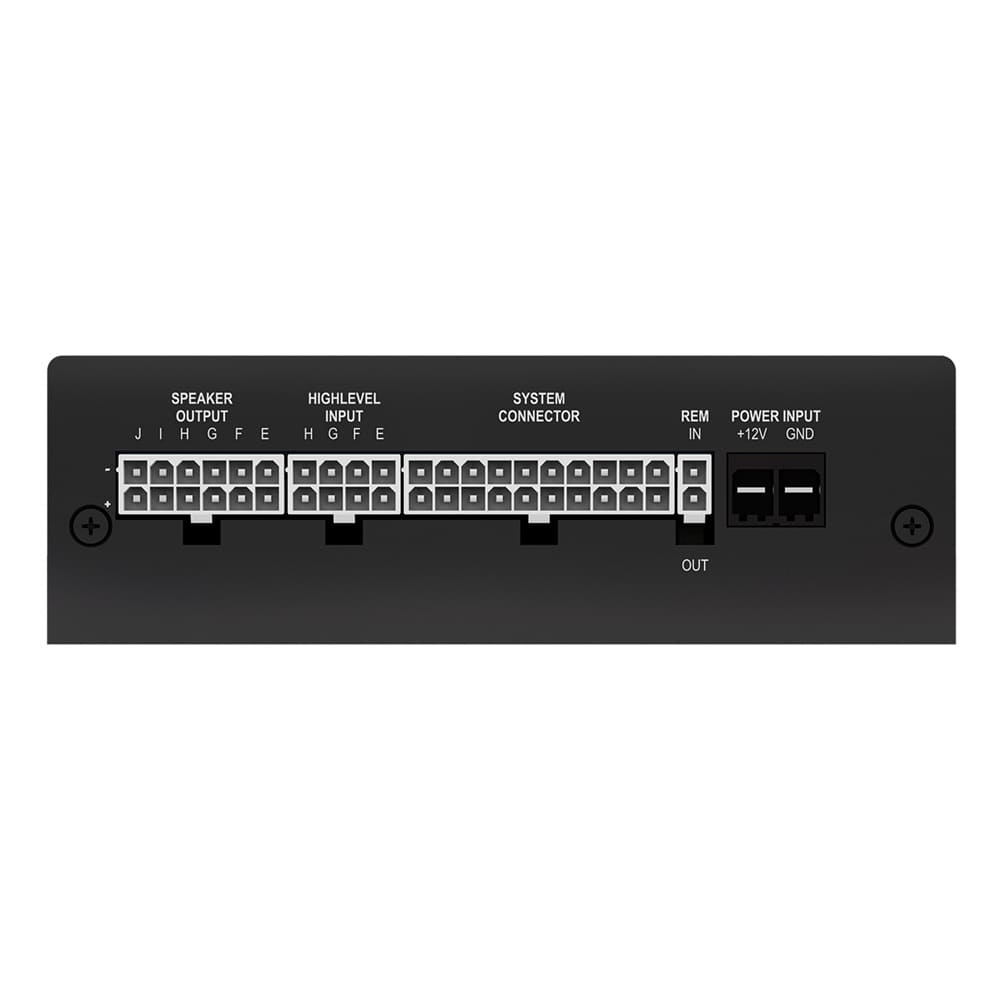

The UP 10DSP MK2 has eight high-level inputs for easy integration into existing multi-channel sound systems. With an optional Extension Card 2.0 - ANALOG IN, the number can be increased to up to ten inputs. This enables direct 1:1 signal routing - even for complex factory systems. The signals can be easily tapped at the loudspeaker outputs of the factory amplifier. Two inputs can handle high loads of up to 32 V and enable direct connection to powerful OEM amplifiers for signal pick-up, while an optical digital input is also available. For particularly efficient and vehicle-specific integration, optional plug & play cable harnesses are also available, which significantly reduce the installation effort.

On the output side, the UP 10DSP MK2 provides 10 amplifier channels with 8 x 65 watts RMS @ 4 Ω as well as two power channels for subwoofers or powerful woofers with up to 2 x 90 / 160 watts RMS @ 4 / 2 Ω maximum output power and offers a total of 11 processed DSP channels for precise signal processing and flexible sound tuning.

The UP 10DSP MK2 thus combines performance and connectivity in a compact, space-saving design and gains additional expandability in the MK2 generation: The new Extension Card 2.0 slot is used, a revised extension system with a screw-on plastic cover and cross-series compatibility. This allows the system integration to be expanded modularly as required, for example with Bluetooth® HD or additional analog or digital inputs. The USB-C port also ensures modern access via the DSP PC tool.

ACO - Advanced 32 Bit CoProcessor platform

The UP 10DSP MK2 is of course equipped with the proprietary 32-bit ACO platform - this not only handles all control tasks ultra-fast, but above all offers a whole bundle of audio functions: Fantastic sound effects such as Augmented Bass Processing or RealCenter are implemented as well as a channel-separated Input EQ including Advanced Input Signal Analyzer (AISA) for easy analysis and compensation of input signals from OE radios, which already include a sound setup ex works.

DSP PC-Tool 6 feat. TuneEQ - Powerful features for the ultimate sound experience

Of course, the MATCH UP 10DSP MK2 can be configured using our professional and exceptionally intuitive DSP PC-Tool 6. The familiar, numerous setting options leave nothing to be desired and guarantee extremely precise sound adjustment even for complex system configurations. And thanks to the new, proprietary TuneEQ 2.0 and the TuneToTarget function for automated frequency response correction, you also save a lot of time when tuning the sound.

Virtual Channel Processing - how signal routing works today

Optimum adaptation to existing multi-channel sound systems requires sensible management and configuration of the many DSP channels in the amplifier. Especially when the front, rear and center systems are divided into different active multi-way systems, conventional routing concepts quickly reach their limits in terms of implementation and operability. The multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC-Tool software, makes it possible to easily map even highly complex system configurations and freely assign our proprietary FX sound features. In addition, the UP 10DSP MK2 is also an ideal candidate for applications where 1 to 1 routing (IOR) is required thanks to its generous number of channels in conjunction with the optional Extension Card 2.0 ANALOG IN.


Features:

• 10-channel amplifier with highly efficient Class GD concept, which combines outstanding sound quality with maximum efficiency
• 11 DSP channels for maximum flexibility when upgrading multi-channel factory sound systems
• Optional cable harnesses for easy integration into existing multi-channel factory sound systems
• EV-Ready - extended input voltage range up to 18 V for stable operation even in electric vehicles with higher on-board voltages
• Intelligent 8-channel high-level input with ADEP.3 circuit for seamless integration into OEM sound systems
• Two inputs with high load capacity and up to 32 V RMS input sensitivity
• Extremely powerful "fixed point" audio DSP with 64-bit resolution
• VCP (Virtual Channel Processing) enables highly complex sound systems to be configured even more flexibly thanks to
• Cross-channel output group equalizer
• Multi-way configuration of the DSP sound effects (SFX)
• Additional functions such as rear attenuation
• 1:1 IOR (Input-to-Output Routing) in conjunction with the optional ANALOG IN Extension Card 2.0 - all high-level inputs can be assigned to one amplifier output each and thus routed from the input to the output
• ACO - Advanced 32 Bit CoProcessor platform for system and DSP features:
• AISA (Advanced Input Signal Analyzer) and InputEQ for easy analysis and correction of input signals
• DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
• Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
• SFX sound effects - Augmented Bass Processing, RealCenter & Co.
• Stabilized Output Power technology (SOP Max) for permanently stable output power - consistently full performance regardless of the operating voltage

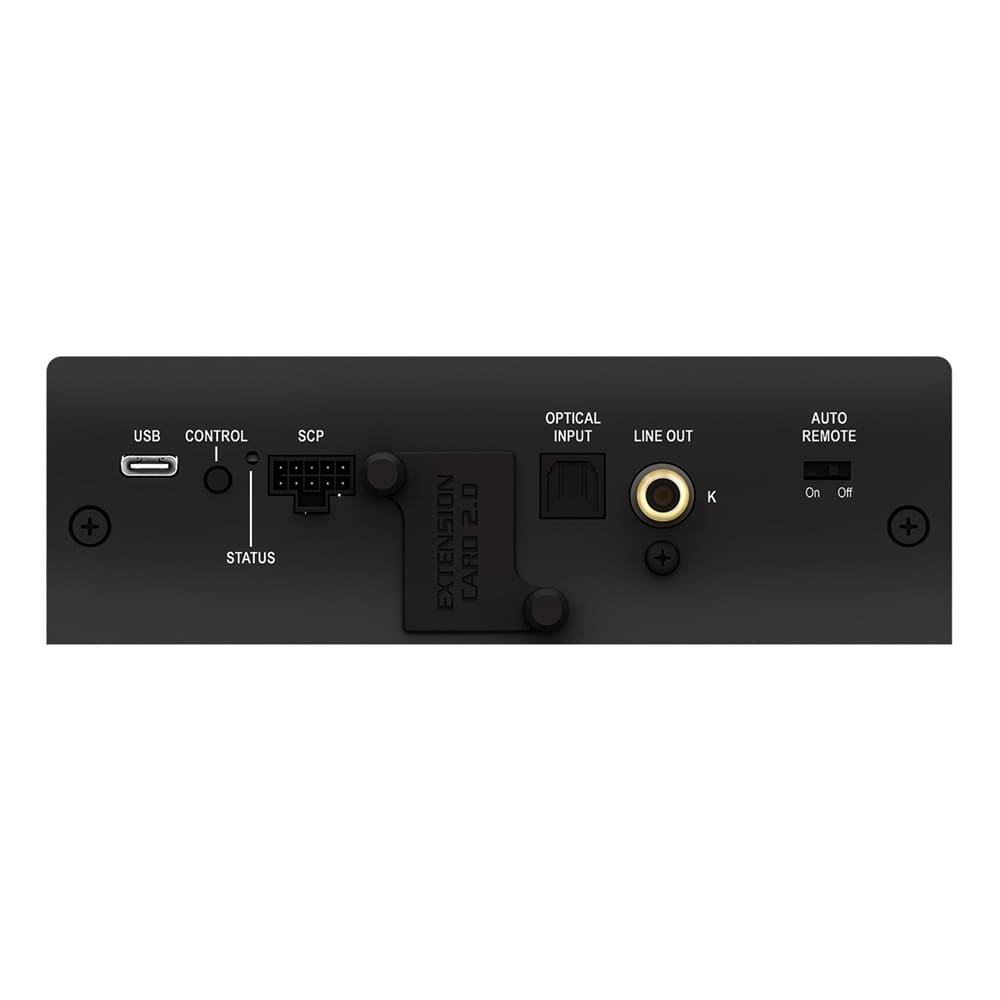

• Extension Card 2.0 slot for integrating additional interfaces such as Bluetooth^® HD Audio, additional analog inputs or future signal sources
• Optical SPDIF input with a sampling rate between 12 and 96 kHz
• Mono RCA output for connecting additional amplifiers, e.g. a subwoofer amplifier such as the MATCH UP 1FX
• Compact, future-proof SCP (Smart Control Port) for connecting remote controls and other accessories
• Intelligent energy management for perfect voltage stability across all modern vehicle platforms
• Start-stop-capable power supply unit down to 6 volts supply voltage
• Auto Remote switch to automatically switch on the amplifier without an additional remote line
• Extremely compact dimensions and low heat generation thanks to very high efficiency
• Maximum control with DSP PC-Tool 6 - professional software for optimum amplifier configuration and precise sound tuning in the vehicle

Special features

Class GD technology

Audiotec Fischer's unique Class GD concept combines the advantages of Class G technology with the principle of a Class D amplifier. This results in an unusually high level of efficiency that surpasses conventional Class D amplifiers. The Class GD concept demonstrates its advantages at low and medium levels by varying the internal supply voltage of the power stages in stages depending on the amplitude of the input signal. This drastically reduces the average power loss generated by the amplifier.

ACO - Advanced 32 Bit CoProcessor

The ACO platform (Advanced CoProcessor) handles all control and communication tasks within the DSP system. It ensures extremely fast system start-ups, lightning-fast switching between up to ten sound setups and smooth, delay-free data communication with the DSP PC-Tool software.

In addition, ACO forms the basis for numerous additional functions - including our SFX sound effects such as "Augmented Bass Processing" and "RealCenter", functions such as Dynamic Loudness Control (DLC) and Remote Tone Control (RTC) as well as a channel-separated input EQ with integrated Advanced Input Signal Analyzer (AISA) for simple analysis and correction of input signals that already include factory equalization. ACO therefore stands for maximum performance, flexibility and future-proofing.

Intelligent high-level input ADEP.3

Modern, factory-installed car radios are becoming increasingly intelligent in terms of diagnosing the connected speakers. The latest generation in particular is equipped with additional monitoring functions so that error messages or even malfunctions can occur if an additional amplifier is connected. The ADEP.3 circuit (generation 3) meets the latest requirements of modern OEM car radios and ensures error-free integration. Controlled via the ACO platform, the system is designed to be future-proof and can react flexibly to future changes in the diagnostic systems of factory radios. This ensures maximum compatibility with almost all OE radios - without any unnecessary load on the speaker outputs at high levels.

Power save mode

The power save mode is used to reduce the power consumption of the amplifier (and any additional connected amplifiers) if no music signal is detected for a certain period of time.
If the power save mode is activated, the internal amplifier stages and the remote output switch off automatically. If a music signal is then present again, the device returns to normal operation within approx. 2 seconds.
The switch-off delay can be varied or completely deactivated using the DSP PC-Tool software.

Automatic Digital Signal Detection

The amplifier allows signal-controlled switching between the analog and digital inputs. As soon as an audio signal is detected at the optical input, the amplifier switches to this input. This function can be activated in the DSP PC-Tool software or, alternatively, manual control can be selected using an optionally available remote control.

Start-stop capability

The power supply unit in the MATCH UP 10DSP MK2 amplifier ensures the internal power supply even in the event of short-term dips down to 6 volts. This ensures that the amplifier remains fully functional even when the engine is started.




DSP features

TuneEQ

TuneEQ is an extremely flexible and particularly easy-to-use function for automated frequency response correction. A single measurement per respective audio channel or channel pair with a suitable measuring microphone (such as our AMI Tuning Kit) is sufficient for TuneEQ to adjust the equalizers independently and precisely to the desired reference curve. TuneEQ uses the entire range of functions of the parametric equalizer, including the mid frequency, the Q factor and the gain. And because the highly complex computing operations required for this run in the background, you also save a lot of time when tuning the sound with TuneEQ.

RealCenter
The "RealCenter" function is a proprietary algorithm from Audiotec Fischer that emphasizes the monaural information of the left and right front channels to create a unique center signal. In contrast to conventional methods, where only the channels are summed up, the center signal is also dynamically controlled by the stereophonic information content of the left and right channels. This means that the center channel does not play back a signal if only the left or only the right channel delivers an audio signal. With conventional algorithms, the center channel would only be 6 dB quieter in this case. Audiotec Fischer's "RealCenter" therefore enables a unique, wide-ranging soundstage - and this is optimal for both driver and front passenger! The disadvantages of a conventional center channel, such as an intrusive, narrow spatial sound presentation, are finally a thing of the past.

Augmented Bass Processing
Audiotec Fischer's proprietary "Augmented Bass Processing", consisting of two revolutionary sound features: "Dynamic Bass Enhancement" and "SubXpander". These have been specially developed to dramatically improve the bass response of subwoofers.
"Dynamic Bass Enhancement" ingeniously combines maximum low bass foundation and high maximum sound pressure - regardless of the type of music you are listening to or the sound settings on the radio. Depending on the input signal, "Dynamic Bass Enhancement" boosts the lower frequency range on the one hand and varies the cut-off frequency of the subsonic filter on the other. The result is a much more powerful, deeper bass reproduction at low and medium volumes without running the risk of mechanically or electrically overloading the subwoofer at high volumes. The bass performance that is suddenly possible is simply fascinating.
If you want the bass range to be a little deeper and "blacker", you can also activate the "SubXpander". Here, subharmonic tones are added to the fundamental tones in the frequency range between 50 and 100 Hz.



Technical data:

* DC resistance min. 3.0 Ohm
** In typical multi-channel applications


Scope of delivery
1 x MATCH UPGRADE amplifier UP 10DSP MK2
2 x connection cable
1 x power input plug
1 x Mounting plates & material
1 x USB cable
1 x user manual
