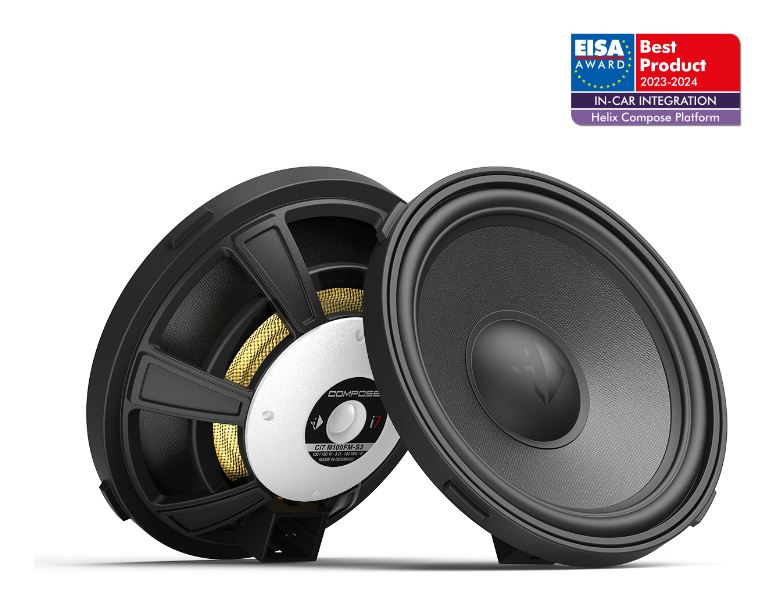

HELIX Ci7 M100FM-S3 midrange driver

HELIX Ci7 M100FM-S3

HELIX COMPOSE. The perfect loudspeaker for every composition.
Born out of the increasingly demanding challenges of modern vehicle technology and the HELIX-typical quest for intelligent solutions, we made the progressive redesign of proven universal loudspeaker systems our mission. The result: the innovative HELIX COMPOSE platform, which combines classic universal loudspeakers with the advantages of vehicle-specific systems according to the guiding principle "developed in the car, for the car". Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: very high efficiency, fantastic sound quality and enormous dynamics that fit into any vehicle. HELIX COMPOSE - universal loudspeakers taken to the next level.

i7- high-end car audio "Made in Germany "
The HELIX COMPOSE i7 series represents uncompromising high-end for an extravagant sound experience in the car. With a clear influence from its high-end sister brand BRAX, the i7 loudspeaker series is completely "made in Germany" and optimized for unadulterated music enjoyment. The impedances of all speakers are perfectly matched to the combination with our HELIX and MATCH amplifiers, guaranteeing maximum performance and power output at all times. In addition, we have implemented new mechanical technologies in HELIX COMPOSE that offer unsurpassed practical benefits.

Maximum efficiency
HELIX COMPOSE stands for smart engineering and is therefore based on the highly efficient 3 Ohm technology, which harmonizes perfectly with all HELIX and MATCH amplifiers and at the same time enables a clearly perceptible increase in efficiency and maximum sound pressure.

UHD (Ultra High Damping) paper cone
As you would expect from our sister brand BRAX, only the highest quality materials are used in the i7 series, such as the proprietary, handmade UHD (Ultra High Damping) paper cone, true to our uncompromising high-end philosophy. This is manufactured using a particularly complex process and guarantees an optimum frequency response and the best possible impulse reproduction for incomparable musical enjoyment.

High-tech polymer composite basket
All HELIX COMPOSE i7 and i3 speaker baskets are made from a high-tech polymer composite material, which is additionally reinforced with glass spheres. The result: maximum stability with minimum natural resonance, whereby flux modulation of the magnet system is also excluded and there is also maximum resistance to thermal influences. Last but not least, this enables significantly more compact basket dimensions and thus simplified installations in confined installation conditions.

FlexMount100 - Universal meets vehicle-specific
FlexMount is a patented mounting system based on specially developed adapter rings, which enables the installation of COMPOSE FlexMount speakers in an almost infinite number of vehicles. In no time at all, the universal speaker is transformed into a vehicle-specific speaker, which can be easily installed in the original installation position of any vehicle with the matching FlexMount100 ring that can be locked on both sides.

FlexConnect - A terminal for all situations
With the FlexConnect terminal, HELIX COMPOSE speakers can be easily connected directly to the original wiring harness of the vehicle, so that the automotive standard of the plug connection is maintained and, among other things, protection against reverse polarity is guaranteed. Similar to our FlexMount system, vehicle-specific adapters are used here.

Features
✓ 100 mm high-end midrange driver, which combines unique sound characteristics with the most versatile integration options
✓ High efficiency and 3 Ohm technology for maximized power output of the amplifier
✓ UHD (Ultra High Damping) paper cone for excellent impulse fidelity and unsurpassed frequency response
✓ High-tech polymer composite basket reinforced with glass beads for maximum rigidity and minimum resonance
✓ Specially shaped rubber surround for large linear cone excursion
✓ Polyurethane dome tweeter (dust cap) to optimize the frequency response in the upper midrange
✓ 25 mm voice coil for minimal thermal compression and high power handling
✓ FlexConnect connection terminal according to automotive standard for fast, locked and reverse polarity protected connection
✓ Powerful push-pull neodymium magnet system for particularly high efficiency and minimal distortion
✓ Universal FlexMount100 mounting ring with standard 4-point mounting included in the scope of delivery
✓ Compatible with the optionally available, vehicle-specific FlexMount100 adapter rings, which enable acoustically optimized and professional integration in the original installation position of the vehicle
✓ Made in Germany

Technical data

✓ Scope of delivery

2 x Ci7 M100FM-S3
2 x Universal FlexMount100 (with standard 4-point mounting)
2 x FlexConnect Inlay A
2 x Universal connection cable
2 x Crossover connection cable
2 x Mounting material

🗒Operating instructions
☞(Download)
