GZHW 10SPL-D2 FLAT

349,00€

Tax included Shipping calculated at checkout.

Subwoofer

Barcode: 4037072023824

Packaging Unit

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

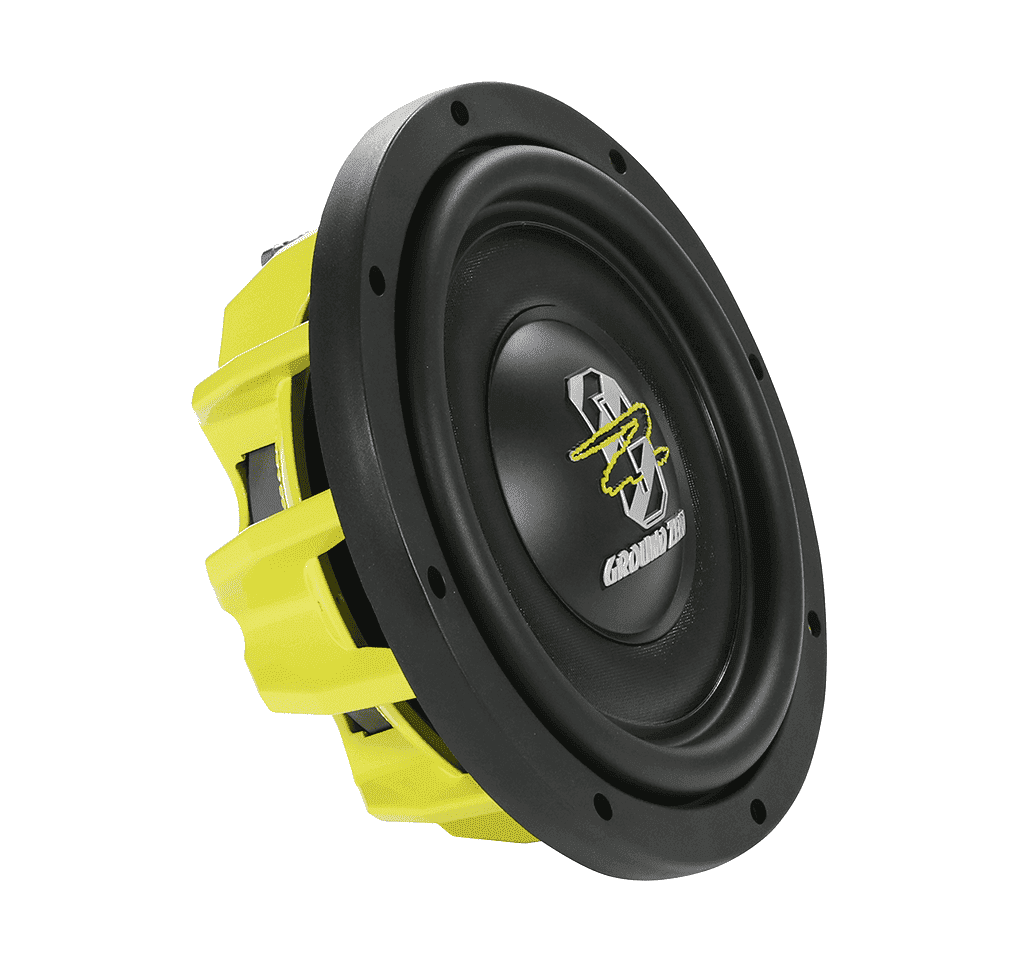

The Ground Zero GZHW 10SPL-D2 FLAT from the HYDROGEN series combines high power handling with an exceptionally shallow mounting depth. The 25-cm subwoofer was specifically designed for applications that require powerful, punchy bass but where space for installation or a subwoofer enclosure is limited.

Despite its compact design, the GZHW 10SPL-D2 FLAT delivers 600 watts RMS and up to 1,000 watts SPL. A powerful ferrite magnet system, combined with a generously sized 63-mm copper voice coil, provides the necessary drive. The voice coil’s four-layer design is engineered to withstand high electrical and mechanical loads.

A sturdy sandwich-paper cone handles the bass reproduction. Together with the long-throw U-shaped surround, it enables a long cone excursion and thus powerful bass reproduction. The solid cast aluminum basket provides a torsionally rigid base for the entire driver.

A key advantage of the GZHW 10SPL-D2 FLAT is its shallow installation depth of just 103 mm. This makes the woofer particularly well-suited for shallow enclosure designs and installations where conventional high-performance subwoofers cannot be used due to their depth.

Thanks to its 2 × 2-ohm dual voice coil, the subwoofer also offers flexible connection options when paired with a compatible power amplifier. Snap-on terminals make it easy to connect the speaker wires

Product Features

25 cm / 10-inch SPL subwoofer
Low-profile design for installations with limited mounting depth
GROUND ZERO HYDROGEN Series
Klippel®-Optimized Design
High-Performance Ferrite Magnet Drive
Sturdy sandwich-type paper membrane
PP Dust-Proof Cap
Long-stroke U-corrugation
Solid Cast Aluminum Basket
63 mm / 2.5-inch copper voice coil
Four-layer copper voice coil
Dual-voice-coil driver with 2 × 2 ohms
Chrome-plated push-in connectors
Suitable for high-performance yet space-saving subwoofer installations

Technical Specifications

Model: Ground Zero GZHW 10SPL-D2 FLAT
Product Type: Flat, High-Quality SPL Subwoofer
Series: HYDROGEN
Nominal diameter: 25 cm / 10 inches
RMS Power Handling: 600 watts
SPL Power Handling: 1,000 watts
Recommended amplifier power: 400–1,000 watts RMS
Impedance: 2 × 2 ohms
DC resistance Re, in series: 4.01 ohms
Sensitivity: 85 dB (1 W / 1 m @ Re)
Voice coil diameter: 63 mm / 2.5 inches
Voice coil material: Copper
Voice coil construction: 4-layer
Diaphragm: Sandwich-paper diaphragm
Dust-proof cap: Polypropylene (PP)
Magnet / Drive: Ferrite
Maximum excursion Xmax (peak-to-peak): 29 mm
Resonance frequency Fs: 35.5 Hz
Mechanical Grade Qms: 8.937
Electrical quality Qes: 0.456
Total quality (Qts): 0.434
Equivalent air volume (Vas): 19.7 liters
Mass in motion (Mms): 189.5 g
BL Force Factor: 19.3 Tm
Installation diameter: 238 mm
Installation depth: 103 mm
Connection: Snap-in terminals
