Ampire CPR60 car radio

AMPIRE CPR60: The ultimate 1-DIN car radio for youngtimers and classic cars

Give your classic car a modern infotainment upgrade without compromising its original charm! The AMPIRE CPR60 car radio is the first of its kind in true 1-DIN format with wireless Apple CarPlay and Android Auto.

Perfect integration in the classic 1-DIN format - no more complex conversions!
The CPR60 was specially developed for youngtimers and classic cars and, with its compact dimensions (188x57mm and only 120mm installation depth), fits perfectly and damage-free into any standard 1-DIN radio slot.

Wireless smartphone integration & modern entertainment - Experience the latest generation of connectivity:

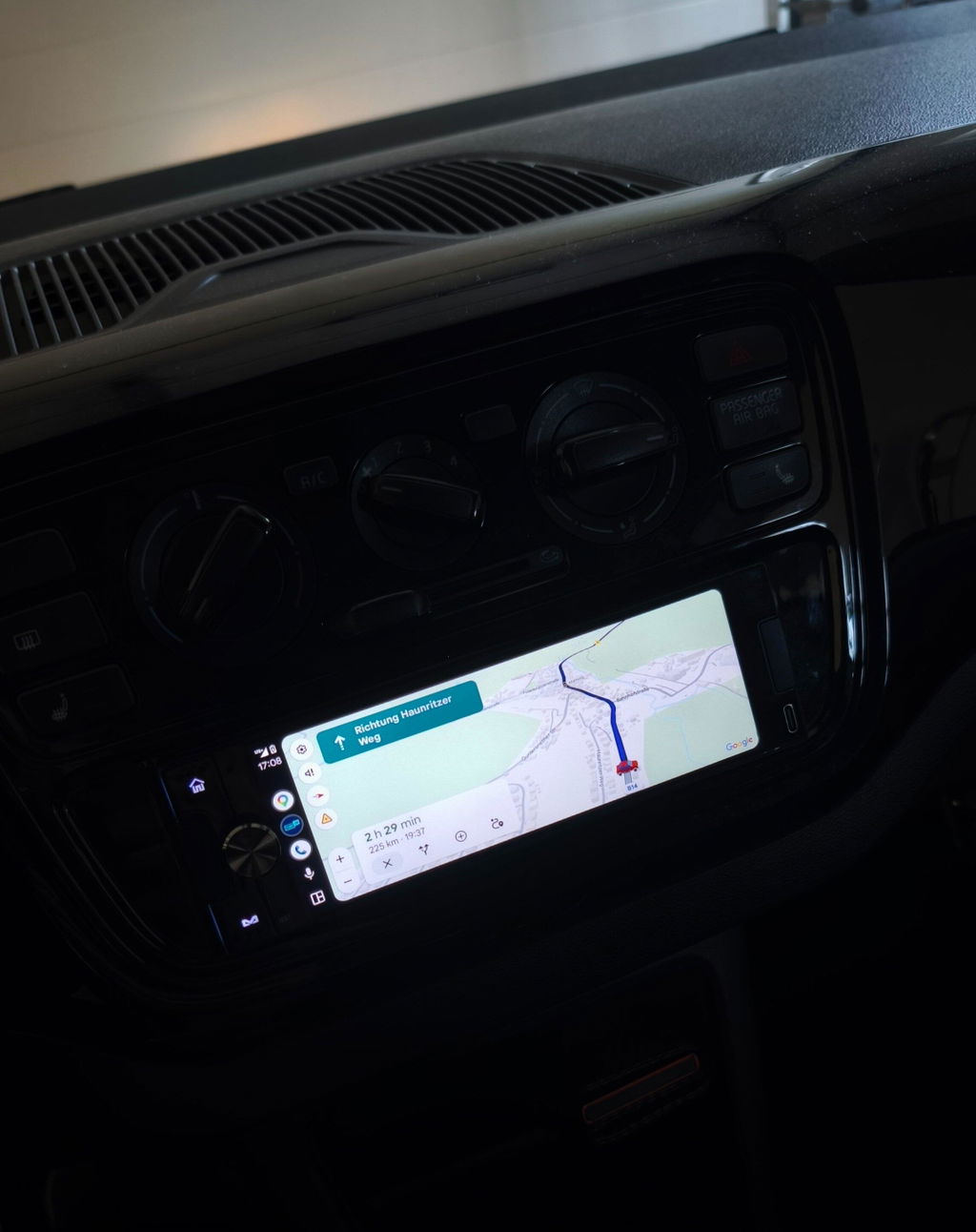

- Wireless CarPlay & Android Auto: Connect your compatible smartphone wirelessly* and use navigation, music streaming (Spotify, Apple Music) and messaging directly via the car radio's large 6.38" (162 mm) touchscreen display.

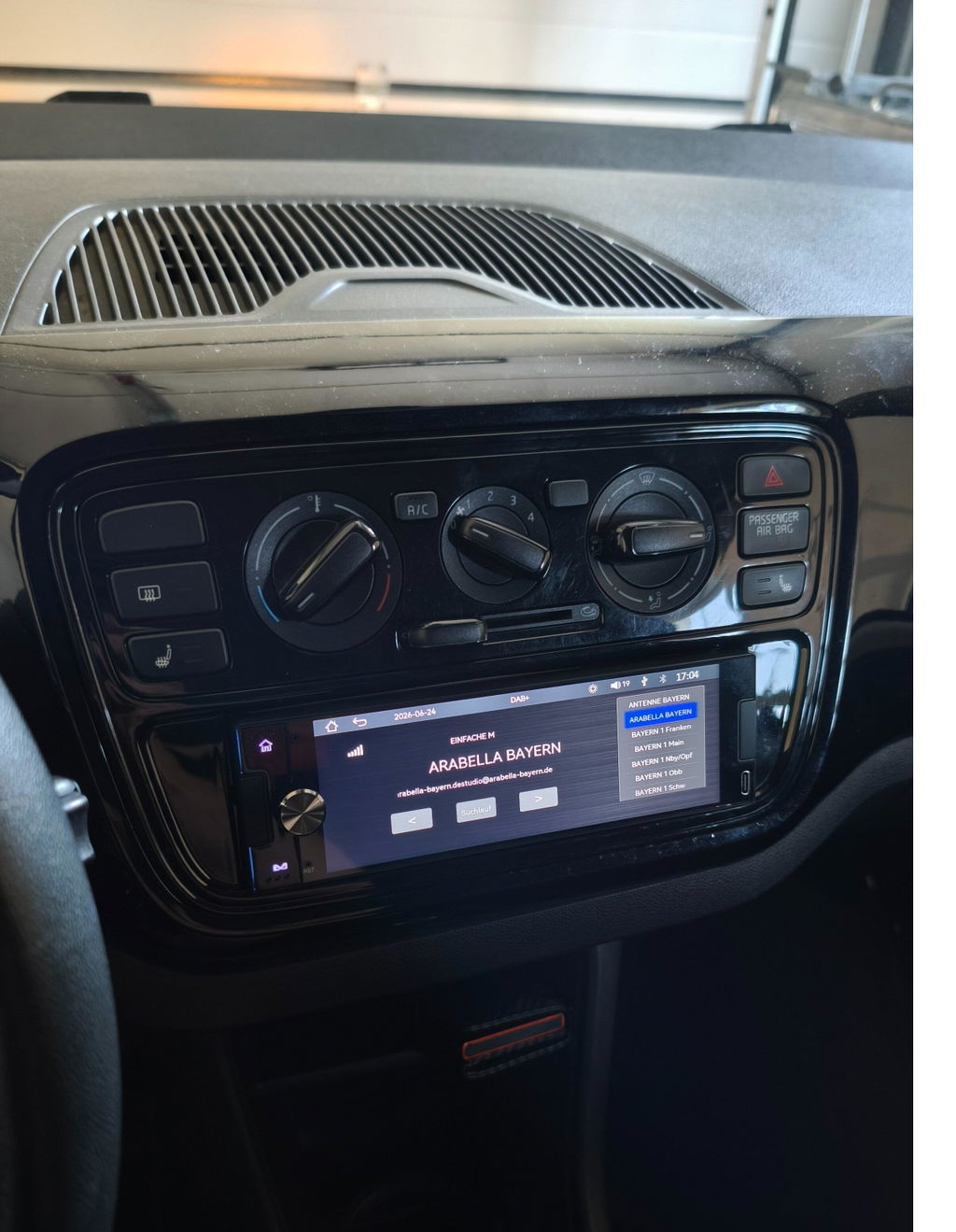

- Best radio reception: Enjoy crystal-clear sound thanks to the high-quality DAB+ receiver and classic FM reception.
- Antenna tip: With the optional DAB+ antenna splitter (DAB1), you can use your existing FM antenna for DAB+ in most cases. Alternatively, a DAB+ adhesive window antenna (DAB2-SMB) is available.

Full control & versatile connections - The CPR60 offers more than just music:
- Safe parking: Two video inputs support optional front or rear cameras in high-resolution AHD quality (also CVBS compatible).
- Multimedia center: Connect additional sources (e.g. TV tuner, DVD player) via the AV input.
- Additional monitor: A video output (CVBS) also allows the display content to be played on an external monitor.
- Hands-free calling: Thanks to the integrated BT hands-free system, with microphone integrated in the front panel, you can make phone calls safely while driving.
- Microphone: An external microphone is optionally available for even better voice quality.
- BT audio streaming (A2DP): is of course supported.

Sound upgrade and easy control - get more out of your new car radio
- Powerful sound: The integrated 4x48~Watt amplifier delivers powerful sound for your existing speakers.
- Expandable sound system: For ambitious audio projects, three stereo pre-amplifier outputs (pre-outs) are available for connecting optional power amplifiers.
- Steering wheel control: The car radio supports control via some factory-fitted steering wheel remote controls with resistor matrix (connection and programming by specialist personnel required).

Charging and playback functions - even more with USB
- USB-C socket: You will find a USB-C socket on the front panel for fast charging of your smartphone.
- USB-A socket: A USB-A socket on the back allows you to play various audio and video formats from a USB stick.

Treat your classic to the latest technology with the AMPIRE CPR60, the perfect fusion of historic look and digital convenience!

Features
- Touchscreen color display with 16.21cm (6.38'') screen diagonal
- Wireless Apple CarPlay and Android Auto
- USB-A socket with max. 1.5A output current on the back of the device for various USB media. Supported formats:
Formats: FAT32, NTFS, EXFAT
Audio: AAC, APE, FLAC, ATRC, ANR, ALAC, M4A, MP3, OGG Vorbis, COOK, WMA
Video: 1080P, ASF, AVI, DAT, FLV, Sorenson, VOB, M4V, 3GP, H.263, H.264, H.265, MKV, PMP, MPG, MPEG1, MPEG2, MPEG4, MOV, MP4, TS/TP, RMVB, RV8/9/10, VC1 (720x576), M2TS
Images: JPEG, JPG, BMP, PNG
- USB-C charging socket with max. 3A output current on the front of the device
- max. 4x 48 watt amplifier output power
- BT receiver for A2DP audio streaming
- BT hands-free system via integrated microphone
- DAB+ radio receiver with FM and RDS functions

Connections
ISO plug Power supply (8-pin)
ISO connector Loudspeaker (8-pin)
Accessory connection (8-pin)
Cinch (orange) Camera input for front camera (CVBS/AHD compatible)
Cinch (yellow) Camera input for rear camera (CVBS/AHD compatible)
Cinch (yellow) Video output (CVBS)
Cinch (red/white) Pre-amplifier output (front)
Cinch (red/white) Pre-amplifier output (rear)
Cinch green/green) adjustable preamplifier output (subwoofer) 50/80/120Hz
Cinch AV input (CVBS/AHD) for TV tuner or DVD player
SMB antenna socket for DAB+ reception
DIN antenna socket for FM (150 Ohm)
3.5mm jack socket for an optional hands-free microphone

Dimensions
188x57mm (120mm installation depth)

Scope of delivery
1 car radio
1 ISO power plug (8-pin)
1 ISO loudspeaker plug (8-pin)
1 accessory connector (8-pin)
2 disassembly wrenches

Smartphone compatibility
The minimum requirements for wireless use are an Apple CarPlay iPhone 5 and higher or Android Auto Android 11, Android Auto 4.8 or higher, WLAN 5GHz. Some manufacturers, such as Samsung, have their own Android-based OS. Wireless use may not be possible with this

Operating instructions
☞(Download)
