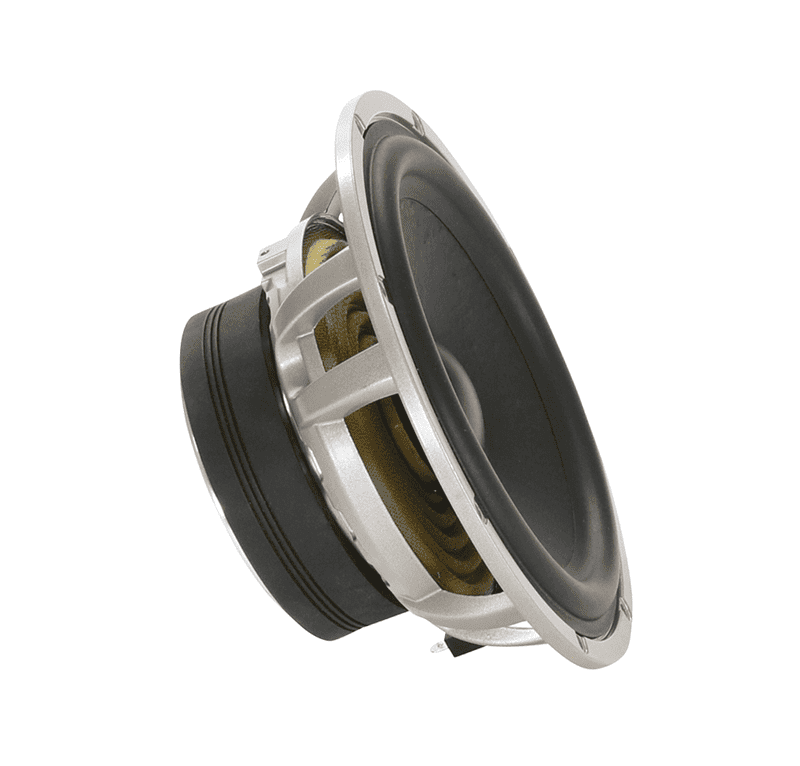

The Ground Zero GZHK 165 is a high-performance 165-mm low-midrange driver from the Hydrogen series, ideal for demanding car audio systems that require a powerful bass response, robust sound reproduction, and a sturdy construction.

The paper cone combines light weight with the rigidity required for a low-midrange driver. A powerful ferrite magnet system is used to drive the driver. Together with the 38-mm CCA voice coil, the GZHK 165 is rated for 120 watts RMS and up to 180 watts peak power.

A sturdy die-cast aluminum basket in the Ground Zero design forms the mechanical foundation of the speaker. The linearized drive system ensures controlled cone movement, resulting in clean sound reproduction even at higher volume levels. With its 4-ohm impedance, the mid-woofer can be flexibly paired with suitable car audio power amplifiers.

The frequency response range of 40 to 5,000 Hz allows for a wide range of applications in the low- and mid-frequency ranges. With an installation diameter of 144 mm and an installation depth of 69 mm, you should check before installation to ensure there is sufficient space at the intended mounting location.

The package also includes the distinctive Ground Zero Hexagon protective grilles.

Product Features

High-Power Low-Midrange Speaker for Car Audio Applications
Speaker size: 165 mm / 6.5 inches
Handmade paper membrane
Diaphragm diameter: 122 mm
38-mm CCA voice coil
2-layer voice coil design
High-Performance Y35 Ferrite Magnet
Linearized Drive
Sturdy Ground Zero Die-Cast Aluminum Basket
Heavy-duty 4-ohm version
Ground Zero Hexagon Protective Grille Included
Sold as a pair

Technical Specifications

Model: Ground Zero GZHK 165
Series: Hydrogen
Model: High-Power Low- and Mid-Range Speaker
Nominal diameter: 165 mm / 6.5 inches
RMS Power Handling: 120 watts
Maximum power handling: 180 watts
Nominal impedance: 4 ohms
DC resistance (Re): 3.31 ohms
Sound pressure level (SPL): 87 dB
Frequency range: 40 – 5,000 Hz
Resonance frequency (Fs): 49.4 Hz
Voice coil: 38 mm / 1.5 inches
Voice coil material: CCA
Voice coil construction: 2-layer
Diaphragm material: Handmade paper
Diaphragm diameter: 122 mm / 4.8 inches
Magnet: Y35 Ferrite
Qms: 2.88
Qes: 0.58
Qts: 0.49
RMS: 1.75 kg/s
Mms: 16.3 g
Cms: 0.64 mm/N
BL: 5.4 N/A
Le: 0.09 mH
Capacity: 15.9 liters
Maximum excursion (peak-to-peak): 16 mm
Linear travel: 8 mm
Outer diameter: 165 mm
Installation diameter: 144 mm
Installation depth: 69 mm

What's Included

2x Ground Zero GZHK 165 Low-Midrange Drivers
2 Ground Zero Hexagon Protective Grids

Packaging unit: 1 pair
