MATCH MW 8BMW-D

MATCH MW W8BMW-D

The MW 8BMW-D subwoofers are not only the ideal bass plus for everyone who is not satisfied with the bass reproduction in their BMW, but especially for all those who want to implement extremely space-saving installation concepts in their vehicle.

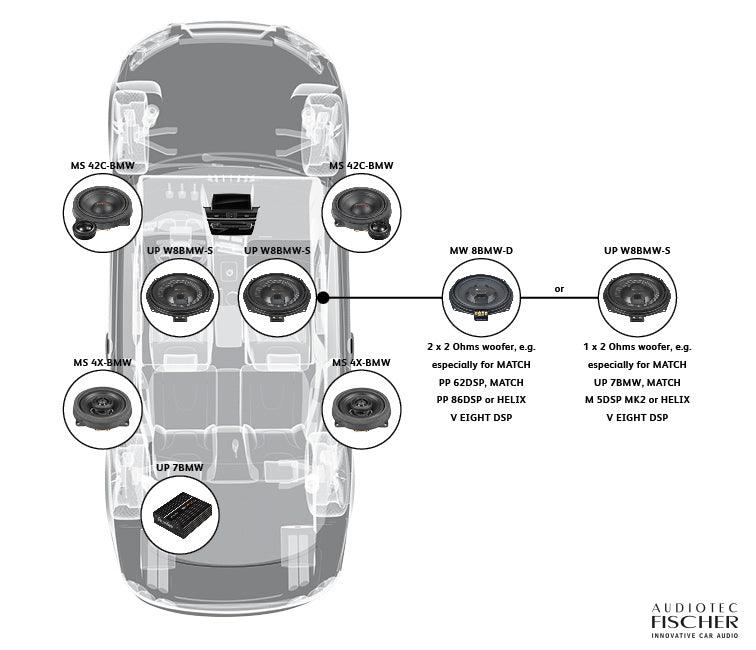

Thanks to the BMW-specific loudspeaker baskets and Plug & Play connectors, installation in the factory-designated installation locations of all BMW model series with an underseat subwoofer is quick and easy.

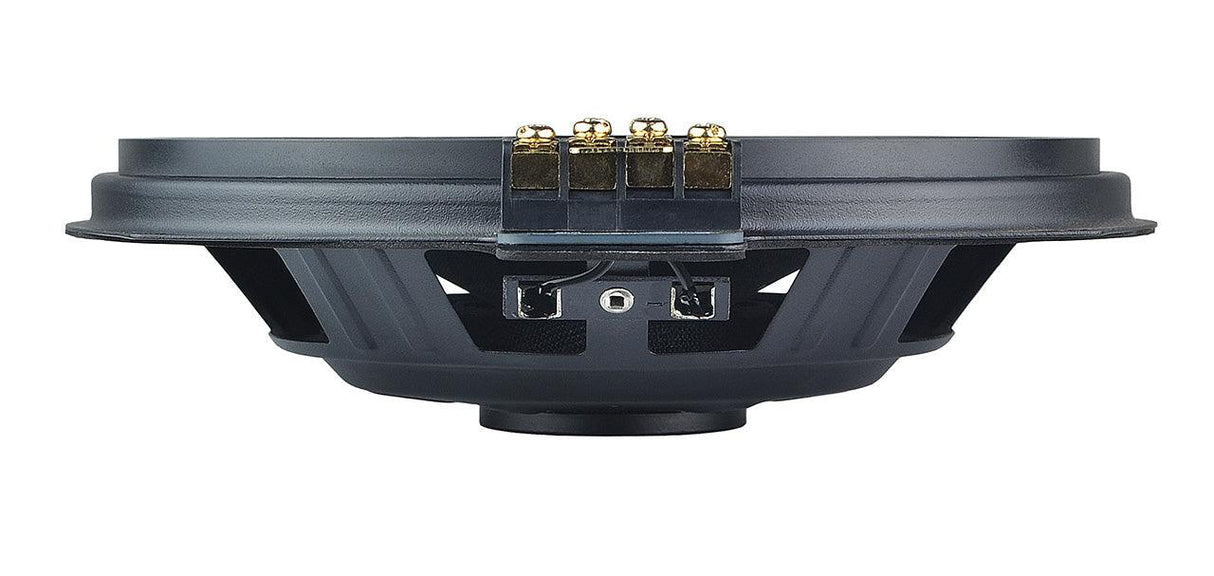

But these subwoofers also offer ideal conditions for universal use. The particularly low installation depth enables use in extremely compact, closed housings. The oversized 42.5 mm voice coil guarantees high resilience. Furthermore, the special connection terminal with its gold-plated screw terminals allows two different configurations and thus the most flexible connection options. If the enclosed metal bridge is mounted, the subwoofer has an impedance of 1 x 4 ohms. Each voice coil can be controlled individually without a bridge (impedance 2 x 2 ohms) and thus enables an optimal connection to the MATCH Plug & Play amplifier.

Whether as a bass plus in your BMW or as a low-frequency supplier in universal applications, nothing stands in the way of enjoying music with the right amount of bass.

Features

✓ 200 mm subwoofer with particularly low installation depth for ultra-flat

✓ Subwoofer constructions and underseat assembly in BMW vehicles

✓ Can be used in extremely compact, closed housings

✓ Oversized 42.5 mm voice coil for enormous power handling

✓ 2 x 2 ohm impedance per woofer for the most flexible connection options

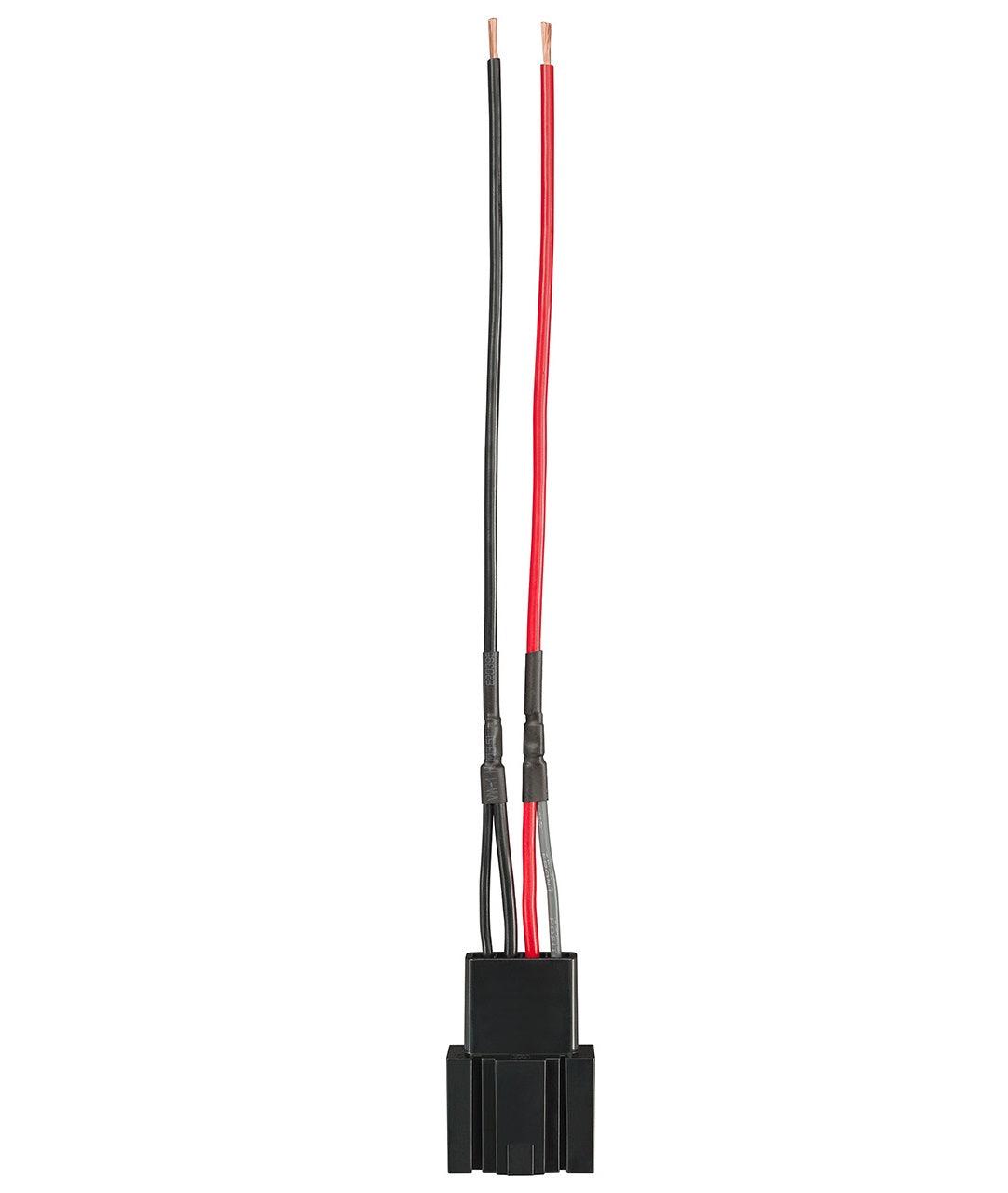

✓ Plug & Play connector for original BMW wiring harness included

✓ Fits in the original installation locations under the front seats of all BMW model series with an underseat subwoofer

✓ Also ideal for universal use in ultra-flat subwoofer constructions

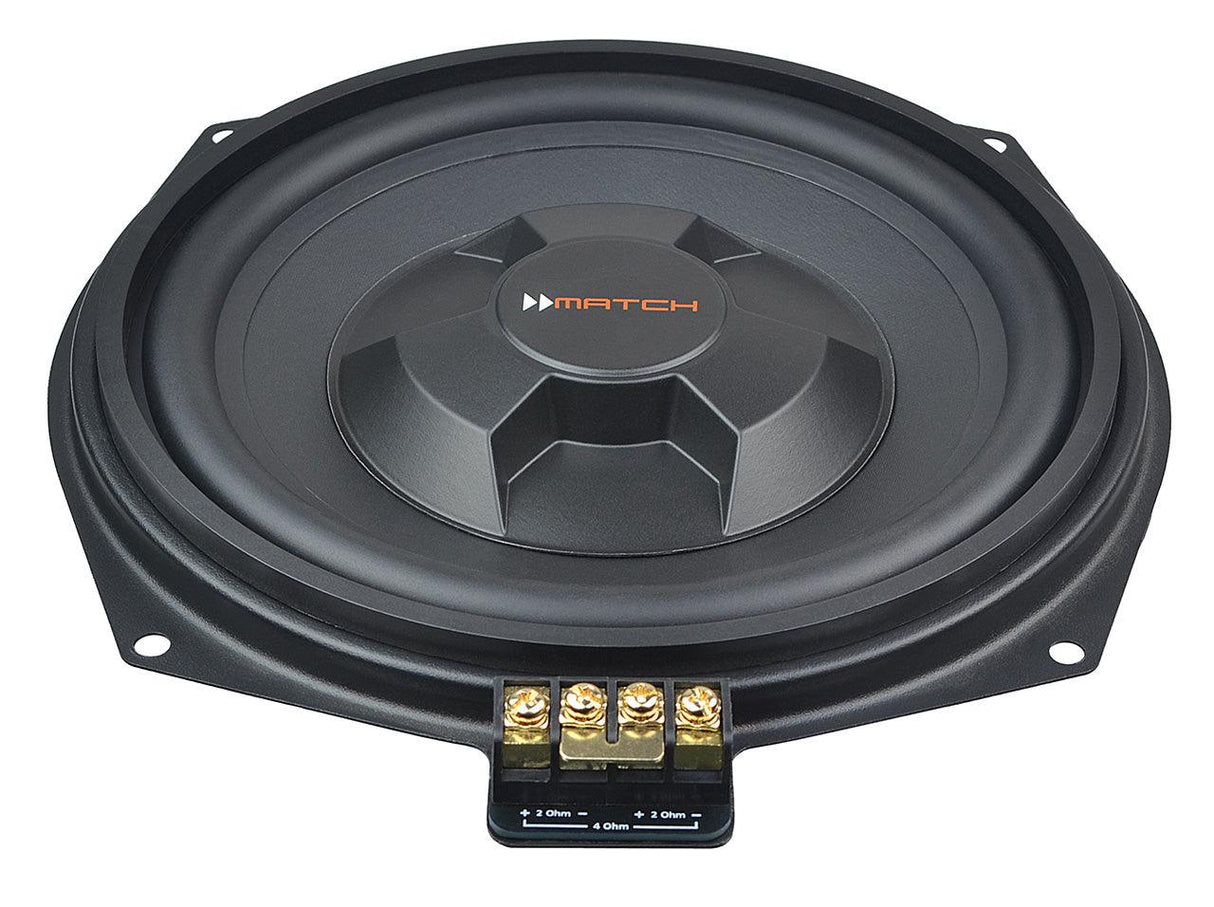

bridging

The connection terminal with its gold-plated screw terminals allows two different configurations. If the enclosed metal bridge is mounted, the subwoofer has an impedance of 1 x 4 ohms. Each voice coil can be controlled individually without a bridge (impedance 2 x 2 ohms) and thus enables an optimal connection to MATCH Plug & Play amplifiers.
