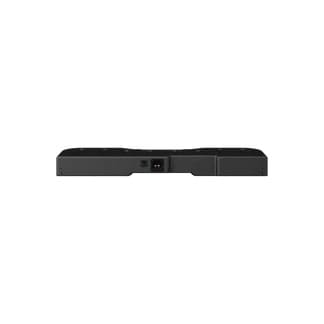

AudioControl TXGM14D10 Chevy Silverado/GMC Sierra

Experience first-class sound with our premium subwoofer enclosures! Introducing our bass reflex enclosures with integrated AudioControl Spike Series subwoofer. These enclosures are robust, durable and deliver superior sound quality. They are precision crafted from high-density wood fiberboard material.

For maximum durability and optimal resonance control, our enclosures are coated with Roadkill Armor and wrapped in high-quality marine vinyl for an elegant finish. Internal reinforcements and bracing inside optimize the performance and lifespan of your subwoofer. Say goodbye to distortion and enjoy clean, powerful bass.

The double front-mount baffle ensures optimal speaker positioning for an immersive and powerful sound experience. The polyfiber material filling enables controlled sound distribution and precise, tight bass reproduction.

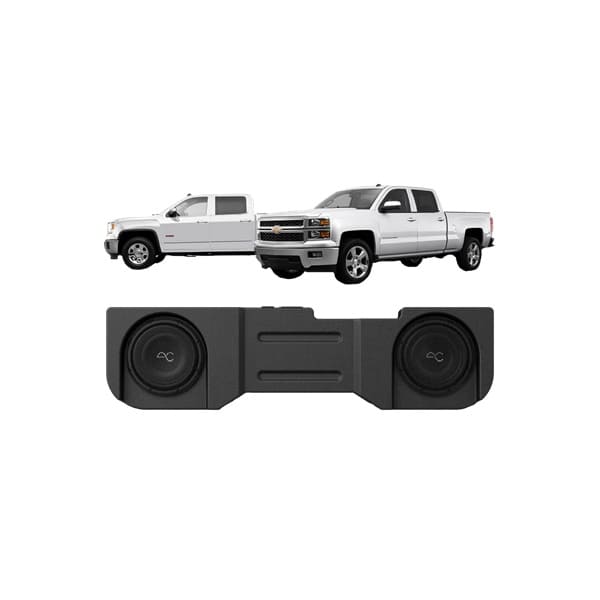

Compatibility:

Chevy Silverado/GMC Sierra 1500 (2014-18)
Chevy Silverado/GMC Sierra 2500/3500 (2014-19)

Housing features:

✓Roadkill armor jacket
✓ Permanent heat-bonded EPM (elastomer polyurethane molecule) housing coating

✓ Weather-resistant coating for harsh outdoor environments
✓ Sound-absorbing properties for resonance reduction
✓ Scratch, scratch, crack and abrasion resistant
✓ Chemical and stain resistant
✓ Shock absorption
✓ UV protection
✓ Provides protection against leakage and corrosion
✓ High performance fiberglass with internal bracing
✓ With polyfill to absorb standing waves and reduce distortion
✓ Rugged, coated steel subwoofer grille for added protection
✓ XT-90 connector option for quick disconnect

Subwoofer features:

✓ 10-inch Space Series subwoofer with 4 Ω (wired with 2 Ω
✓ Enclosure power range: 400 W - 1200 W (800 W ideal)
✓ Weather-resistant design
✓ Fiber matrix injection-molded polypropylene cone for optimum sound reproduction
✓ Durable isoprene polymer surround
✓ Powder-coated frame
✓ Comprehensive rubber seal to protect the inside of the enclosure
THERMAL & MECHANICAL ELEMENTS
✓ 2.5-inch black anodized steel voice coil former for
superior heat dissipation
✓ Air-cooled, vented motor topology for optimum thermal efficiency
✓ High-voltage resistant, stitched leads for increased flexibility
with large deflections
✓ Flat cone design
✓ Efficient motor design using magnetic FEA technology
✓ Micro-adhesive for increased strength
✓ High-density ferrite magnet
✓ Push-style terminals ensure uniform tension
for a reliable connection.
✓ Grill grids included
✓ High-quality mounting accessories


Technical data:

Speaker model SPC-10S4 (x2)
Subwoofer size: Dual 10"
Voice coil, single, 4 Ohm
DC resistance (Re) 2 Ohm
Sensitivity 1W/M (SPL) 86dB
Frequency response 20 Hz - 250 Hz
RMS power min. 400 watts - ideally 800 watts
Peak power 1,200 watts
800 watts RMS / 1200 watts MAX

Dimensions:

Total weight 45.6 pounds
Height 7.14 inches / 18.1356 cm
Width 51.18 inches / 129.9972 cm
Depth 13.55 inches / 34.417 cm
