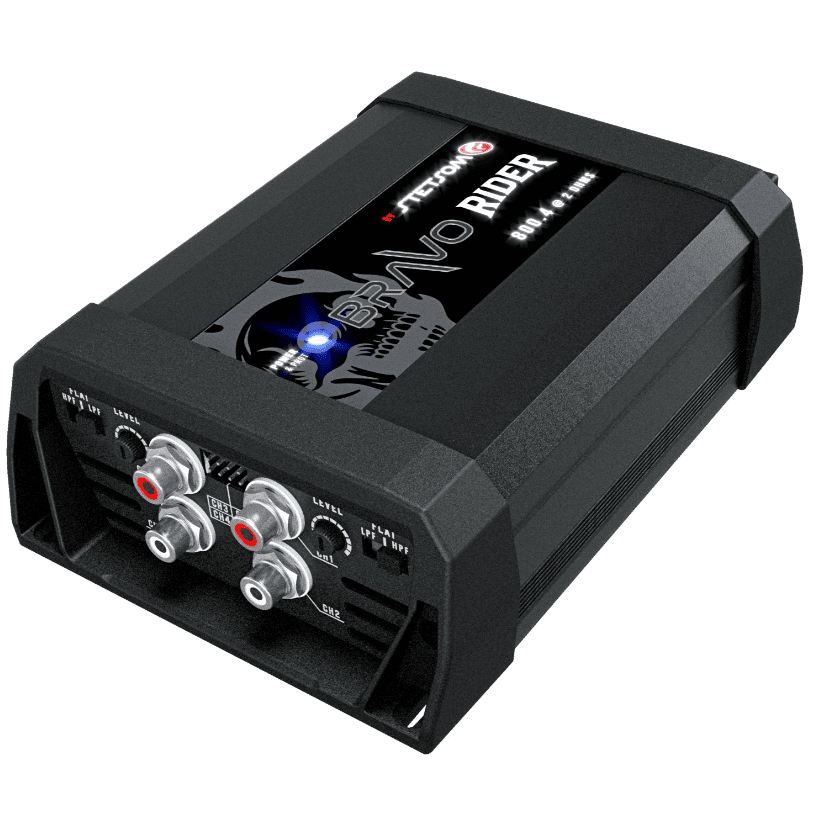

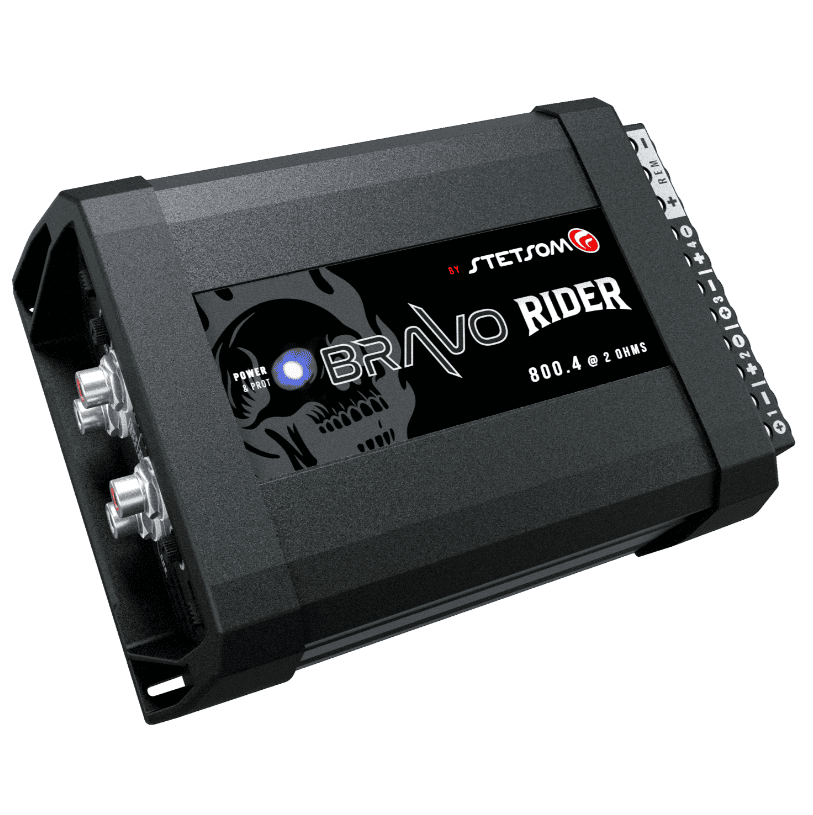

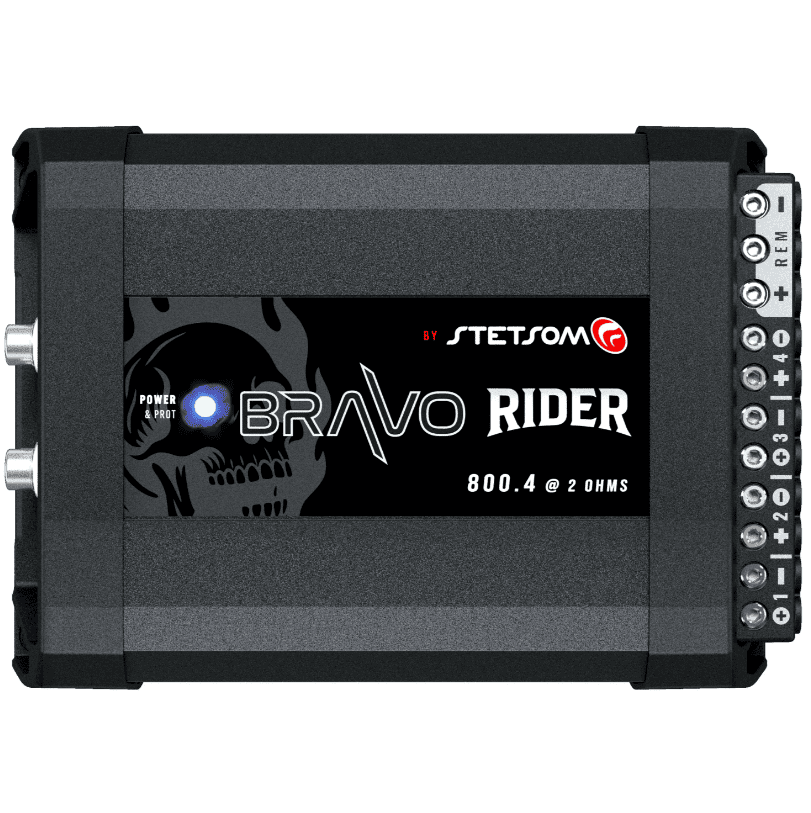

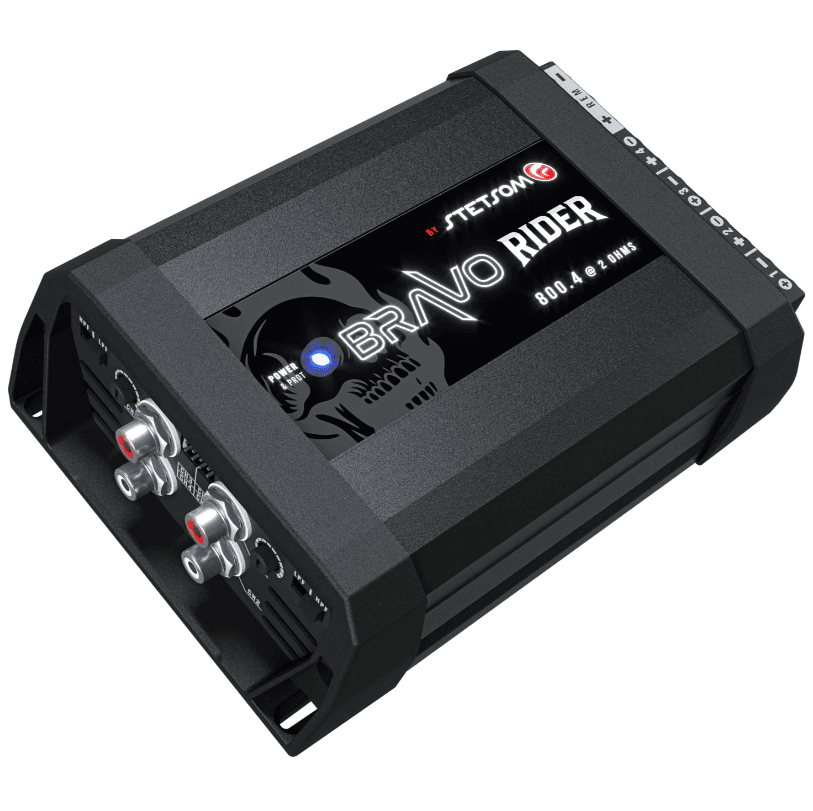

Stetsom Bravo Rider 800.4

Stetsom BRAVO RIDER 800.4


The Stetsom BRAVO RIDER 800.4 was developed for car hi-fi enthusiasts who are looking for powerful performance, high sound quality and a particularly compact design. With a powerful 800 watts RMS distributed over 4 channels, the power amplifier is ideal for front systems, rear systems or smaller subwoofer applications in stereo or bridge mode.


Thanks to modern Class D technology, the BRAVO RIDER 800.4 delivers efficient and precise audio reproduction with clear highs, dynamic mids and controlled bass. The integrated high-pass and low-pass filters allow the sound system to be optimally matched to a wide variety of speaker configurations.


For maximum flexibility, the amplifier has both RCA inputs and high-level inputs and can therefore be easily combined with factory radios or retrofit systems. Separate level controls for the channel pairs also allow individual adjustment of the sound.


Thanks to its particularly compact design, the Stetsom BRAVO RIDER 800.4 is perfect for space-saving installations without having to compromise on performance and sound quality.


Technical data

• Model: Stetsom BRAVO RIDER 800.4 - 2 Ohm
• Channels: 4
• Minimum output impedance:
  • Stereo: 2 OhmBridge
  • : 4 Ohm
• RMS power: 800 W RMS


Power at 14.4 V:

• 4 × 200 W RMS @ 2 Ohm
• 4 × 110 W RMS @ 4 Ohm
• 2 × 400 W RMS @ 4 Ohm (bridge mode)



Further technical data:

• Supply voltage: 9 V - 15 V DC
• Frequency response: 10 Hz - 20 kHz
• Low-pass filter: 90 Hz
• High-pass filter: 90 Hz
• Signal-to-noise ratio: > 90 dB
• Minimum input sensitivity:
  • RCA: 240 mVHigh
  • Input: 1.5 V
• Input impedance:
  • RCA: 18 kOhmHigh
  • Input: 1 kOhm
• Music signal current consumption: 34 A
• Current consumption bass signal: 68 A


Connections & features:

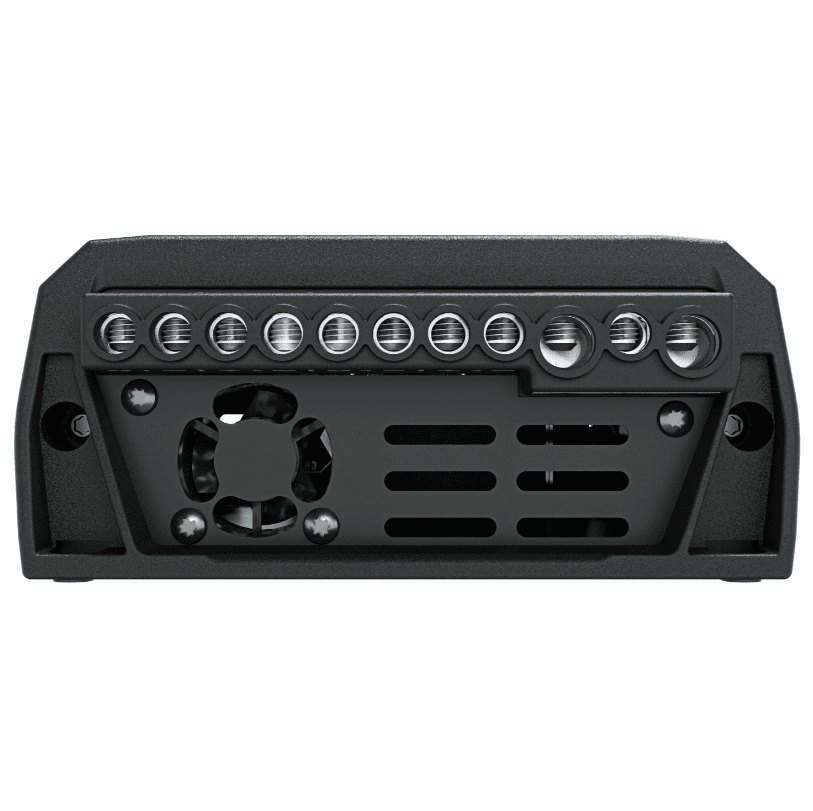

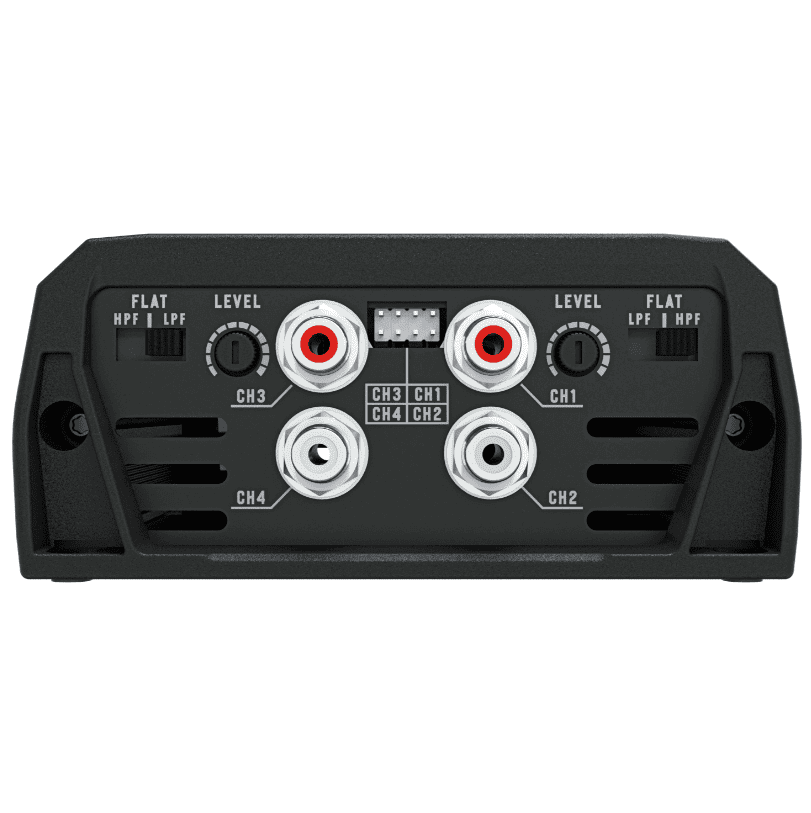

• RCA and high-level inputs
• Separate level control for channel pairs CH1/CH2 and CH3/CH4
• Stereo and bridge operation possible
• Compact design for space-saving installations
• Protective circuits against overheating and voltage errors



Dimensions & weight:

• Dimensions (H × W × L): approx. 5.4 × 11.3 × 16.3 cm
• Weight: approx. 0.75 kg
