HELIX Ci3 K165.2FM-S3

HELIX Ci3 K165.2FM-S3

HELIX COMPOSE. The perfect loudspeaker for every composition.
Born out of the increasingly demanding challenges of modern vehicle technology and the HELIX-typical quest for intelligent solutions, we made the progressive redesign of proven universal loudspeaker systems our mission. The result: the innovative HELIX COMPOSE platform, which combines classic universal loudspeakers with the advantages of vehicle-specific systems according to the guiding principle "developed in the car, for the car". Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: very high efficiency, fantastic sound quality and enormous dynamics that fit into any vehicle. HELIX COMPOSE - universal loudspeakers taken to the next level.

Performance Highlight
The i3 speaker kits offer everything you could wish for from a 2-way system: a first-class sound experience which, thanks to high-quality materials and particularly smart engineering, finds its way into the car very easily and conveniently. All components are ideally matched to each other and also form the perfect team with our HELIX and MATCH amplifiers, guaranteeing maximum performance and power output at all times. In addition, our new mechanical technologies have been implemented with a clear focus on safety during connection and operation, creating ideal conditions for integration into the vehicle with maximum compatibility.

Maximum efficiency
HELIX COMPOSE stands for smart engineering and is therefore based on the highly efficient 3 Ohm technology, which harmonizes perfectly with all HELIX and MATCH amplifiers and at the same time enables a clearly noticeable increase in efficiency and maximum sound pressure. Individual models will also be available as an optional 2 Ohm version, which, in conjunction with the appropriate amplifiers, will get the absolute maximum performance and power out of the respective loudspeaker component.

Cenospherepaper cone
The innovative "Cenosphere" coating involves micro hollow spheres being embedded in a polymer layer and applied to the cone. This process increases rigidity and also optimizes internal damping. The result is an exceptionally stable yet lightweight cone that offers outstanding precision in sound reproduction.

High-tech polymer composite basket
All HELIX COMPOSE i7 and i3 speaker baskets are made from a high-tech polymer composite material that is additionally reinforced with glass spheres. The result: maximum stability with minimum natural resonance, whereby flux modulation of the magnet system is also excluded and there is also maximum resistance to thermal influences. Finally, this enables much more compact basket dimensions and thus simplified installations in confined installation conditions.

Impressive highs and outstanding stability

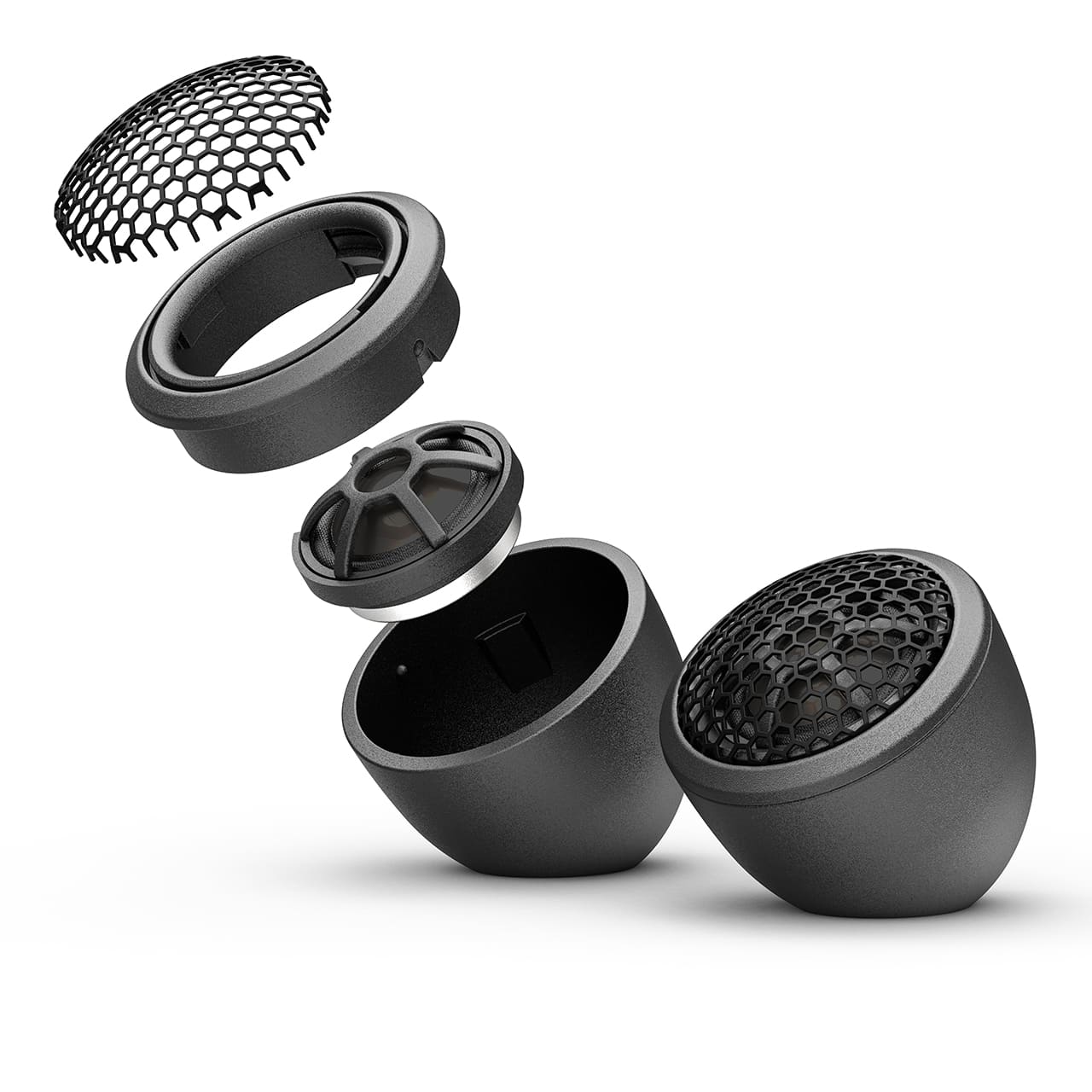

The 20 mm tweeter has an innovative titanium dome tweeter, which is characterized by impressive stability with low moving mass and enormous thermal resilience. This results in brilliant, compression-free tweeter reproduction with excellent fine resolution.

Perfectly separated
The crossover is designed for optimum use with our HELIX Compose i3 components, and therefore for the professional integration into the vehicle that is typical of COMPOSE. It offers a 6-stage tweeter level adjustment with 12 dB slope for optimum adaptation to the installation position as well as integrated tweeter protection. In addition, no effort was spared in the complex tuning of the crossover for the best possible distribution of the frequency band and a harmonious sound image. Thanks to its compact dimensions, the Ci3 FX-UNI.2 is perfect for installation in space-saving installations and is compatible with our COMPOSE Connect and WireKit technologies for maximum operational reliability and minimization of installation errors.

COMPOSE Connect
Goodbye tinkering and soldering. Compose Connect is the sophisticated plug connection that makes car audio installation in conjunction with HELIX COMPOSE components much easier. Thanks to proprietary plastic housings into which standard flat plugs and couplings can be snapped, a reverse polarity and absolutely reliable connection according to automotive standards is made possible.

FlexMount20 & FlexMount165 - Universal meets vehicle-specific
FlexMount is a mounting system based on specially developed adapter rings, which enables the installation of COMPOSE FlexMount speakers in an almost infinite number of vehicles. In no time at all, the universal speaker is transformed into a vehicle-specific speaker, which can be installed easily and acoustically optimized in the original installation position of any vehicle using the matching FlexMount ring.

WireKits - Plug & Play at the highest level
Our WireKits make it easy to connect the HELIX COMPOSE speaker system to the original wiring harness. Manufactured to the high standards of the automotive industry, these lockable adapter cables meet all the requirements for the harsh environmental conditions in vehicles.

Features

✓ 2-way performance speaker kit that combines unique sound characteristics with the most versatile integration options
✓ High efficiency and 3 Ohm technology for maximized power output of the amplifier
✓ Sophisticated plug connections according to automotive standards for a safe, non-polarizable connection - COMPOSE Connect & ProConnect

Tweeter
✓ 20 mm tweeter with titanium dome for precise and dynamic high-frequency reproduction
✓ Highly efficient neodymium magnet for optimum linear magnetic flux.magnet for an optimally linear magnetic flux
✓ Compact design and various mounting options for a wide range of installation requirements
✓ Enclosure for recessed and angled installation included

Mid-bass driver
✓ 165 mm mid-bass driver with unique Cenosphere-coated paper cone for precise and detailed sound reproduction
✓ High-tech polymer composite basket reinforced with glass beads for maximum rigidity and minimum resonance
✓ Powerful magnet system for high efficiency and optimum impulse response
✓ Polyurethane dome (dustcap) to optimize the frequency response in the upper mid-range

Crossover
✓ High-quality separate crossover with compact dimensions, separate crossover with compact dimensions for easy installation
✓ 6-stage tweeter level adjustment with integrated tweeter protection for optimum adaptation to the installation position
✓ Elaborately tuned - with 12 dB slope for the tweeter
✓ Compatible with the optionally available WireKits for a vehicle-specific connection to the original vehicle, retrofittable connection to the original vehicle wiring harness
✓ Compatible with the optionally available, vehicle-specific FlexMount165 & FlexMount20 adapter rings, which are FlexMount20 adapter rings, which enable acoustically optimized and professional integration in the original installation positions of the vehicle

Technical data

✓ Scope of delivery

2 x Ci3 T20FM-TI tweeters
2 x Ci3 W165FM-S3 bass-midrange drivers
2 x Ci3 FX-UNI.2 crossover
2 x Ci3 FX-WLP.2 low-pass cable crossover
2 x Tweeter mounting accessories
2 x COMPOSE Connect Kit
1 x Mounting material

🗒Instruction manual
☞(Download)
